SSBFHSD
BI-METAL-ruuvi poranterällä/siipillä

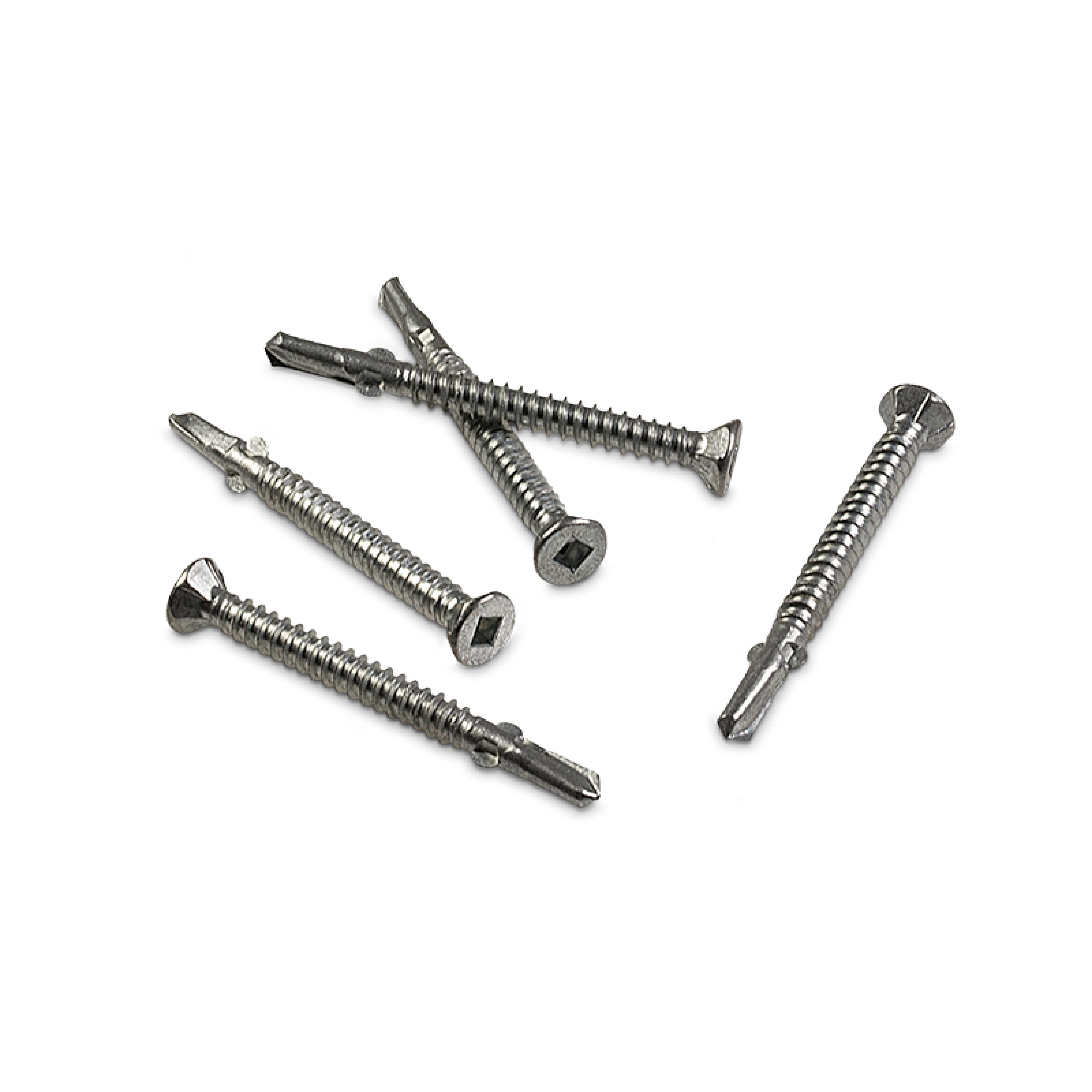

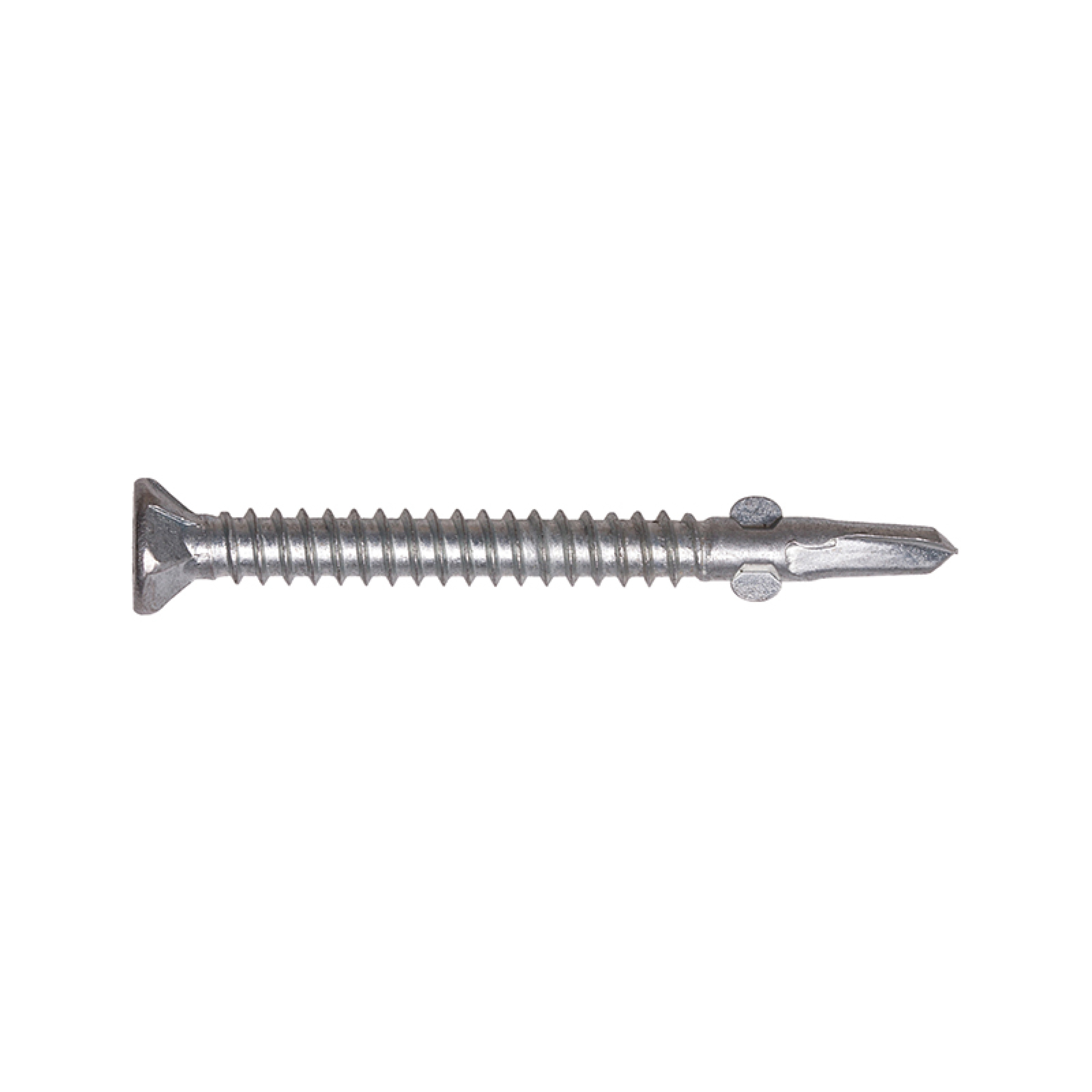

The BFHSD Bi-Metal screw is designed for timber to steel joist (1.2–2.4 mm steel thickness) applications. The winged design cuts a clearance hole and avoids sheet ride. The Bi-metal design consists of 316 stainless steel and a carbon steel tip which is perfect for steel joist applications without compromising on corrosion resistance.
Pre-drilling and countersink may be necessary at ends, butt joints, and on applications where denser material is used. Follow board manufacturers recommendations where applicable.
Käyttöluokka 3
Ruostumaton teräs
Severe
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Product Dimensions
| Tuotenro | DB nr. | NOBB nr. | Fastener dimensions [mm] | Suurin levyn paksuus [mm] | Suurin teräksen paksuus [mm] | Qty per strip | Määrä per pakkaus | Suositeltu kierrosnopeus | Bit | Yhteensopiva | Paino [kg] | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | ht | lg | lp | tfix | bit | |||||||||||
| SSBFHSD2SE | 2135424 | 57302000 | 4.9 | 50 | 8.5 | - | - | - | - | - | < 28mm | 1.2–2.4 | 30 | 1000 | 2500 | BIT2SE | QDPROLDHG2 | 0.007 |
