CLR Plus SK

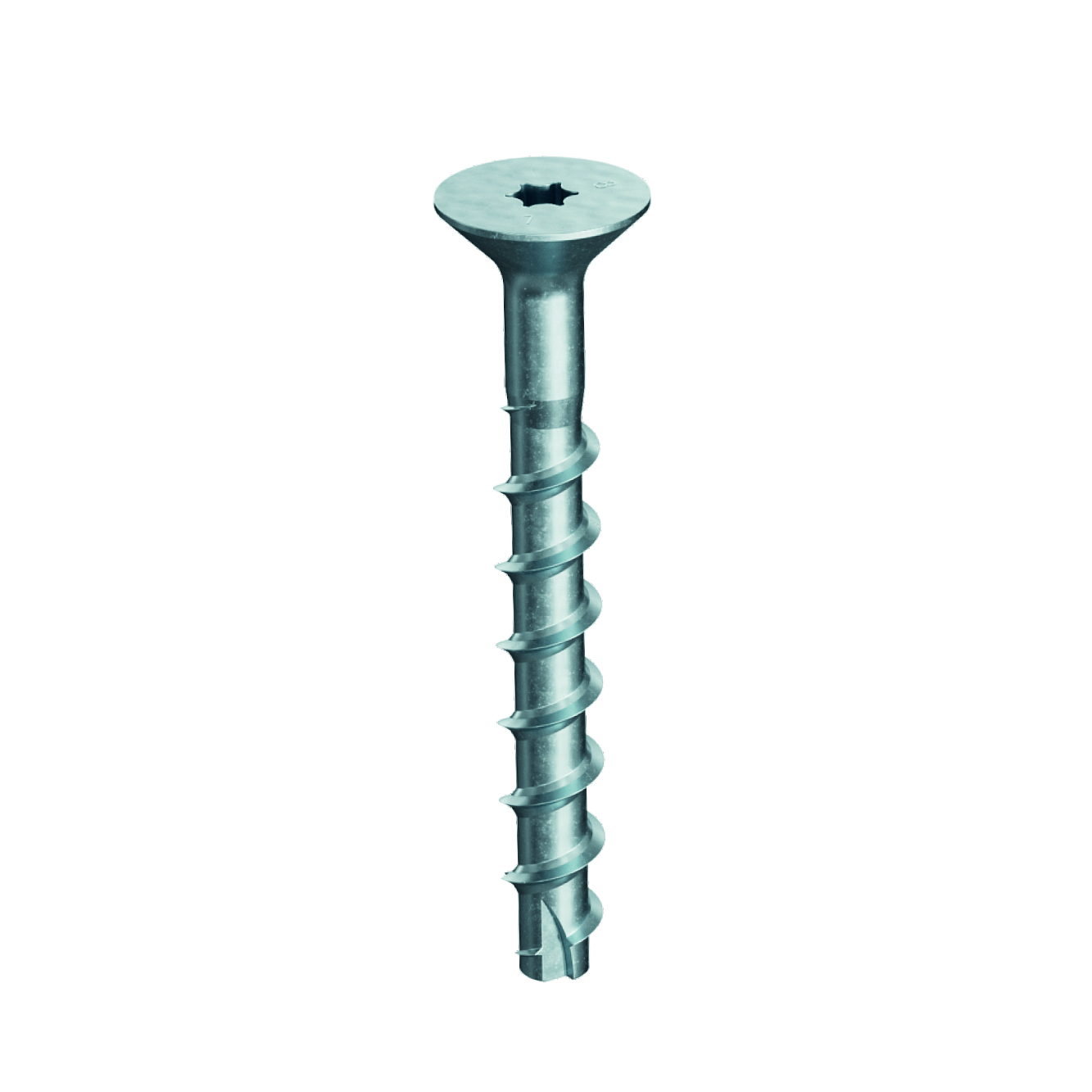

Countersunk Concrete Screws

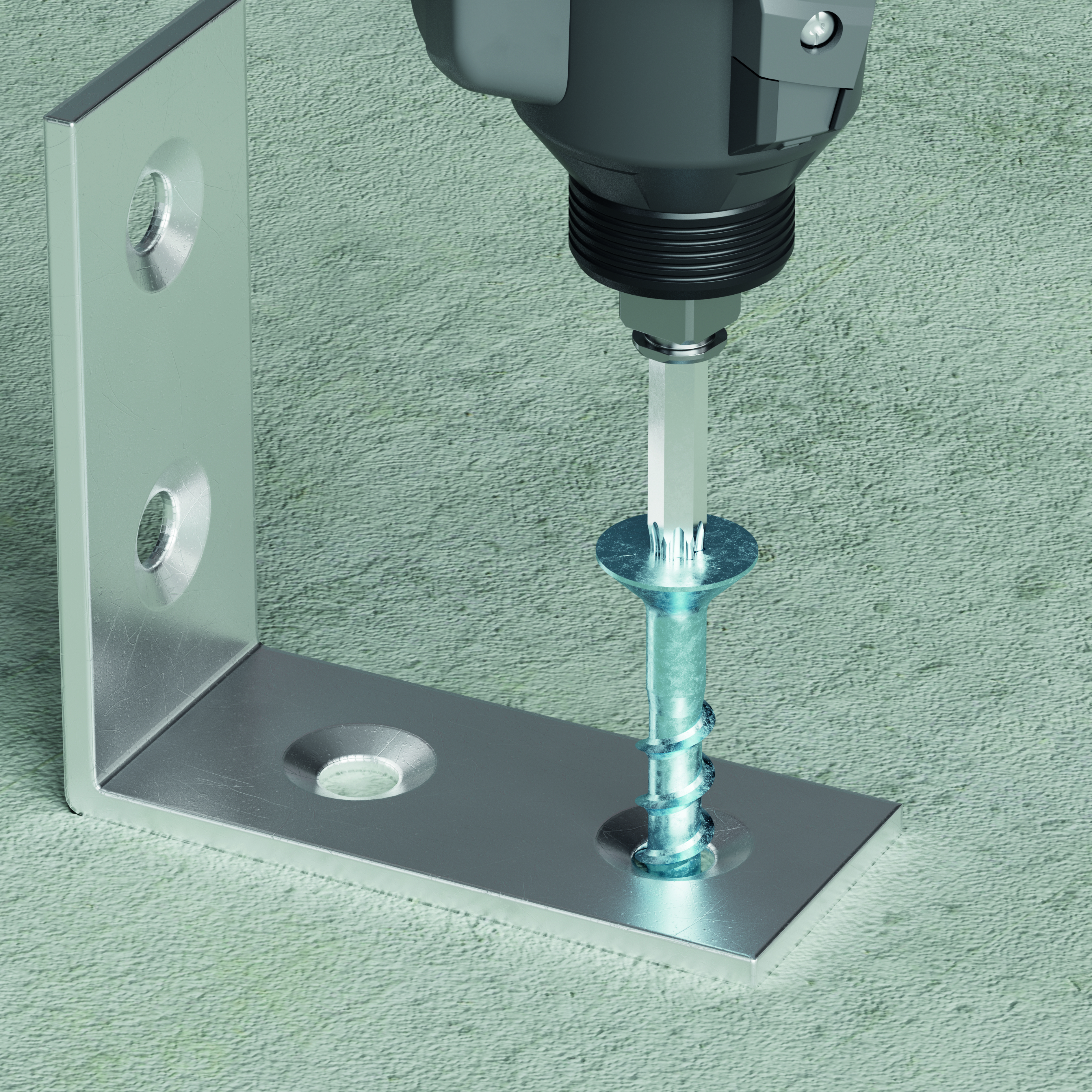

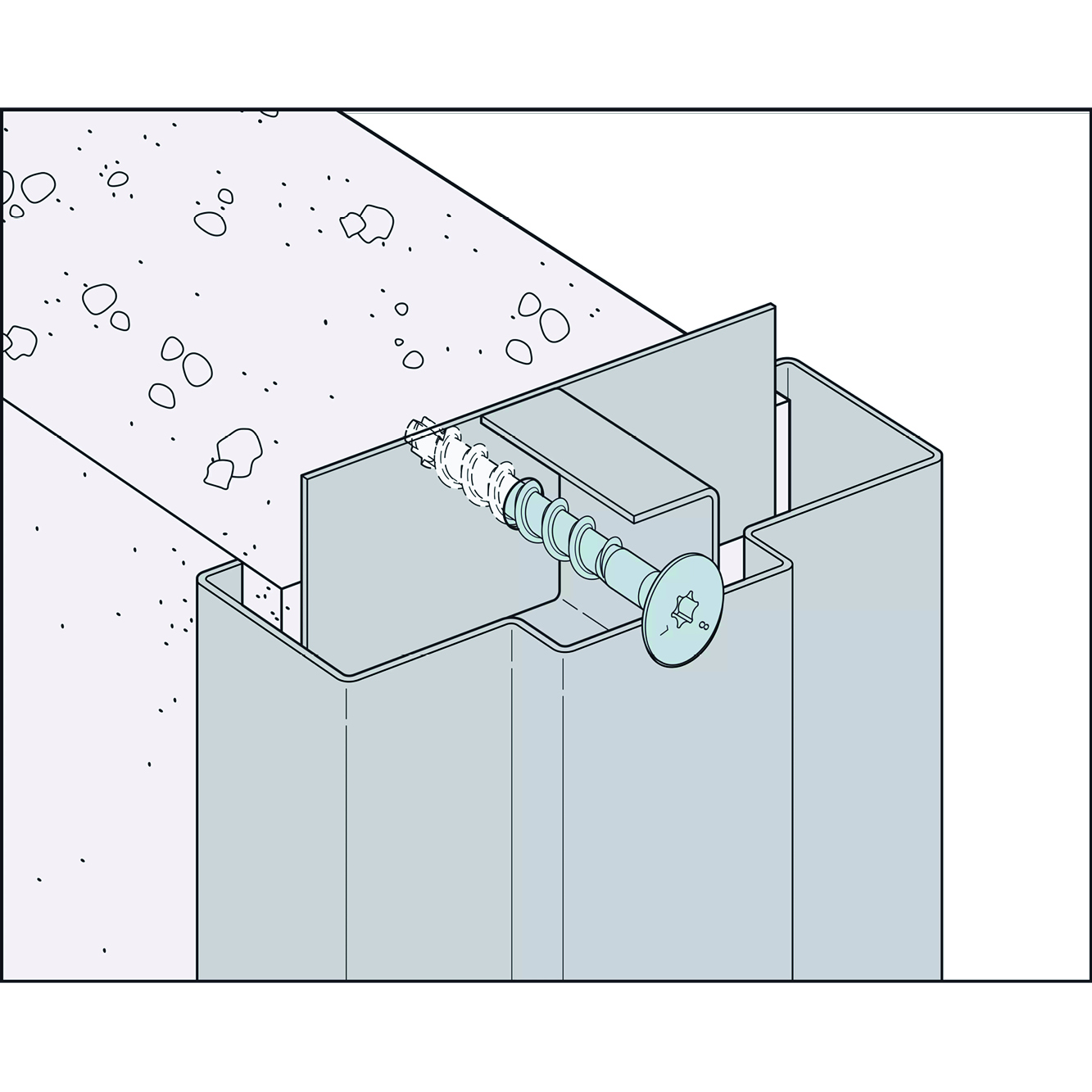

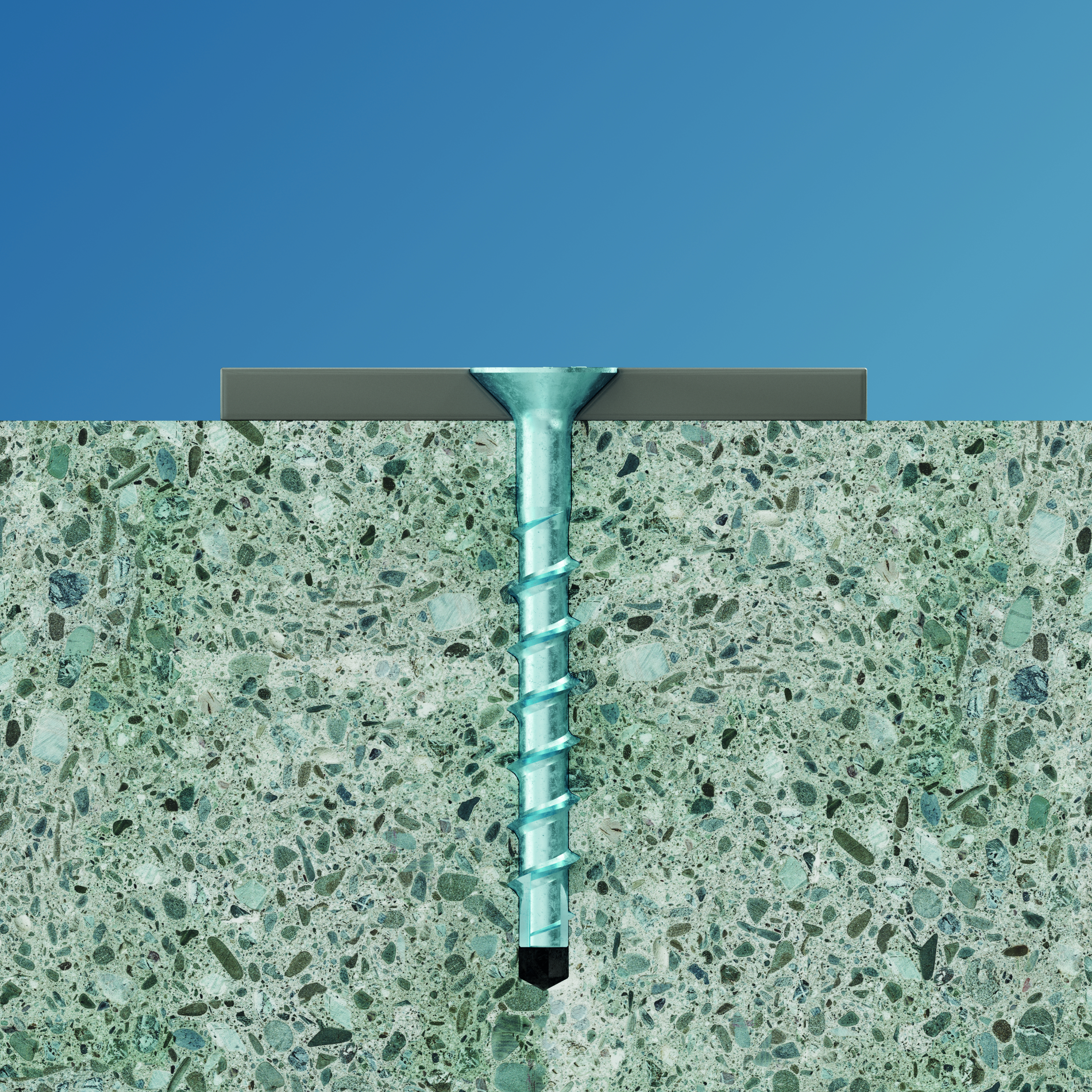

The countersunk head is often used when the screw must remain flush with the object to be fixed, for aesthetical reasons or to avoid intereferences above it.

CE-merkitty
CE-merkitty
Tekninen hyväksyntä
Tekninen hyväksyntä
Seismic C1 C2
Seismic C1 C2

Tuotteen yksityiskohdat

Kuvat

Sovellus

Material

  • Electro-galvanized steel

Suitable on

  • Cracked and uncracked concrete

Tekniset tiedot

Product dimensions

ViiteMetallic fixings dimensions
TuotenumeroMuuMitat ja ominaisarvot[mm]
Reiän halkaisija [dₒ][mm]Fixing thickness (tfix) for reduced embedment depth (hef,r)Kiinnikkeen paksuus [tfᵢₓ] (¹)[mm]Fixing thickness (tfix) for increased embedment depth (hef,max)Määrä / pakkaus[pcs]Määrä per ulkolaatikkoDim[mm]
CLR Plus SK 5x4072107B050400055--100.04005x40
CLR Plus SK 5x6072107B0506000525--100.010005x60
CLR Plus SK 6x4072107B060400065--100.04006x40
CLR Plus SK 6x6072107B0606000625205100.04006x60
CLR Plus SK 6x8072107B06080006454025100.04006x80
CLR Plus SK 8x8072107B0808000835251550.02008x80
CLR Plus SK 8x10072107B0810000855453550.02008x100
CLR Plus SK 10x9072107B1009000103515550.020010x90
CLR Plus SK 10x10072107B10100001045251550.020010x100

Special order item. Please contact Customer Service for further information.

Sertifiointi

Eurooppalainen tekninen arviointi (ETA)

product.doc.history.none
product.doc.history.none
product.doc.history.none

Lataukset

  • CLR PLus

    CLR PLus

    Discover CLR Plus – our new range of concrete screws for quick and effective fastening in concrete. In the brochure, you’ll find a clear overview of the range, as well as information on features, applications and dimensions.

CAD- ja BIM-kirjasto

2D
3D
