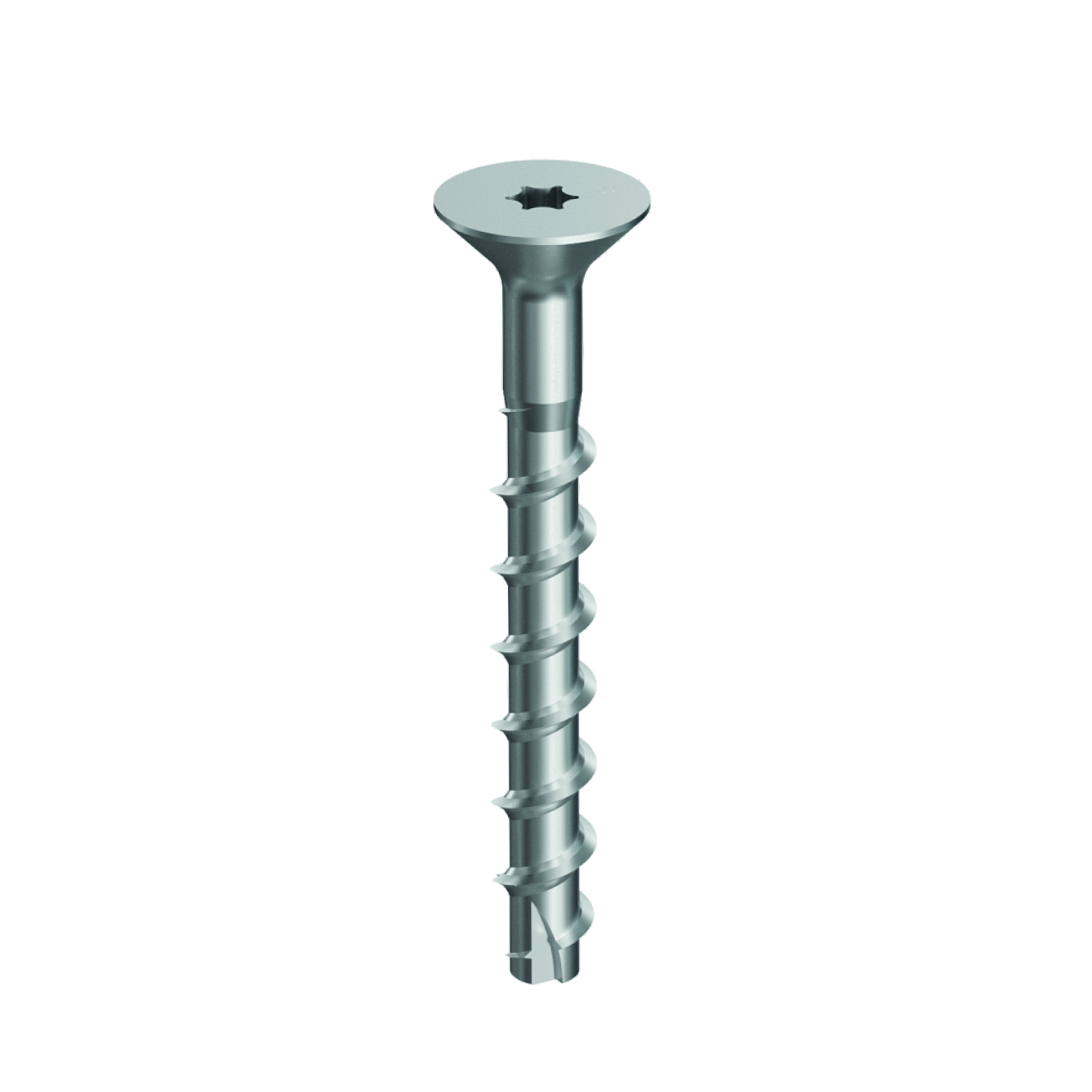

CLR Plus SK ZF
Countersunk Concrete Screws Zinc-Flake Coated
The zinc-flake coated countersunk head screw is often used when a coated screw is preferred in applications where the screw must remain flush with the object, for aesthetical reasons or to avoid interferences above it.

CE-merkitty

Tekninen hyväksyntä

Seismic C1 C2
Tuotteen yksityiskohdat
Sovellus
Material
- Zinc-flake coated steel
Suitable on
- Cracked and uncracked concrete
Tekniset tiedot
Product dimensions
| Viite | Metallic fixings dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||||
| Reiän halkaisija [dₒ][mm] | Fixing thickness (tfix) for reduced embedment depth (hef,r) | Kiinnikkeen paksuus [tfᵢₓ] (¹)[mm] | Fixing thickness (tfix) for increased embedment depth (hef,max) | Määrä / pakkaus[pcs] | Määrä per ulkolaatikko | Dim[mm] | ||
| CLR Plus SK ZF 6x80 | 72107C0608000 | 6 | 45 | 40 | 25 | 100.0 | 400 | 6x80 |
| CLR Plus SK ZF 6x100 | 72107C0610000 | 6 | 65 | 60 | 45 | 100.0 | 400 | 6x100 |
| CLR Plus SK ZF 6x120 | 72107C0612000 | 6 | 85 | 80 | 65 | 100.0 | 400 | 6x120 |
Sertifiointi
Eurooppalainen tekninen arviointi (ETA)
product.doc.history.none
product.doc.history.none
product.doc.history.none
Lataukset
CAD- ja BIM-kirjasto
2D
CLR Plus SK ZF 6x80
-
-
-
-
CLR Plus SK ZF 6x100
-
-
-
-
CLR Plus SK ZF 6x120
-
-
-
-
3D
CLR Plus SK ZF 6x80
-
-
-
-
-
CLR Plus SK ZF 6x100
-
-
-
-
-
CLR Plus SK ZF 6x120
-
-
-
-
-
