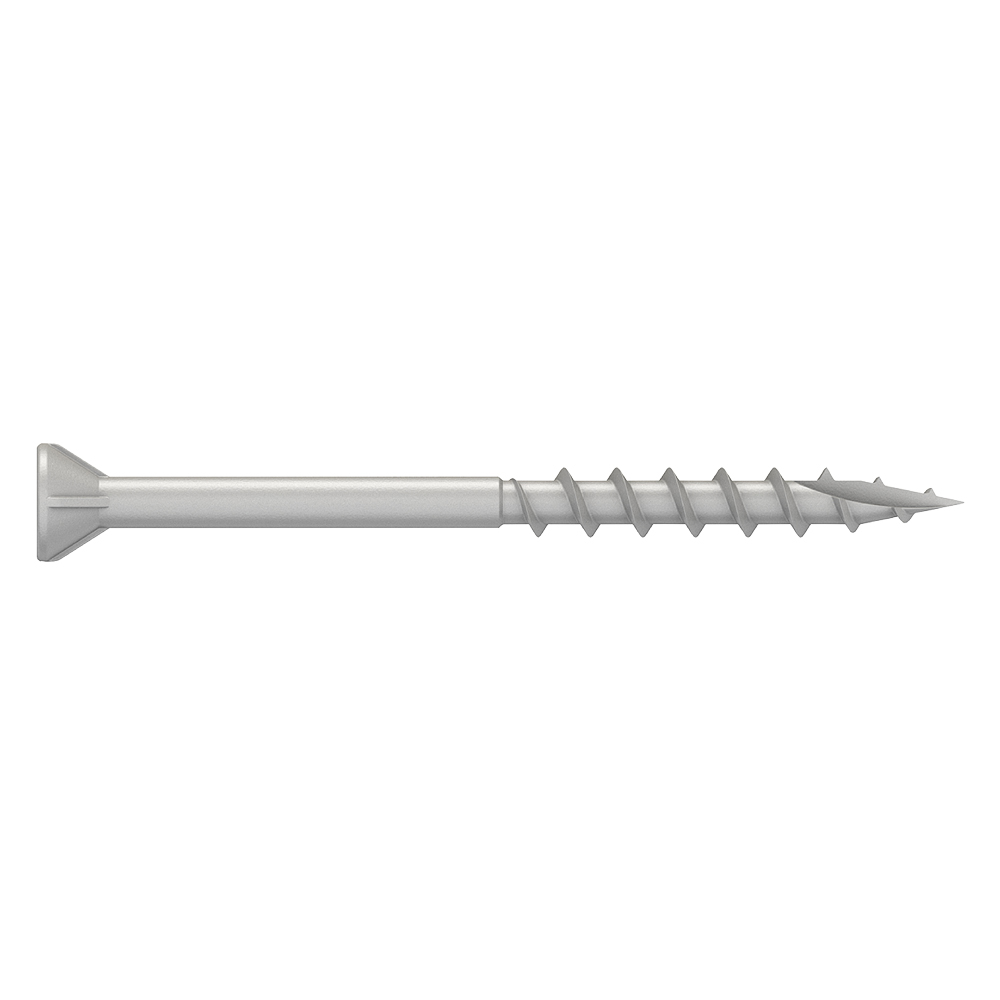

DSIX4
Decking Screw - Impreg®X4
The DSIX4 decking screws are designed for treated wood. The screws have a 6 lobe recess to ensure good grip. The type 17 point drives the screw efficiently and prevents wood splitting.
CE-merkitty
Käyttöluokka 2
Impreg® x4
Outdoor
EPD
Fastener Designer
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet

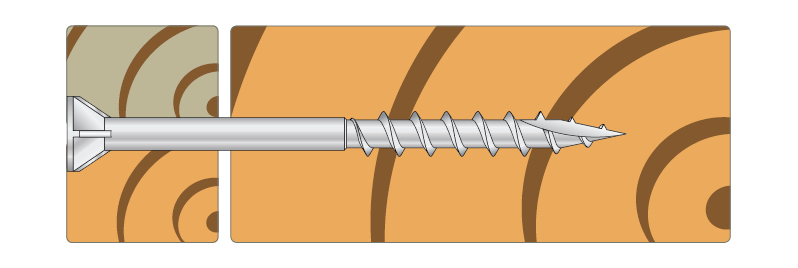

Sovellus
Tekniset tiedot

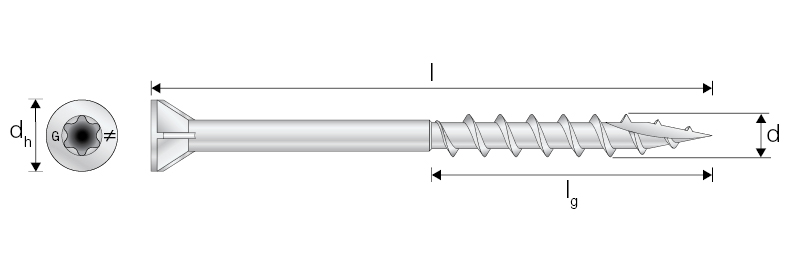

Mitat ja ominaisarvot
| Tuotenro | Tuotenumero | Mitat [mm] | Paino [kg] | |||||
|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | Bit | |||
| DSIX44.2X35T-20 | 74361 | 4.2 | 35 | 7.3 | 20 | 15 | T-20 | 0.002 |
| DSIX44.2X45T-20 | 74362 | 45 | 7.3 | 23.5 | 21.5 | T-20 | 0.003 | |
| DSIX44.2X55T-20 | 74363 | 55 | 7.3 | 27.5 | 27.5 | T-20 | 0.003 | |
| DSIX44.2X75T-20 | 74365 | 75 | 7.3 | 40.5 | 34.5 | T-20 | 0.004 | |
Yhdistetty ruuvit
| Tuotenro | Tuotenumero | DB nr. | NOBB nr. | Mitat [mm] | Box Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | Bit | |||||
| DSIX44.2X45PH2 | 74294 | - | 53293656 | 4.2 | 45 | 7.3 | 2.5 | 23.5 | 21.5 | PH2 | 1000 |
| DSIX44.2X55PH2 | 74354 | 1949813 | 53293660 | 4.2 | 55 | 7.3 | 2.5 | 27.5 | 27.5 | PH2 | 1000 |
| DSIX44.2X75PH2 | 74355 | 1949814 | 53293675 | 4.2 | 75 | 7.3 | 2.7 | 40.5 | 34.5 | PH2 | 400 |
