TTFA4
Decking Screw - Stainless Steel A4
Suitable for marine environments and industrial atmospheres. The TTFA4 screw will not discolour the woodwork around the screw head. Also suitable for precious woods such as oak, cedar or larch.

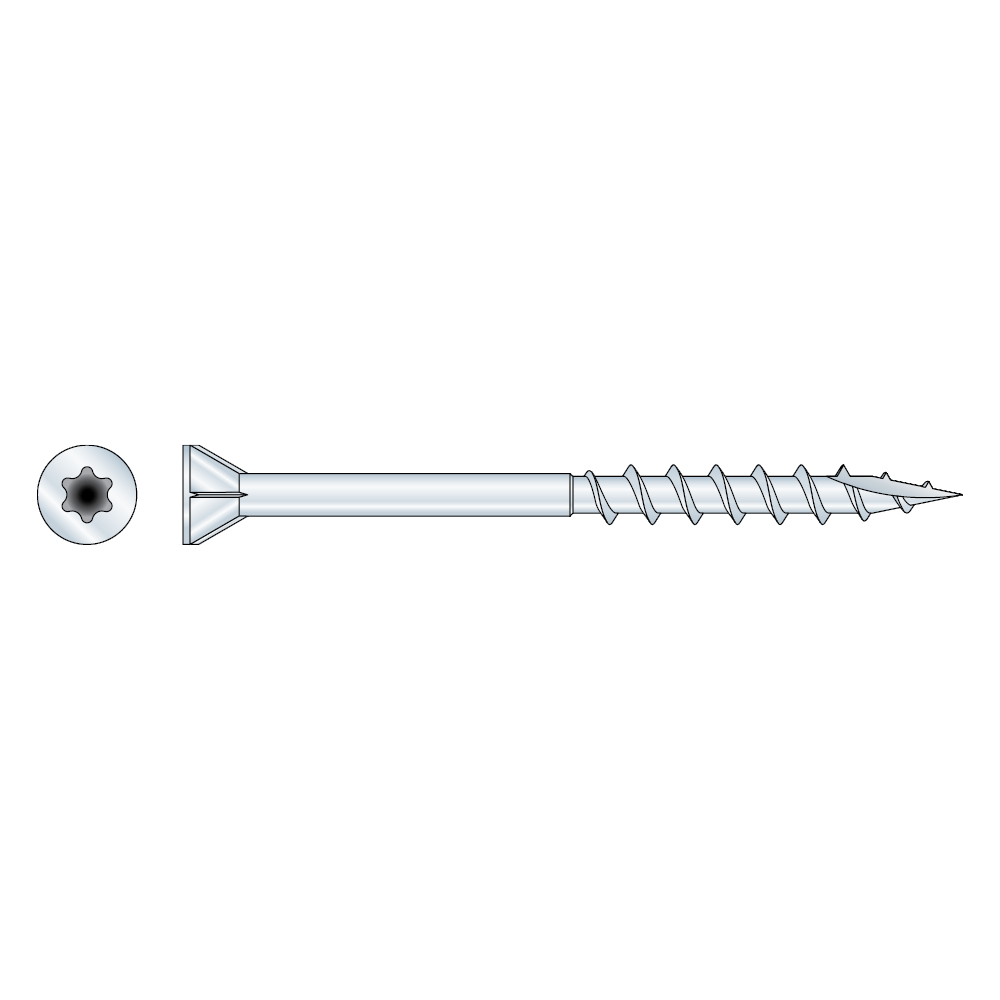

The screw has a 6 lobe recess to ensure good grip and a cutpoint, which effectively drives the screw into the woodwork and counteracts splitting.
CE-merkitty
Ruostumaton teräs
Käyttöluokka 3
EPD
Severe
Fastener Designer
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat ja ominaisarvot
Mitat
| Viite | Mitat | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||||
| Paino[kg] | D[mm] | L[mm] | dₕ[mm] | lg[mm] | tfix[mm] | Bit[mm] | ||
| TTFA44.2X35T-20 | 74385 | 0.002 | 4.2 | 35 | 7 | 20 | 14 | T-20 |
| TTFA44.2X45T-20 | 74386 | 0.003 | 4.2 | 45 | 7 | 23 | 22 | T-20 |

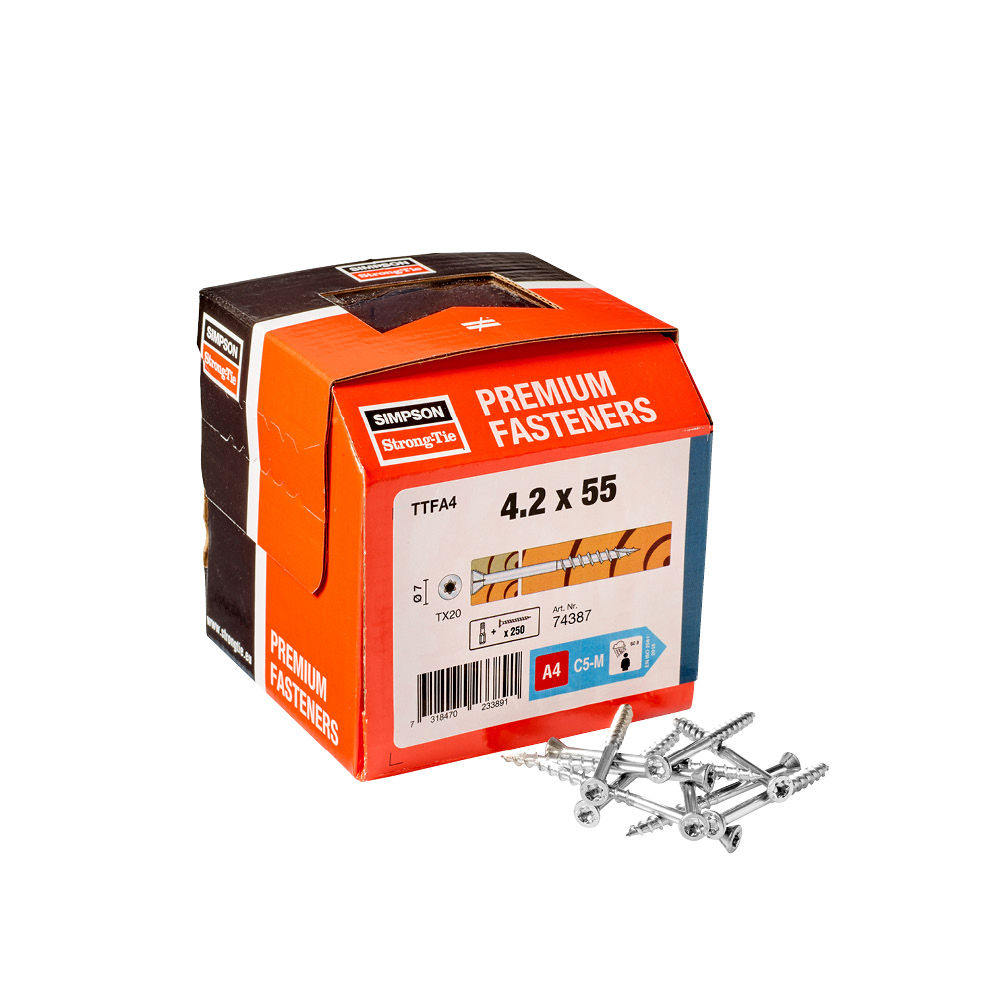

| TTFA44.2X55T-20 | 74387 | 0.003 | 4.2 | 55 | 7 | 27.5 | 27.5 | T-20 |

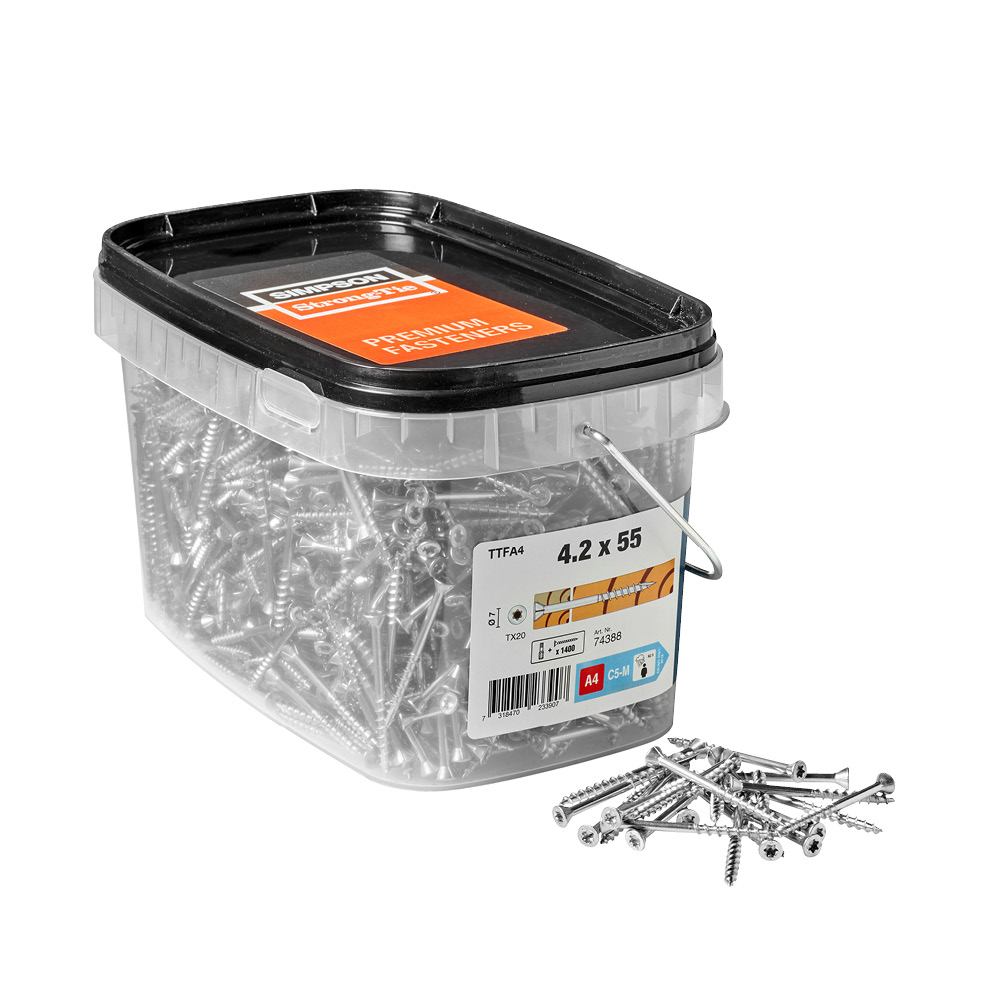

| TTFA44.2X55T-20 Bulk | 74388 | - | 4.2 | 55 | 7 | 27.5 | 27.5 | T-20 |
| TTFA44.8X75T-20 | 74389 | 0.006 | 4.8 | 75 | 7 | 35 | 40 | T-20 |

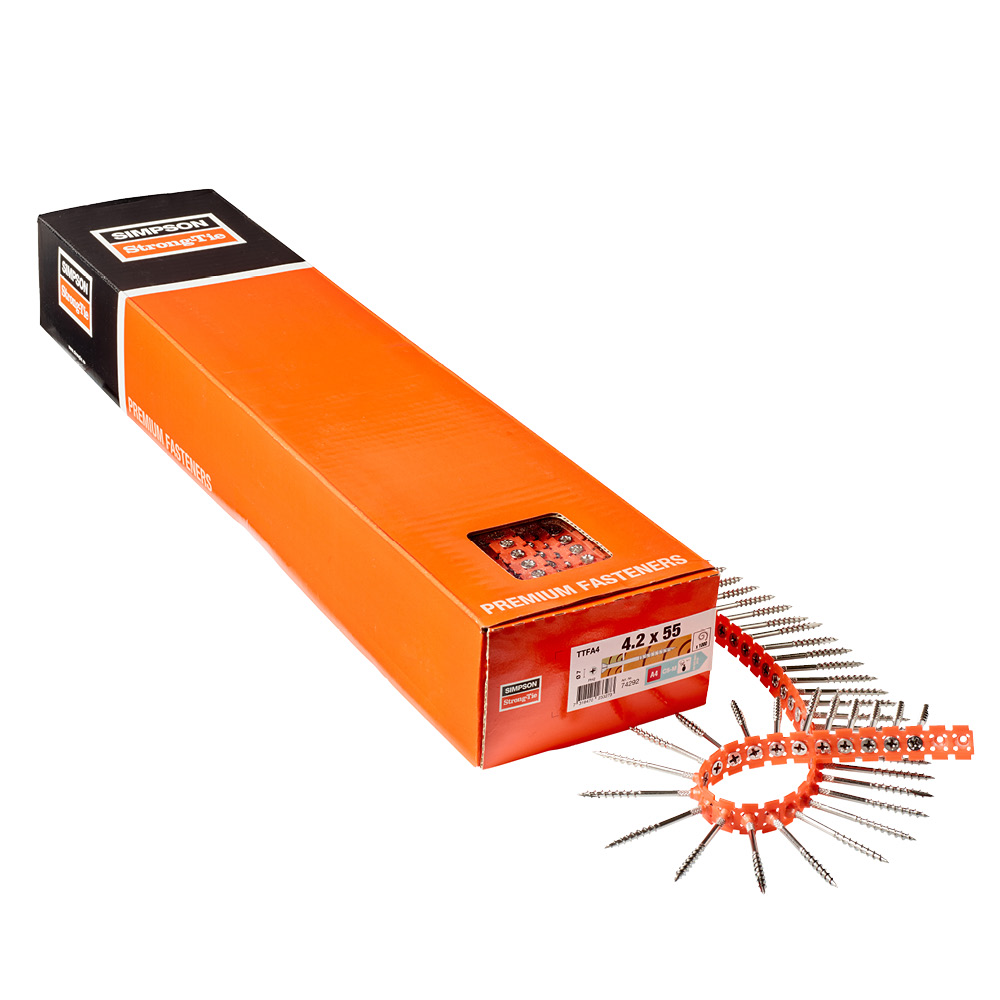

Yhdistetty ruuvit
| Viite | Mitat | ||||||
|---|---|---|---|---|---|---|---|
| Tuotenumero | Mitat ja ominaisarvot[mm] | ||||||
| D[mm] | L[mm] | dₕ[mm] | lg[mm] | tfix[mm] | Bit[mm] | ||
| TTFA44.2X45PH2 | 74291 | 4.2 | 45 | 7 | 23 | 22 | PH2 |
| TTFA44.8X75PH2 | 74293 | 4.8 | 75 | 7 | 35 | 40 | PH2 |
Tuotteen ominaisuudet
Mitat
| Viite | Screw Parameters | |||
|---|---|---|---|---|
| Tyypillinen vääntölujuus - fₜₒᵣ,ₖ [Nm] | ||||
| Taivutuslujuus - My,ₖ[Nm] | Tyypillinen vetoparametri - fₐₓ,ₖ,₉₀°[N/mm²] | Tyypillinen läpivetoparametri - fₕₑₐd,ₖ[N/mm²] | Tyypillinen vetolujuus - fₜₑₙₛ,ₖ[kN] | |
| TTFA44.2X35T-20 | 2575 | 17 | 20.4 | 4.2 |
| TTFA44.2X45T-20 | 2575 | 17 | 20.4 | 4.2 |
| TTFA44.2X55T-20 | 2575 | 17 | 20.4 | 4.2 |
| TTFA44.2X55T-20 Bulk | 2575 | 17 | 20.4 | 4.2 |
| TTFA44.8X75T-20 | 4371 | 20.7 | 16.4 | 5.6 |
| TTFA44.2X45PH2 | 2575 | 17 | 20.4 | 4.2 |
| TTFA44.8X75PH2 | 4371 | 20.7 | 16.4 | 5.6 |
