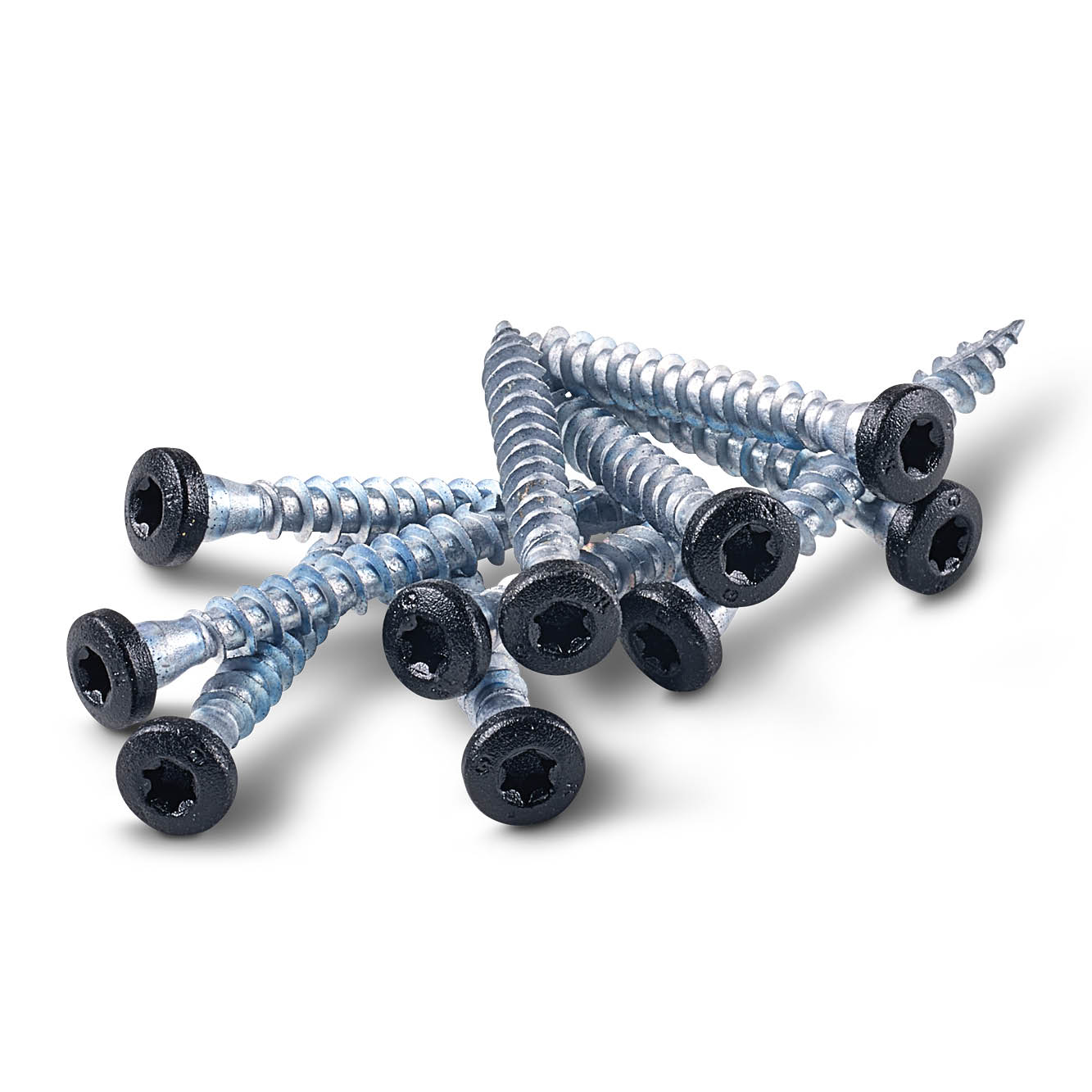

CSA-ZPB
Design-sarjan liitospultit – Impreg® + musta maali
CSA connector screw is developed for mounting of steel connectors to timber.
The conical head secures fully contact to the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The torx helps to fix the screw during insertion.
The black painted head ensure aesthetic finish with Design series connectors
CE-merkitty
Tekninen hyväksyntä
Uusi
EPD
Impreg® +
Outdoor
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Product dimensions and capacities
Mitat
| Viite | Mitat | Screw Loads | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Muu | Mitat ja ominaisarvot[mm] | Tuotteen ominaisuudet[kN] | |||||||||
| DB nr. | Määrä per blisteripakkaus | Määrä / laatikko | d[mm] | L[mm] | dₕ[mm] | d₁[mm] | lg[mm] | Bit[mm] | Rₗₐₜ,ₖ | Rₐₓ.ₖ[kN] | |
| CSA5.0X40ZPB | 2391139 | - | 100.0 | 5 | 40 | 8.3 | 3.15 | 34 | T-20 | 2.3 | 2.5 |
| CSA5.0X40ZPB-R | 2391140 | 20.0 | - | 5 | 40 | 8.3 | 3.15 | 34 | T-20 | 2.3 | 2.5 |
