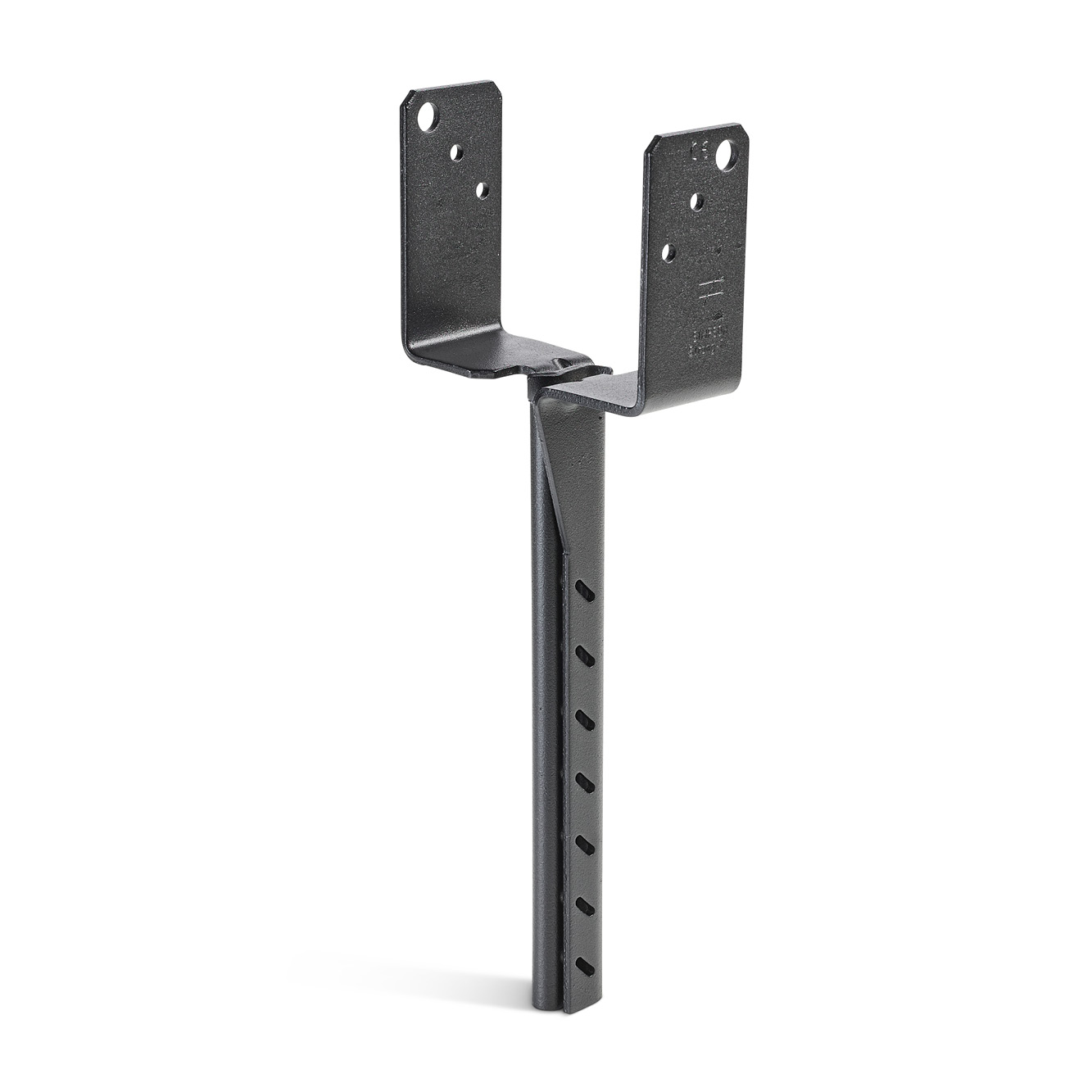

PBWS-PB
Design-sarjan pylväsjalka
Post bases are used to fix timber posts to the ground and lift the timber from the ground to protect it from water. PBWS-PB post bases can be cast in cement or, if you have an existing concrete foundation, you can drill a hole and fix the post base with concrete adhesive.
CE-merkitty
Tekninen hyväksyntä
Käyttöluokka 3
Outdoor
ZPRO
RAL 9005
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Tekniset tiedot

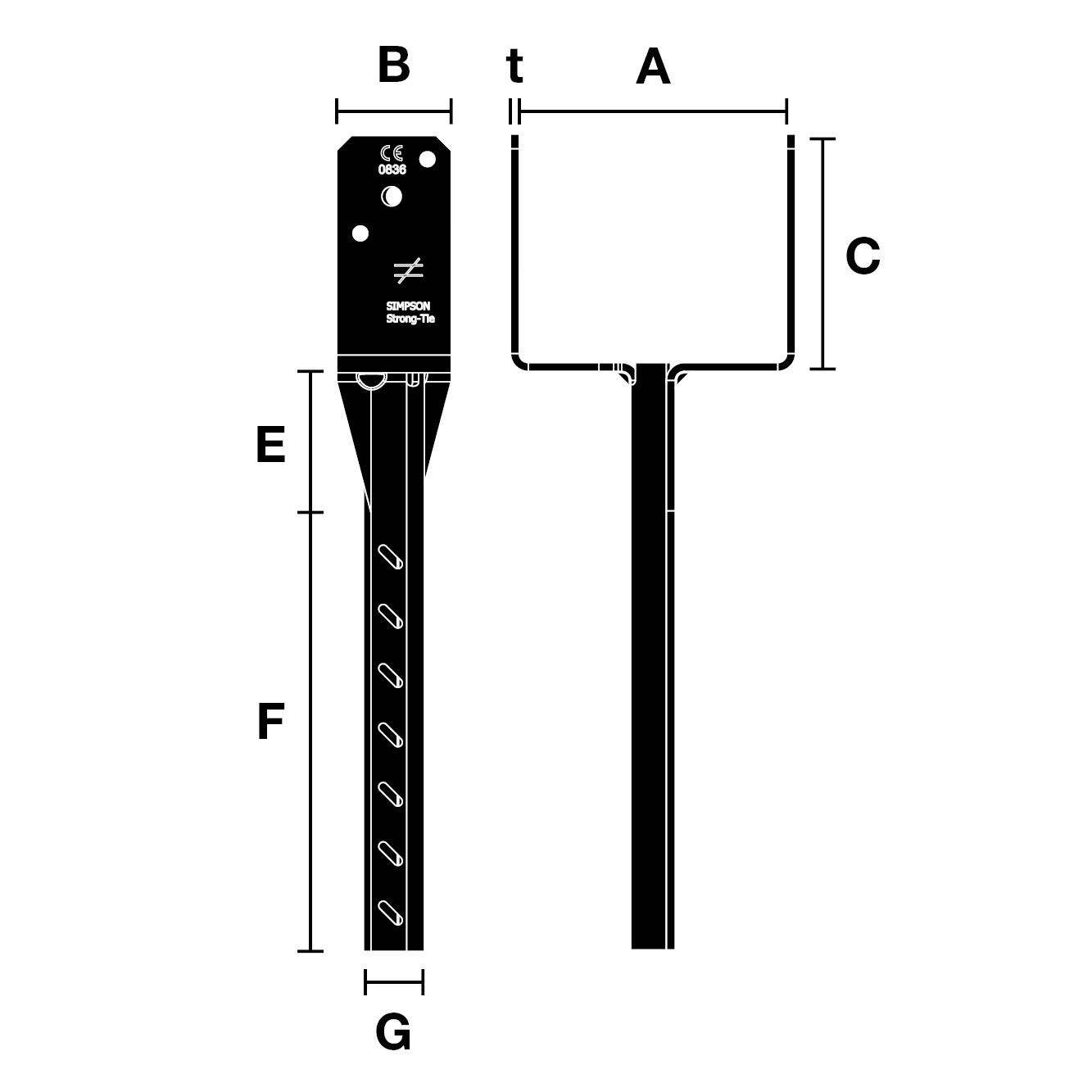

Dimensions
| Tuotenro | DB nr. | NOBB nr. | A | B | C | E | F | G | t | Qty per box | Paino [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PBWS45PB | 2338236 | - | 45 | 40 | 99.5 | 50 | 150 | 22 | 3 | 15 | 0.5 |
| PBWS48PB | - | - | 48 | 40 | 98 | 50 | 150 | 22 | 3 | 15 | 0.5 |
| PBWS70PB | 2338237 | - | 70 | 40 | 87 | 50 | 150 | 22 | 3 | 15 | 0.5 |
| PBWS73PB | 2338238 | - | 73 | 40 | 85.5 | 50 | 150 | 22 | 3 | 15 | 0.5 |
| PBWS90PB | 2338239 | - | 90 | 40 | 77 | 50 | 150 | 22 | 3 | 15 | 0.5 |
| PBWS98PB | - | - | 98 | 40 | 73 | 50 | 150 | 22 | 3 | 15 | 0.5 |
| PBWS100PB | 2338240 | - | 100 | 40 | 72 | 50 | 150 | 22 | 3 | 15 | 0.5 |
