GS

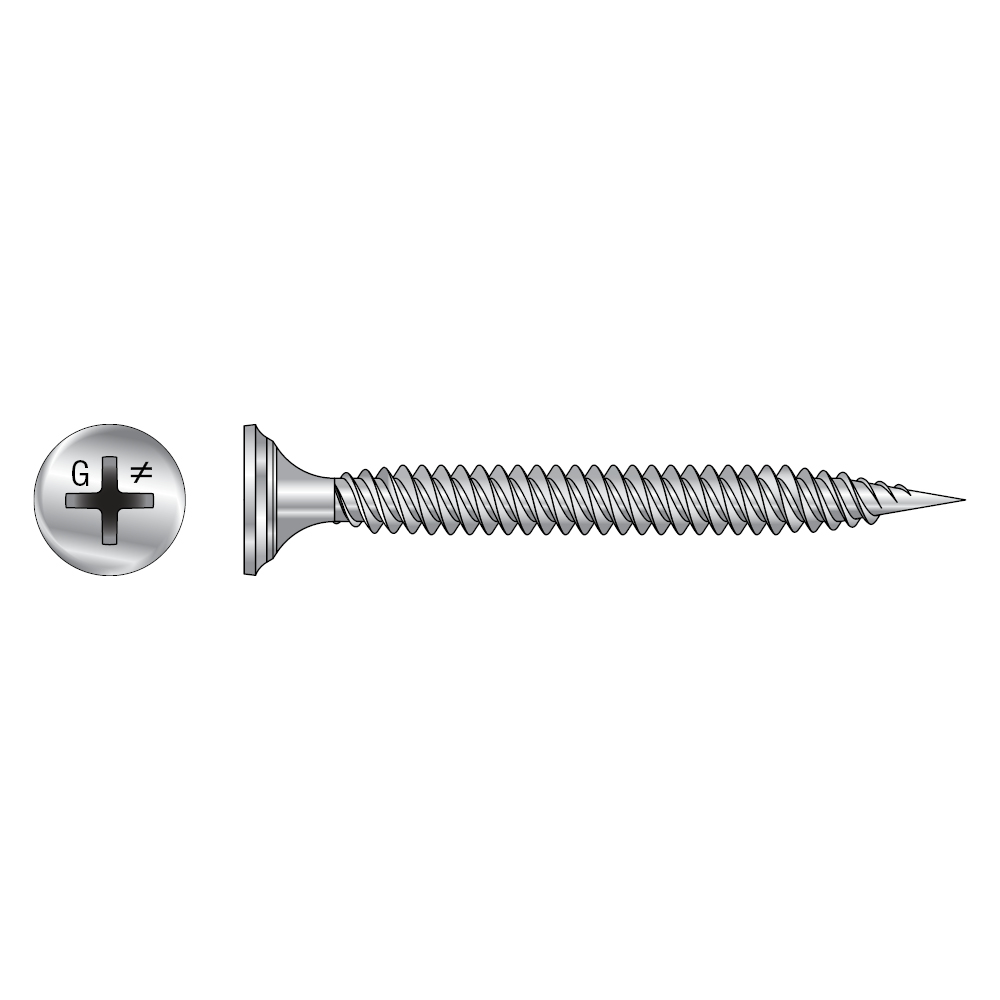

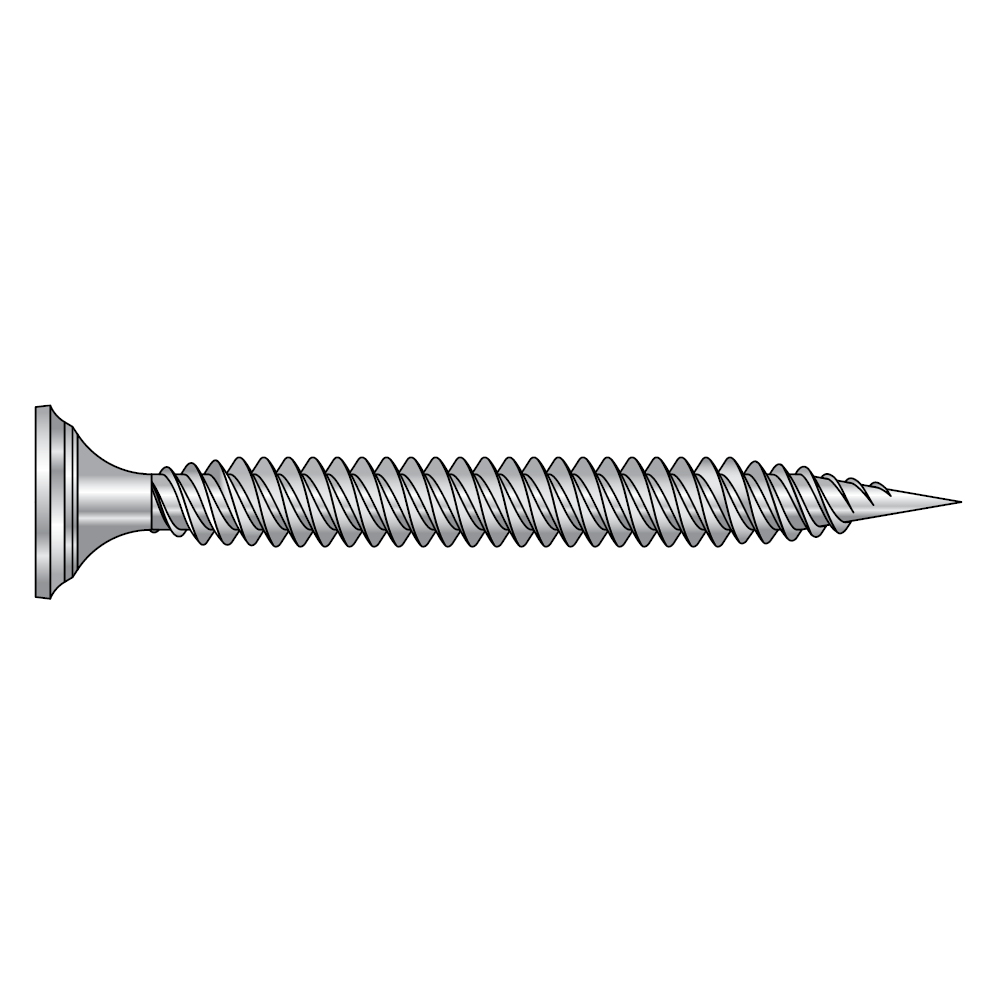

Drywall to Steel Screw

Used indoors for fixing drywall boards to steel joists with a maximum thickness of 1.0 mm. A zinc plated screw is extra sharp and thereby cuts into the base material quickly and effectively. The duplex head prevents the paper on the drywall board from tearing when fastening.

CE-merkitty
CE-merkitty
Käyttöluokka 1
Käyttöluokka 1
Sähkösinkitty teräs
Sähkösinkitty teräs
EPD
EPD
Indoor
Indoor

Tuotteen yksityiskohdat

Kuvat

Ominaisuudet

Features

  • PH drive
  • Duplex head
  • Sharp point
  • Twin thread

Sovellus

Suitable for

  • Drywall to timber.

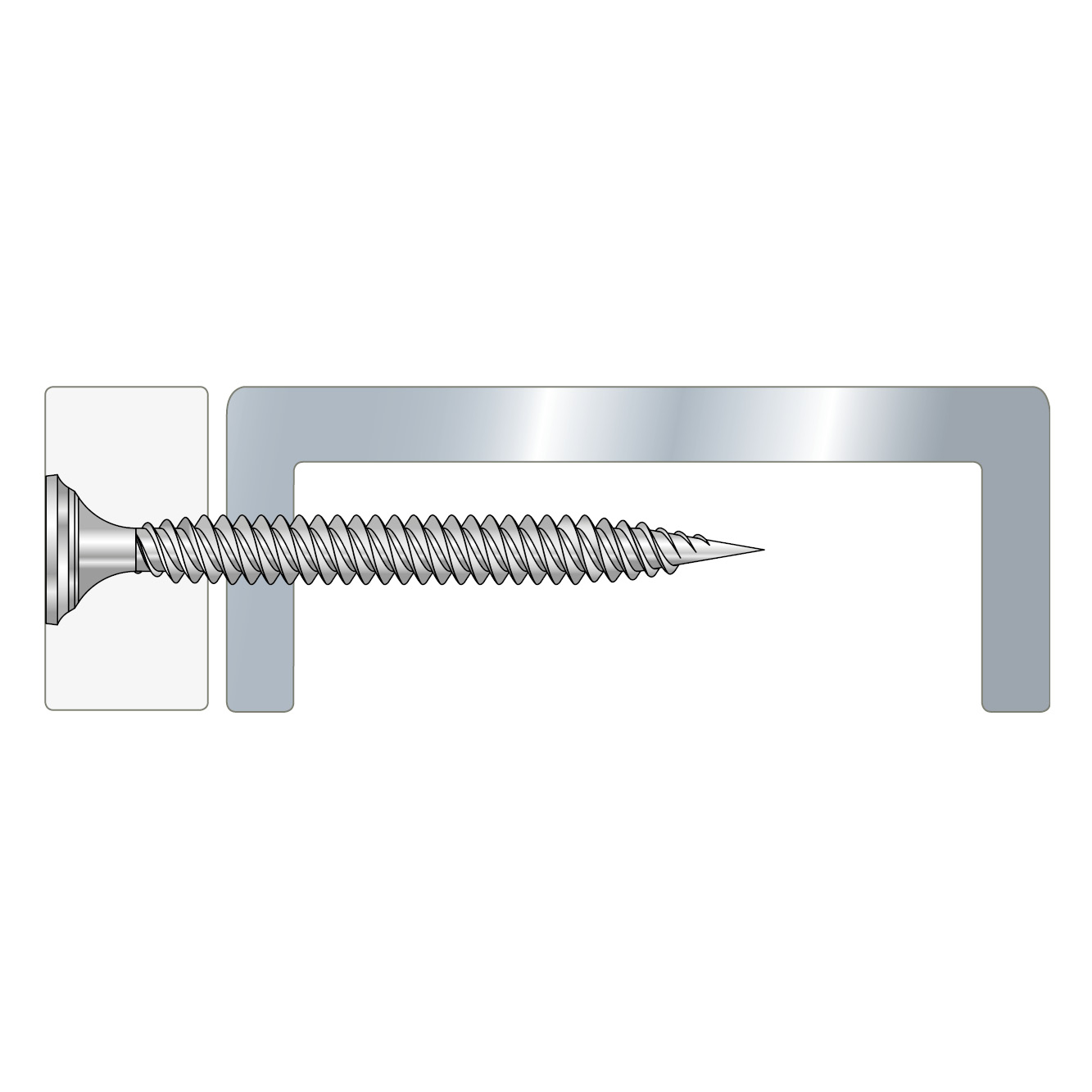

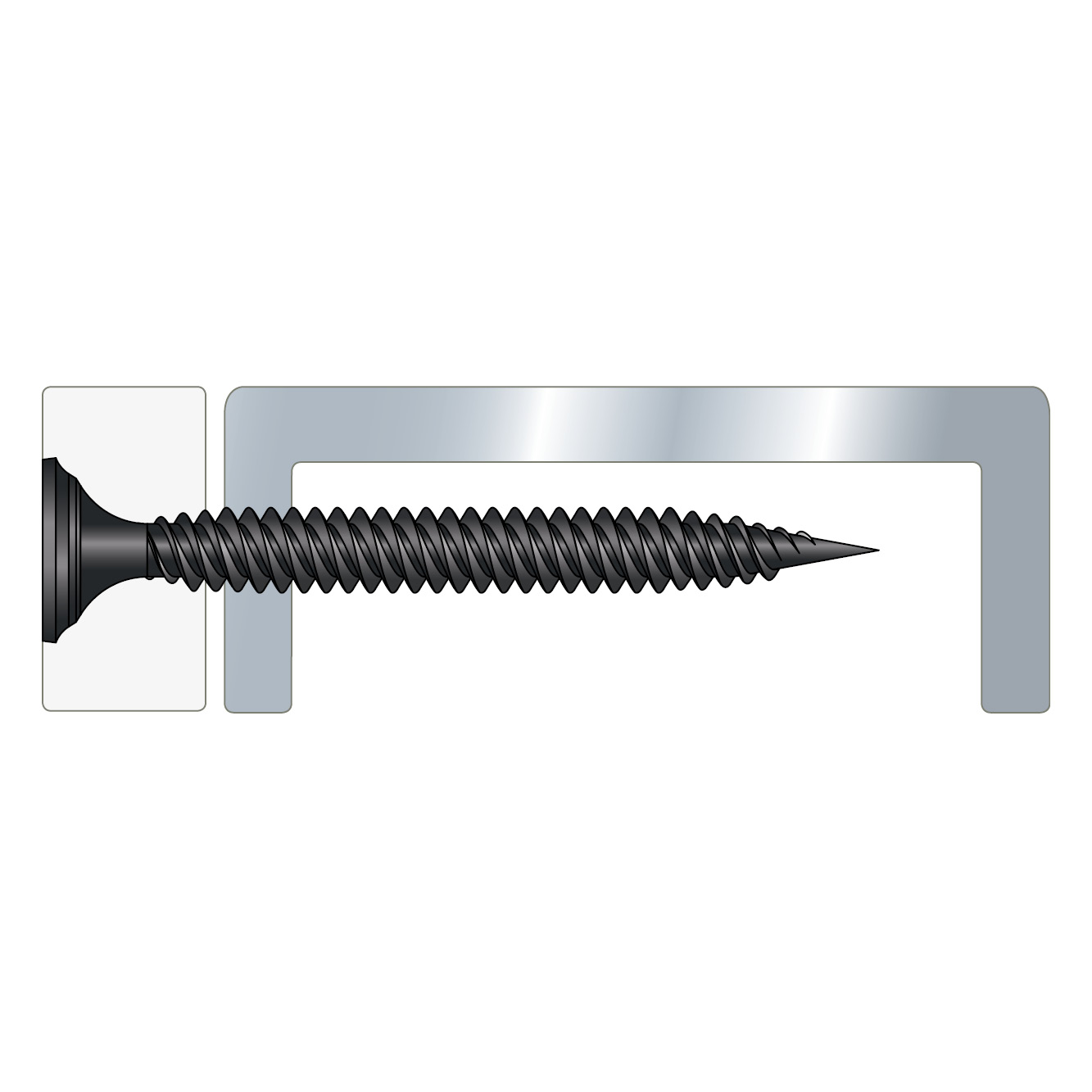

  • Drywall to steel.

Tekniset tiedot

Mitat

ViiteMitat
TuotenumeroMitat ja ominaisarvot[mm]

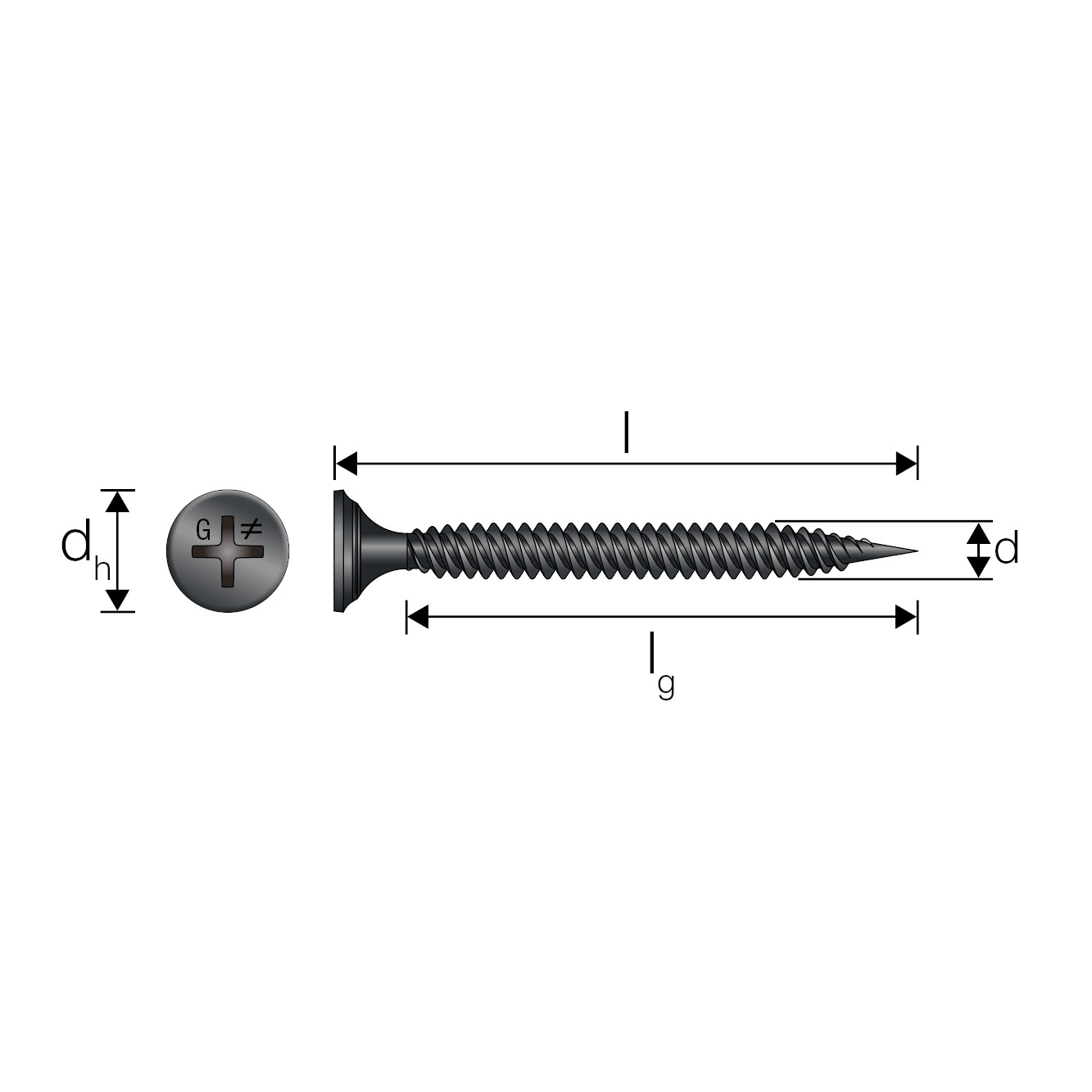

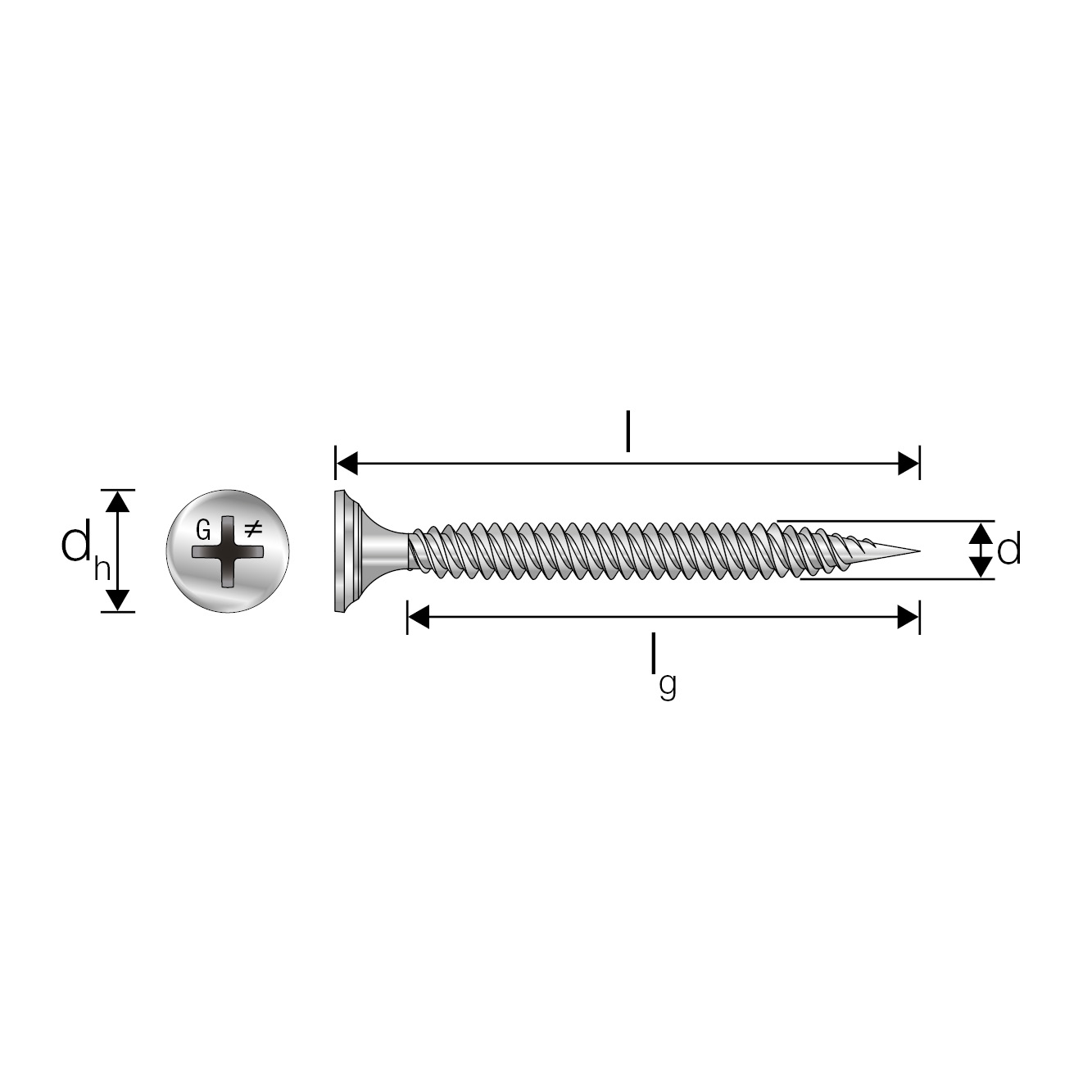

D[mm]L[mm]dh[mm]lg[mm]Bit[mm]
GS3.5X25 EG743163.5258.220.5PH2
GS3.5X38 EG743173.5388.233.5PH2

GS Electro Galvanised - Collated

ViiteMitat
TuotenumeroMitat ja ominaisarvot[mm]
D[mm]L[mm]dh[mm]lg[mm]Bit[mm]
GS3.5X25 EG Collated757143.5258.220.5PH2
GS3.5X38 EG Collated757133.5388.233.5PH2

* Flat tape collated for standard auto-feed screwdrivers

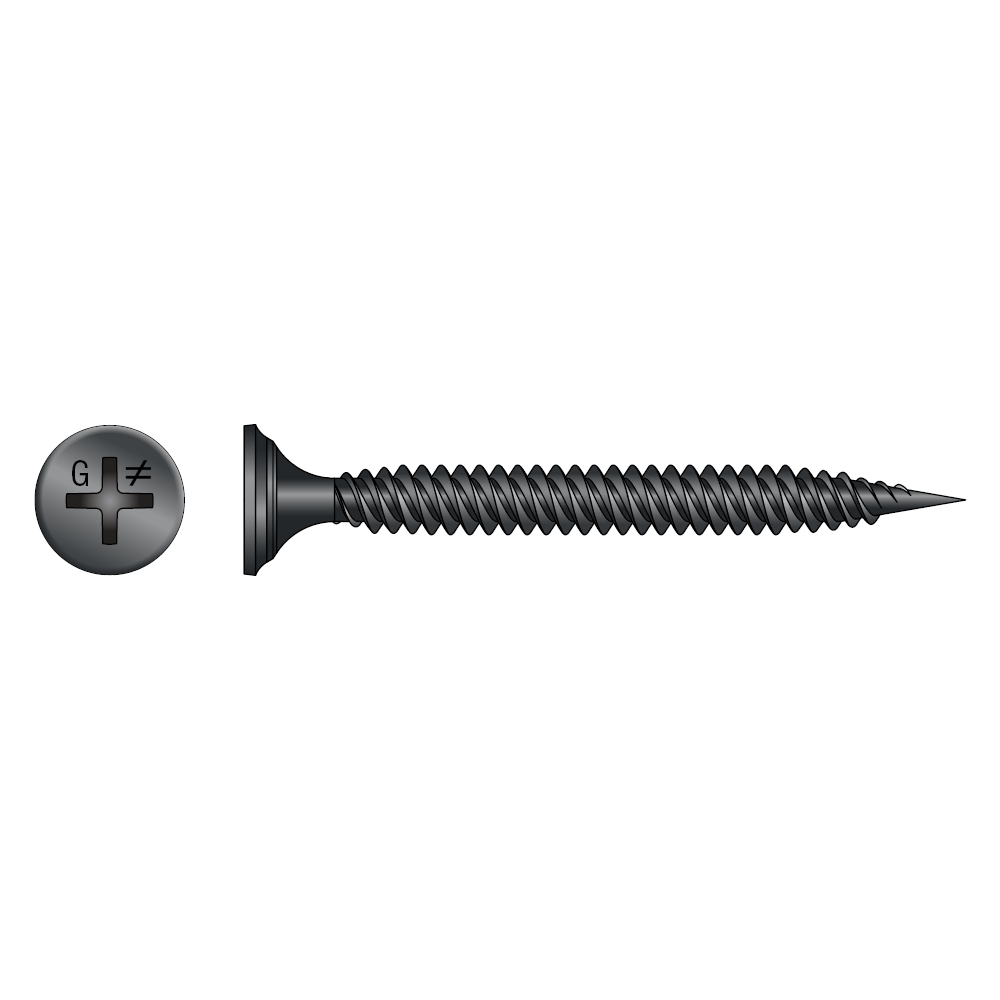

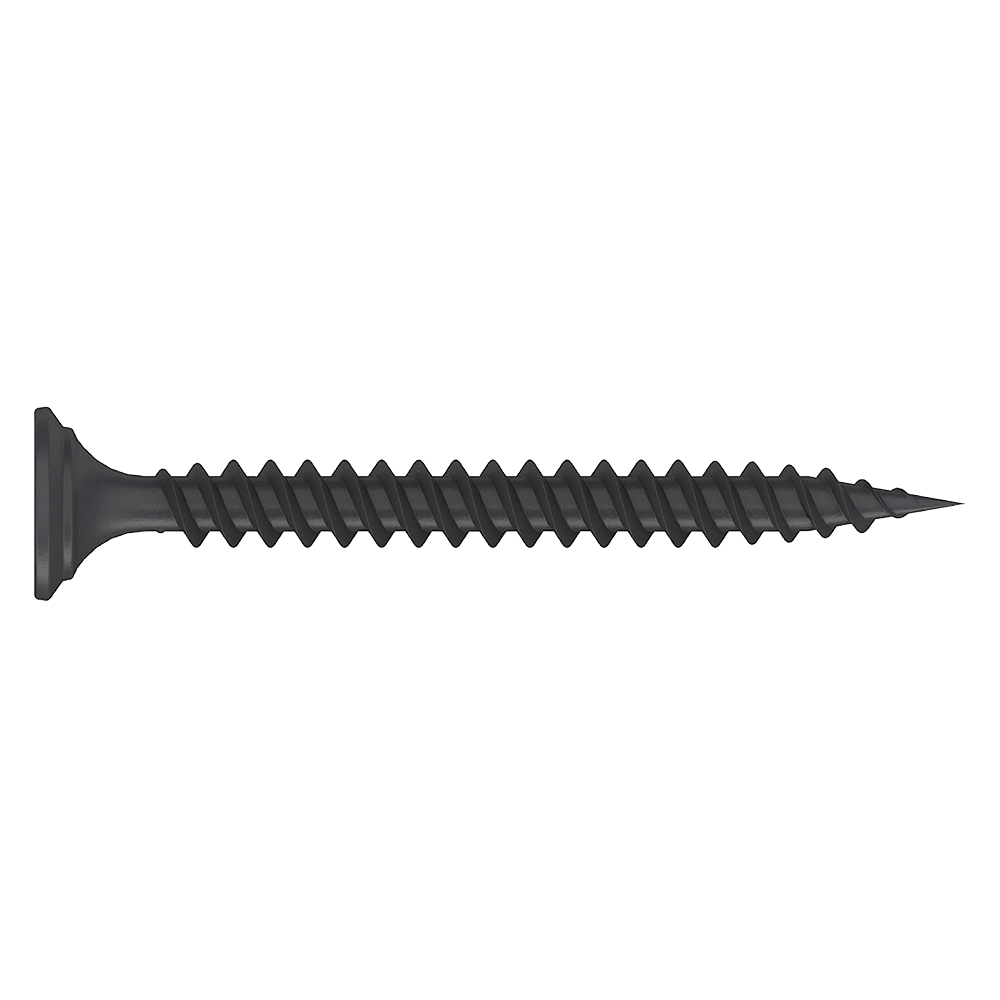

GS Phosphate Coating

ViiteMitat
TuotenumeroMitat ja ominaisarvot[mm]
D[mm]L[mm]dh[mm]lg[mm]Bit[mm]
GS3.5X25 PH743423.5258.220.5PH2
GS3.5X38 PH743433.5388.233.5PH2
GS3.9X55 PH743453.9558.249.5PH2
GS3.9X75 PH743463.9758.250PH2

GS Phosphate Coating - Collated

ViiteMitat
TuotenumeroMitat ja ominaisarvot[mm]
D[mm]L[mm]dh[mm]lg[mm]Bit[mm]
GS3.5X25 PH Collated743283.5258.220.5PH2
GS3.5X38 PH Collated743293.5388.233.5PH2
GS3.5X55 PH Collated747533.9558.249.5PH2

* Flat tape collated for standard auto-feed screwdrivers

Sertifiointi

Environmental Product Declarations (EPD)
