FBCS
Fibre Cement Screw
FBCS screws are used in humid conditions both indoor and outdoor. They are particularly suited for fixing fibre cement boards to wood or steel joists with a maximum thickness of 1.0 mm.
CE-merkitty
Outdoor
Käyttöluokka 2
Impreg® +
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot

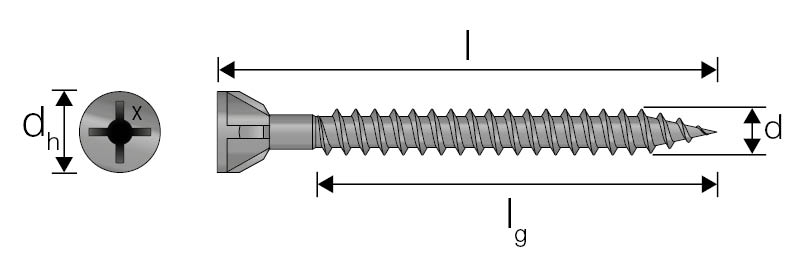

Mitat
| Viite | Mitat | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||||
| Paino[kg] | D[mm] | L[mm] | dh[mm] | d1[mm] | lg[mm] | hₜ[mm] | Bit[mm] | ||
| FBCS3.9X25 | 75453 | 0.001 | 3.9 | 25 | 6.8 | 2.4 | 18 | 15 | PH2 |
| FBCS3.9X35 | 75454 | 0.002 | 3.9 | 35 | 6.8 | 2.4 | 28 | 26 | PH2 |
