RSNCG

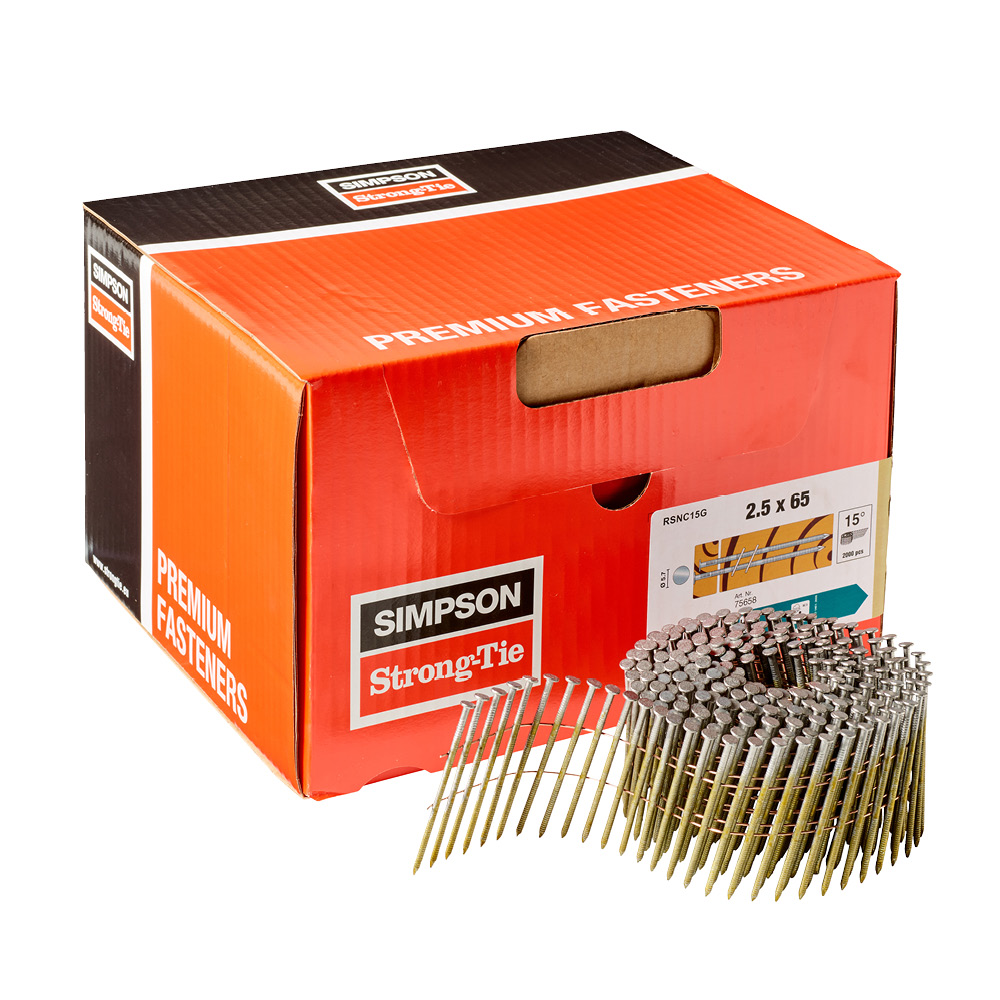

Framing Nail 15° Wire coil - Round head, Ring shank - HDG
The framing nail is designed for wood to wood constructions and can be used in outdoor environments. The coil collation gives more nails in the magazine and reduce the need of reloading. The ring shank increases the withdrawal capacity.
CE-merkitty
Outdoor
Käyttöluokka 3
EPD
Acier galvanisé à chaud
Fastener Designer
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Viite | Mitat | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||||||||
| DB nr. | NOBB nr. | Määrä / laatikko | Paino[kg] | d[mm] | L[mm] | dₕ[mm] | Aₕ[mm] | hₜ[mm] | lg[mm] | lₚ[mm] | tfix[mm] | ||
| RSNC15G2.5X45 | 75661 | 2056015 | 55837532 | 2000 | 0.002 | 2.5 | 43.5 | 5.7 | 25.5 | 0.5 | 32 | 3.5 | 25 |
| RSNC15G2.5X55 | 75662 | 2056016 | 55837513 | 2000 | 0.003 | 2.5 | 53.5 | 5.7 | 25.5 | 0.5 | 45 | 3.5 | 35 |
| RSNC15G2.5X65 | 75658 | 2056012 | 55837505 | 2000 | 0.003 | 2.5 | 63.5 | 5.7 | 25.5 | 0.5 | 50 | 3.5 | 45 |
| RSNC15G2.8X75 | 75659 | 2056013 | 55837524 | 1500 | 0.005 | 2.8 | 73.5 | 6.9 | 37.4 | 0.6 | 53 | 2.5 | 52.6 |
| RSNC15G3.1X90 | 75660 | 2056014 | 55837494 | 1600 | 0.006 | 3.1 | 88 | 6.9 | 37.4 | 0.8 | 70 | 4.3 | 65.2 |
Tuotteen ominaisuudet
Mitat
| Viite | Nail characteristic parameters | |||
|---|---|---|---|---|
| Tyypillinen vääntölujuus - fₜₒᵣ,ₖ [Nm] | ||||
| Taivutuslujuus - My,ₖ [Nm][Nm] | Tyypillinen vetoparametri - fₐₓ,ₖ,₉₀° [N/mm²][N/mm²] | Tyypillinen läpivetoparametri - fₕₑₐd,ₖ [N/mm²][N/mm²] | Tyypillinen vetolujuus - fₜₑₙₛ,ₖ [kN][kN] | |
| RSNC15G2.5X45 | 2 | 5.1 | 22 | 3 |
| RSNC15G2.5X55 | 2 | 5.1 | 22 | 3 |
| RSNC15G2.5X65 | 2 | 5.1 | 22 | 3 |
| RSNC15G2.8X75 | 3.2 | 8.9 | 29.4 | 3.4 |
| RSNC15G3.1X90 | 4.6 | 8.3 | 18.1 | 3.8 |
CAD- ja BIM-kirjasto
2D
RSNC15G2.5X45
-
-
-
-
RSNC15G2.5X55
-
-
-
-
RSNC15G2.8X75
-
-
-
-
RSNC15G3.1X90
-
-
-
-
RSNC15G2.5X65
-
-
-
-
3D
RSNC15G2.5X45
-
-
-
-
-
RSNC15G2.5X55
-
-
-
-
-
RSNC15G2.8X75
-
-
-
-
-
RSNC15G3.1X90
-
-
-
-
-
