BRDEZ

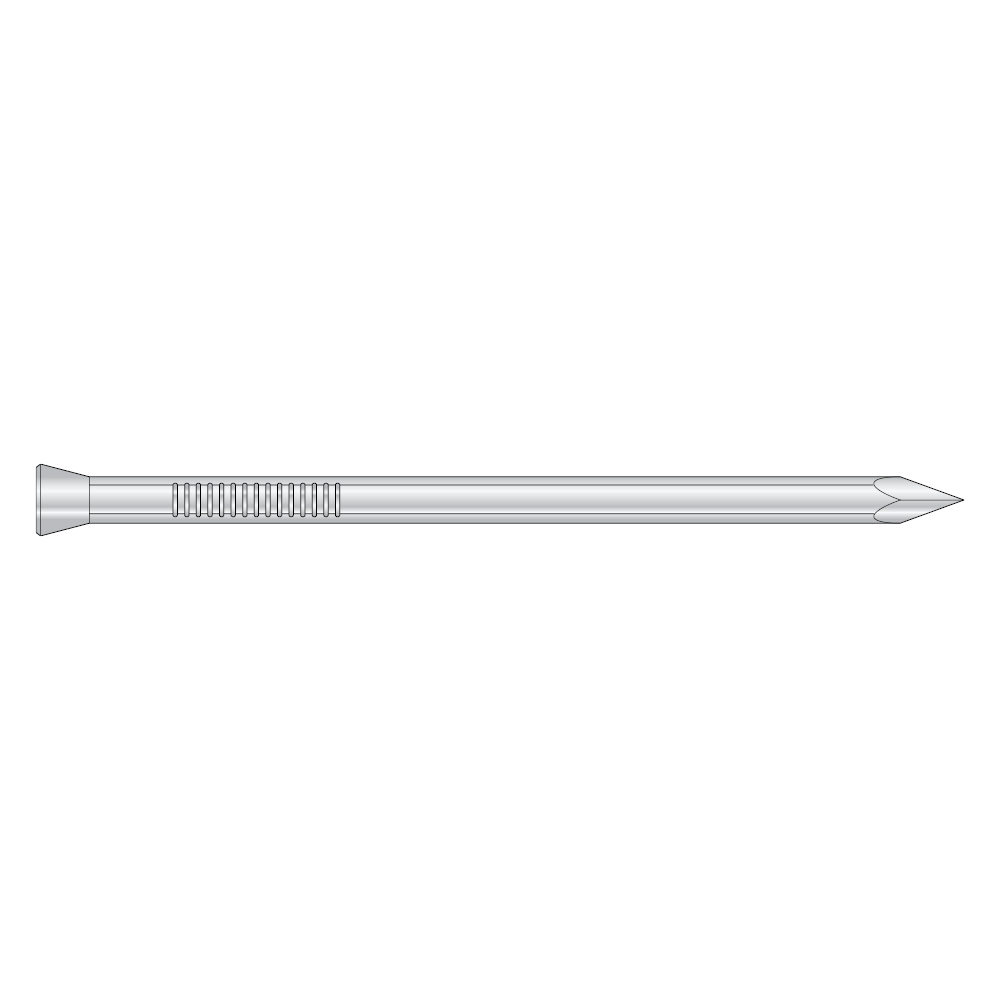

Grooved Countersunk Nail - Electro Galvanised

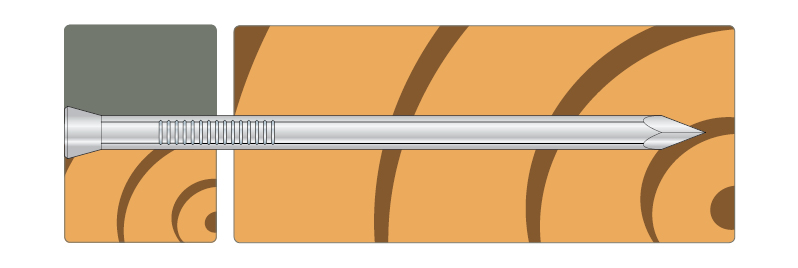

Nail with a countersunk head and grooved shank for use indoors for fitting moulding or fixing hardwood and semi-hardwood boards to a wood base.
Particularly suited for use where the head should be countersunk, so that the nail is concealed.
Käyttöluokka 1
Sähkösinkitty teräs
Indoor
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Viite | Mitat | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||||
| DB nr. | NOBB nr. | Määrä / laatikko | Määrä/Blisteripakkaus | Paino[kg] | d[mm] | L[mm] | dₕ[mm] | ||
| BRDEZ1.2X20 | 74196 | 1950524 | 53291836 | 1000 | - | 0.001 | 1.2 | 20 | 1.9 |
| BRDEZ1.4X25 | 74197 | 1950525 | 53291840 | 1000 | - | 0.001 | 1.4 | 25 | 2.2 |
| BRDEZ1.4X30 Blister | 78221 | - | - | - | 100.0 | 0.001 | 1.4 | 30 | - |
| BRDEZ1.7X30 | 75685 | 2056038 | 55839560 | 1000 | - | 0.001 | 1.7 | 30 | 2.7 |
| BRDEZ1.7X35 | 74198 | 1950526 | 53291855 | 1000 | - | 0.001 | 1.7 | 35 | 2.7 |
| BRDEZ1.7X35 Blister | 78238 | - | - | - | 75.0 | 0.001 | 1.7 | 35 | 2.7 |
| BRDEZ1.7X40 | 74199 | 1950527 | 53291866 | 1000 | - | 0.001 | 1.7 | 40 | 2.7 |
| BRDEZ1.7X50 | 74200 | 1950528 | 53291874 | 1000 | - | 0.001 | 1.7 | 50 | 2.7 |
| BRDEZ2.0X40 | 75686 | 2056039 | 55839575 | 500 | - | 0.002 | 2 | 40 | 3.2 |
| BRDEZ2.0X50 | 74201 | 1950529 | 53291885 | 500 | - | 0.001 | 2 | 50 | 3.2 |
