BRDHG

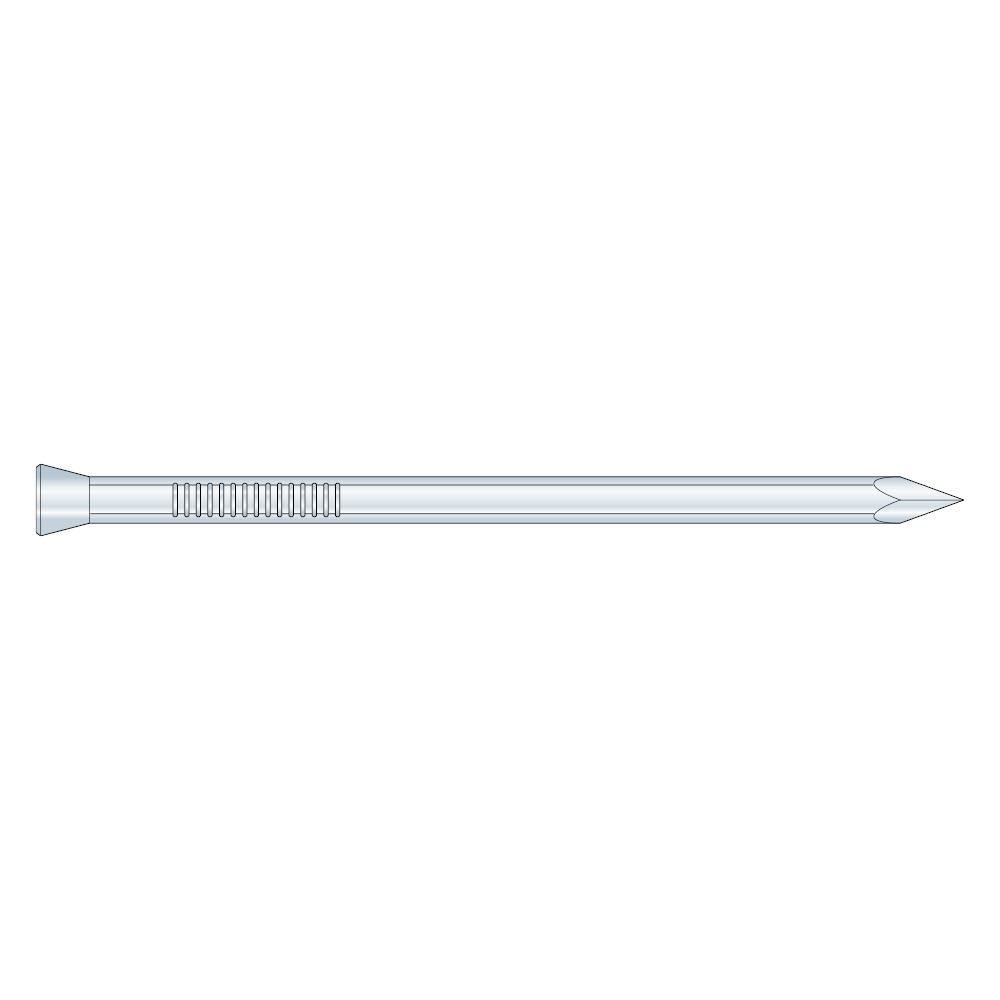

Grooved Countersunk Nail - Hot Dip Galvanised

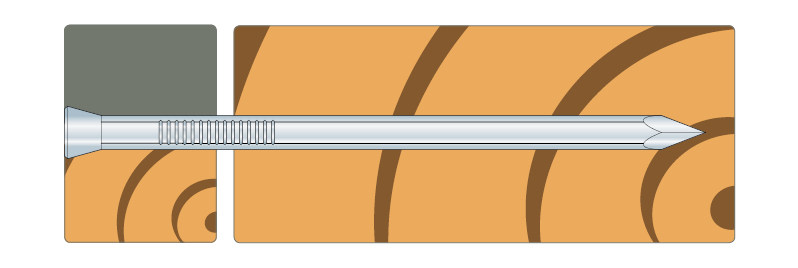

Nail with a countersunk head and grooved shank for use indoors for fitting moulding or fixing hardwood and semi-hardwood boards to a wood base.
Particularly suited for use where the head should be countersunk, so that the nail is concealed.
Käyttöluokka 3
Outdoor
Acier galvanisé à chaud
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Viite | Mitat | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||||
| DB nr. | NOBB nr. | Määrä / laatikko | Määrä/Blisteripakkaus | Paino[kg] | d[mm] | L[mm] | dₕ[mm] | ||
| BRDHG1.7X30 | 75595 | 2055949 | 55839586 | 1000 | - | 0.001 | 1.7 | 30 | 2.7 |
| BRDHG1.7X35 | 74207 | 1950535 | 53291980 | 1000 | - | 0.001 | 1.7 | 35 | 2.7 |
| BRDHG1.7X40 | 74208 | 1950536 | 53291995 | 1000 | - | 0.001 | 1.7 | 40 | 2.7 |
| BRDHG1.7X50 | 75596 | 2055950 | 55839594 | 500 | - | 0.002 | 1.7 | 50 | 2.7 |
| BRDHG2.0X40 | 75597 | 2055951 | 55839605 | 500 | - | 0.002 | 2 | 40 | 3.2 |
| BRDHG2.0X50 | 74209 | 1950537 | 53292006 | 500 | - | 0.002 | 2 | 50 | 3.2 |
| BRDHG2.0X50 Blister | 78244 | - | - | - | 60.0 | 0.002 | 2 | 50 | 3.2 |
| BRDHG2.3X60 | 74210 | 1950538 | 53292014 | 500 | - | 0.003 | 2.3 | 60 | 3.7 |
| BRDHG2.3X60 Blister | 78243 | - | - | - | 40.0 | 0.003 | 2.3 | 60 | 3.7 |
| BRDHG2.8X75 | 74211 | 1950539 | 53292025 | 250 | - | 0.004 | 2.8 | 75 | 4.5 |
| BRDHG2.8X75 Blister | 78256 | - | - | - | 25.0 | 0.005 | 2.8 | 75 | 4.5 |
