RST

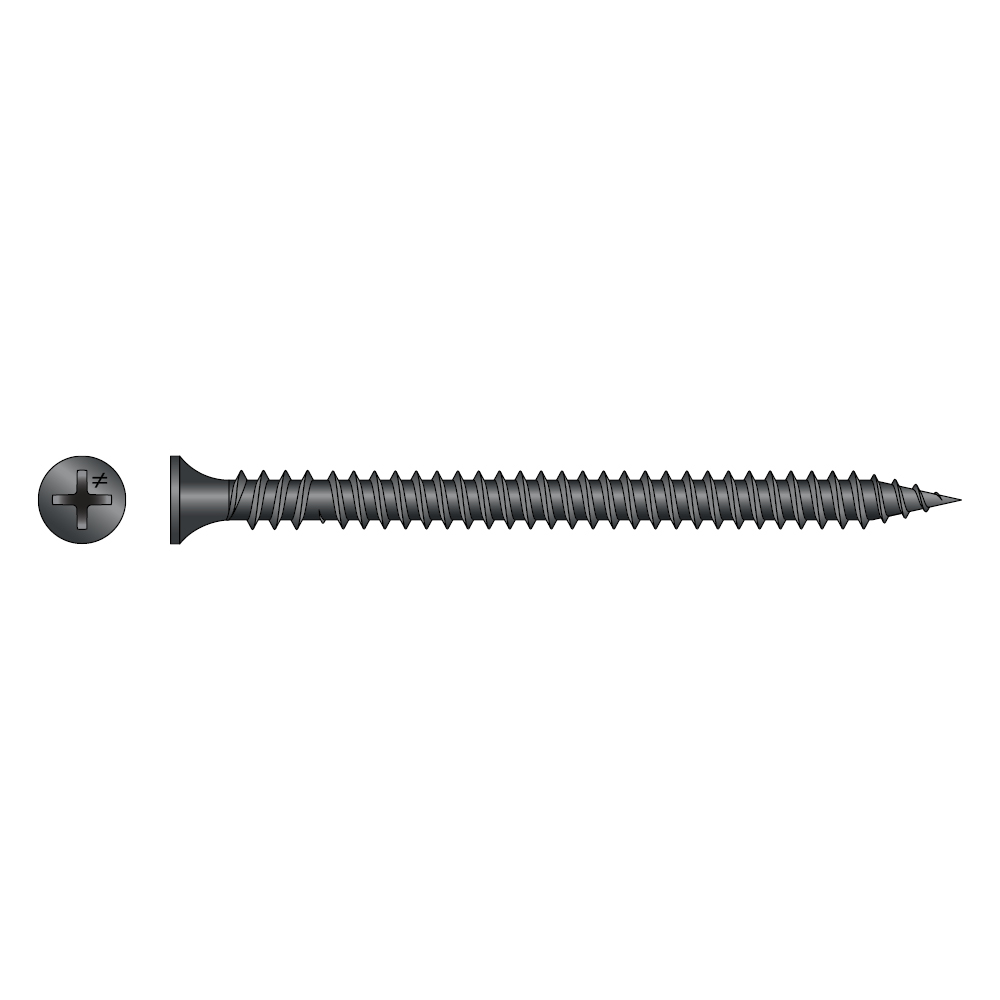

Hard Drywall to Steel Screw

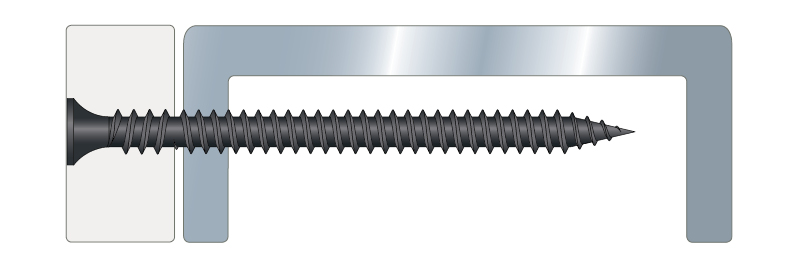

RST screws are used indoors for fixing hard drywall boards to steel joists with a maximum thickness of 1.0 mm. The design of the screw with counter-threads removes enough plaster for the head to become properly countersunk in the board.
CE-merkitty
Käyttöluokka 1
Indoor
Acier phosphaté
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot

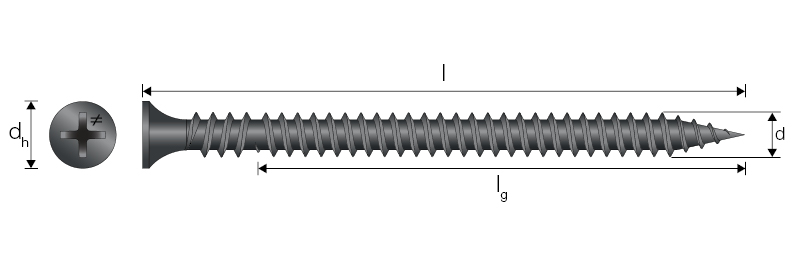

Mitat
| Viite | Mitat | ||||||
|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||
| Paino[kg] | D[mm] | L[mm] | dh[mm] | lg[mm] | Bit[mm] | ||
| RST3.9X32 Bulk | 74318 | 0.002 | 3.9 | 32 | 6.4 | 22 | PH2 |
| RST3.9X41 | 74319 | 0.002 | 3.9 | 41 | 6.4 | 31 | PH2 |
| RST3.9X32 | 77060 | 0.002 | 3.9 | 32 | 6.4 | 22 | PH2 |
| RST4.2X57 | 74320 | 0.002 | 4.2 | 57 | 6.4 | 31 | PH2 |
