CLR Plus H

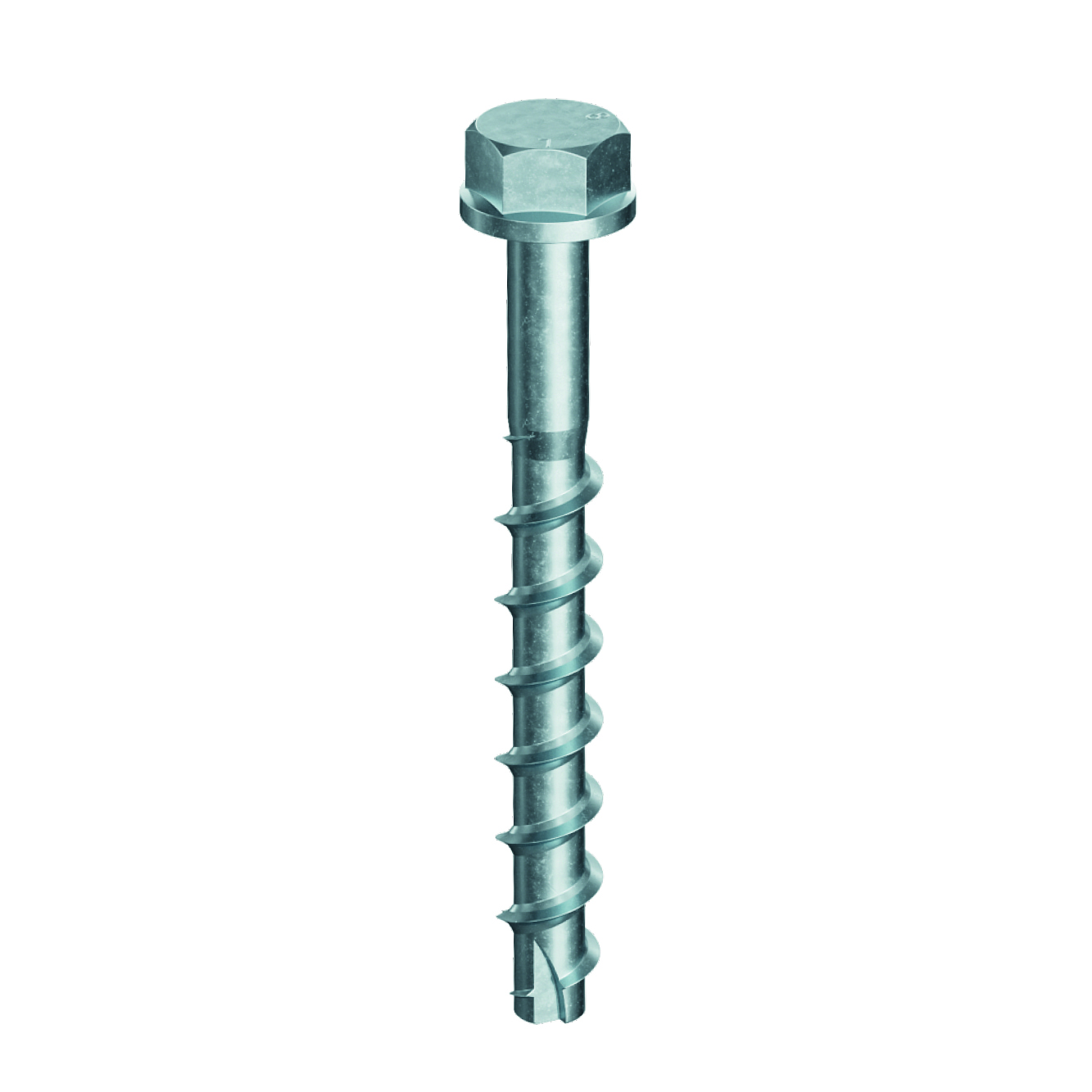

Hex-Head Concrete Screws

The hexagonal head version is the standard version used for the most applications, specially with greatest diameters and higest loads to fix metallic and timber carpentry.

CE-merkitty
CE-merkitty
Tekninen hyväksyntä
Tekninen hyväksyntä
Seismic C1 C2
Seismic C1 C2

Tuotteen yksityiskohdat

Kuvat

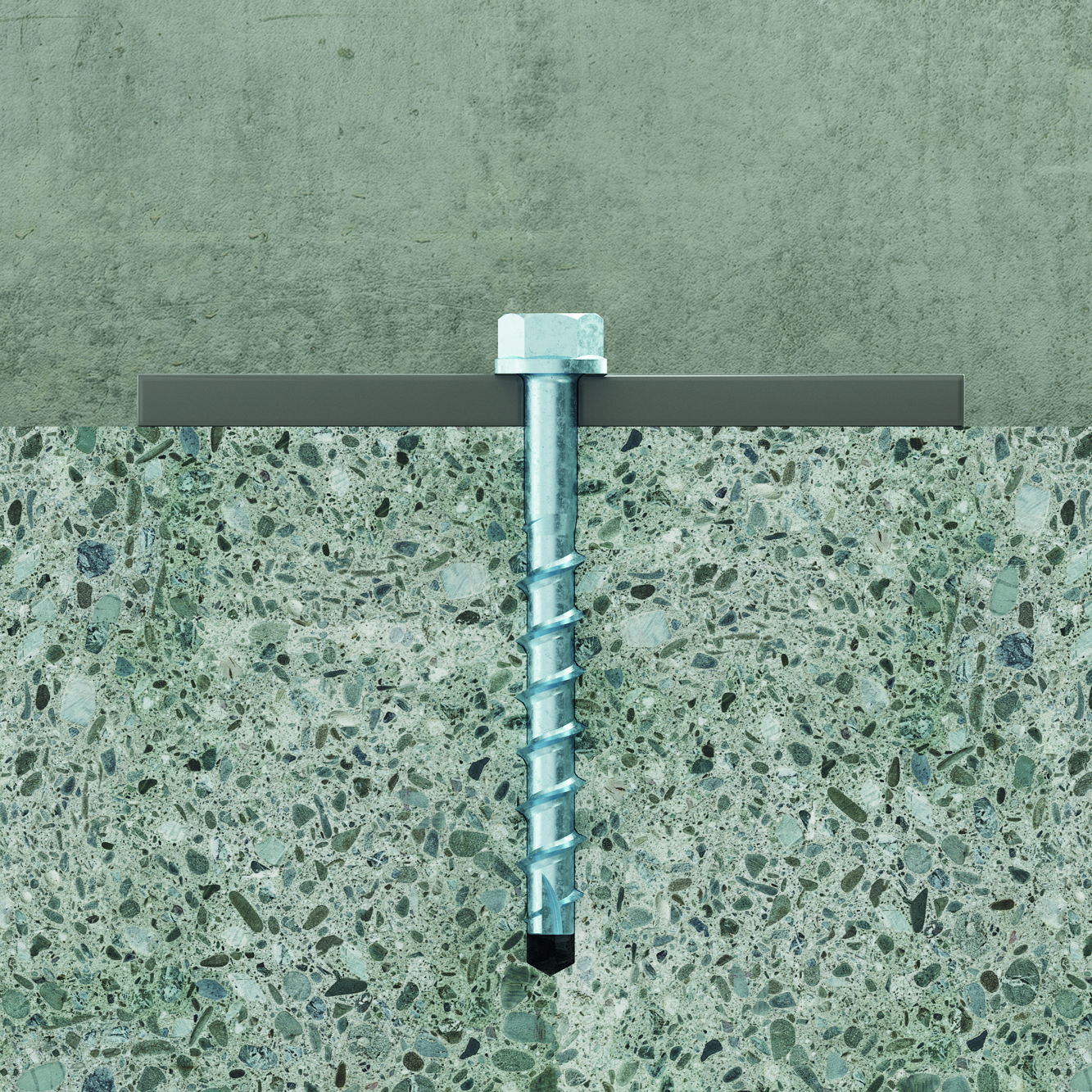

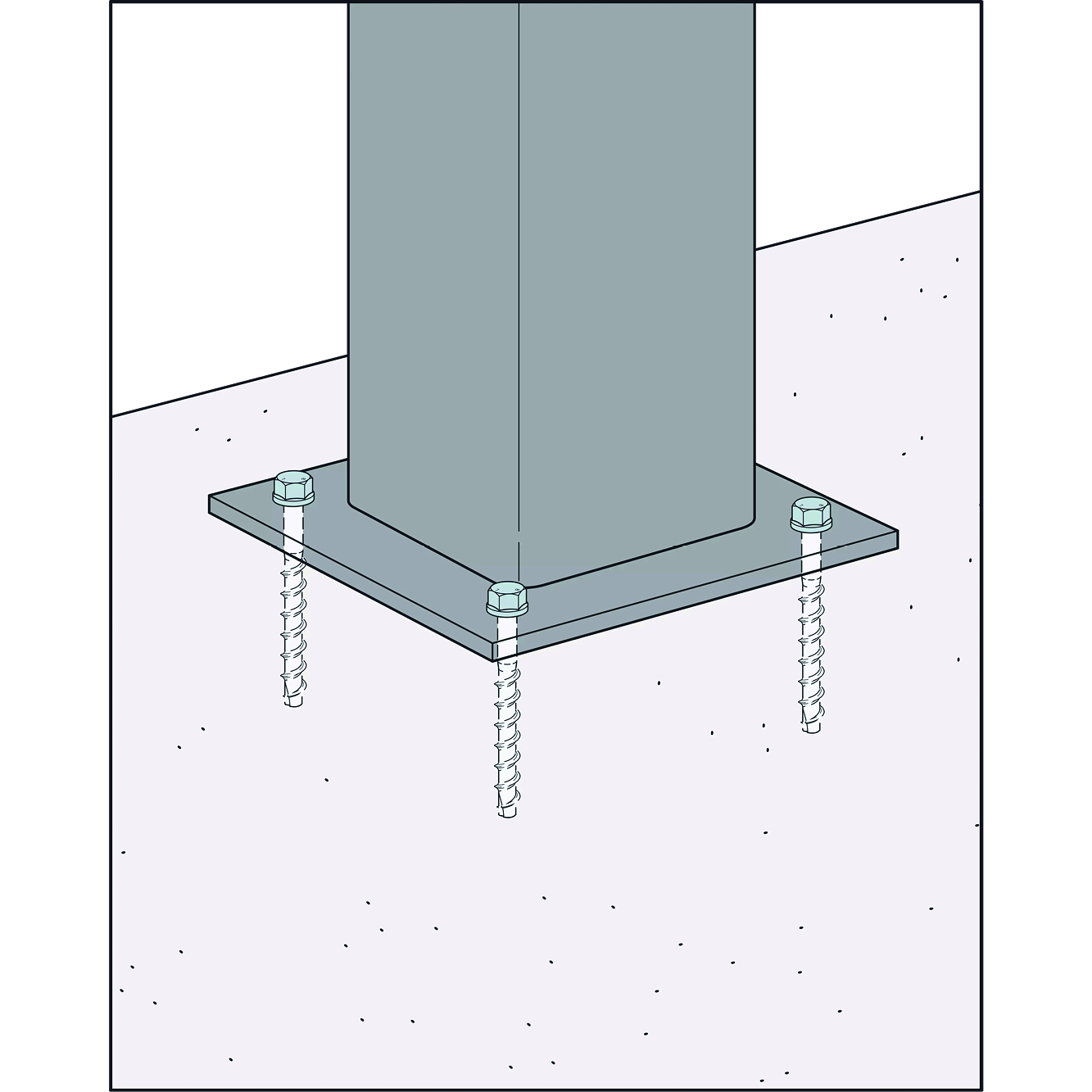

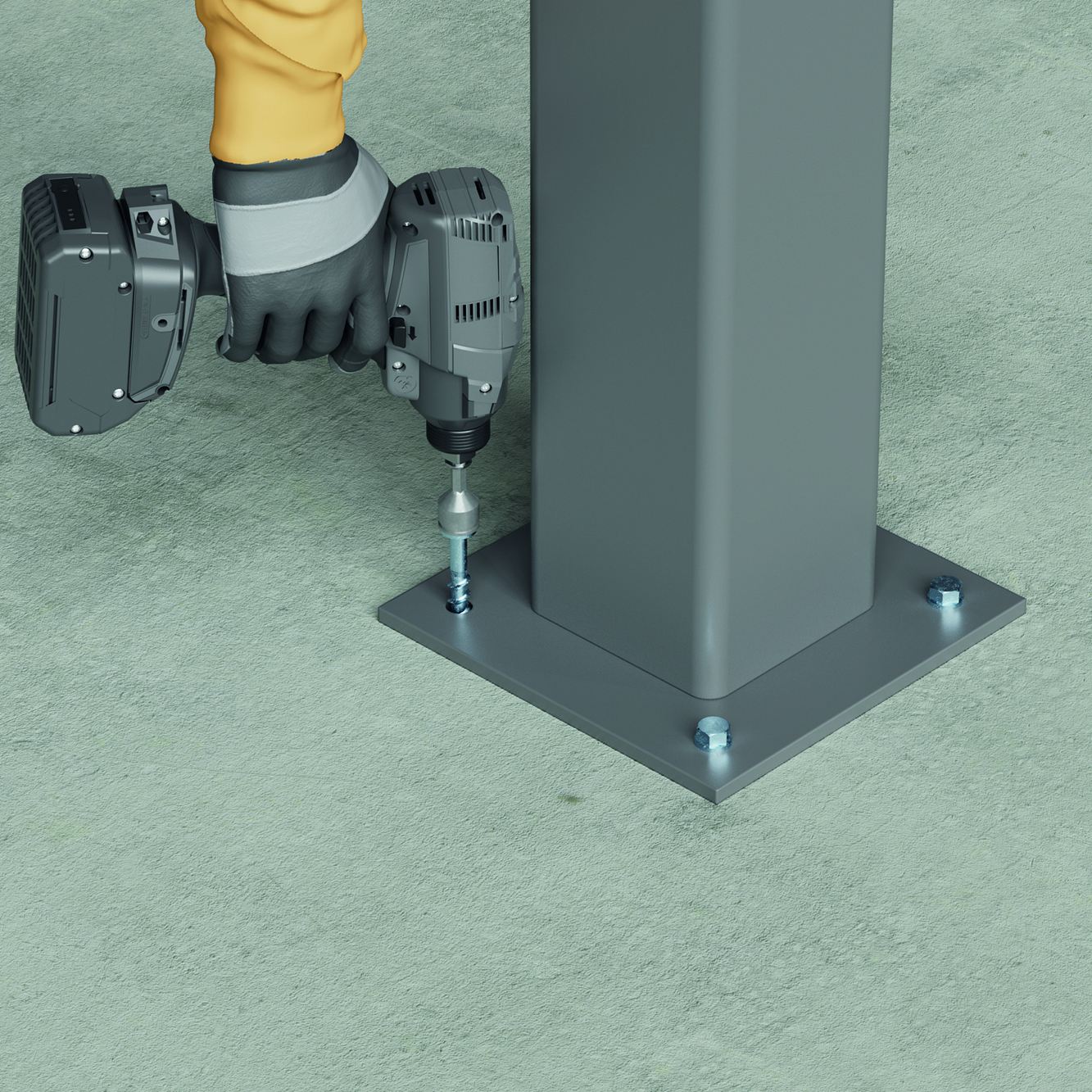

Sovellus

Material

  • Electro-galvanized steel

Suitable on

  • Cracked and uncracked concrete

Tekniset tiedot

Product dimensions

ViiteMetallic fixings dimensions
TuotenumeroMuuMitat ja ominaisarvot[mm]
Reiän halkaisija [dₒ][mm]Fixing thickness (tfix) for reduced embedment depth (hef,r)Kiinnikkeen paksuus [tfᵢₓ] (¹)[mm]Fixing thickness (tfix) for increased embedment depth (hef,max)Määrä / pakkaus[pcs]Määrä per ulkolaatikkoDim[mm]
CLR Plus H 6x4072105B060400065--100.010006x40
CLR Plus H 6x5072105B060500061510-100.04006x50
CLR Plus H 6x6072105B0606000625205100.010006x60
CLR Plus H 6x8072105B06080006454025100.010006x80
CLR Plus H 6x10072105B06100006656045100.010006x100
CLR Plus H 8x6072105B08060008155-50.05008x60
CLR Plus H 8x8072105B0808000835251550.05008x80
CLR Plus H 8x10072105B0810000855453550.02508x100
CLR Plus H 8x12072105B0812000875655550.02508x120
CLR Plus H 8x14072105B0814000895857550.02508x140
CLR Plus H 10x6072105B1006000105--50.020010x60
CLR Plus H 10x8072105B100800010255-50.025010x80
CLR Plus H 10x10072105B10100001045251540.020010x100
CLR Plus H 10x12072105B10120001065453550.020010x120
CLR Plus H 10x14072105B10140001085655530.015010x140
CLR Plus H 10x15072105B10150001095756550.020010x150
CLR Plus H 10x16072105B101600010105857550.020010x160
CLR Plus H 10x20072105B10200001014512511525.010010x200
CLR Plus H 10x24072105B10240001018516515525.010010x240
CLR Plus H 10x28072105B10280001022520519525.010010x280
CLR Plus H 10x32072105B10320001026524523525.010010x320
CLR Plus H 10x40072105B10400001034532531525.0-10x400
CLR Plus H 12x8072105B12080001215--25.025012x80
CLR Plus H 12x11072105B12110001245251025.010012x110
CLR Plus H 12x13072105B12130001265453025.010012x130
CLR Plus H 12x15072105B12150001285655025.010012x150
CLR Plus H 14x8072105B1408000145--25.010014x80
CLR Plus H 14x11072105B1411000143510-25.010014x110
CLR Plus H 14x13072105B14130001455301525.010014x130
CLR Plus H 14x15072105B14150001475503525.010014x150

"*" = On stock

"-" = Made on demand

Sertifiointi

Eurooppalainen tekninen arviointi (ETA)

product.doc.history.none
product.doc.history.none
product.doc.history.none

Lataukset

  • CLR PLus

    CLR PLus

    Discover CLR Plus – our new range of concrete screws for quick and effective fastening in concrete. In the brochure, you’ll find a clear overview of the range, as well as information on features, applications and dimensions.
