CLR Plus H ZF

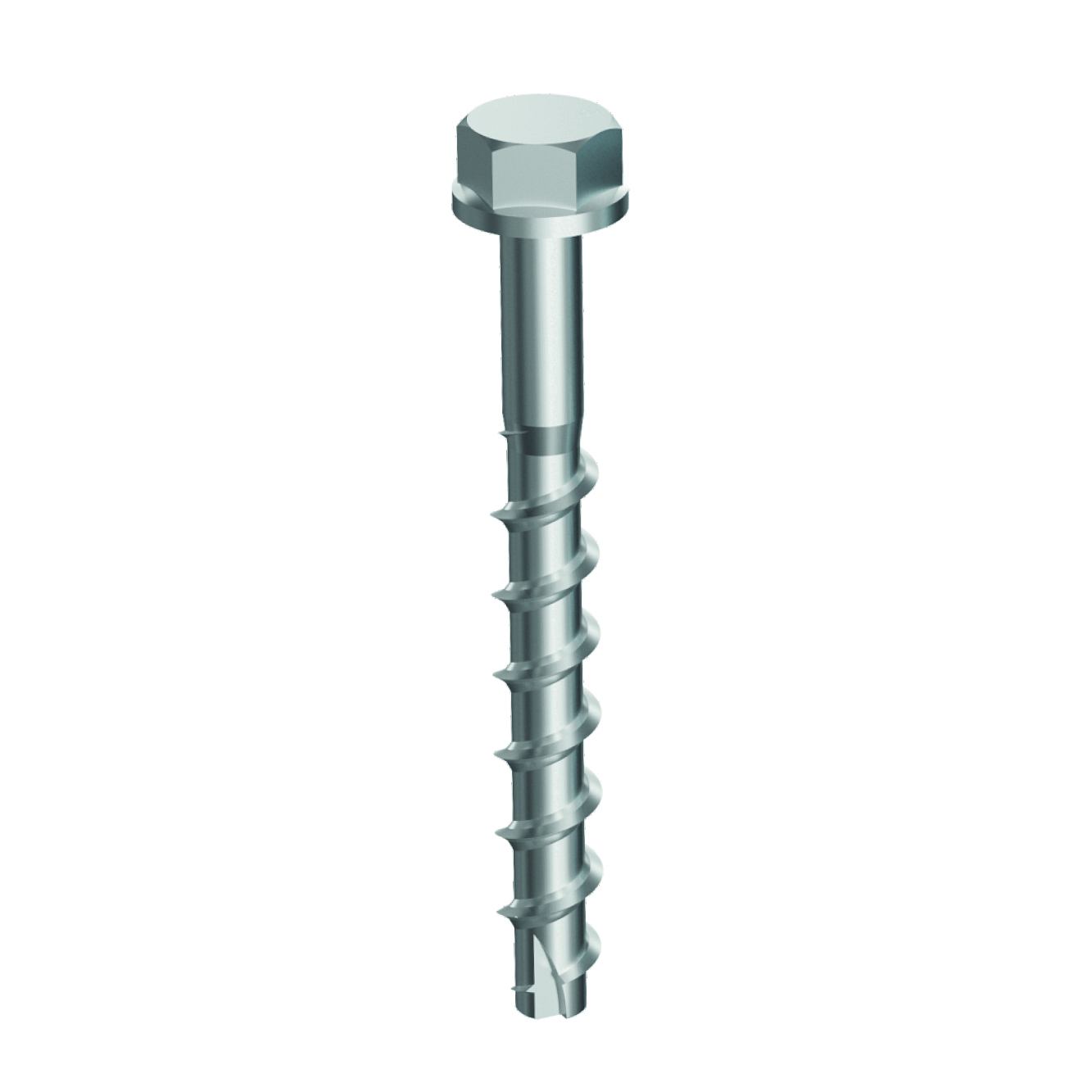

Hex-Head Concrete Screws Zinc-Flake Coated

Thezinc-flake coated hexagonal head version is the standard version used for the most applications where a coated screw is preferred, specially with greatest diameters and higest loads to fix metallic and timber carpentry.

CE-merkitty
CE-merkitty
Tekninen hyväksyntä
Tekninen hyväksyntä
Seismic C1 C2
Seismic C1 C2

Tuotteen yksityiskohdat

Kuvat

Sovellus

Material

  • Zinc-flake coated steel

Suitable on

  • Cracked and uncracked concrete

Tekniset tiedot

Product dimensions

ViiteMetallic fixings dimensions
TuotenumeroMuuMitat ja ominaisarvot[mm]
Reiän halkaisija [dₒ][mm]Fixing thickness (tfix) for reduced embedment depth (hef,r)Kiinnikkeen paksuus [tfᵢₓ] (¹)[mm]Fixing thickness (tfix) for increased embedment depth (hef,max)Määrä / pakkaus[pcs]Määrä per ulkolaatikkoDim[mm]
CLR Plus H ZF 6x4072105C060400065--100.04006x40
CLR Plus H ZF 6x6072105C0606000625205100.04006x60
CLR Plus H ZF 6x8072105C06080006454025100.04006x80
CLR Plus H ZF 6x10072105C06100006656045100.04006x100
CLR Plus H ZF 8x6072105C08060008155-50.02008x60
CLR Plus H ZF 8x8072105C0808000835251550.02008x80
CLR Plus H ZF 8x10072105C0810000855453550.02008x100
CLR Plus H ZF 8x14072105C0814000895857550.02008x140
CLR Plus H ZF 10x9072105C1009000103515550.020010x90
CLR Plus H ZF 10x10072105C10100001045251550.020010x100

Sertifiointi

Eurooppalainen tekninen arviointi (ETA)
