VBS
Ikkunapenkki ruuvi ruostumaton A4

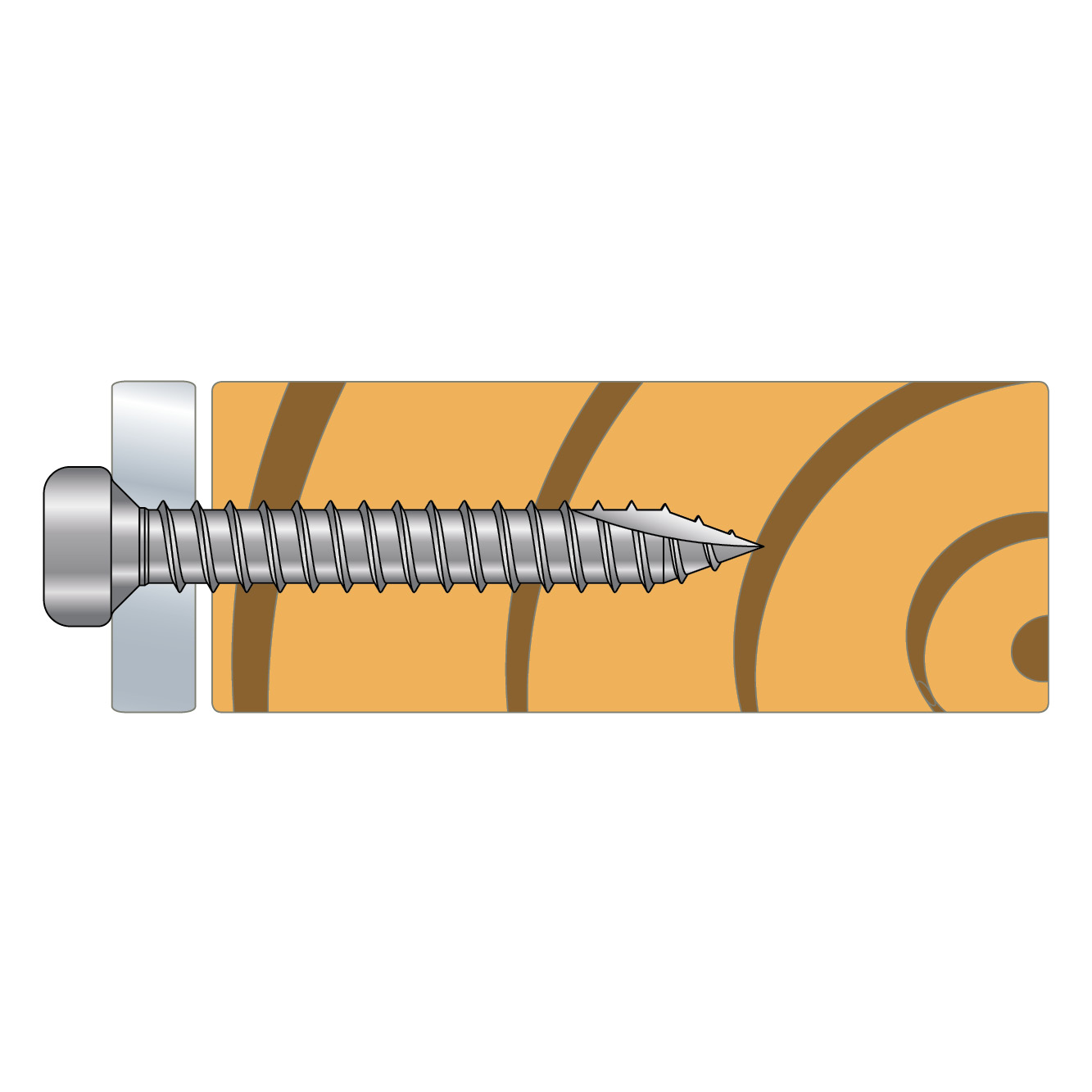

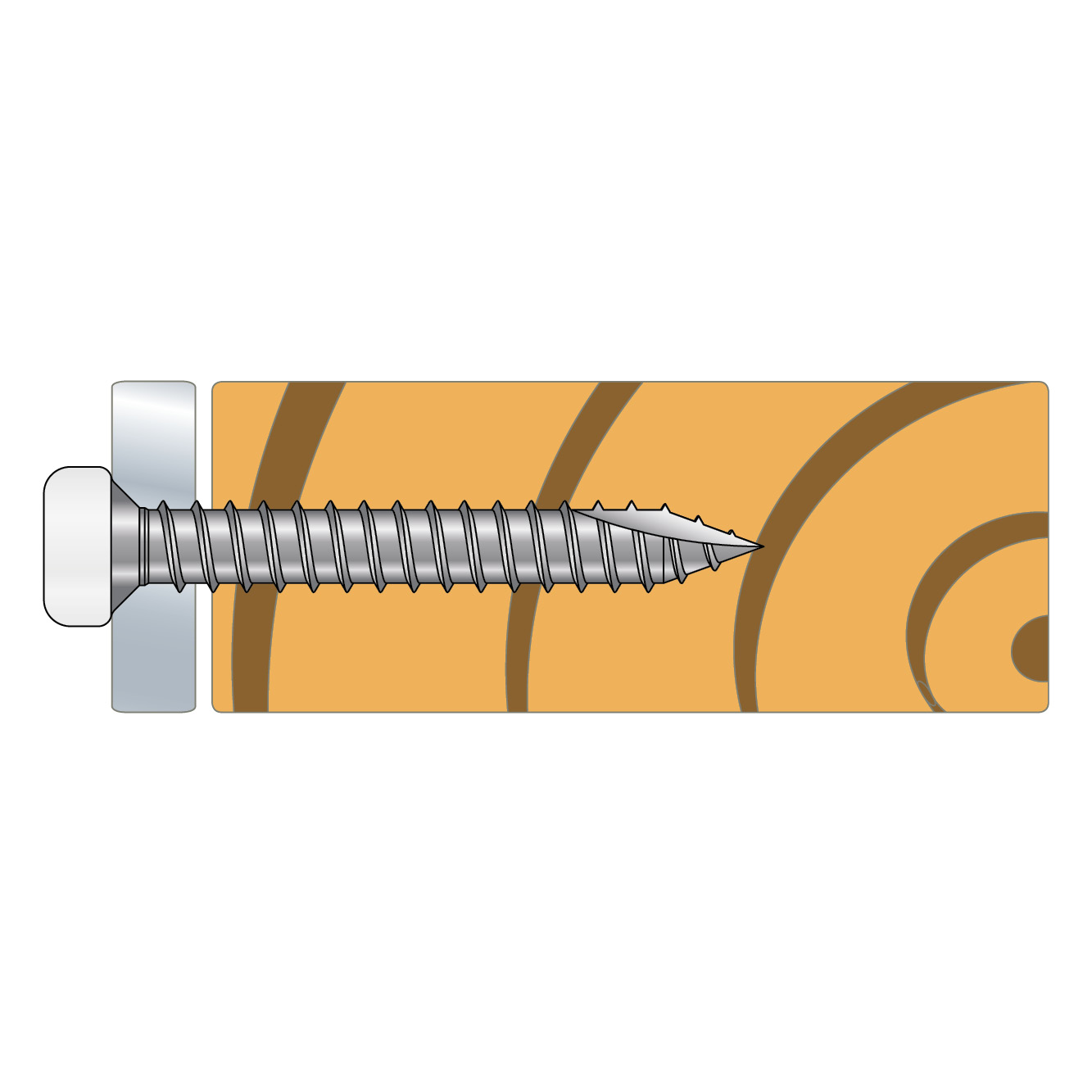

Painted head to match colored steel plate work for windows. Primarely used for installation of window sills. The window sill screw can deal with aggressive environments. The underside of the head is tapered to ensure a good seal with the sheet or plate. The cutpoint prevents splitting of the frame wood.
Käyttöluokka 3
Ruostumaton teräs
Severe
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Discontinued Products
Tekniset tiedot

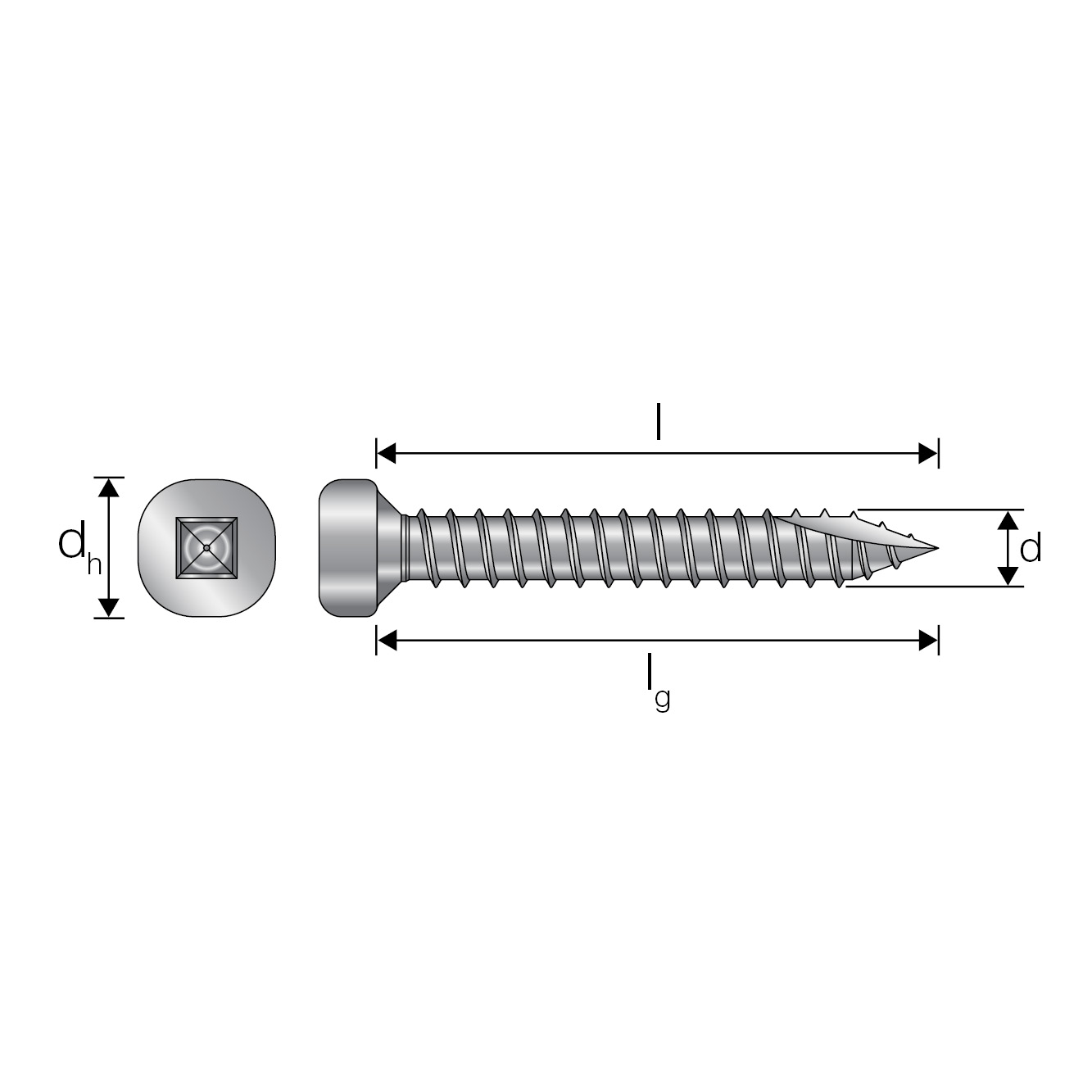

Product dimensions
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | |||||
|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | bit | |||
| VBS3.5X19 | 75520 | 55841796 | 3.5 | 19 | 6 | 19 | 0.7 | Square |

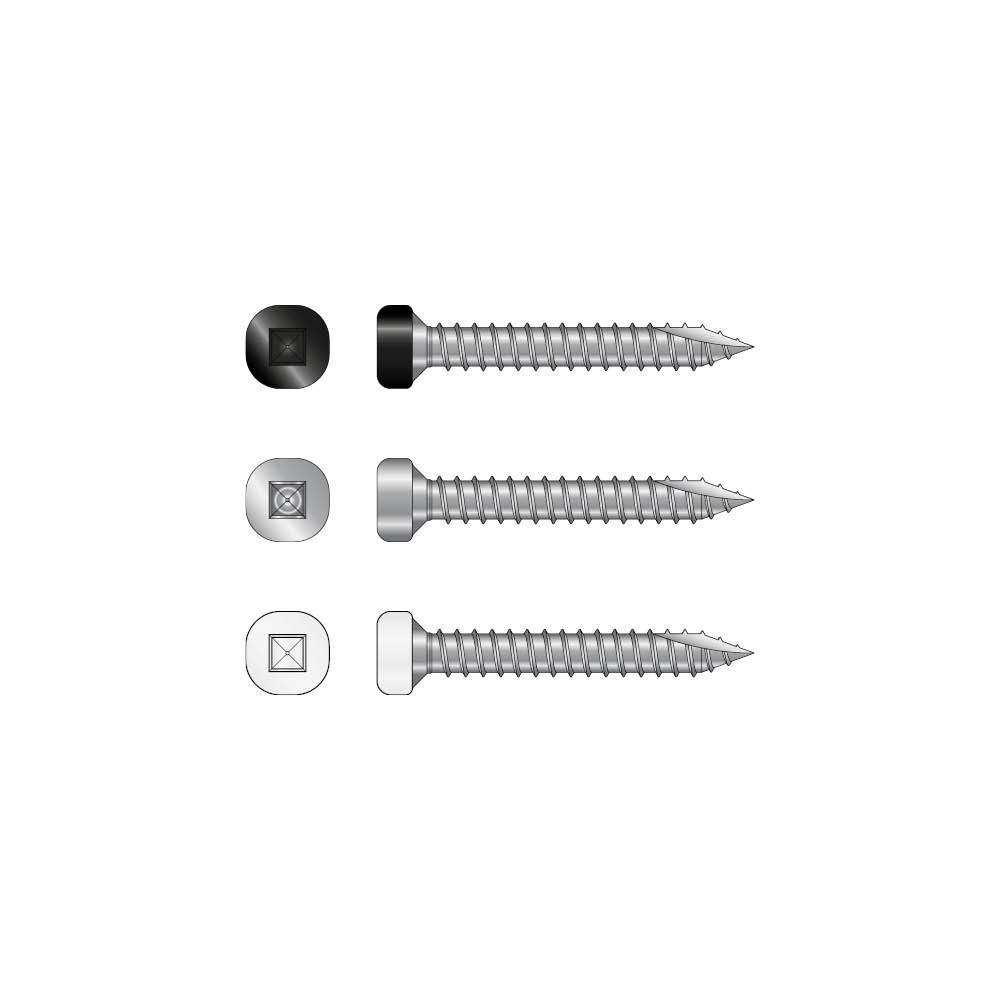

Tuotteen mitat Maalattu pää RAL 9005
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | bit | ||||
| VBS3.5X19 RAL9005 | 75522 | 55841815 | 3.5 | 19 | 6 | 2.7 | 19 | 0.7 | Square | 200 |
Tuotteen mitat Maalattu pää RAL 9010
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | bit | ||||
| VBS3.5X19 RAL9010 | 75521 | 55841800 | 3.5 | 19 | 6 | 2.7 | 19 | 0.7 | Square | 200 |
