HNZ
Karkaistu muuraus- ja betoninaula

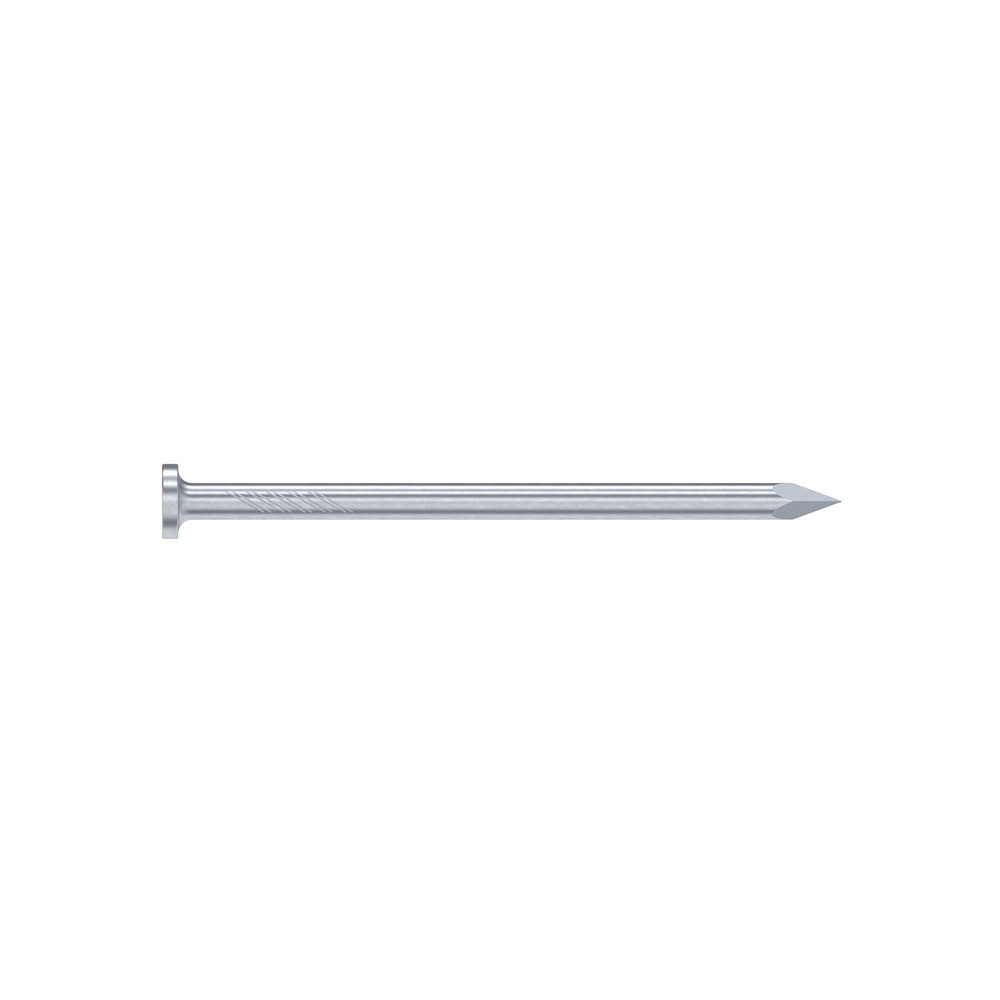

The hardened masonry nail has a flat head and round shank, mainly used indoors on hard materials, such as concrete nd masonry.
Käyttöluokka 1
Sähkösinkitty teräs
Indoor
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet

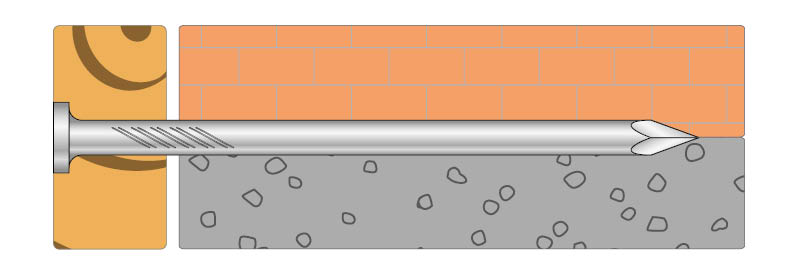

Sovellus
Tekniset tiedot
Mitat
Product dimensions
| Tuotenro | Item code | Fastener dimensions [mm] | Qty/box | Määrä/Blisteripakkaus | Paino [kg] | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | bit | |||||
| HNZ3.0x30 | 75633 | 3 | 30 | 6 | - | - | - | 100 | - | 0.002 |
| HNZ3.0X30 Blister | 78220 | 30 | 6 | - | - | - | - | 100 | 0.002 | |
| HNZ3.0x40 | 75634 | 40 | 6 | - | - | - | 100 | - | 0.002 | |
| HNZ3.0X40 Blister | 78235 | 40 | 6 | - | - | - | - | 25 | 0.003 | |
| HNZ3.0x50 | 75635 | 50 | 6 | - | - | - | 100 | - | 0.003 | |
| HNZ3.0X50 Blister | 78255 | 50 | 6 | - | - | - | - | 20 | 0.003 | |
| HNZ3.0x60 | 75636 | 60 | 6 | - | - | - | 100 | - | 0.004 | |
| HNZ3.0X60 Blister | 78252 | 60 | 6 | - | - | - | - | 15 | 0.004 | |
| HNZ3.0x70 | 75637 | 70 | 6 | - | - | - | 100 | - | 0.004 | |
