LBS
Kevyt betoniruuvit

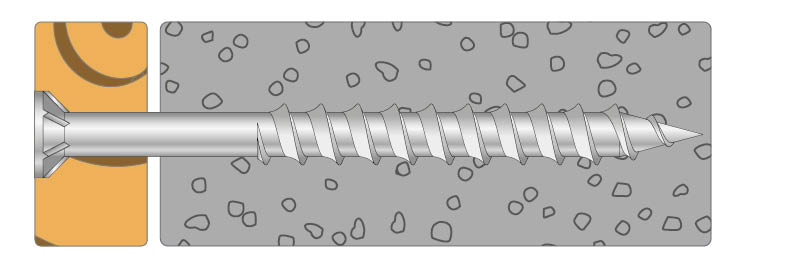

Fasten screw without pre-drilling directly into the porous stone material. Use a low rpm drilling machine but avoid tightening the screw too hard. If this happens the thread looses it grip from the bedding and a new fitting should be done. Minimum anchorage is 60 mm.
Käyttöluokka 2
Protec® +
Outdoor
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Product dimensions
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | Paino [kg] | |||||
|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | bit | ||||
| LBS8.0x65 | 75259 | 55840960 | 8 | 65 | 12 | 60 | 5 | T-30 | 0.014 |
| LBS8.0x110 | 75327 | 55838958 | 8 | 110 | 12 | 60 | 50 | T-30 | 0.024 |
| LBS8.0x130 | 75328 | 55836476 | 8 | 130 | 12 | 60 | 70 | T-30 | 0.03 |
| LBS8.0x180 | 75329 | 55836480 | 8 | 180 | 12 | 60 | 120 | T-30 | 0.041 |
| LBS8.0x210 | 75330 | 55836495 | 8 | 210 | 12 | 60 | 150 | T-30 | 0.048 |
