Kipsi ruuvi

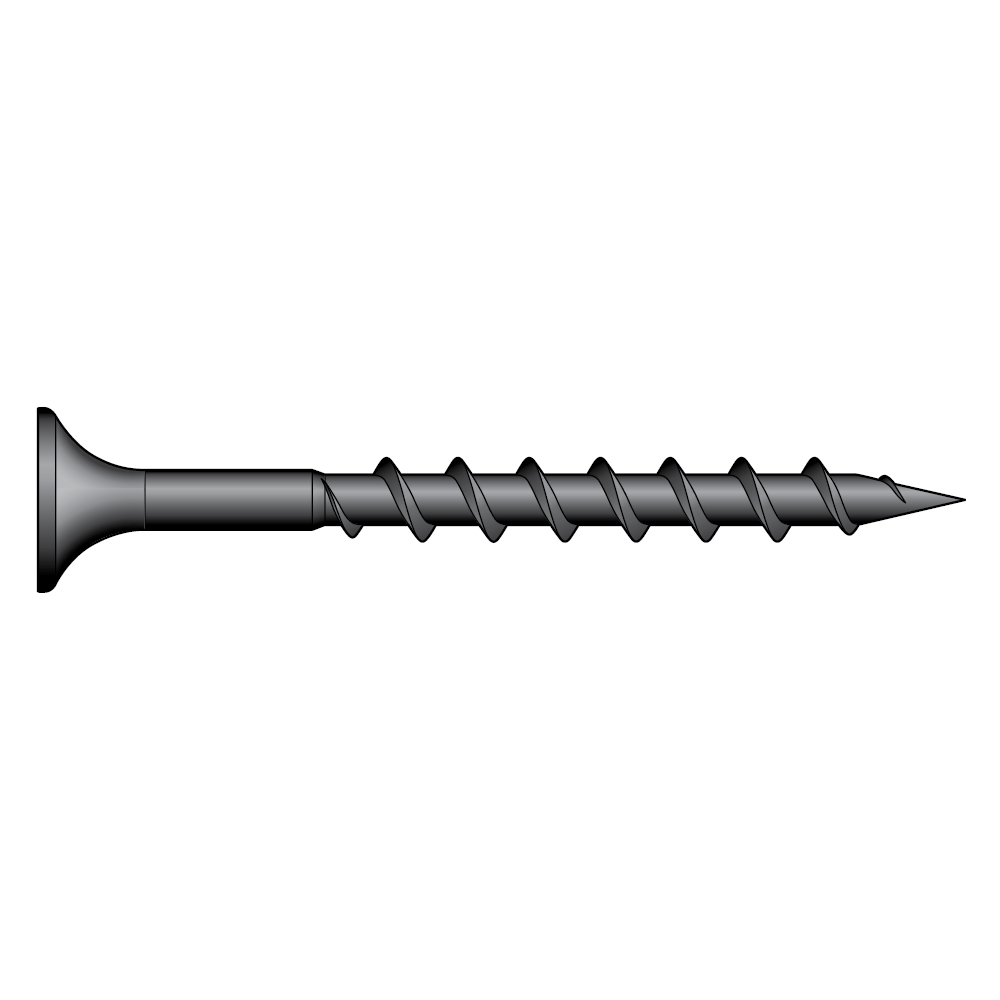

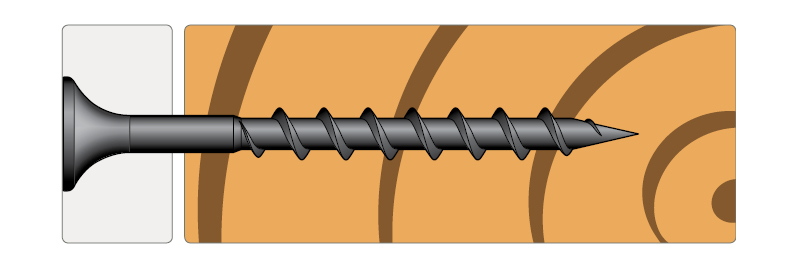

DWC-kipsiruuvi on kehitetty kipsilevyjen nopeampaan asennukseen puurunkoon.
DWC-kipsiruuvi on kehitetty kipsilevyjen nopeampaan asennukseen puurunkoon.




| Viite | Mitat | ||||
|---|---|---|---|---|---|
| Mitat ja ominaisarvot[mm] | QD information | Muu | |||
| Ruuvin pituus[mm] | Määrä ruuveja / nauha | Quik Drive -lisälaite | Määrä ruuveja / laatikko | Paino[kg] | |
| DWC3930PE | 30 | 30.0 | QDPRO51E / QD76KE | 2500.0 | 0.002 |
| DWC3940PE | 40 | 30.0 | QDPRO51E / QD76KE | 2500.0 | 0.002 |
| DWC3955PE | 55 | 30.0 | QD76KE | 2000.0 | 0.003 |
| DWC3965PE | 65 | 30.0 | QD76KE | 1500.0 | 0.005 |
| Viite | Mitat | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Muu | Mitat ja ominaisarvot[mm] | QD information | |||||||||
| DB nr. | NOBB nr. | Määrä ruuveja / laatikko | Paino[kg] | Pään leveys[mm] | Ø pää[mm] | d1[mm] | Ruuvin pituus[mm] | Määrä ruuveja / nauha | Suositeltu kierrosnopeus[tr/min] | Quik Drive -lisälaite | |
| DWC3930PE | 1382538 | 42947546 | 2500.0 | 0.002 | 8.1 | 4 | 2.5 | 30 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3940PE | 1382540 | - | 2500.0 | 0.002 | 8.1 | 4 | 2.5 | 40 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3955PE | 1382548 | 42947584 | 2000.0 | 0.003 | 8.1 | 4 | 2.5 | 55 | 30.0 | 2500 - 6000 | QD76KE |
| DWC3965PE | 1382554 | 42947592 | 1500.0 | 0.005 | 8.1 | 4 | 2.5 | 65 | 30.0 | 2500 - 6000 | QD76KE |
