BKF
Laminaattiruuvit

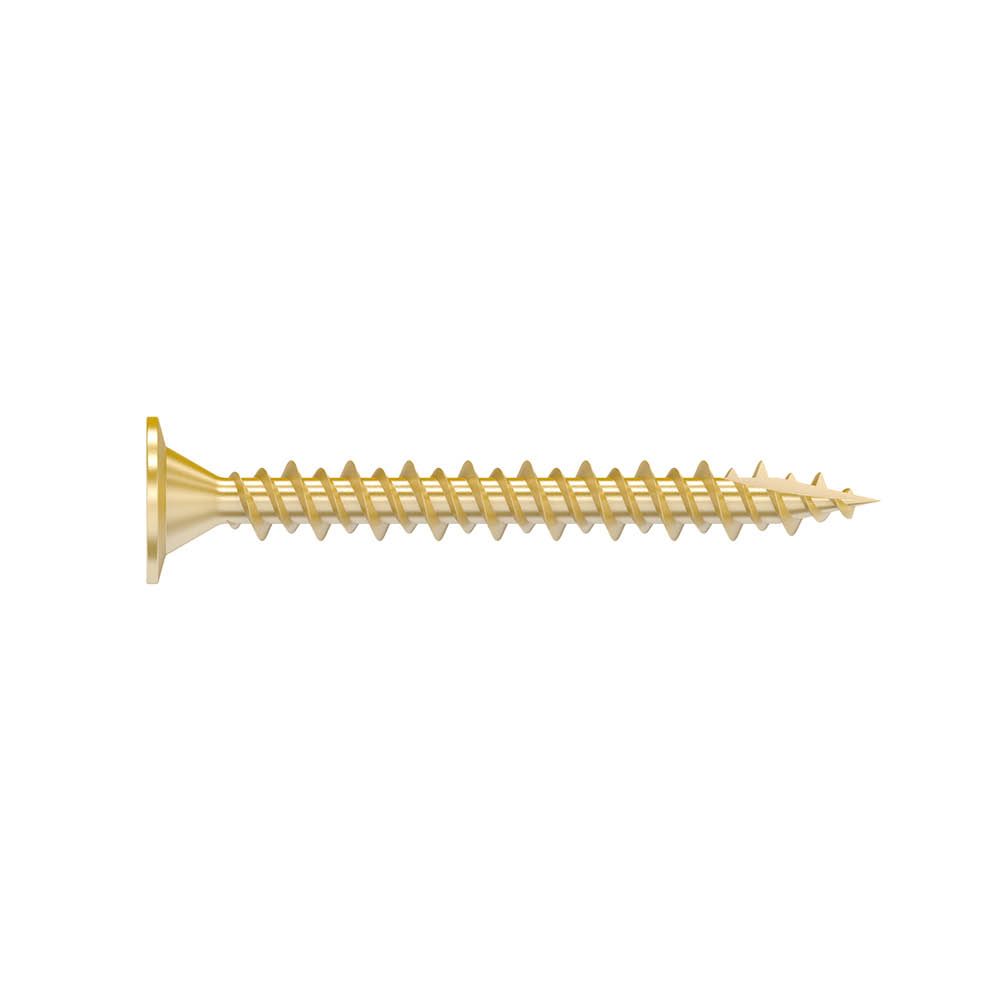

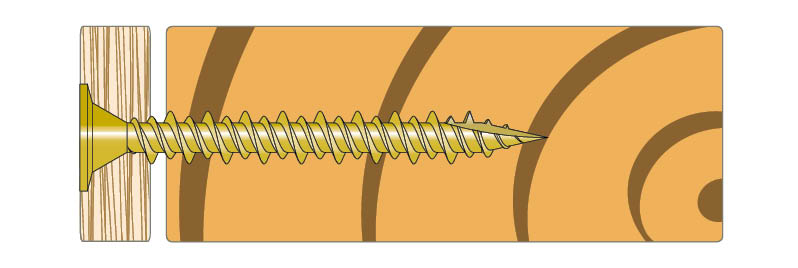

This screw is specially developed for mounting celling and wall boards made of laminate. The screw has Hi-Lo thread and cutpoint and can therefore be used in wood and steel joists up to 1.0mm in thickness.
Käyttöluokka 1
Indoor
EPD
Yellow electro-galvanized steel
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Product dimensions
Mitat
| Viite | Mitat | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||||
| NOBB nr. | Paino[kg] | D[mm] | L[mm] | dₕ[mm] | l-lg[mm] | Bit[mm] | ||
| BKF4.2X25 | 75512 | 55841217 | 0.002 | 4.2 | 25 | 8 | 15 | PH2 |
| BKF4.2X35 | 75513 | 55841221 | 0.003 | 4.2 | 35 | 8 | 25 | PH2 |
