FPHSD
Metallirunkojen ruuvit

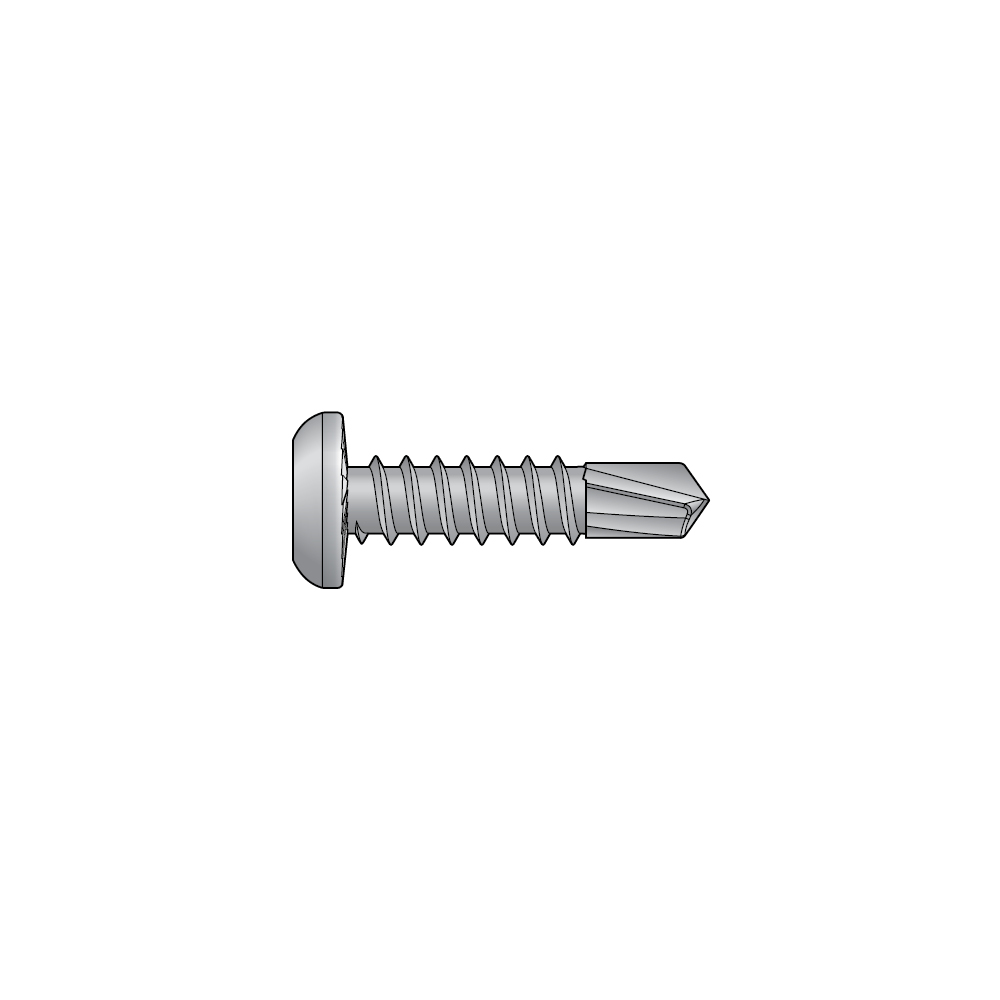

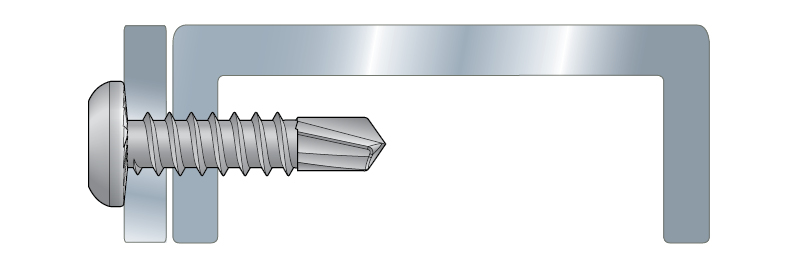

Single thread FPHSD collated screws have been designed to facilitate the implementation of metal frames between them (steel on steel) for plates 1.8 mm maximum.
Käyttöluokka 2
Sähkösinkitty teräs
Indoor
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Tuotenro | Head width [mm] | Ø head [mm] | Screw length [mm] | Qty screws / strip | Qty screws / box | Compatible tool | Max rotation speed [tr/min] | Paino [kg] |
|---|---|---|---|---|---|---|---|---|
| FPHSD34S1214 | 9 | 5.5 | 19 | 23 | 2500 | QDPROPP38 | 2500 | 8.8 |
Product Dimensions UK
| Tuotenro | Fastener dimensions [mm] | Qty per Strip | Qty per Box | Suositeltu kierrosnopeus | Quik Drive -lisälaite | Paino [kg] | ||
|---|---|---|---|---|---|---|---|---|
| dh | d | l | ||||||
| FPHSD34S1214 | 9 | 5.5 | 19 | 23 | 2500 | 2500 | QDPROPHG2 | 8.8 |
