NEDC Suspension Brackets

Suspension brackets are used for lowering ceilings to allow for technical installations.
The product is designed in accordance with Eurocode 5 and complies with edge distance requirements.

Tekniset tiedot
Käyttöluokka 2
Käyttöluokka 2
EPD
EPD

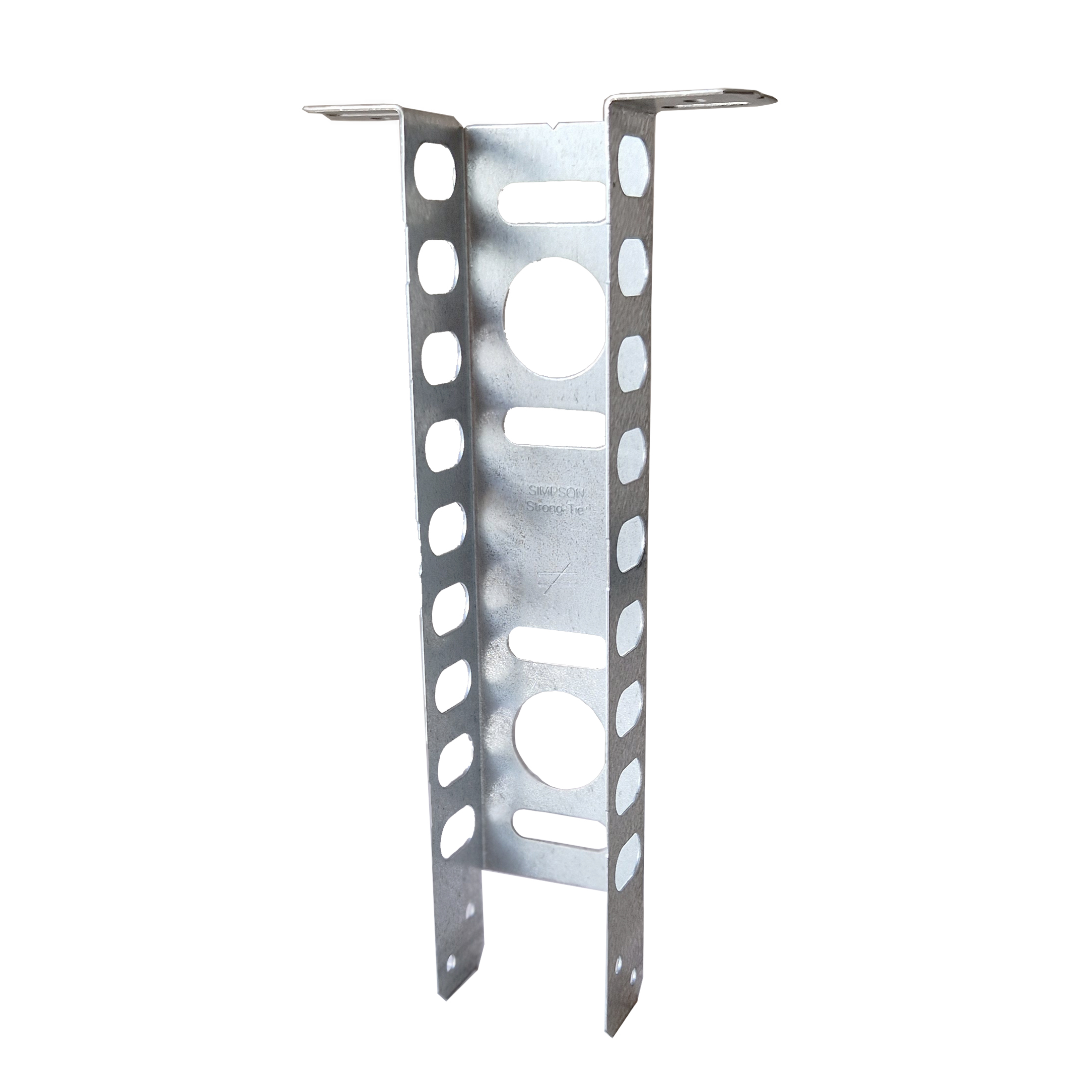

NEDC48277_main

Tuotteen yksityiskohdat

Kuvat

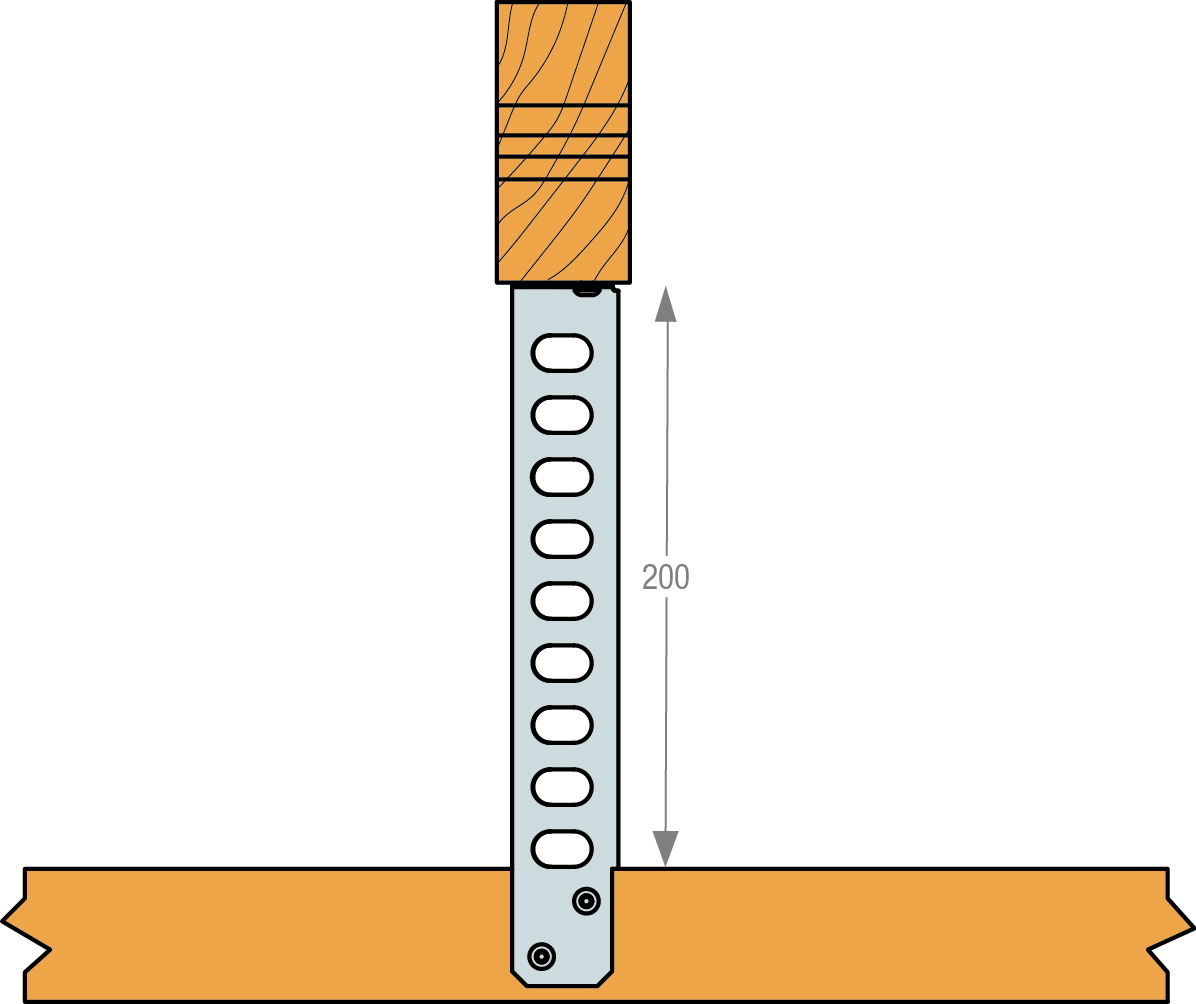

NEDC48227 inst. 2

Ominaisuudet

Material

  • Steel:
    S250GD + Z275 according to DIN EN 10346
  • Corrosion protection:
    275 g/m2 on both sides - correspond to a zinc layer of approx. 20 μm

Benefits

To avoid damage to the vapor barriers, reinforcements have been made around the mounting holes.

For easier installation, a mounting mark has been added.

Sovellus

When to use

The suspension bracket is used in roof constructions where technical installations are routed at ceiling level.

The bracket is for suspending rafter planks, onto which the ceiling cladding is to be mounted.

It is used in warm attic duct spaces where ventilation pipes, water pipes, and electrical installations are routed.

Tekniset tiedot

Product dimensions

Mitat

Product dimensions
ViiteMitat
MuuMitat ja ominaisarvot[mm]Reiät[mm]
DB nr.NOBB nr.Määrä per laatikkoPaino[kg]A[mm]B[mm]C[mm]D[mm]t[mm]PyöreäPitkänomainen
ØØ5x20
NEDC48227-60671909500.142271104829162

Asennus

Asennus

Fixing

  • Connecting with CSA4,0x40 connector screw

Sertifiointi

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
