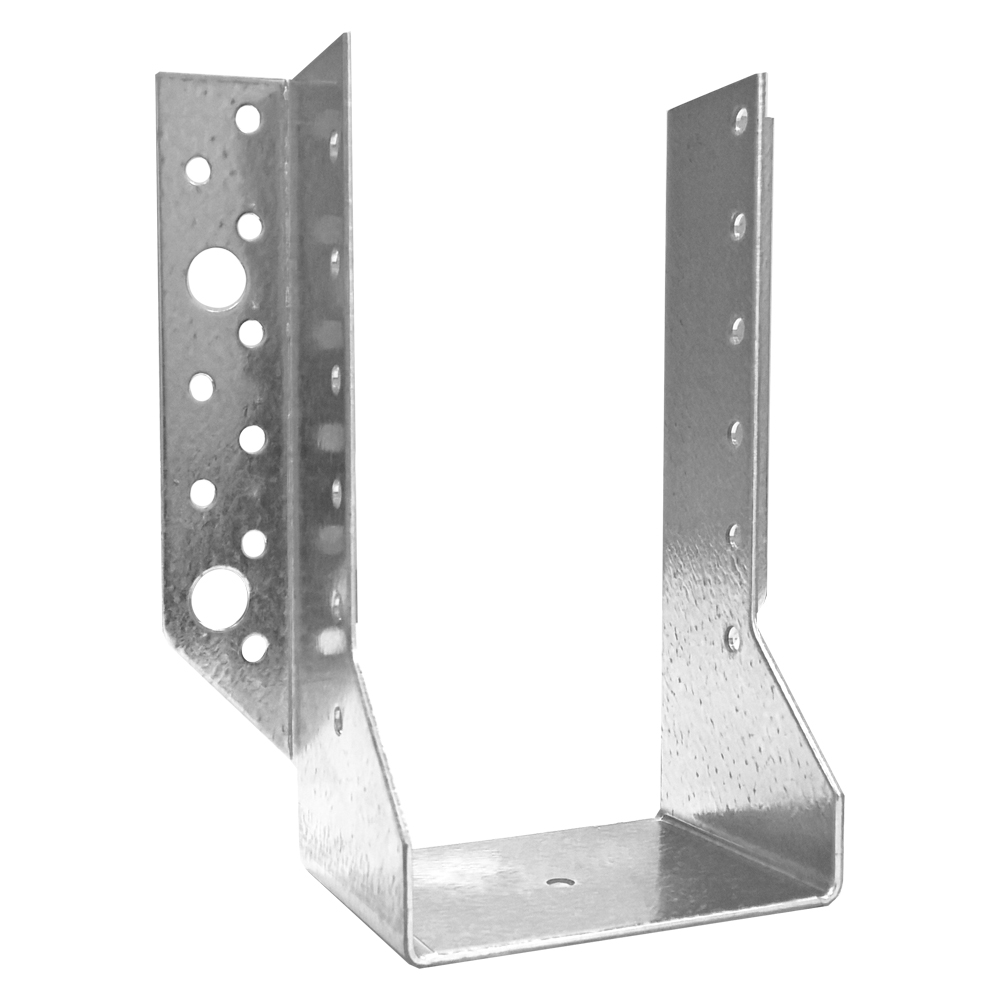

BSNN-Z
Palkkikenkä, ZPRO
Joist hangers are used for the connection of secondary beams to main beams or posts.
ZPRO coating is a unique coating - corresponding to a zinc layer of approx. 55 μm

CE-merkitty

Tekninen hyväksyntä

Uusi
EPD

Käyttöluokka 3

ZPRO

Outdoor
BSNN_Z_SSTBP_homepage_NO_no
BSNN_Z_SSTBP_homepage_SE_sv
BSNN_Z_SSTBP_homepage_FI_fi
BSNN_Z_SSTBP_homepage_DK_da
Tuotteen yksityiskohdat
Ominaisuudet
Material
- Steel quality:
S250GD + ZPRO - Corrosion protection:
ZPRO coating - corresponding to a zinc layer of approx. 55 μm
Benefits
- BSNN-Z-palkkikiinnikkeet on hyväksytty myös kolmiakselisille kuormille.
- Liitännät betoniin, teräkseen ja muuraukseen ovat sallittuja, katso staattiset arvot.
Sovellus
Suitable On
- Supporting member:
Solid wood, engineered wood, concrete, steel - Supported member:
Solid wood, engineered wood
When to Use
- For connections of secondary beams made of wood or engineered wood to main beams / posts made of engineered wood or concrete / steel.
Tekniset tiedot
Product dimensions
| Viite | Mitat | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Muu | Mitat, SB[mm] | Mitat ja ominaisarvot[mm] | Reiät HB | Reiät, SB | |||||||||||||
| DB nr. | NOBB nr. | Määrä laatikossa | Paino[kg] | Korkeus | Leveys | A[mm] | B[mm] | C[mm] | D[mm] | F[mm] | t[mm] | Pyöreä | Pyöreä | ||||
| Minimi[mm] | Maksimi[mm] | Minimi[mm] | Maksimi[mm] | Ø5[mm] | Ø13[mm] | Ø5[mm] | |||||||||||
| BSNN45/93Z | 2125769 | - | 50 | 0.21 | 102 | 139 | 43 | 45 | 45 | 92 | 60 | 27 | 63 | 2 | 8 | 2 | 6 |
| BSNN45/138Z | 2125775 | - | 40 | 0.3 | 148 | 206 | 43 | 45 | 45 | 138 | 60 | 27 | 63 | 2 | 16 | 2 | 10 |
| BSNN45/168Z | 2125778 | - | 40 | 0.35 | 178 | 251 | 43 | 45 | 45 | 168 | 60 | 27 | 63 | 2 | 18 | 4 | 12 |
| BSNN48/91Z | - | 57071000 | 50 | 0.21 | 101 | 136 | 46 | 48 | 48 | 91 | 60 | 27 | 63 | 2 | 8 | 2 | 6 |
| BSNN48/136Z | - | 57071015 | 40 | 0.3 | 146 | 204 | 46 | 48 | 48 | 136 | 60 | 27 | 63 | 2 | 16 | 2 | 10 |
| BSNN48/166Z | - | 57071026 | 40 | 0.35 | 176 | 249 | 46 | 48 | 48 | 166 | 60 | 27 | 63 | 2 | 18 | 4 | 12 |

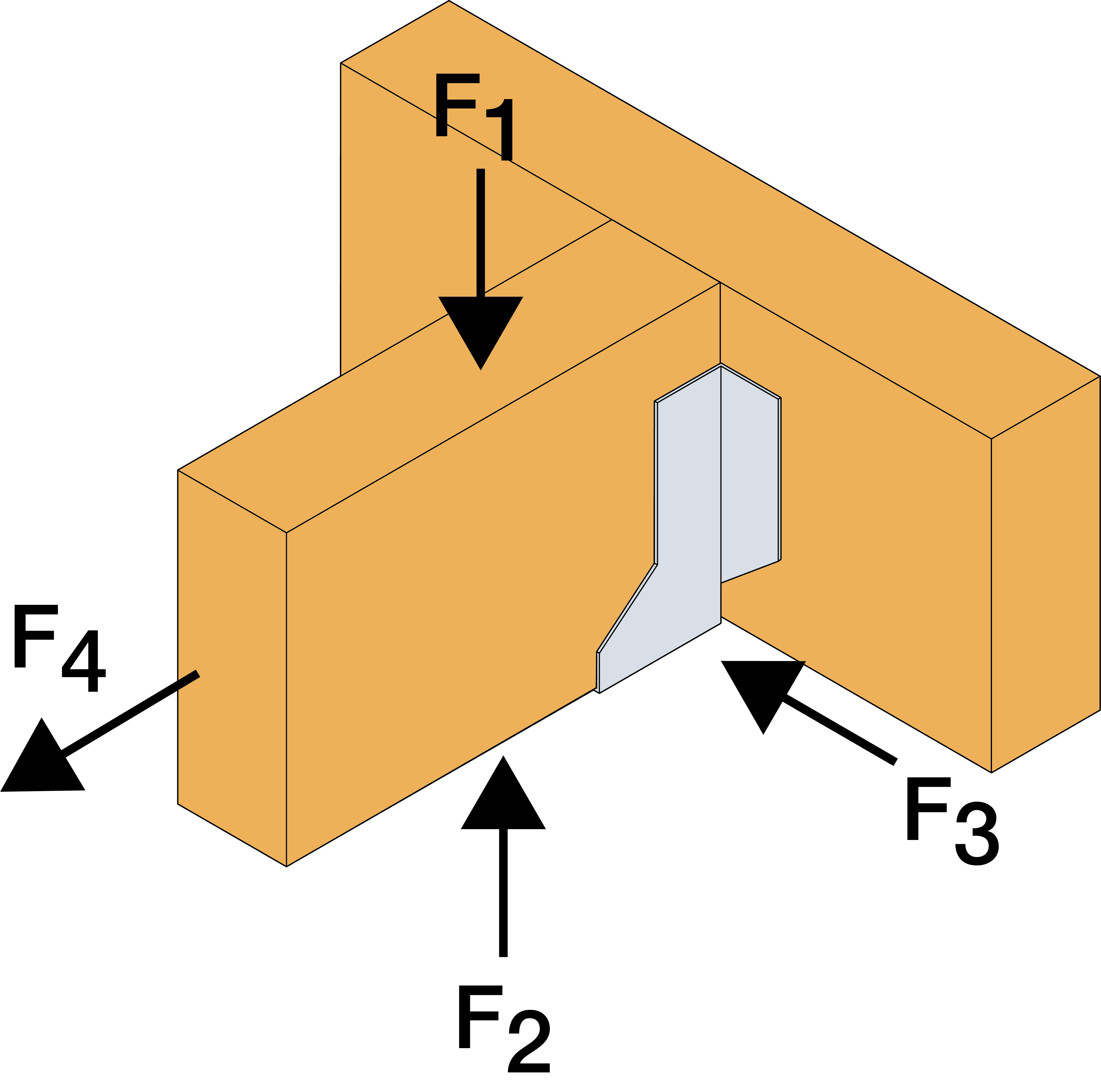

Product capacities - Timber to timber - full nailing
| Viite | Palkkikengän kapasiteetti | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kestävyyden ominaisarvot - Täysi kiinnitys | ||||||||||||||||||||||
| Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||||||||||||||||||
| Primääripalkki | SB | R₁,ₖ | R₂,ₖ | R₃,ₖ | R4,k | |||||||||||||||||
| Määrä | Määrä | CNA4.0x35 | CNA 4,0x40 | CNA 4,0x50 | CNA 4,0x60 | CSA 5.0x40 | CNA4.0x35 | CNA 4,0x40 | CNA 4,0x50 | CNA 4,0x60 | CSA 5.0x40 | CNA4.0x35 | CNA 4,0x40 | CNA 4,0x50 | CNA 4,0x60 | CSA 5.0x40 | CNA4.0x35 | CNA 4,0x40 | CNA 4,0x50 | CNA 4,0x60 | CSA 5.0x40 | |
| BSNN45/93Z | 8.0 | 6 | 7.2 | 8.4 | - | - | 16.1 | 4.7 | 4.7 | - | - | 4.6 | 3.4 | 3.9 | - | - | 9.5 | 3.7 | 4.4 | - | - | 11.5 |
| BSNN45/138Z | 16.0 | 10 | 17.1 | 19.9 | - | - | 27 | 6.6 | 6.6 | - | - | 6.5 | 6.7 | 7.7 | - | - | 17.3 | 6.1 | 7.4 | - | - | 19.1 |
| BSNN45/168Z | 18.0 | 12 | 22.1 | 25.4 | - | - | 31.5 | 7.4 | 7.4 | - | - | 7.3 | 7.8 | 9 | - | - | 20.4 | 7.3 | 8.9 | - | - | 23 |
| BSNN48/91Z | 8.0 | 6 | 7.1 | 8.4 | - | - | 15.9 | 5 | 5 | - | - | 5 | 3.4 | 3.9 | - | - | 9.5 | 3.7 | 4.4 | - | - | 11.5 |
| BSNN48/136Z | 16.0 | 10 | 16.9 | 19.7 | - | - | 27 | 7 | 7 | - | - | 7 | 6.7 | 7.7 | - | - | 17.3 | 6.1 | 7.4 | - | - | 19.1 |
| BSNN48/166Z | 18.0 | 12 | 21.9 | 25.2 | - | - | 31.5 | 7.9 | 7.9 | - | - | 7.9 | 7.8 | 9 | - | - | 20.4 | 7.3 | 8.9 | - | - | 23 |
The uplift capacities R2.k are determine for a joist with a height of 4/3x B (B = height of BSNN). Also for connection with partial nailing.
For smaller sizes may it be possible to determine a higher capacity according to the ETA.
Combined load:
Product capacities - Timber to timber - Partial nailing
| Viite | Palkkikengän kapasiteetti | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kestävyyden ominaisarvot - Puu-puu liitos - Osittainen kiinnitys | ||||||||||||||||||||||
| Kestävyyden ominaisarvot[kN] | Liitoskiinnikkeet | |||||||||||||||||||||
| R₁,ₖ | R₂,ₖ | R₃,ₖ | R4,k | SB | Primääripalkki | |||||||||||||||||
| CNA 4.0x35 | CNA 4.0x40 | CNA 4,0x50 | CNA 4.0x60 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CNA 4,0x50 | CNA 4,0x60 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CNA 4,0x50 | CNA 4,0x60 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CNA 4,0x50 | CNA 4,0x60 | CSA 5.0x40 | Määrä | Määrä | |
| BSNN45/93Z | 6.4 | 7.4 | - | - | 11.3 | 3.8 | 4.5 | - | - | 4.6 | 1.3 | 1.4 | - | - | 1.7 | 2.8 | 3.1 | - | - | 5.7 | 3.0 | 6.0 |
| BSNN45/138Z | 11.5 | 13.3 | - | - | 18 | 6.6 | 6.6 | - | - | 6.5 | 2.4 | 2.7 | - | - | 3.3 | 6.1 | 7.4 | - | - | 11.5 | 6.0 | 10.0 |
| BSNN45/168Z | 13.3 | 14.6 | - | - | 18 | 7.4 | 7.4 | - | - | 7.3 | 2.9 | 3.2 | - | - | 3.9 | 7.3 | 8.9 | - | - | 11.5 | 6.0 | 12.0 |
| BSNN48/91Z | 6.3 | 7.4 | - | - | 11.3 | 3.8 | 4.5 | - | - | 5 | 1.3 | 1.4 | - | - | 1.7 | 2.8 | 3.1 | - | - | 5.7 | 3.0 | 6.0 |
| BSNN48/136Z | 11.4 | 13.2 | - | - | 18 | 7 | 7 | - | - | 7 | 2.4 | 2.7 | - | - | 3.3 | 6.1 | 7.4 | - | - | 11.5 | 6.0 | 10.0 |
| BSNN48/166Z | 13.3 | 14.6 | - | - | 18 | 7.9 | 7.9 | - | - | 7.9 | 2.9 | 3.2 | - | - | 3.9 | 7.3 | 8.9 | - | - | 11.5 | 6.0 | 12.0 |
Combined load:
Asennus
Asennus
Fixing
- Timber support:
CNA-G 4.0xl or CSA-Z 5.0xl - Steel Support:
Bolt M10 - Concrete Support:
Anchor M10
Sertifiointi
Suoritustasoilmoitus (DoP)
