CLR Plus P

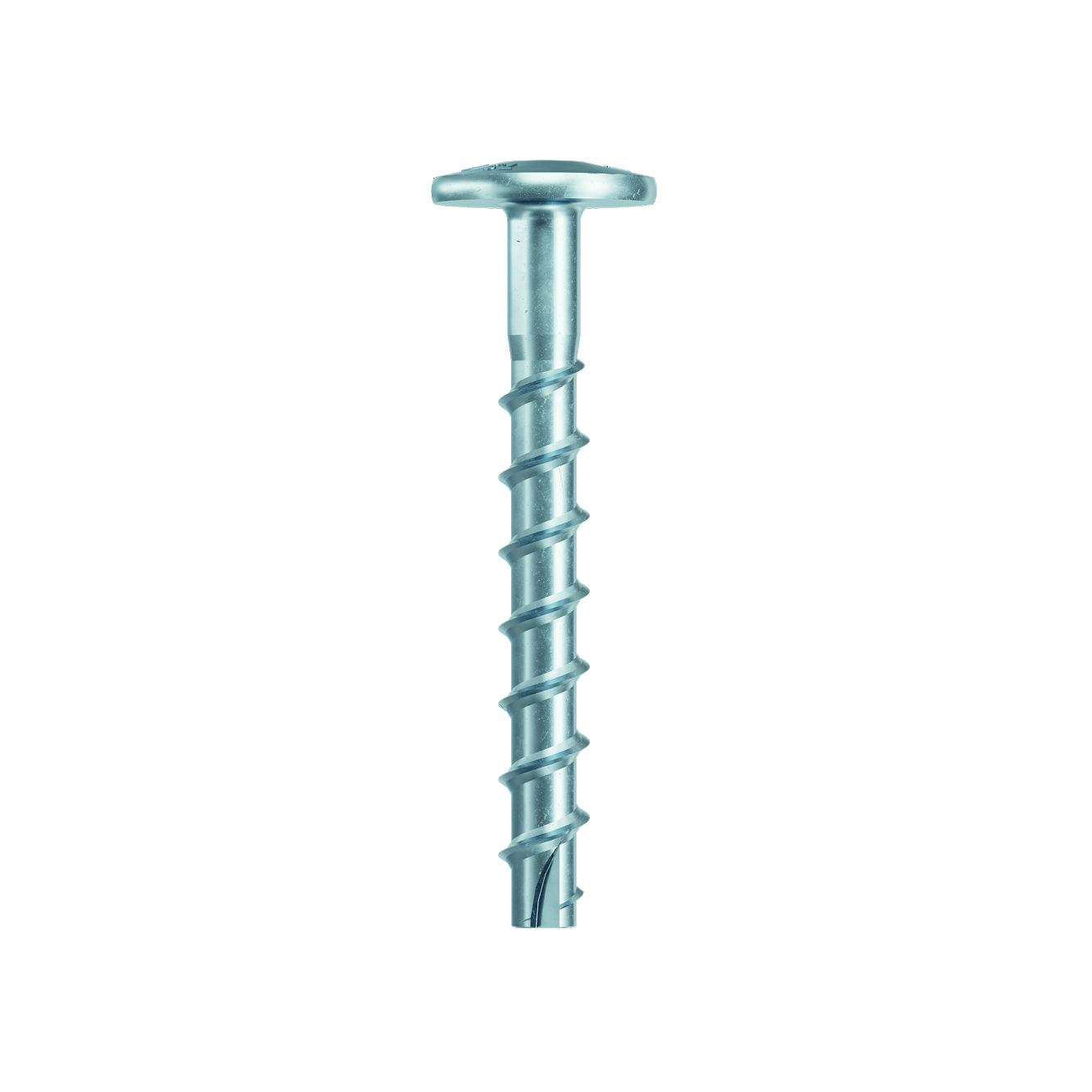

Pan-Head Concrete Screws

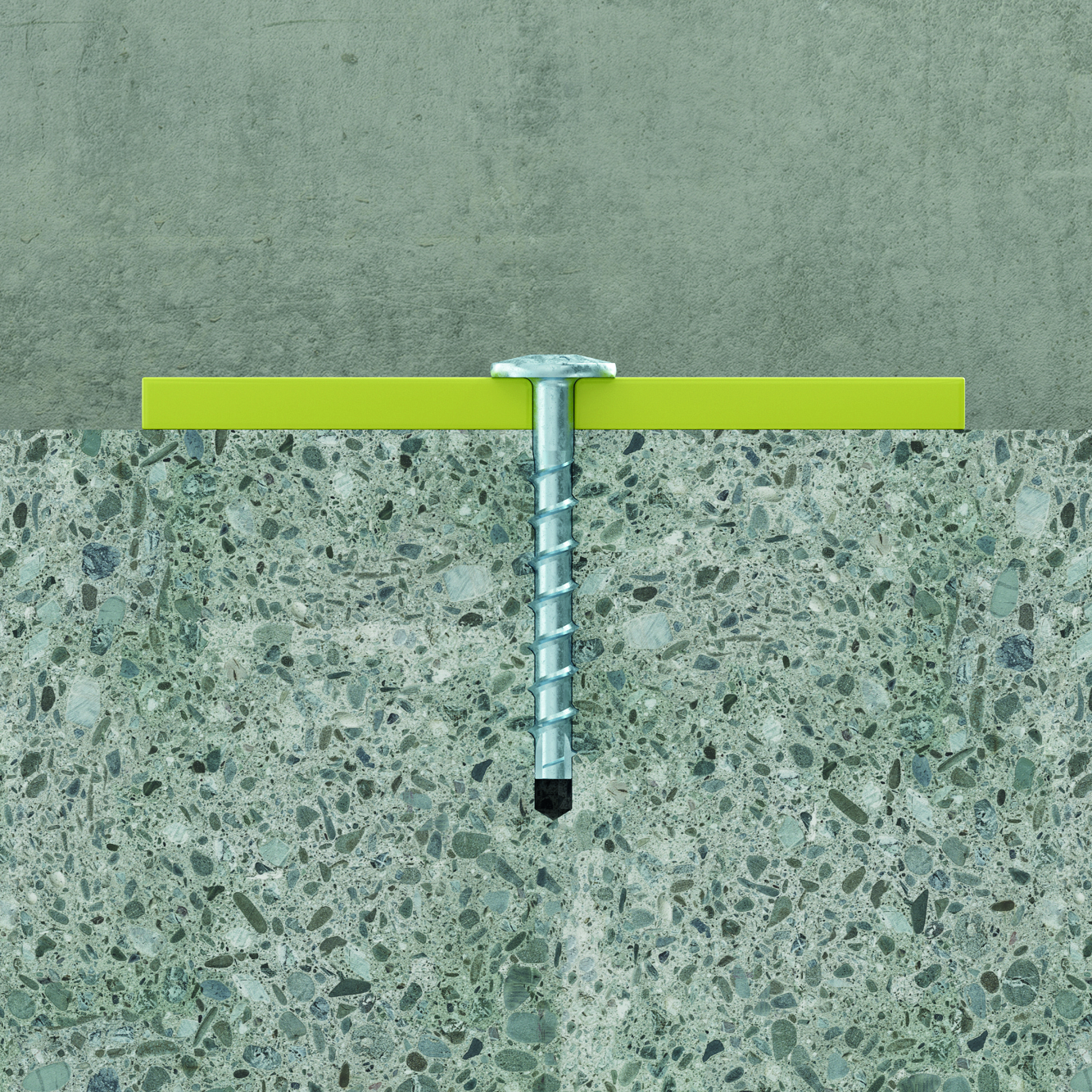

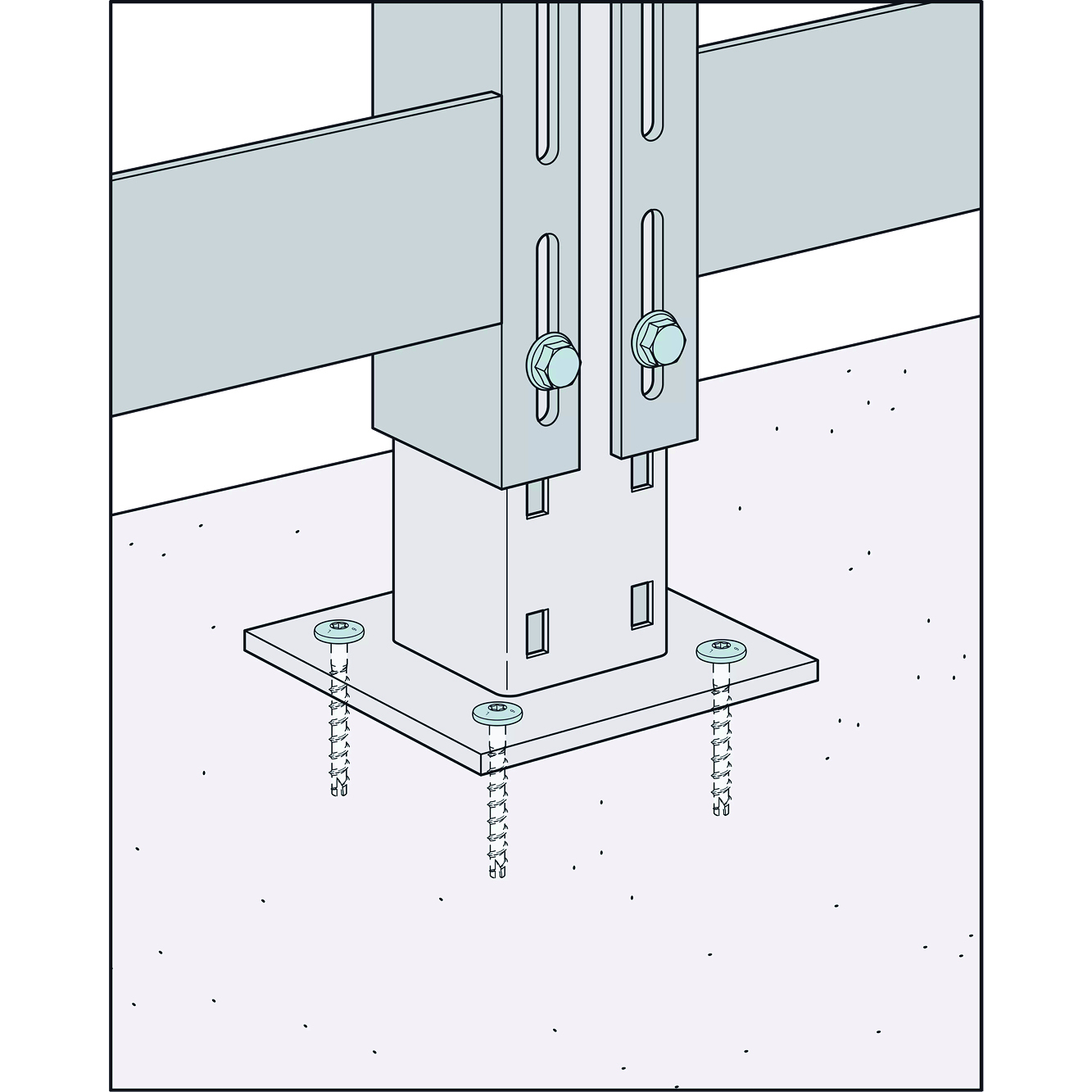

Pan-head screws are used in a lot of cases when small protrusion from the fixed object is preferred and when for aesthetical reasons the hexagonal head is not the best solution.

CE-merkitty

Seismic C1
Tekniset tiedot
Product dimensions
| Viite | Metallic fixings dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||||
| Reiän halkaisija [dₒ][mm] | Fixing thickness (tfix) for reduced embedment depth (hef,r) | Kiinnikkeen paksuus [tfᵢₓ] (¹)[mm] | Fixing thickness (tfix) for increased embedment depth (hef,max) | Määrä / pakkaus[pcs] | Määrä per ulkolaatikko | Dim[mm] | ||
| CLR PLUS P 6x40 | 72106B0604000 | 6 | 5 | - | - | 100.0 | 400 | 6x40 |
| CLR PLUS P 6x60 | 72106B0606000 | 6 | 25 | 20 | 5 | 100.0 | 400 | 6x60 |
Special order item. Please contact Customer Service for further information.
