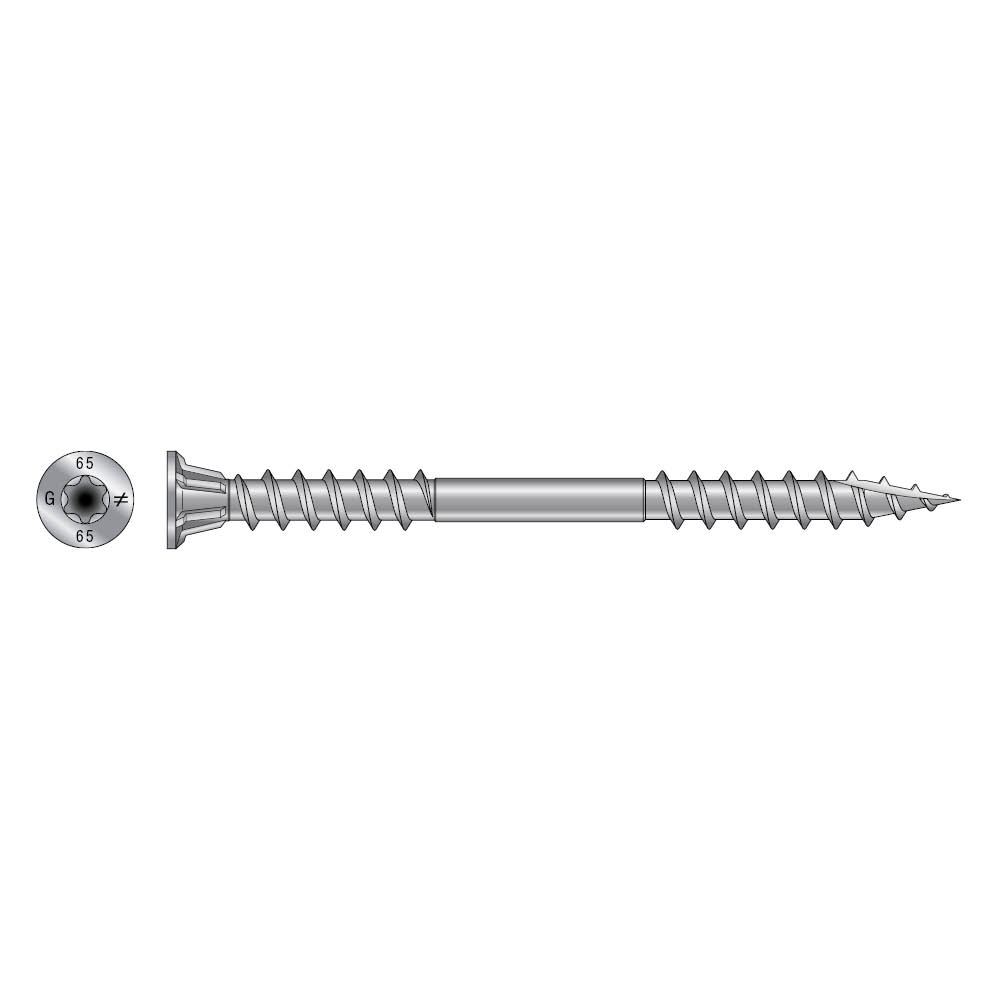

CLSA4
Puujulkisivuruuvit - ruostumaton A4

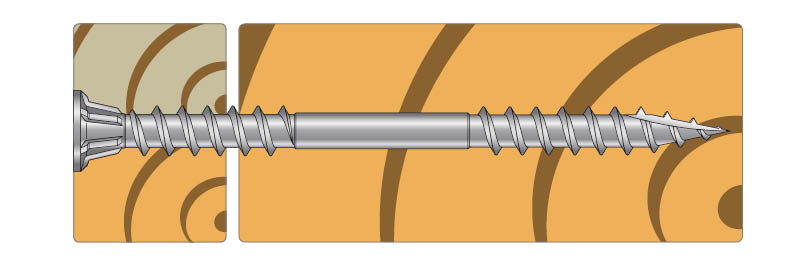

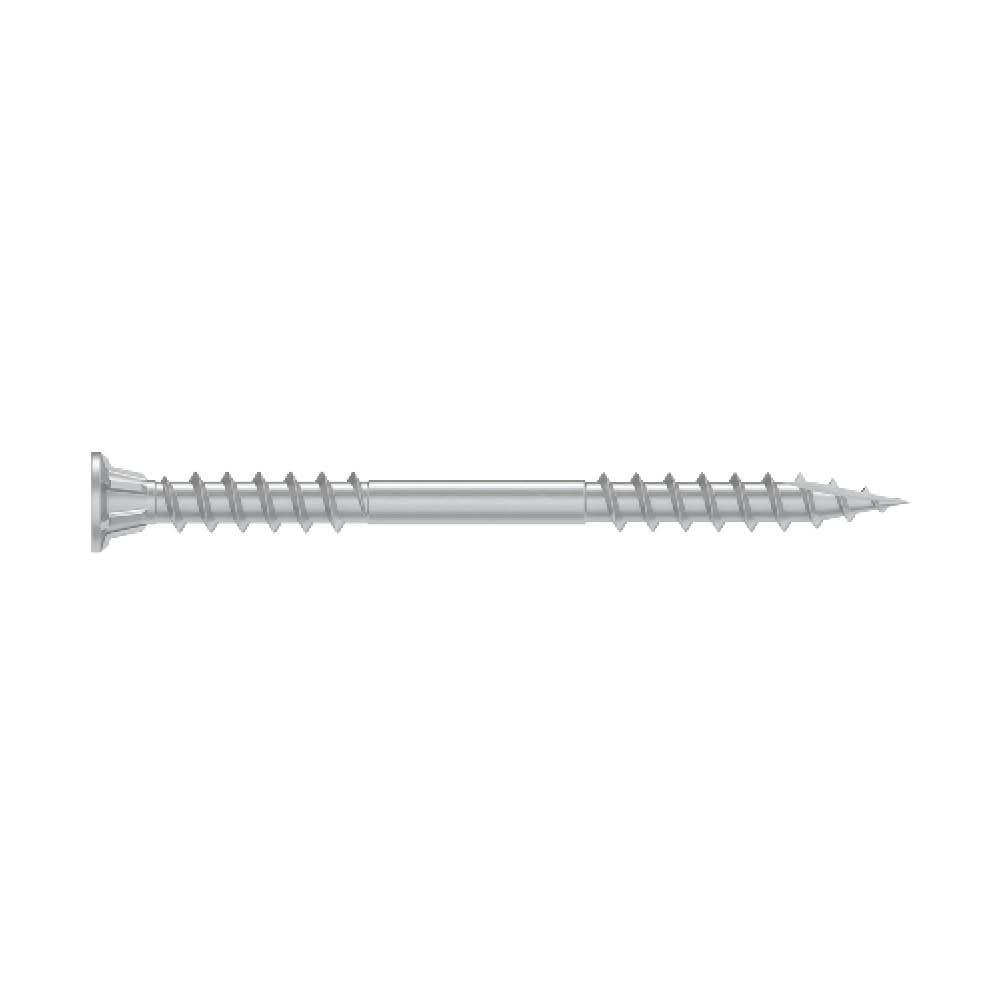

Made for outdoor wood cladding. The flat head with fiber lock technology protects the wood from moisture, and the double thread ensures sufficient insertion, even in high density wood without the risk of spin-off. Stainless A4 version made for non-painted facades or in marine environments.
Käyttöluokka 3
Ruostumaton teräs
Severe
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Discontinued Products
Tekniset tiedot
Mitat
Product dimensions
| Tuotenro | Item code | DB nr. | Fastener dimensions [mm] | Paino [kg] | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg1 | lg2 | tfix | bit | ||||
| CLSA44.8X48 | 75944 | 2086284 | 4.8 | 48 | 8 | 26 | 18 | 23 | T-20 | 0.003 |
| CLSA44.8X65 | 75945 | 2086285 | 65 | 8 | 26 | 22 | 40 | T-20 | 0.005 | |

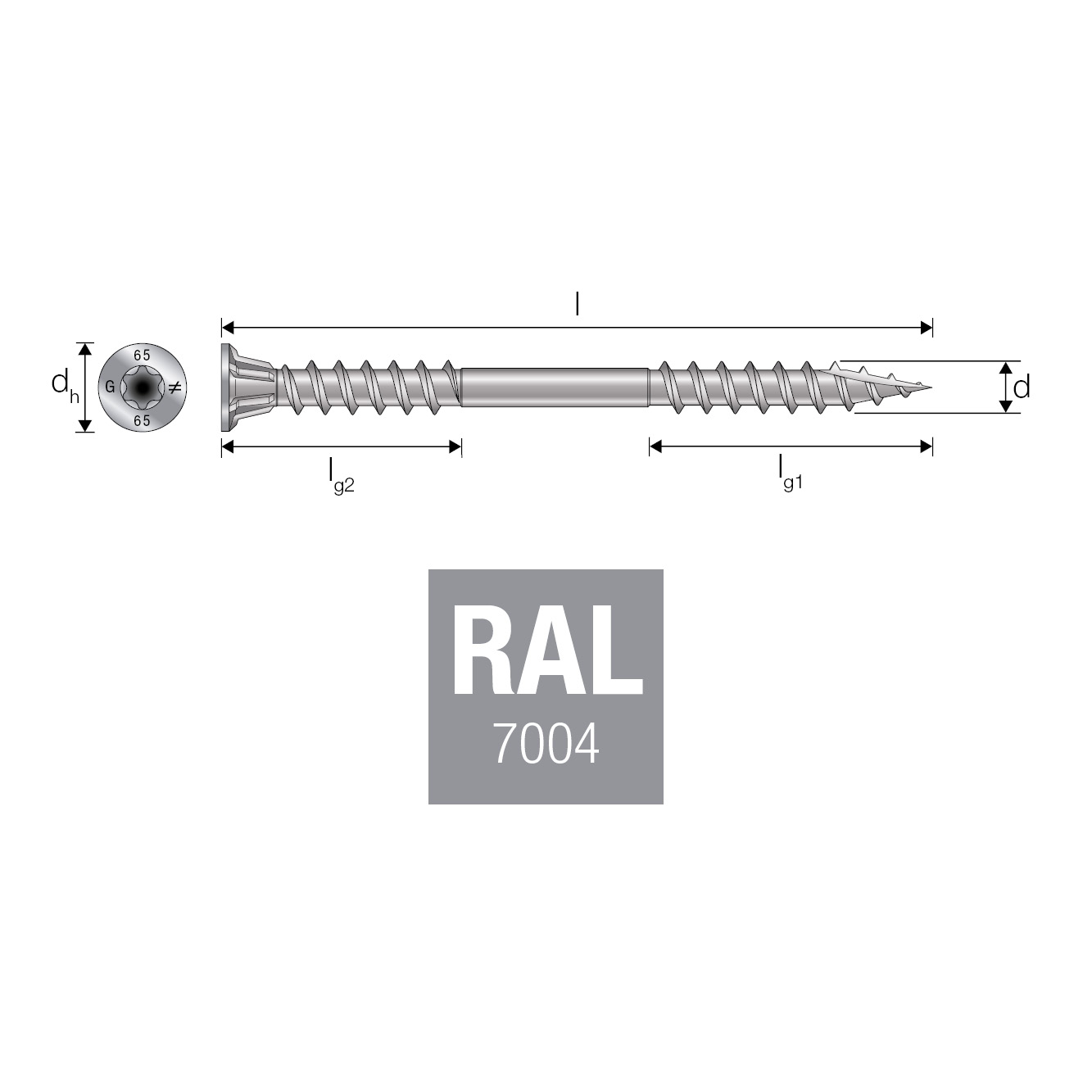

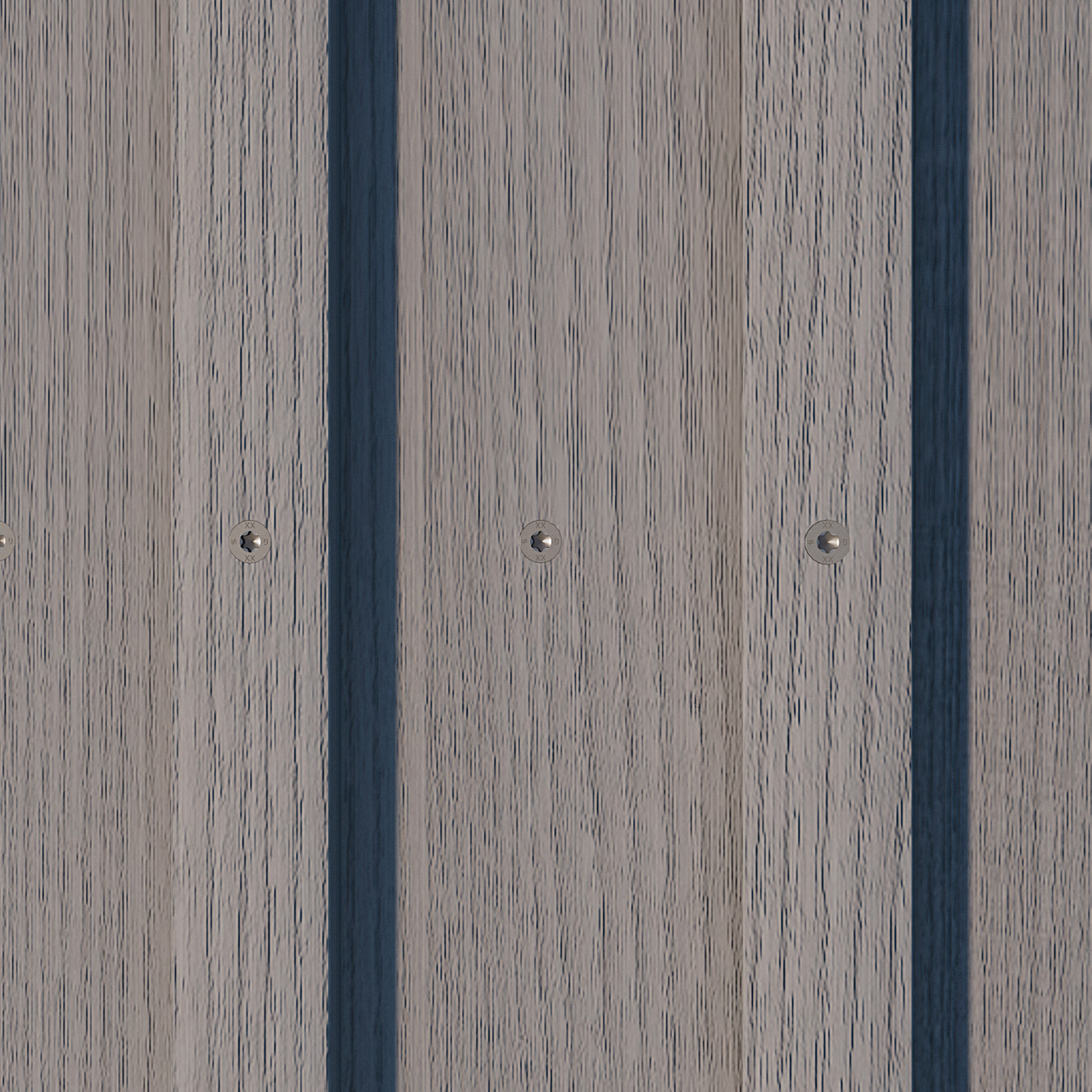

Tuotteen mitat Maalattu pää RAL 7004
| Tuotenro | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | bit | Box Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg1 | lg2 | tfix | ||||||
| CLSA44.8X48 RAL7004 | 75464 | 2055820 | 55836654 | 4.8 | 48 | 8 | 3.2 | 26 | 18 | 23 | T-20 | 250 |
| CLSA44.8X48 RAL7004 Bulk | 75463 | - | 55836635 | 48 | 8 | 3.2 | 26 | 18 | 23 | T-20 | 1300 | |
| CLSA44.8X65 RAL7004 | 75466 | 2055822 | 55836665 | 65 | 8 | 3.2 | 26 | 22 | 40 | T-20 | 250 | |
| CLSA44.8X65 RAL7004 Bulk | 75465 | - | 55836646 | 65 | 8 | 3.2 | 26 | 22 | 40 | T-20 | 750 | |

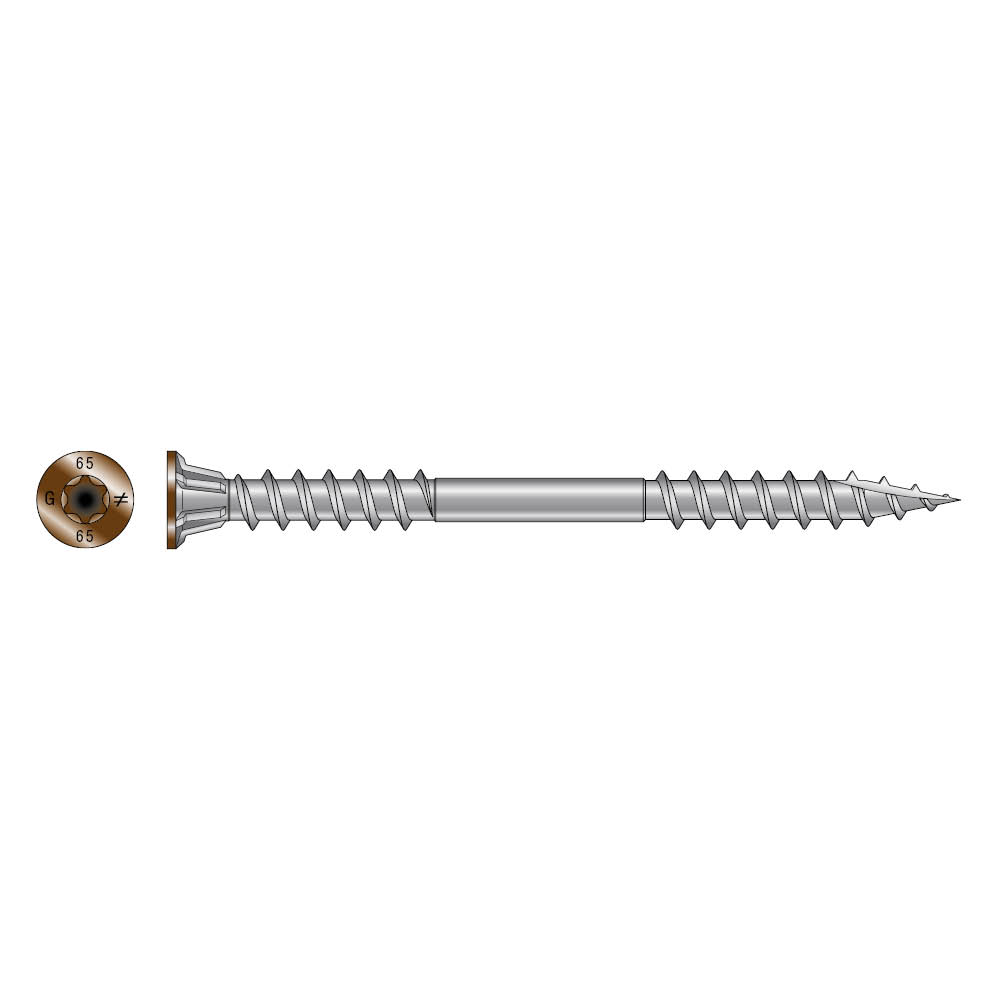

Tuotteen mitat Maalattu pää RAL 8007
| Tuotenro | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | bit | Box Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg1 | lg2 | tfix | ||||||
| CLSA44.8X48 RAL8007 | 75834 | 2073843 | 55959120 | 4.8 | 48 | 8 | 3.2 | 26 | 18 | 23 | T-20 | 250 |
| CLSA44.8X48 RAL8007 Bulk | 75835 | - | 55959165 | 48 | 8 | 3.2 | 26 | 18 | 23 | T-20 | 1300 | |
| CLSA44.8X65 RAL8007 | 75836 | 2073845 | 55959135 | 65 | 8 | 3.2 | 26 | 22 | 40 | T-20 | 250 | |
| CLSA44.8X65 RAL8007 Bulk | 75837 | - | 55959173 | 65 | 8 | 3.2 | 26 | 22 | 40 | T-20 | 750 | |

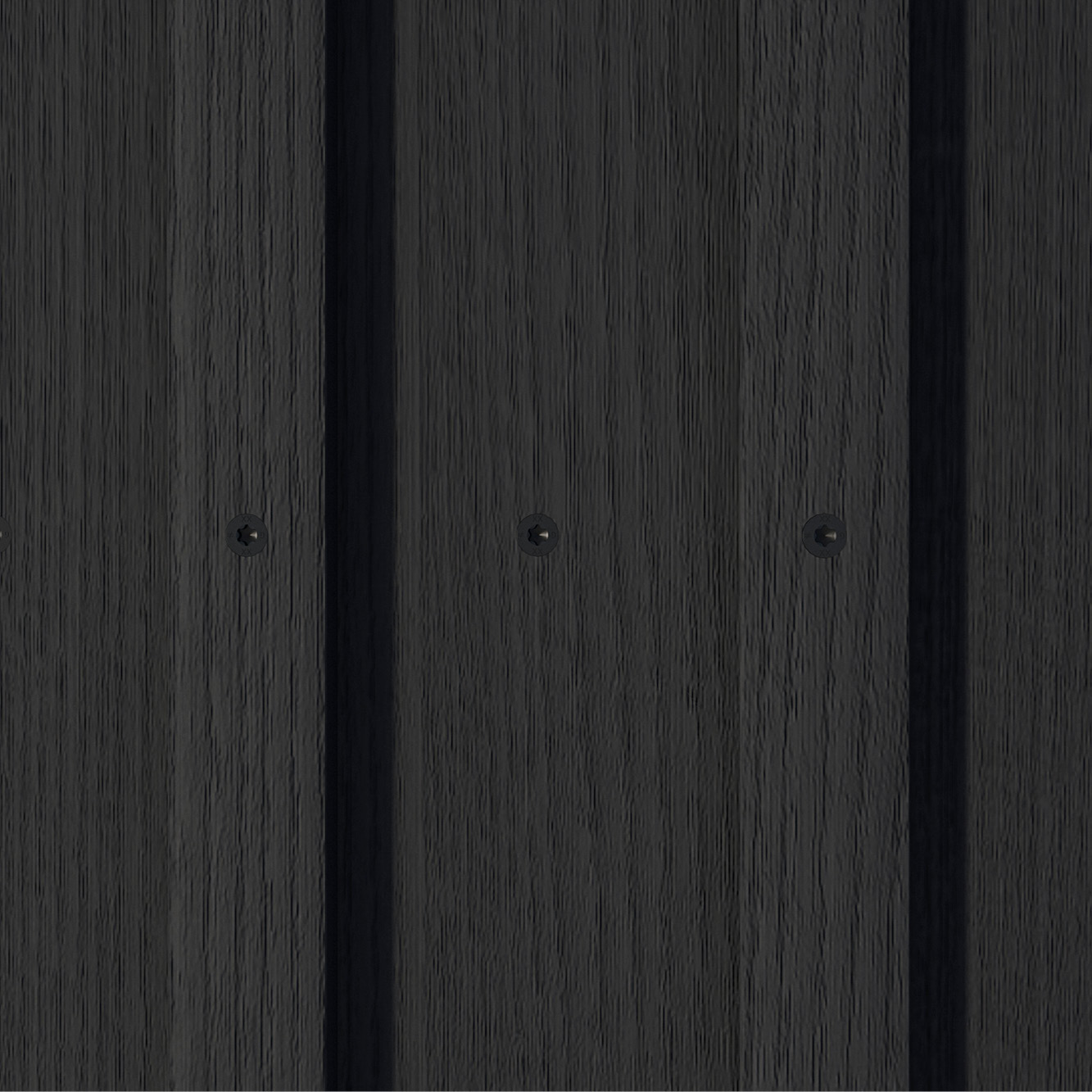

Tuotteen mitat Maalattu pää RAL 9011
| Tuotenro | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | bit | Box Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg1 | lg2 | tfix | ||||||
| CLSA44.8X48 RAL9011 | 75838 | 2073847 | 55959146 | 4.8 | 48 | 8 | 3.2 | 26 | 18 | 23 | T-20 | 250 |
| CLSA44.8X48 RAL9011 Bulk | 75839 | - | 55959184 | 48 | 8 | 3.2 | 26 | 18 | 23 | T-20 | 1300 | |
| CLSA44.8X65 RAL9011 | 75840 | 2073849 | 55959154 | 65 | 8 | 3.2 | 26 | 22 | 40 | T-20 | 250 | |
| CLSA44.8X65 RAL9011 Bulk | 75841 | - | 55959192 | 65 | 8 | 3.2 | 26 | 22 | 40 | T-20 | 750 | |
