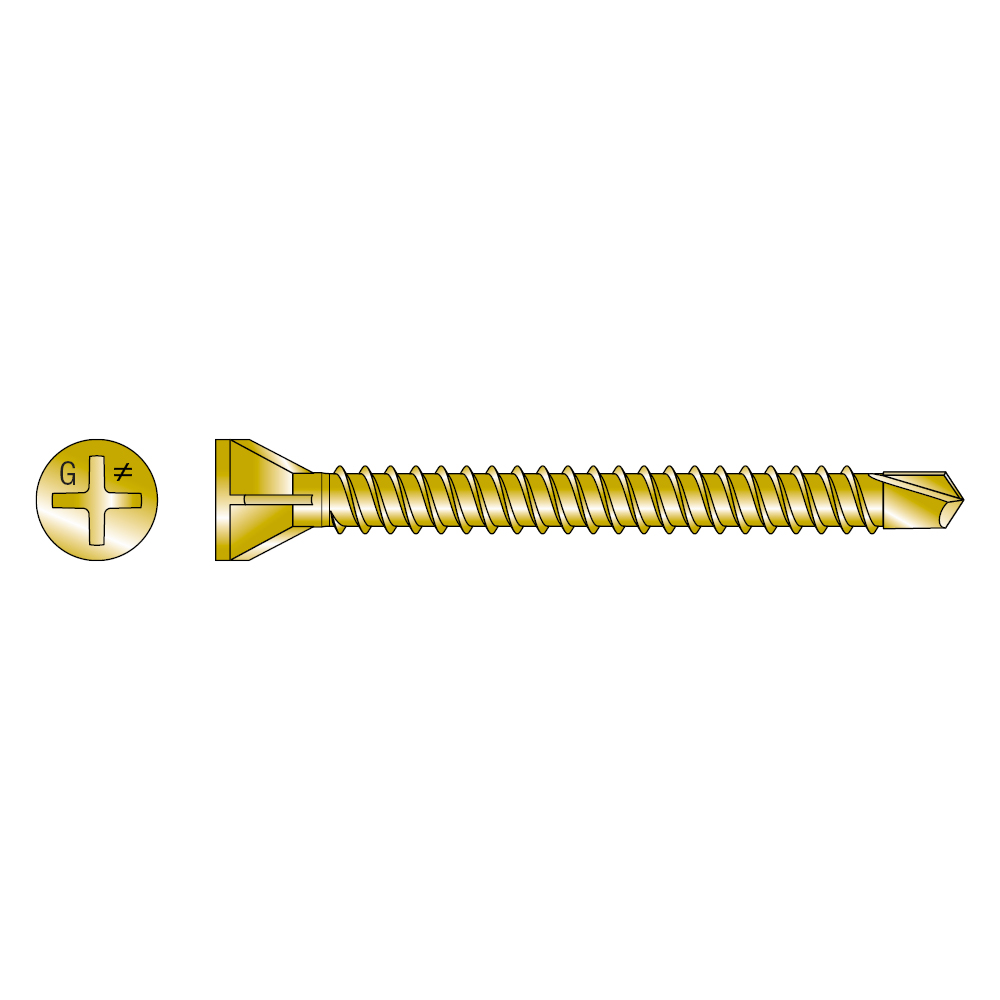

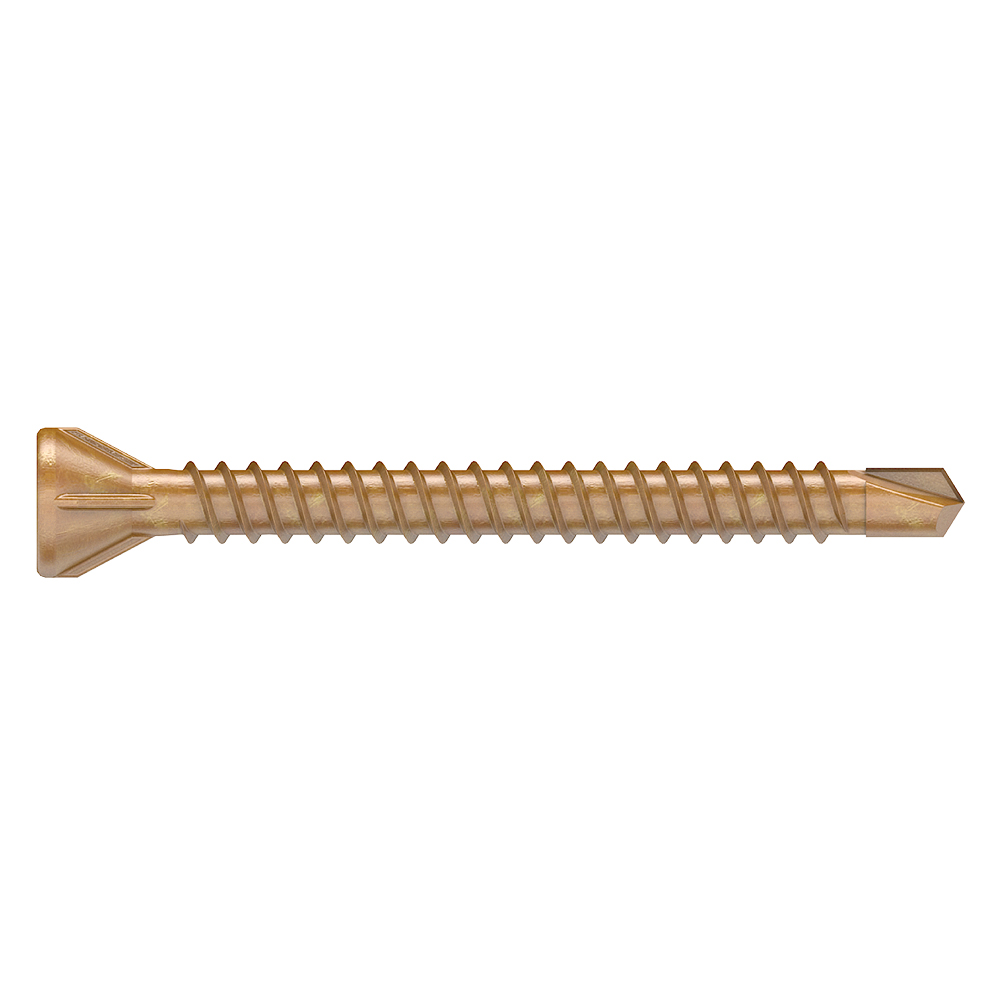

TSB
Puukuitu-teräsruuvi - poranterä

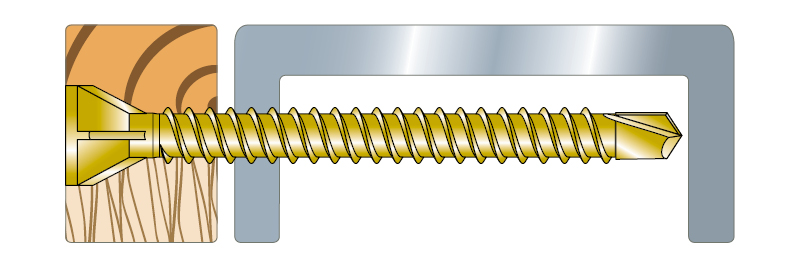

Used indoors for fixing mouldings, OSB, chipboard and plywood. The wood fiberboard screw has nibs under its head for effective anchoring in the base material, as well as a drill point allowing fixing materials to be fitted to reinforcement battens up to 2.0 mm in thickness.
Käyttöluokka 1
EPD
Indoor
Yellow electro-galvanized steel
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat ja ominaisarvot
Mitat
| Viite | Mitat | ||||||
|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||
| Paino[kg] | D[mm] | L[mm] | dh[mm] | lg[mm] | Bit[mm] | ||
| TSB3.9X28 | 74276 | 0.002 | 3.9 | 28 | 7 | 23 | PH2 |
| TSB3.9X42 | 74277 | 0.002 | 3.9 | 42 | 7 | 37 | PH2 |
| TSB3.9X57 | 74278 | 0.003 | 3.9 | 57 | 7 | 50 | PH2 |
