CSA-ZT
Quik Drive Naulauslevyruuvit - Impreg®+

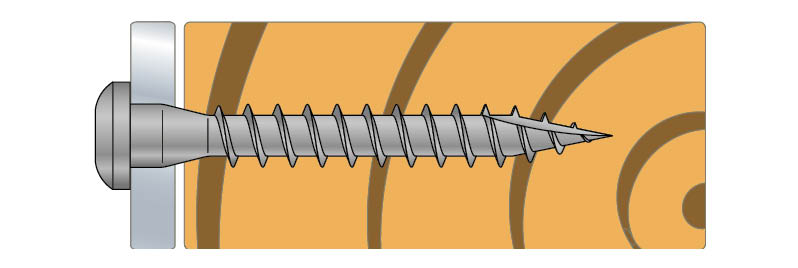

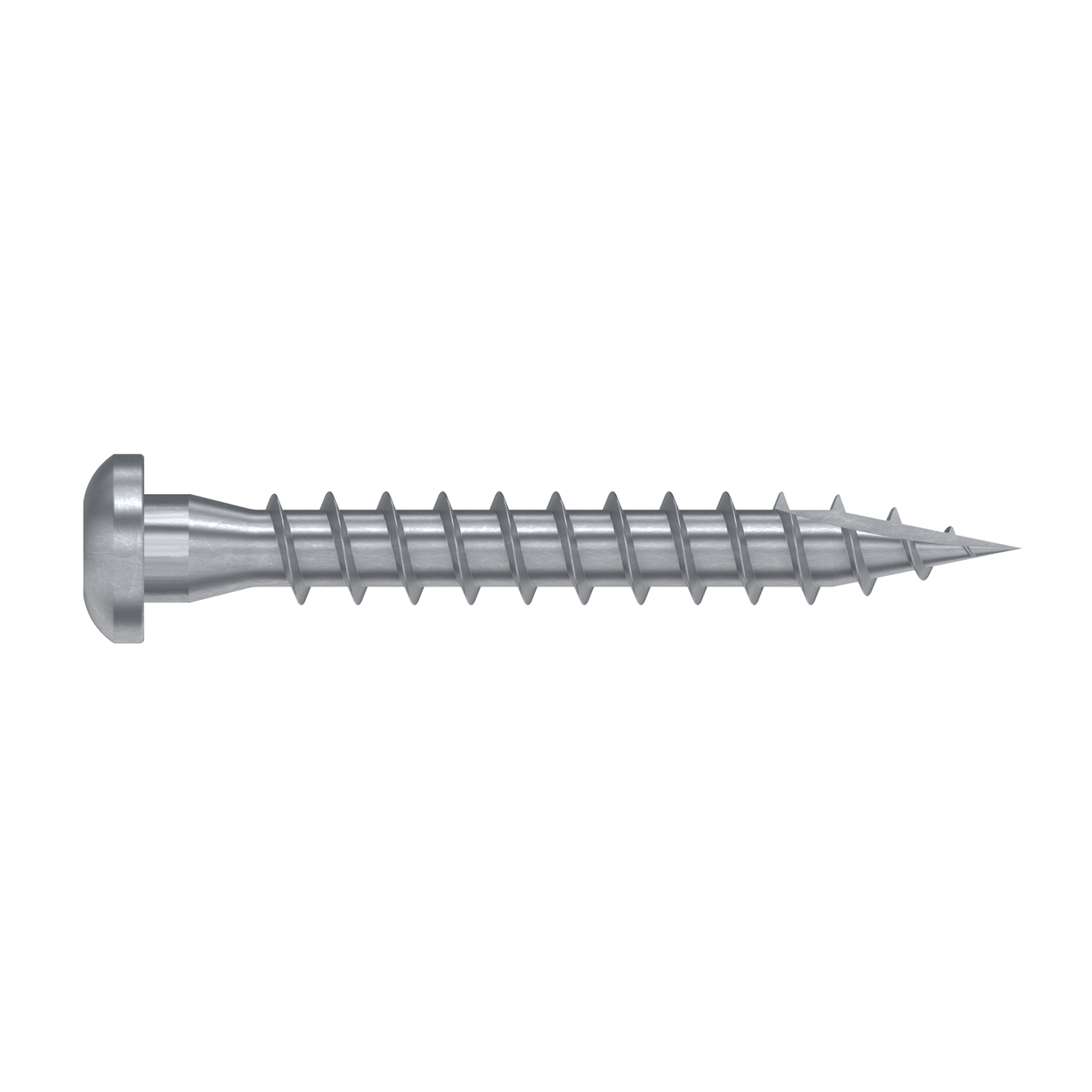

Quik Drive® collated CSA connector screw is developed for mounting of steel connectors to timber.
The conical head secures fully contact to the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The torx helps to fix the screw during insertion.
CE-merkitty
Tekninen hyväksyntä
Käyttöluokka 3
Outdoor
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Tuotenro | Mitat [mm] | Qty per strip | Qty per box | Recommended RPM | Recommended tool | ||||
|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | bit | |||||
| CSA5.0x35ZT | 5 | 35 | 8.3 | 29 | T-20 | 25 | 1500 | 2500-4000 | QDBPC50E |
| CSA5.0x40ZT | 40 | 8.3 | 34 | T-20 | 25 | 1500 | 2500-4000 | QDBPC50E | |
