PAPP

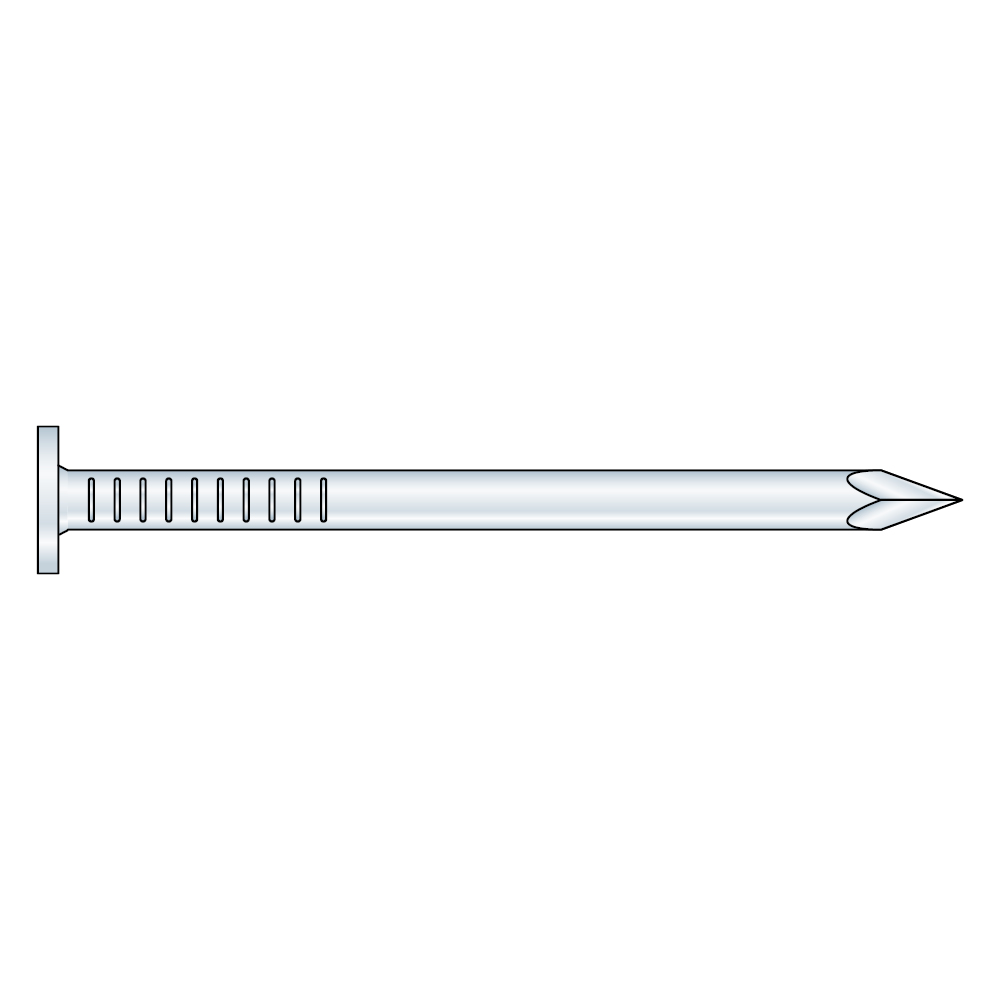

Round Clout Nail - Hot Dip Galvanised

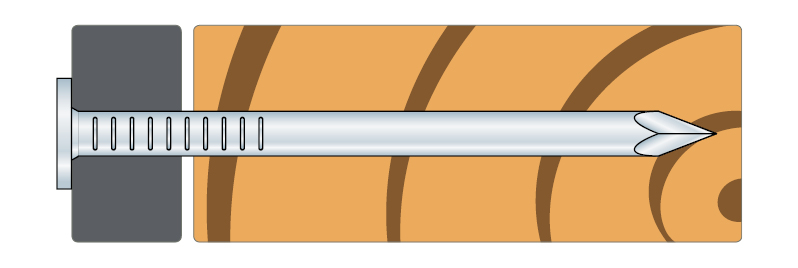

Clout nail with a flat head and round shank that can withstand rain and is used for fixing exterior plaster board, roofing felt, asphalt board, construction membrane and draught-proofing felt to a timber base.
Käyttöluokka 3
Outdoor
EPD
Acier galvanisé à chaud
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Viite | Mitat | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||||
| DB nr. | NOBB nr. | Laatikkomäärä | Määrä/Blisteripakkaus | Paino[kg] | D[mm] | L[mm] | Pään halkaisija [dₕ][mm] | ||
| PAPP2.1X20 | 74212 | 1950540 | 53293285 | 1000 | - | 0.001 | 2.1 | 20 | 7 |
| PAPP2.1X120 Blister | 78227 | - | - | - | 100.0 | - | 2.1 | 20 | 7 |
| PAPP2.5X25 | 74213 | 1950541 | 53293293 | 1000 | - | 0.001 | 2.5 | 25 | 8.7 |
| PAPP2.5X25 Blister | 78225 | - | - | - | 125.0 | 0.002 | 2.5 | 25 | 8.7 |
| PAPP2.5X40 | 74214 | 1950543 | 53293304 | 500 | - | 0.002 | 2.5 | 40 | 8.7 |
| PAPP2.8x20 | 75608 | 2055962 | 55838001 | 500 | - | 0.001 | 2.8 | 20 | 8.5 |
| PAPP2.8X20 Blister | 78250 | - | - | - | 100.0 | 0.002 | 2.8 | 20 | 8.5 |
| PAPP2.8x25 | 75609 - 75610 | 2055963 - 2055964 | 55838020 - 55837997 | 1000 / 500 | - | 0.002 | 2.8 | 25 | 8.5 |
| PAPP2.8x35 | 75611 - 75612 | 2055965 - 2055966 | 55838016 - 55837982 | 500 / 1000 | - | 0.002 | 2.8 | 35 | 8.5 |
| PAPP2.5X35 Blister | 78246 | - | - | - | 40.0 | 0.002 | 2.8 | 35 | 8.5 |
| PAPP2.8x45 | 75613 | 2055967 | 55837365 | 500 | - | 0.003 | 2.8 | 45 | 8.5 |
| PAPP2.8x55 | 75614 | 2055968 | 55837373 | 500 | - | 0.004 | 2.8 | 55 | 8.5 |
| PAPP2.8x65 | 75615 | 2055969 | 55837384 | 500 | - | 0.004 | 2.8 | 65 | 8.5 |
| PAPP2.8x75 | 75616 | 2055970 | 55842462 | 500 | - | 0.005 | 2.8 | 75 | 8.5 |
