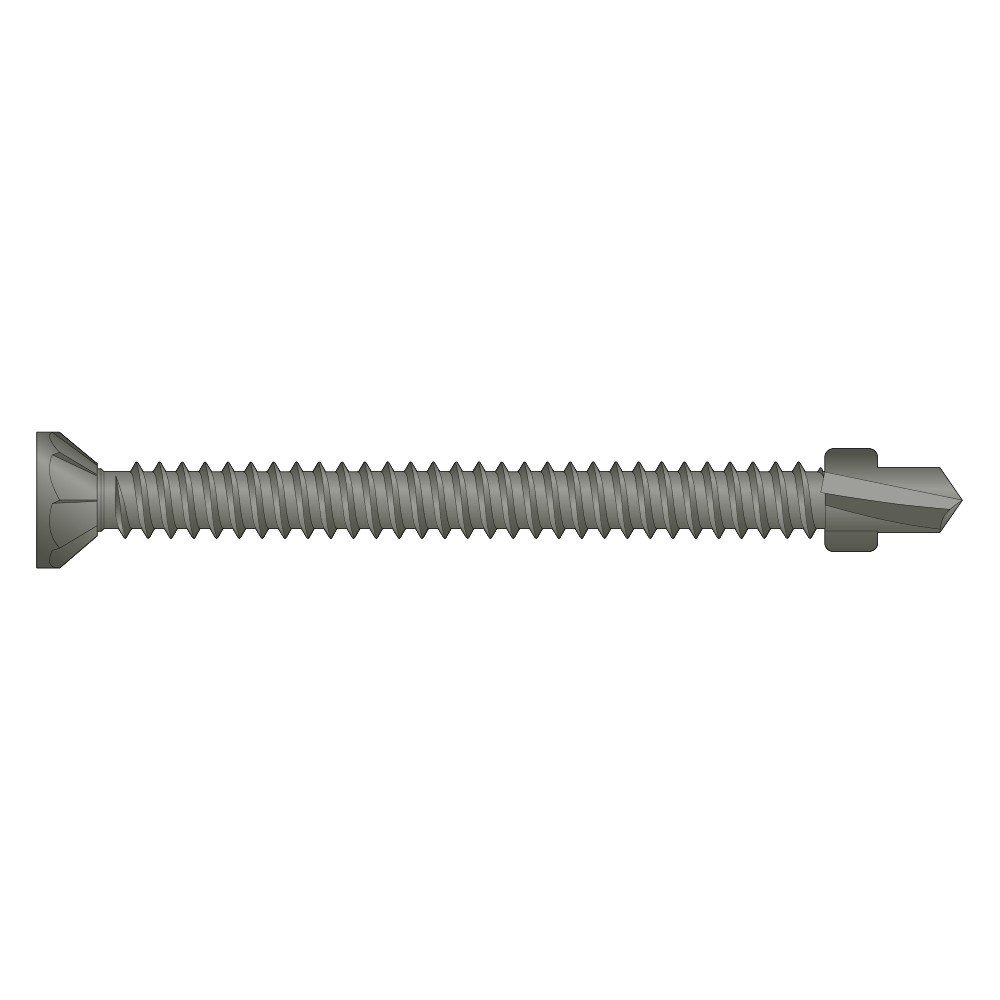

Itseporautuva ruuvit.




| Viite | Mitat[mm] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Mitat ja ominaisarvot[mm] | QD information | Muu | ||||||||
| Pään Ø[mm] | Halkaisija[mm] | Ruuvin pituus[mm] | TPI[mm] | Porauspiste[mm] | Ruuvien lukumäärä / nauha | Suositeltu kierrosnopeus[tr/min] | Quik Drive -lisälaite | Määrä ruuveja/laatikko | Paino[kg] | |
| CBSDQ41E | 8.4 | 4.2 | 41 | 18 | #2 | 30.0 | 2500 | QDPRO51E / QDPRO64E / QD76KE | 1500.0 | 0.004 |
| CBSDQ55E | 8.4 | 4.8 | 57 | 16 | #2 | 30.0 | 2500 | QDPRO64E / QD76KE | 1000.0 | 0.006 |
| Viite | Mitat[mm] | Screw Loads | ||||
|---|---|---|---|---|---|---|
| Asennus | Liitäntä metalliin | |||||
| Yhteyden tiedot | Vedä ulos | Pään vetovoima | leikkaus | |||
| Fₐₓ,ᵣₖ[kN] | Fₕₑₐd,ᵣₖ[kN] | Min. pääty Materiaalin paksuus[mm] | Fₗₐₜ,ᵣₖ[kN] | Osat | ||

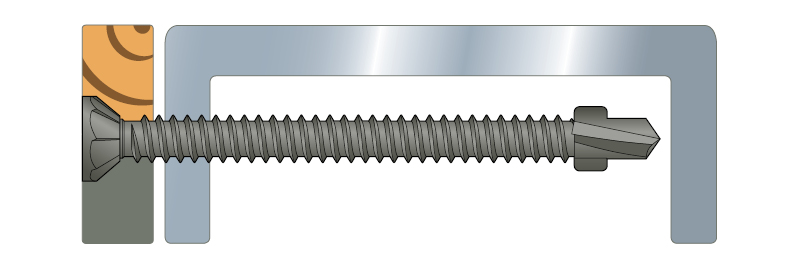

| CBSDQ41E | Fibre Cement Board to Steel | 3.65 | 0.35 | 12 | 0.95 | 12mm FCB to 3mm Steel |
| CBSDQ55E | Fibre Cement Board to Steel | 3.65 | 0.35 | 12 | 0.95 | 12mm FCB to 3mm Steel |
| Viite | Screw Loads | ||||||
|---|---|---|---|---|---|---|---|
| Fastener performance | Osan paksuus[mm] | ||||||
| -[kN] | Ominaiskuormitukset[kN] | ||||||
| Pään vetovoima | leikkaus | Jännitys | Pään vetovoima | leikkaus | Veto | ||
| CBSDQ41E | 0.8 | 1 | 0.8 | 1.2 | 1.6 | 1.2 | 1.2 |
| CBSDQ55E | 0.8 | 1.1 | 1.2 | 1.2 | 1.7 | 1.9 | 1.6 |
Head pull-through based upon 12mm Fibre Cement Board
