DSZ
Säädettävä ovenkarmiruuv

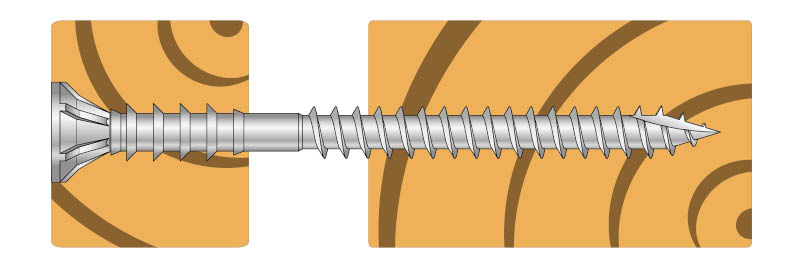

This special frame screw is used for indoor installation of interior door frames with pre-drilled holes - Ø14 mm from one side and Ø6 mm from the other. The anchor thread under the head grips the woodwork, allowing the frame to be adjusted both inwards and outwards.
CE-merkitty
EPD
Sähkösinkitty teräs
Indoor
Käyttöluokka 2
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Product dimensions
Mitat
| Viite | Mitat | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||||
| NOBB nr. | Paino[kg] | D[mm] | L[mm] | dₕ[mm] | lg[mm] | Bit[mm] | ||
| DSZ6.0X60 | 75552 | 55841323 | 0.011 | 6 | 60 | 11.7 | 30 | T-25 |
| DSZ6.0X70 | 75553 | 55841338 | 0.012 | 6 | 70 | 11.7 | 40 | T-25 |
| DSZ6.0X80 | 75554 - 75711 | 55841342 - 55842178 | 0.012 | 6 | 80 | 11.7 | 50 | T-25 |
| DSZ6.0X90 | 75712 - 75555 | 55842182 - 55841357 | 0.018 | 6 | 90 | 11.7 | 60 | T-25 |
| DSZ6.0X100 | 75556 | 55841361 | 0.02 | 6 | 100 | 11.7 | 60 | T-25 |
| DSZ6.0X110 | 75557 | 55841376 | 0.022 | 6 | 110 | 11.7 | 60 | T-25 |
| DSZ6.0X120 | 75558 | 55841380 | 0.022 | 6 | 120 | 11.7 | 60 | T-25 |
| DSZ6.0X130 | 75559 | 55841395 | 0.024 | 6 | 130 | 11.7 | 60 | T-25 |
