LTSFH

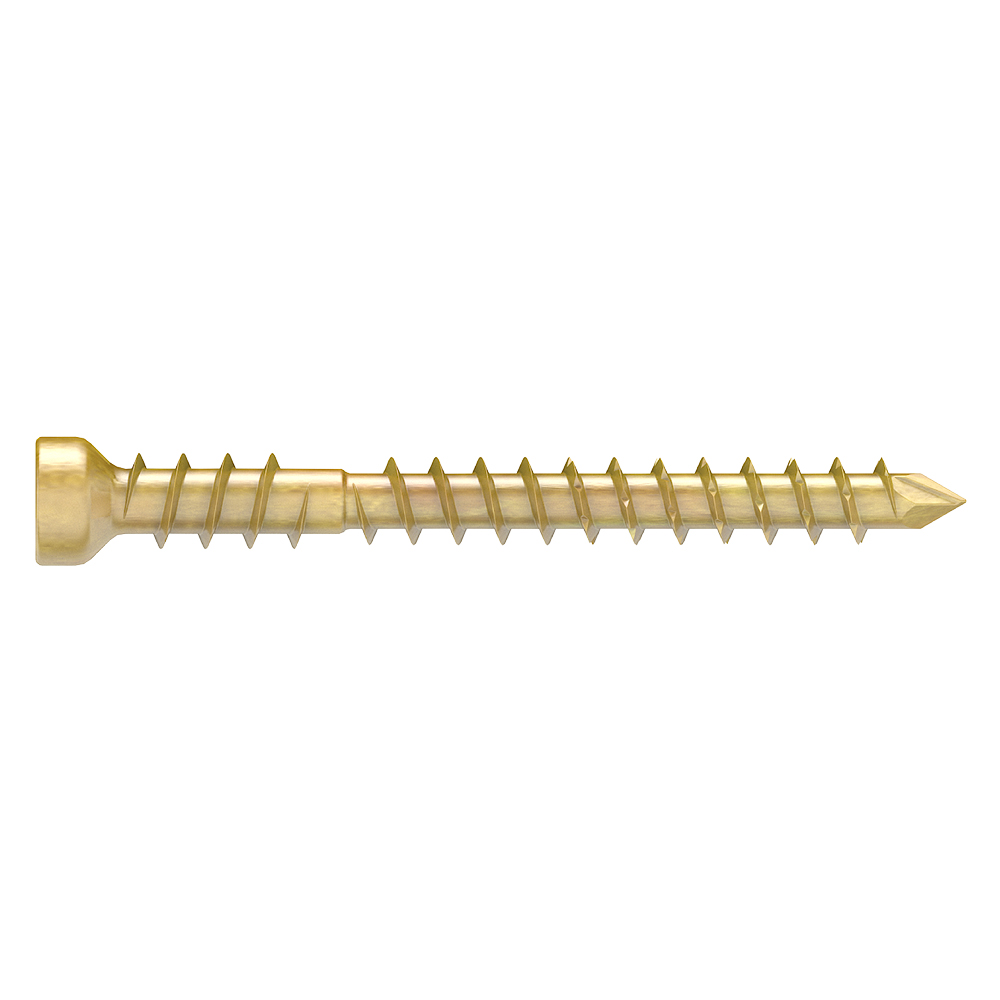

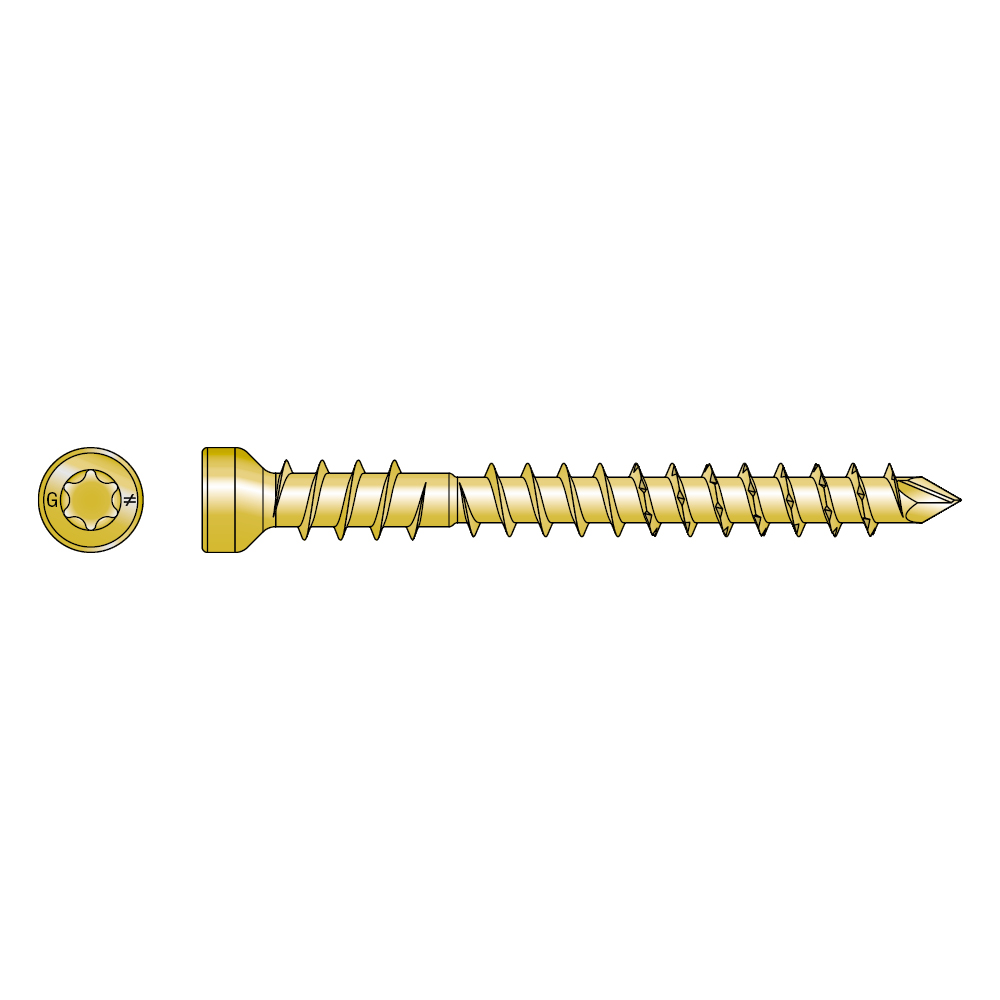

Skirting Screw Chisel Point

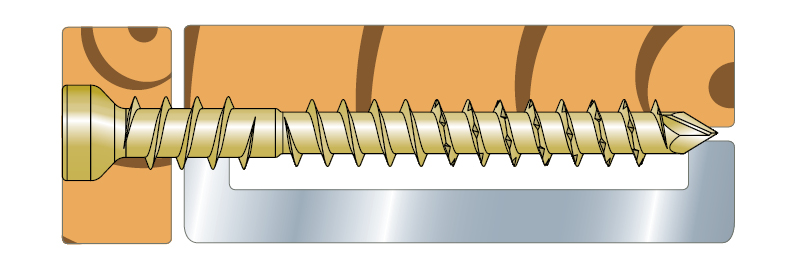

The floor/skirting screw is used indoors for fixing skirting or when laying hardwood flooring. The chisel point helps to prevent splitting when used on thinner mouldings or reduced edge distances. This screw can be used in wood or steel up to a maximium thickness of 0.9 mm.
Käyttöluokka 1
EPD
Yellow electro-galvanized steel
Indoor
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Viite | Mitat | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||||
| Paino[kg] | D[mm] | L[mm] | dₕ[mm] | lg[mm] | l-lg[mm] | Bit[mm] | ||
| LTSFH4.2X42 | 74369 | 0.002 | 4.2 | 42 | 5.8 | 28 | 14 | TX15 |
| LTSFH4.2X57 | 74370 | 0.003 | 4.2 | 57 | 5.8 | 38 | 19 | TX15 |
