LSF

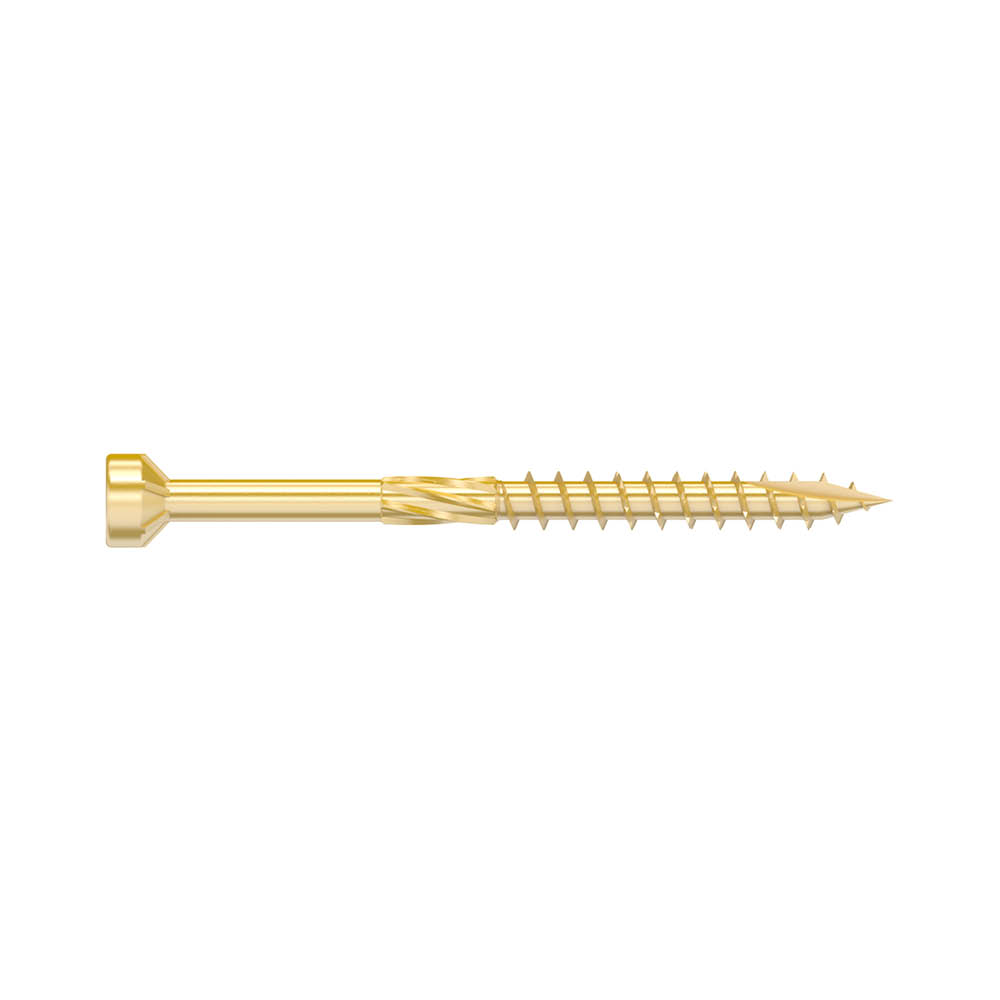

Skirting Screw

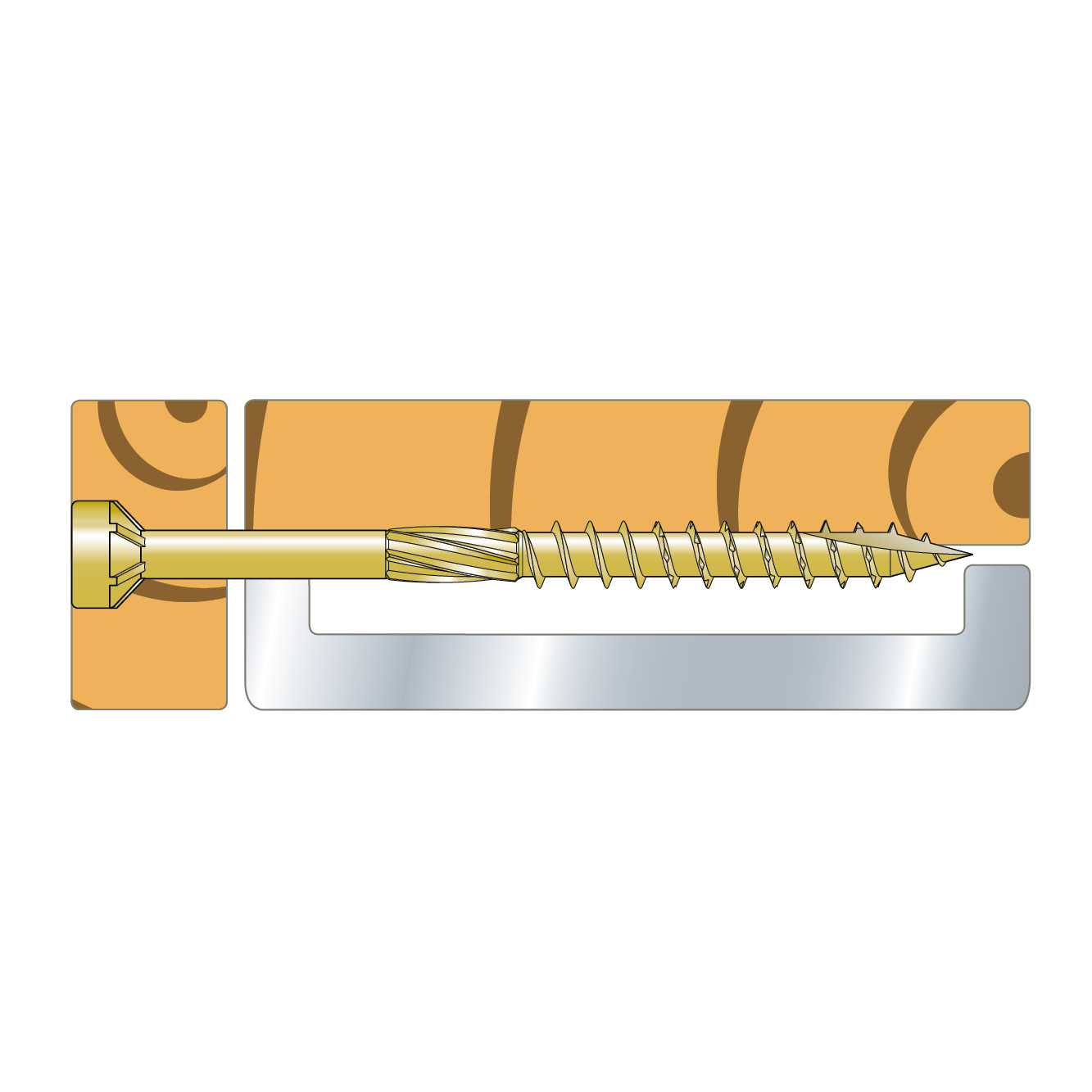

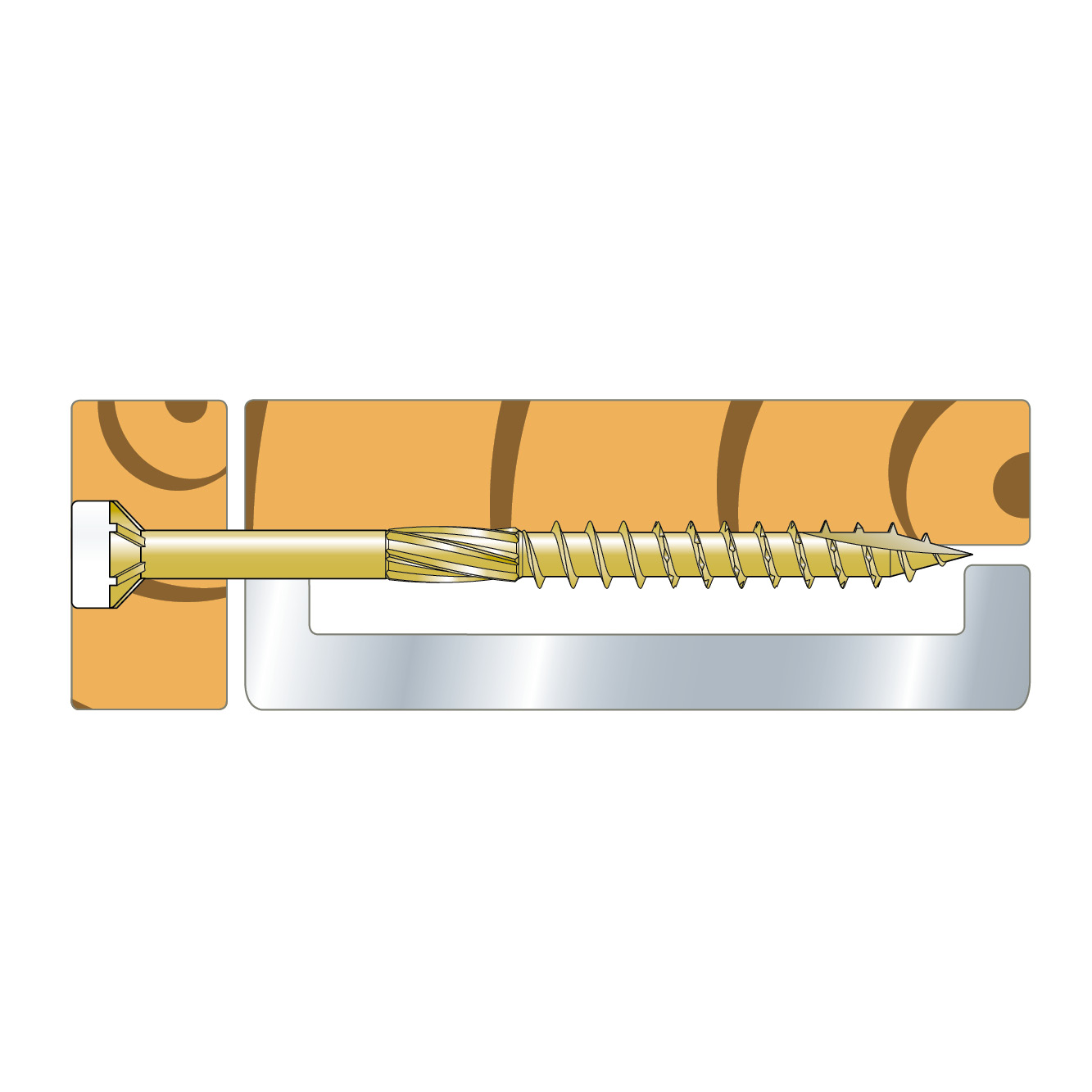

Used indoors for fixing skirting to underlying wood material. The small screw head has ribs on its underside for easy countersinking and a cutpoint to counteract splitting of the woodwork. The screw can also be fixed to a steel base with a maximum thickness of 0.6mm.
Käyttöluokka 1
Yellow electro-galvanized steel
Indoor
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Discontinued Products
Tekniset tiedot

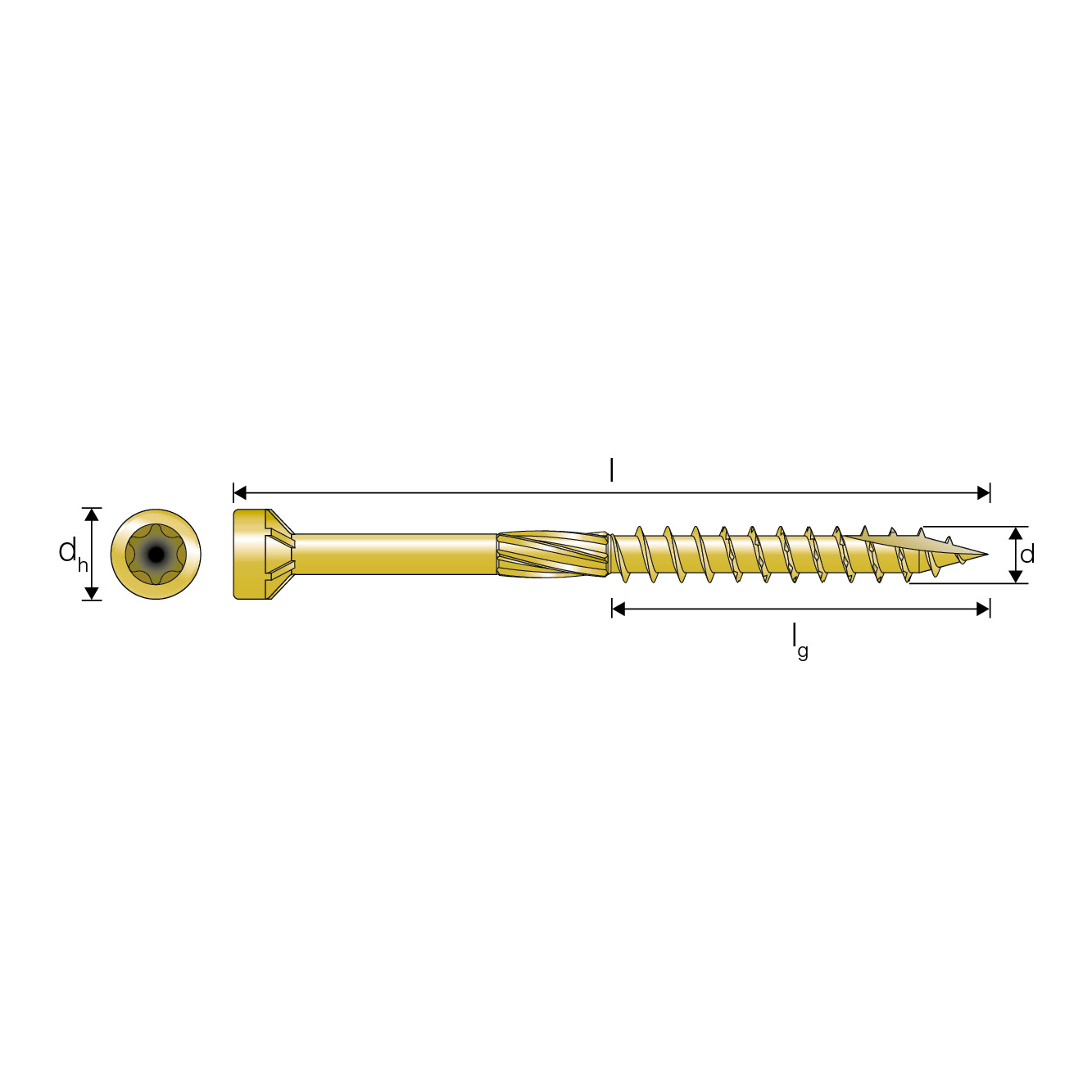

Product dimensions
| Tuotenro | Item code | Fastener dimensions [mm] | Paino [kg] | |||||
|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | bit | |||
| LSF3.0X35 | 75319 | 3 | 35 | 5.5 | 23 | 12 | TX10 | 0.002 |
| LSF3.0X42 | 75321 | 42 | 5.5 | 27 | 15 | TX10 | 0.002 | |
| LSF3.0X57 | 75322 | 57 | 5.5 | 37 | 20 | TX10 | 0.003 | |

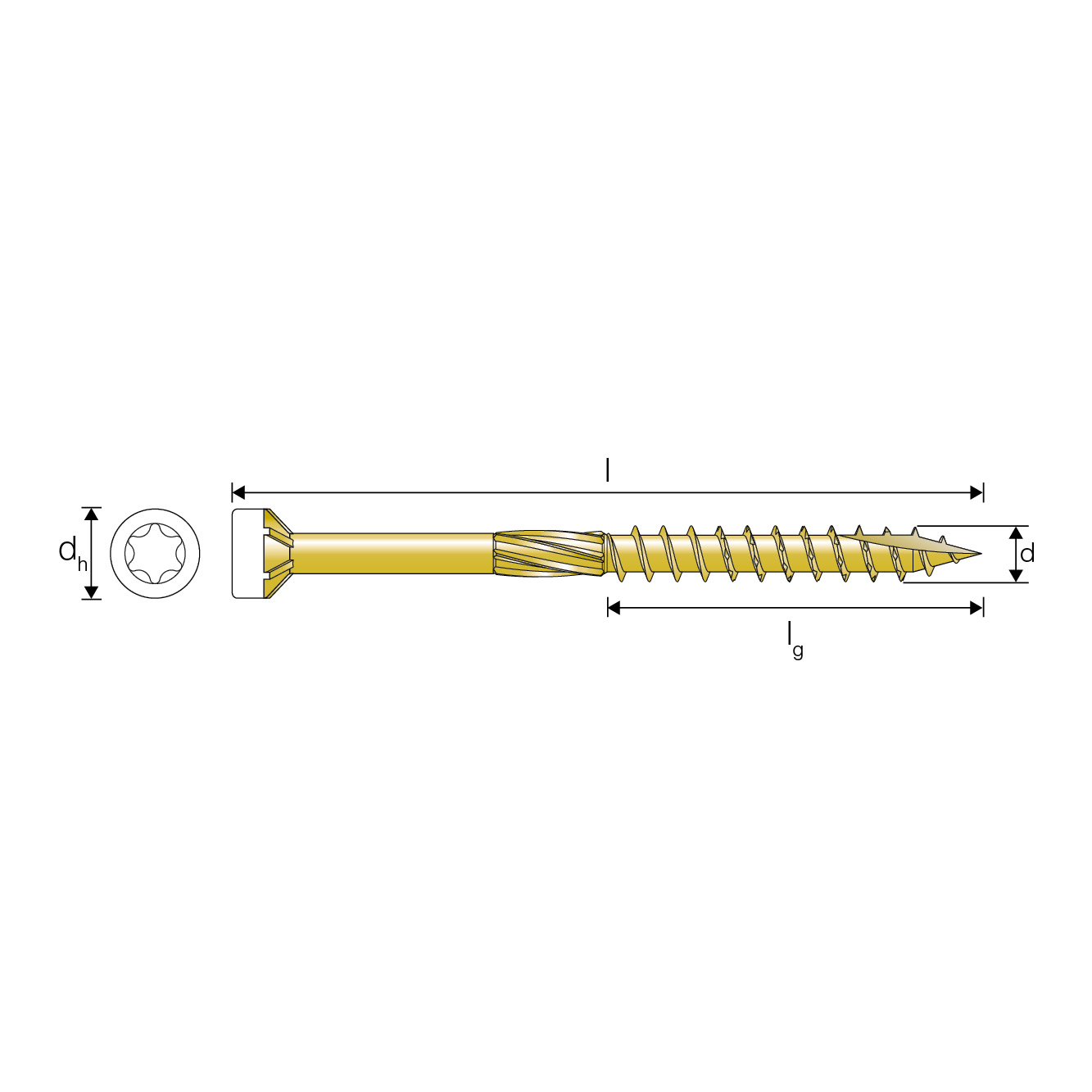

Maalattu pää RAL 9010
| Tuotenro | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | bit | |||||
| LSF3.0X42 RAL9010 | 75323 | 2055682 | 55836158 | 3 | 42 | 5.5 | 2 | 27 | 15 | TX10 | 200 |
| LSF3.0X57 RAL9010 | 75324 | 2055683 | 55836162 | 57 | 5.5 | 2 | 37 | 20 | TX10 | 200 | |
