CHG

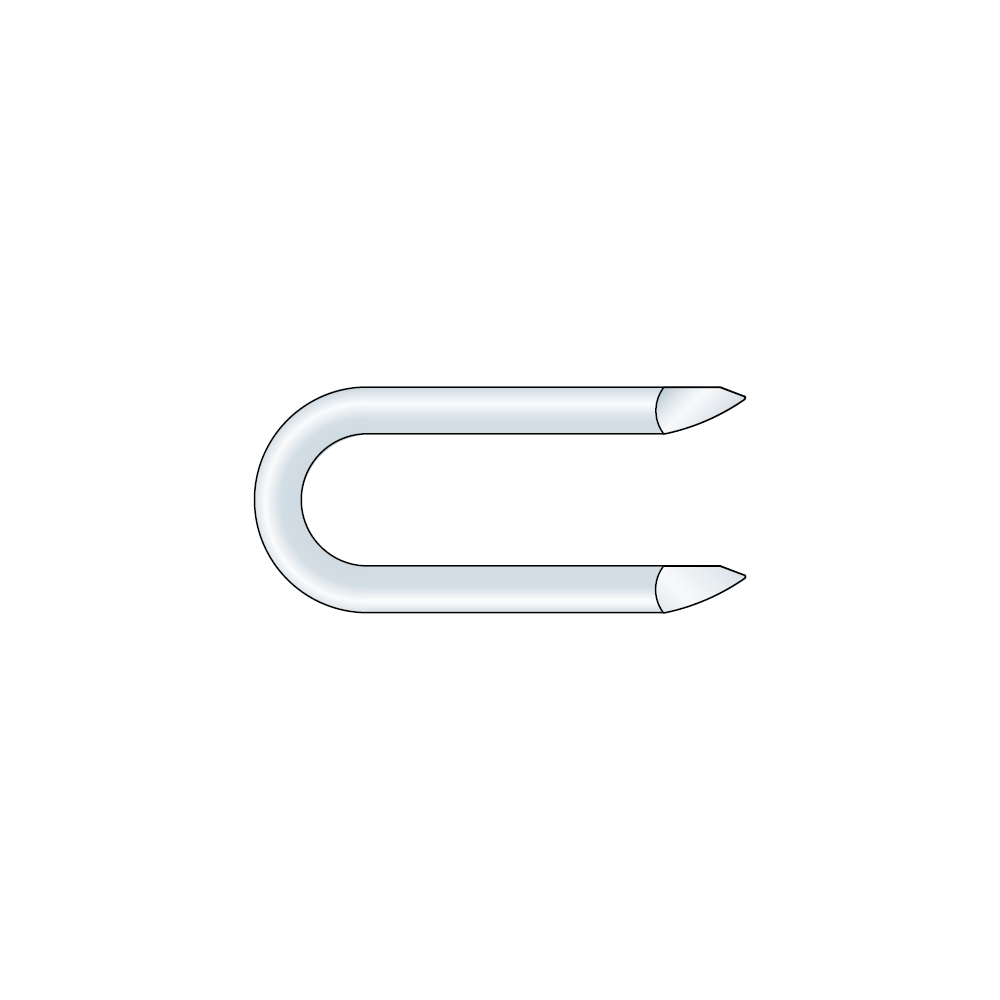

Staple - Hot Dip Galvanised

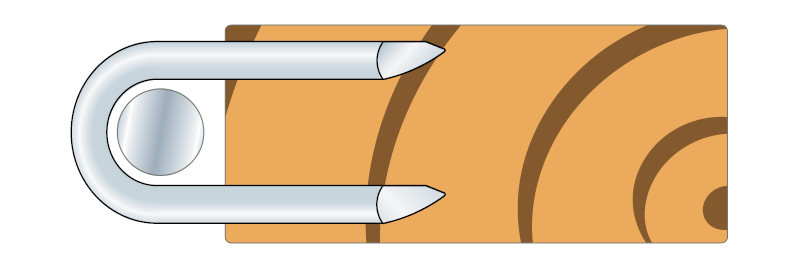

A staple that can withstand rain, used in erecting fences and fixing wire to timber posts, etc.
Käyttöluokka 3
Outdoor
EPD
Acier galvanisé à chaud
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Viite | Mitat | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||||||
| DB nr. | NOBB nr. | Määrä | Määrä/Blisteripakkaus | Paino[kg] | A[mm] | D[mm] | L[mm] | bᵣ[mm] | ||
| CHG1.75x19 | 75679 | 2056032 | 55837880 | 1000.0 | - | 0.001 | 5 | 1.75 | 19 | - |
| CHG1.75x25 | 75680 | 2056033 | 55837895 | 750.0 | - | 0.002 | 5 | 1.75 | 25 | - |
| CHG2.5X25 | 74235 | 1950564 | 53292960 | 500.0 | - | 0.002 | 7 | 2.5 | 25 | 12 |
| CHG2.5X25 Blister | 78219 | - | - | - | 40.0 | 0.002 | 7 | 2.5 | 25 | 12 |
| CHG2.75X30 | 74236 | 1950565 | 53292975 | 500.0 | - | 0.003 | 8 | 2.8 | 30 | 16 |
| CHG3.0X35 | 74237 | 1950566 | 53292986 | 250.0 | - | 0.004 | 10 | 3 | 35 | 16 |
| CHG3.0X35 Blister | 78224 | - | - | - | 50.0 | 0.004 | 10 | 3 | 35 | 16 |
| CHG3.25X40 | 74238 | 1950567 | 53292994 | 250.0 | - | 0.005 | 10 | 3.3 | 40 | 16 |
| CHG3.5x45 | 75678 | 2056031 | 55842057 | 125.0 | - | 0.008 | 10 | 3.5 | 45 | - |
| CHG3.75X50 | 74239 | 1950568 | 53293005 | 250.0 | - | 0.009 | 11 | 3.8 | 50 | 18 |
| CHG4.0X60 | 74240 | 1950569 | 53293013 | 150.0 | - | 0.012 | 11 | 4 | 60 | 19 |
