FSM
Steel to Steel Screw

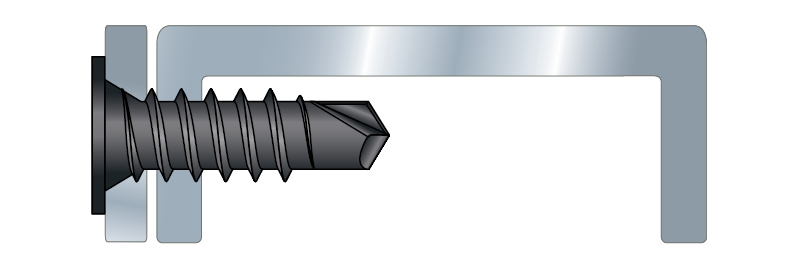

Steel profile screws which is designed for joining reinforcement beams. The phosphated FSM is suited for fixing material up to 2x1.0 mm. The electrogalvanised FSM screw is suited for fixing material up to 2x2.0 mm.
CE-merkitty
Käyttöluokka 1
Indoor
EPD
Acier phosphaté
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Viite | Mitat | |||||
|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | ||||
| Paino[kg] | D[mm] | L[mm] | dₕ[mm] | Bit[mm] | ||
| FSM4.2X14 | 74398 | 0.001 | 4.2 | 14 | 7 | PH2 |
| FSM4.8X16 | 74397 | 0.002 | 4.8 | 16 | 8 | PH2 |
