SWD

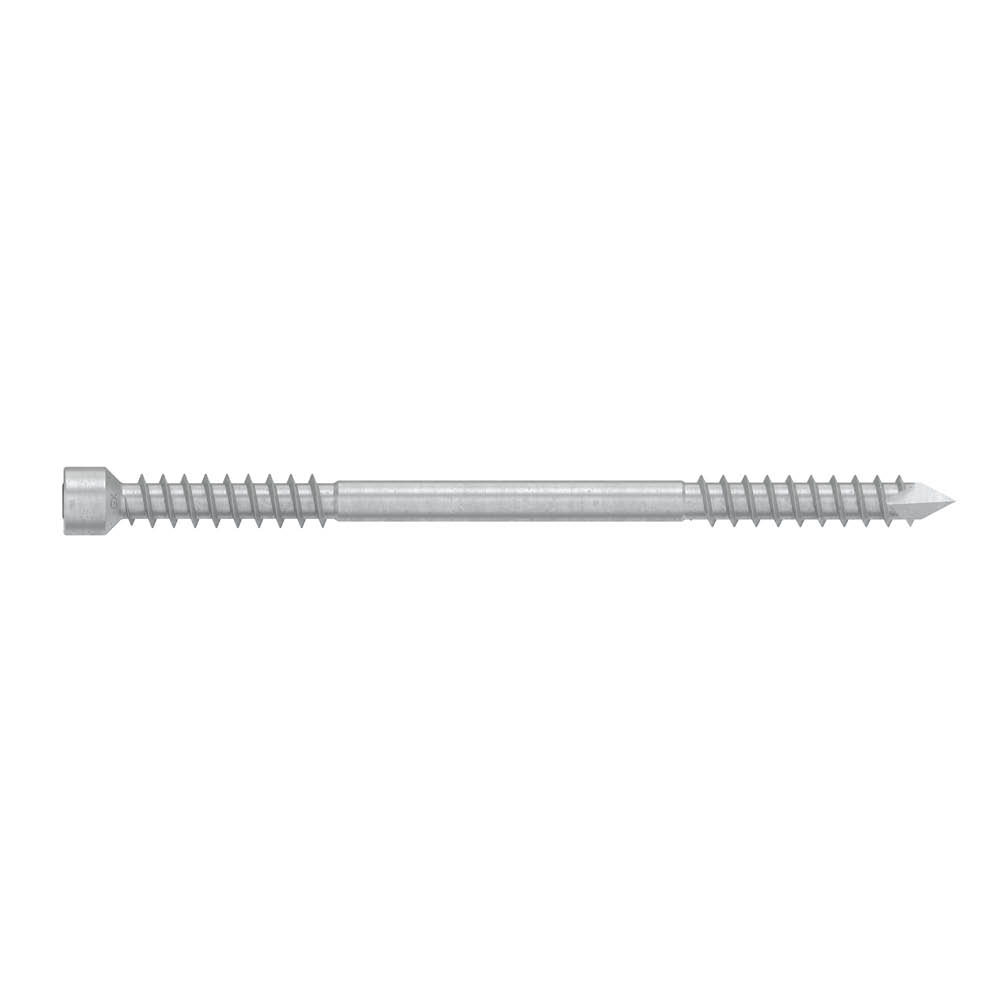

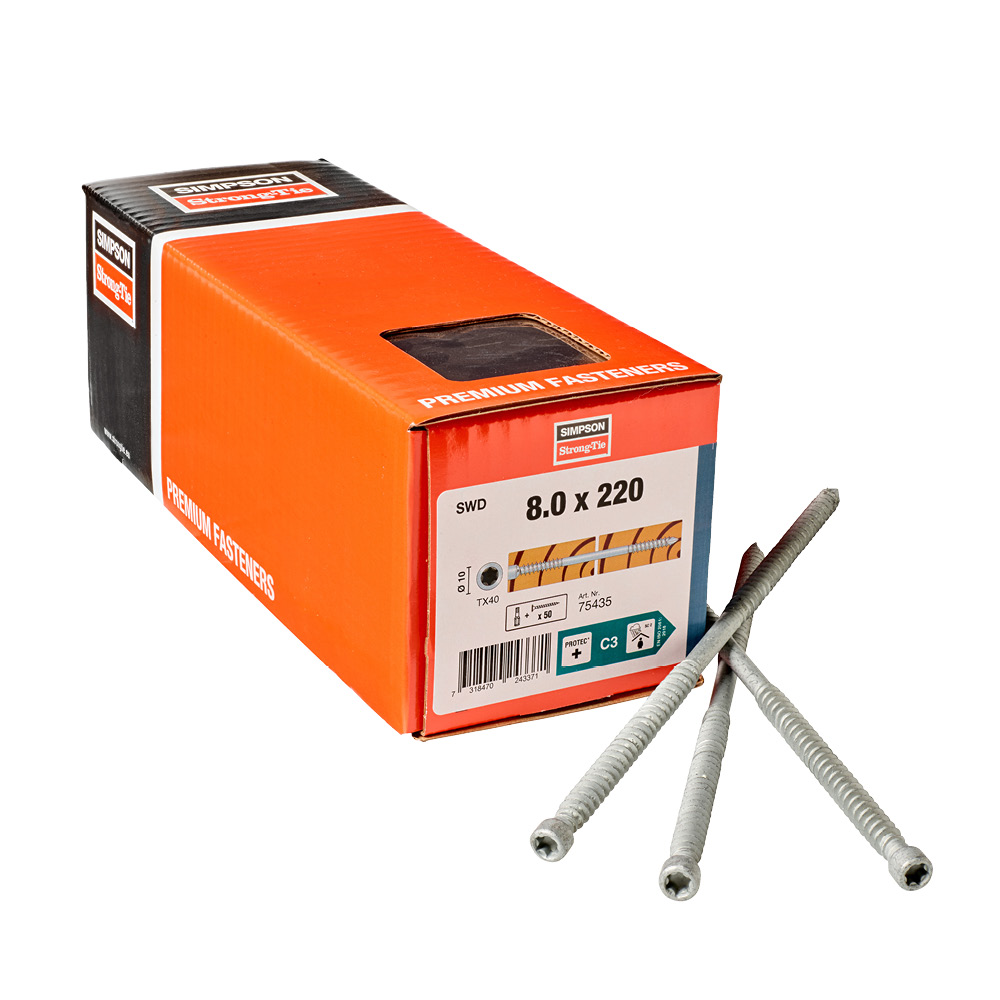

Structural Double Threaded Wood Screw

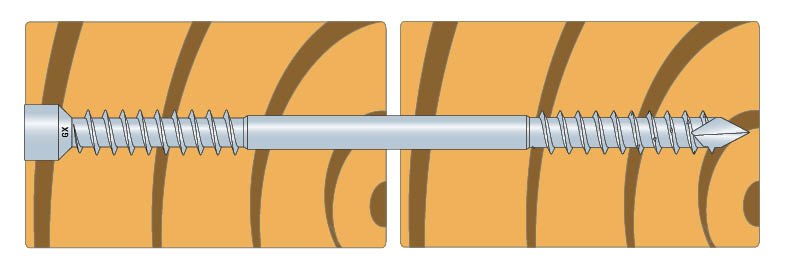

SWD is a construction screw designed to connect two wood members together. The small cap-style head and double thread creates a flexible, hidden assembly with high strength. The differentiated thread pitch creates a clamp effect, reducing the risk of gaps between the wood pieces.

CE-merkitty
CE-merkitty
Tekninen hyväksyntä
Tekninen hyväksyntä
EPD
EPD
Protec® +
Protec® +
Käyttöluokka 2
Käyttöluokka 2
Outdoor
Outdoor
Fastener Designer
Fastener Designer
SWD_SSTBP_homepage_PL_pl
SWD_SSTBP_homepage_LV_en
SWD_SSTBP_homepage_NO_no
SWD_SSTBP_homepage_DK_da

Tuotteen yksityiskohdat

Kuvat

Ominaisuudet

Ominaisuudet:

  • Korkkimainen pää
  • Kaksoiskierre
  • Taltta-kärki

Materiaali

  • Korroosiosuoja: Protec®+ coating

Sovellus

Sovellus

  • Puu-puu liitos

Tekniset tiedot

Mitat

Mitat

ViiteMitat[mm]
TuotenumeroGunnebo tuotenroMitat ja ominaisarvot[mm]
d[mm]L[mm]dₕ[mm]lg₁[mm]tfix[mm]Bit[mm]
SWD6.5X6575425766626.565828-T-30
SWD6.5X9075426766656.590840-T-30
SWD6.5X13075427768056.5130840-T-30
SWD6.5X16075428766536.5160865-T-30
SWD6.5X19075429766556.5190880-T-30
SWD6.5X22075430766596.52201095-T-30
SWD8.0X9075431767007.8901040-T-40
SWD8.0X13075432768067.81301040-T-40
SWD8.0X16075433766697.81601065-T-40
SWD8.0X19075434767647.81901080-T-40
SWD8.0X22075435766777.82201095-T-40
SWD8.0X24575436766817.824510107.5-T-40
SWD8.0X27575437766847.827510107.5-T-40
SWD8.0X30075438766947.830010135-T-40
SWD8.0X33075439766977.833010135-T-40

Tuotteen ominaisuudet

ViiteScrew Parameters
Tyypillinen vääntölujuus - fₜₒᵣ,ₖ [Nm]
Taivutuslujuus - My,ₖ[Nm]Tyypillinen vetoparametri - fₐₓ,ₖ,₉₀°[N/mm²]Tyypillinen läpivetoparametri - fₕₑₐd,ₖ[N/mm²]Tyypillinen vetolujuus - fₜₑₙₛ,ₖ[kN]Tyypillinen vääntölujuus - fₜₒᵣ,ₖ[Nm]Vääntösuhde
SWD6.5X6512.413.7-14.512.6≥ 1,5
SWD6.5X9012.413.7-14.512.6≥ 1,5
SWD6.5X13012.413.7-14.512.6≥ 1,5
SWD6.5X16012.413.7-14.512.6≥ 1,5
SWD6.5X19012.413.7-14.512.6≥ 1,5
SWD6.5X22012.413.7-14.512.6≥ 1,5
SWD8.0X9026.813.1-25.327.7≥ 1,5
SWD8.0X13026.813.1-25.327.7≥ 1,5
SWD8.0X16026.813.1-25.327.7≥ 1,5
SWD8.0X19026.813.1-25.327.7≥ 1,5
SWD8.0X22026.813.1-25.327.7≥ 1,5
SWD8.0X24526.813.1-25.327.7≥ 1,5
SWD8.0X27526.813.1-25.327.7≥ 1,5
SWD8.0X30026.813.1-25.327.7≥ 1,5
SWD8.0X33026.813.1-25.327.7≥ 1,5

Sertifiointi

Suoritustasoilmoitus (DoP)

product.doc.history.show

Eurooppalainen tekninen arviointi (ETA)

product.doc.history.show

Environmental Product Declarations (EPD)

Lataukset

  • Structural Fasteners Technical Guide

    Structural Fasteners Technical Guide

    In this technical guide you will find general information, characteristic parameters as well as load capacities for C24 solid timber, GL24h glulam, CLT, steel to wood and boards to wood, for our Solid-Drive range of structural fasteners.

CAD- ja BIM-kirjasto

2D
3D

ZIP-paketit
