T-PB

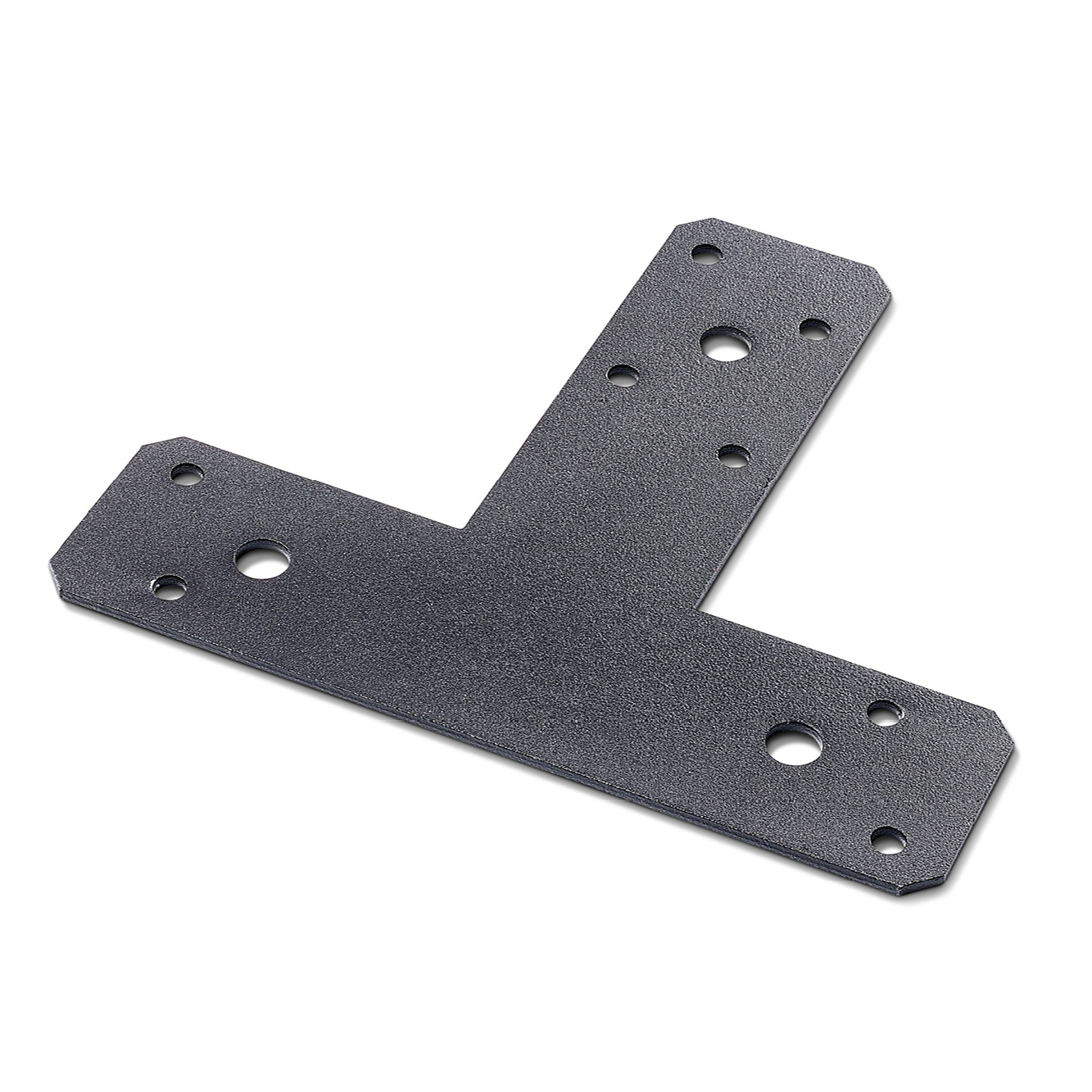

T Strap Tie Design Series

T shaped strap for connecting beams to posts in garden applications such as pergolas and other light constructions.

Käyttöluokka 3
Outdoor
RAL 9005

Tuotteen yksityiskohdat

Ominaisuudet

Materiaali

  • Teräslaatu:
    Kuumasinkitty teräs S250GD + Z275 EN 10346 mukaan
  • Korroosiosuoja:
    275 g/m² molemmin puolin - vastaa noin 20 μm:n sinkkikerrosta
  • Painted black RAL9005

Benefits

  • Increases the strength of beam-to-column connections,
  • Make pergolas, awnings and other lightweight structures more reliable where the end of a beam is supported by a post,
  • Simple to install using SSH black head screws.

Sovellus

Support

  • Header Member: Solid timber, composite timber, glulam
  • Joist: Solid timber, composite timber, glulam

For use with

  • Joists

Tekniset tiedot

Mitat

Mitat

Tuotenro Mitat [mm] Reiät
A B C t Ø5 Ø8,5 Ø10
T150PB15015040283-
T190BPB190190703--6

Asennus

Asennus

Fasteners

  • Black head screw SSH8.0X40PB

Installation

  • For standard timber section from 90x90 mm to 200x200 mm
