FARMZC
Teräskatto ja -verhoilu puuruuvilla

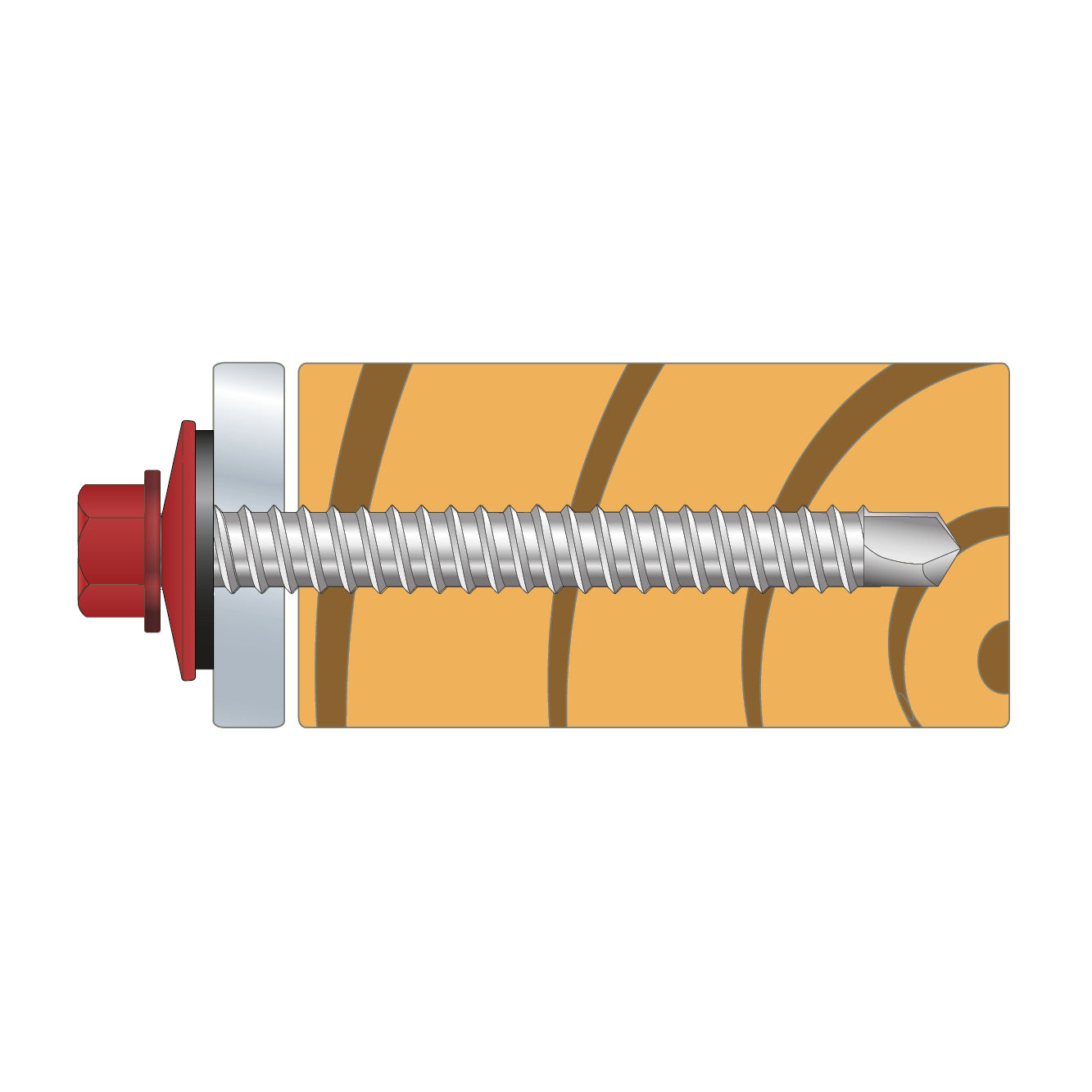

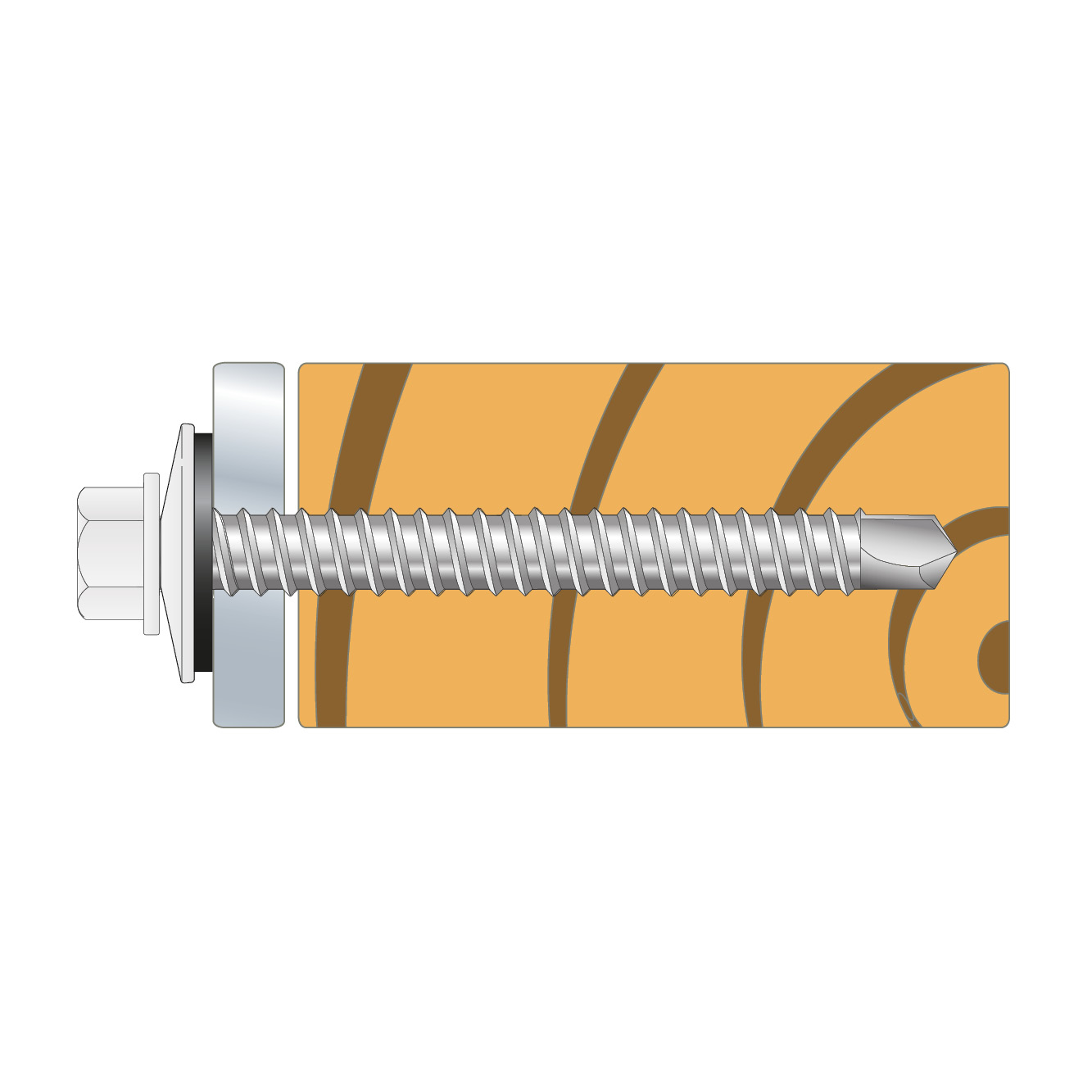

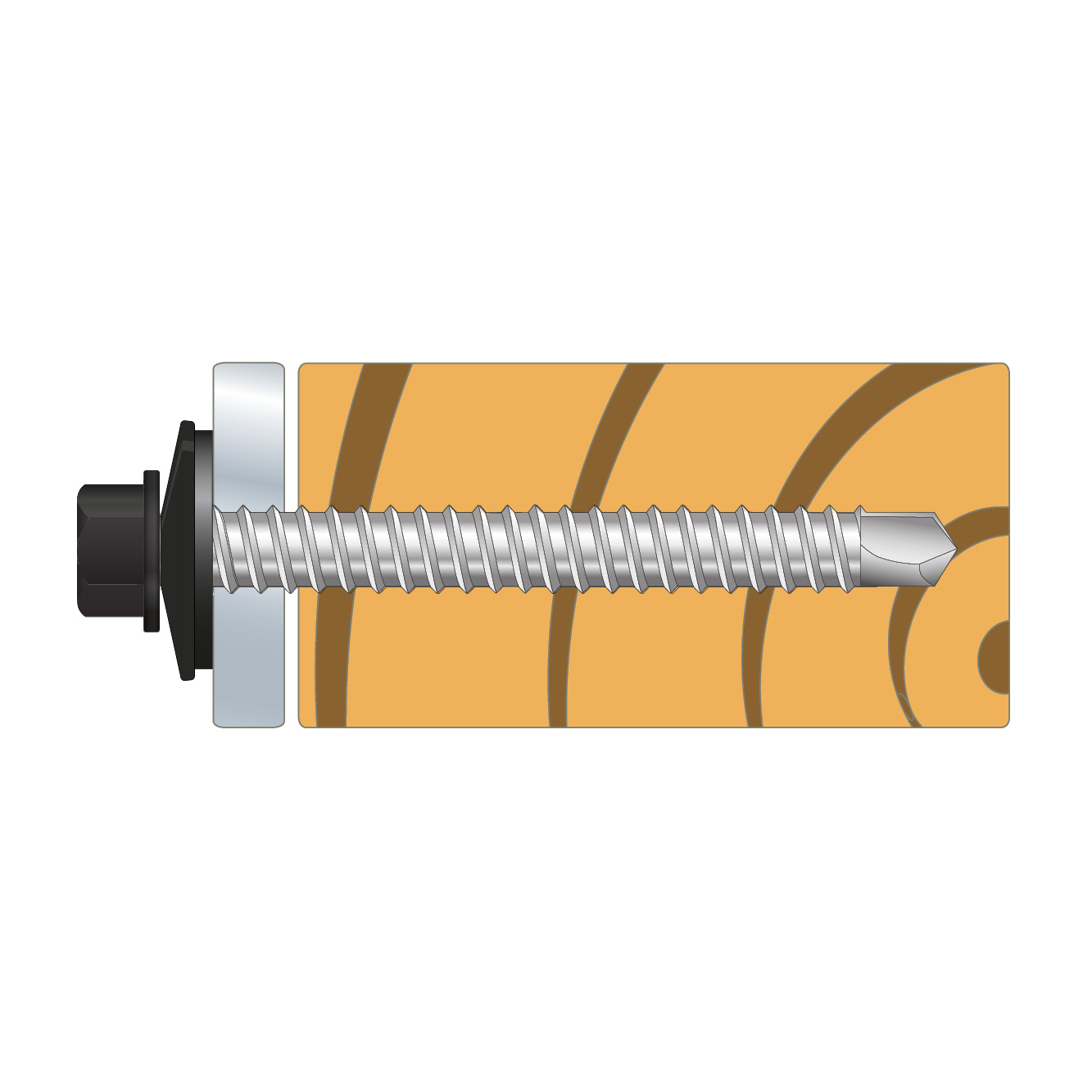

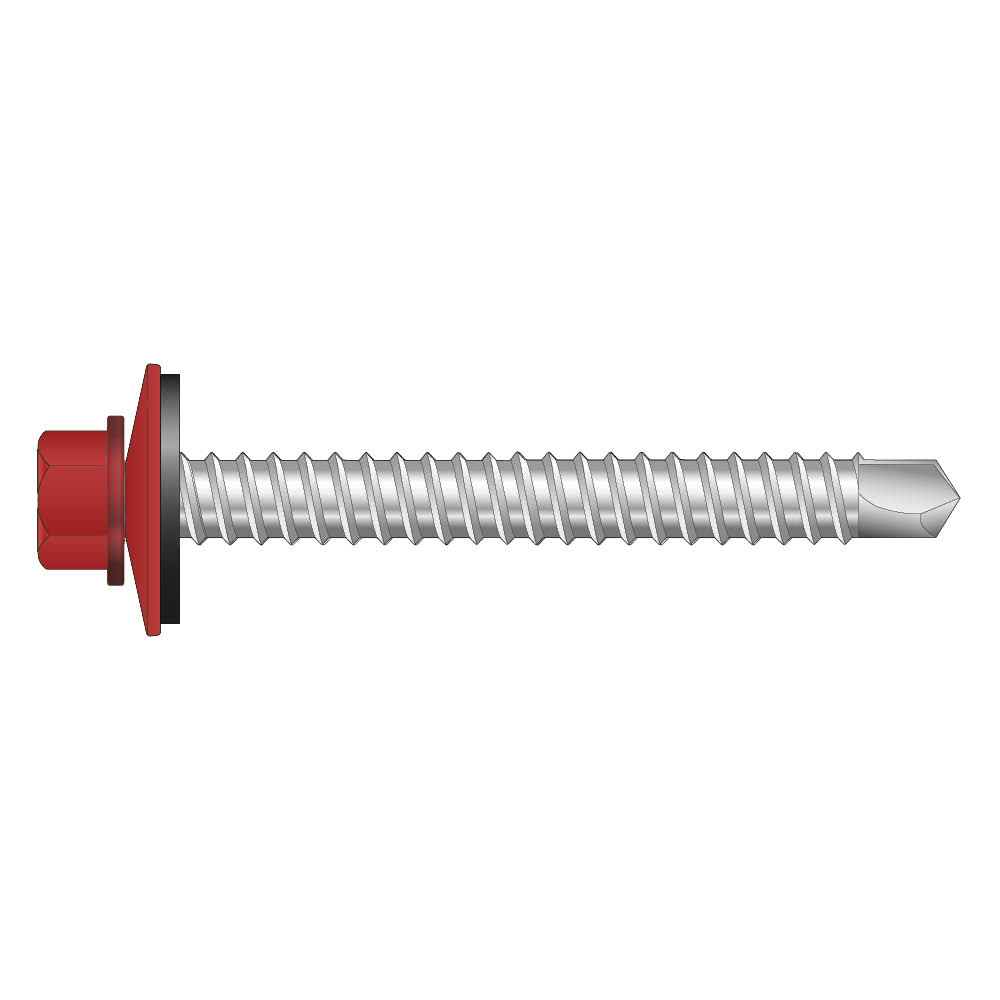

Farmer screw with drill point is used to fix profiled metal sheet to wood for roof and wall installation. Fit the screw in the concave part of the profiled sheet. Drilling capacity is 2.0 x 1.0 mm.
CE-merkitty
Tekninen hyväksyntä
Electrogalvanized steel 20 µm
Outdoor
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Discontinued Products
Tekniset tiedot

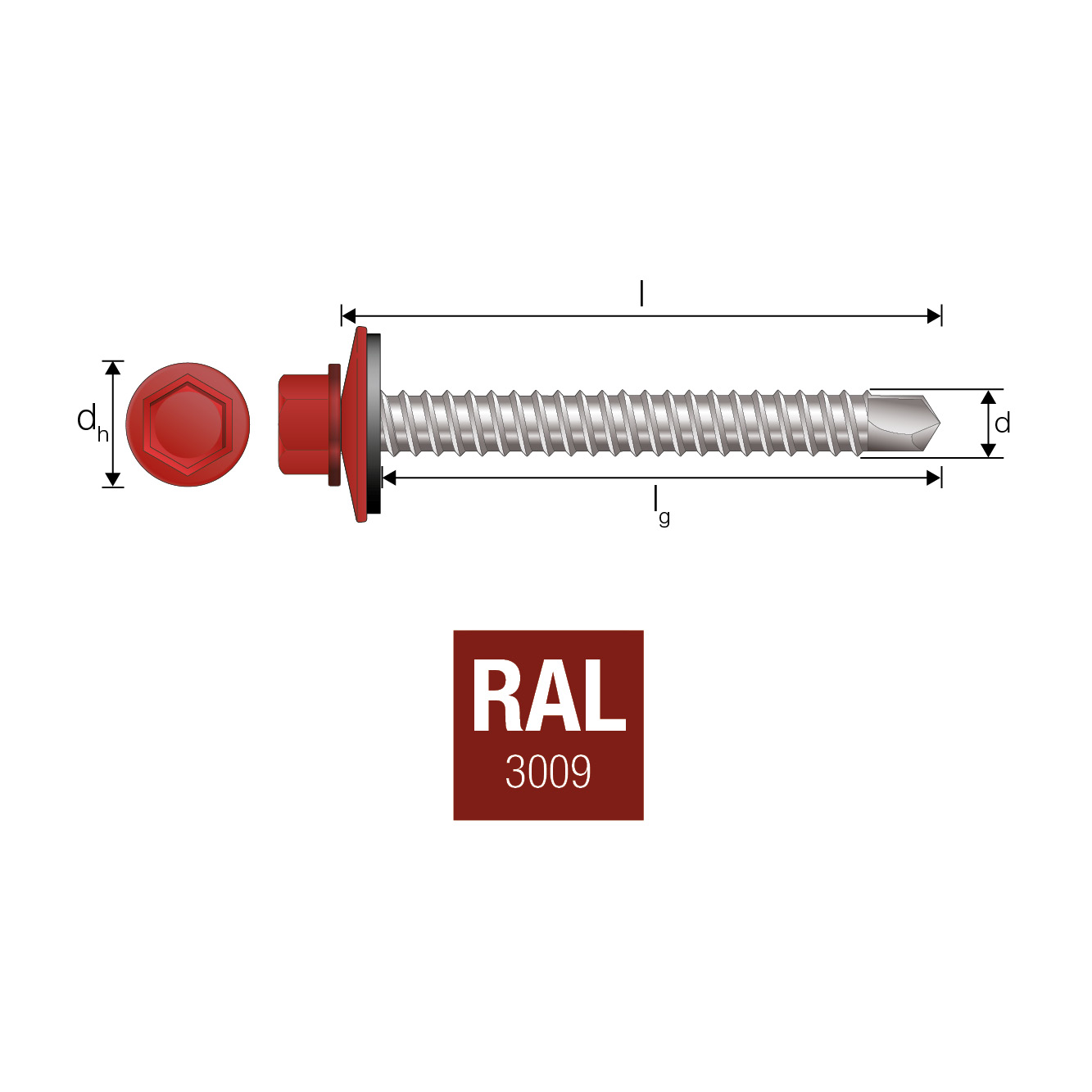

Tuotteen mitat Maalattu pää RAL 3009
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | bit | ||||
| FARMZC4.8X20 RAL3009 | 75706 | 55836124 | 4.8 | 20 | 14 | 3.4 | 17 | 1 | SW8 | 250 |
| FARMZC4.8X35 RAL3009 | 75709 | 55836075 | 35 | 14 | 3.4 | 32 | 2 | SW8 | 250 | |

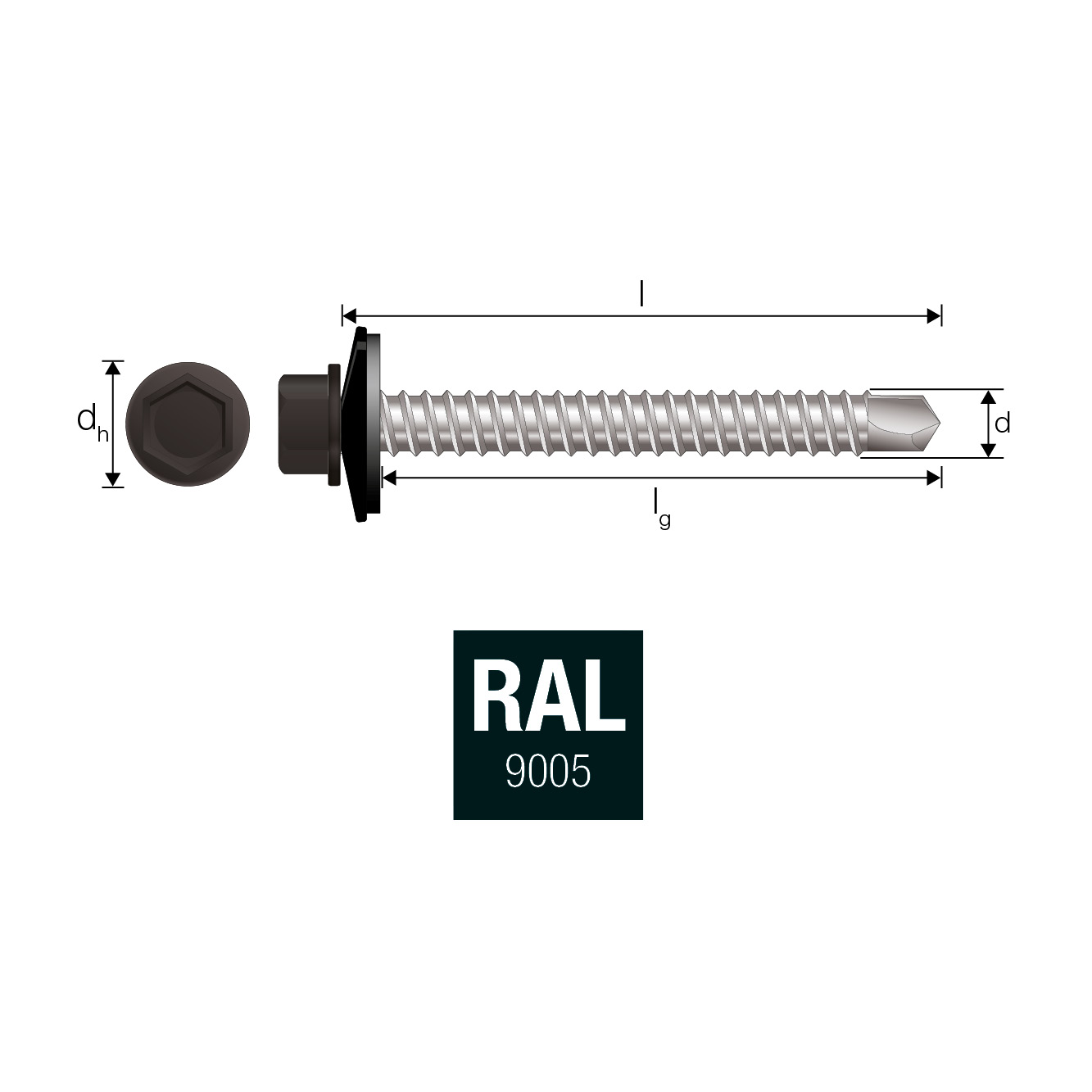

Tuotteen mitat Maalattu pää RAL 9005
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | |||||
|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | bit | |||
| FARMZC4.8X20 RAL9005 | 75705 | 55838258 | 4.8 | 20 | 14 | 17 | 1 | SW8 |
| FARMZC4.8X35 RAL9005 | 75708 | 21099544 | 35 | 14 | 32 | 2 | SW8 | |
| FARMZC4.8X60 RAL9005 | 75710 | 55836060 | 60 | 14 | 57 | 2 | SW8 | |

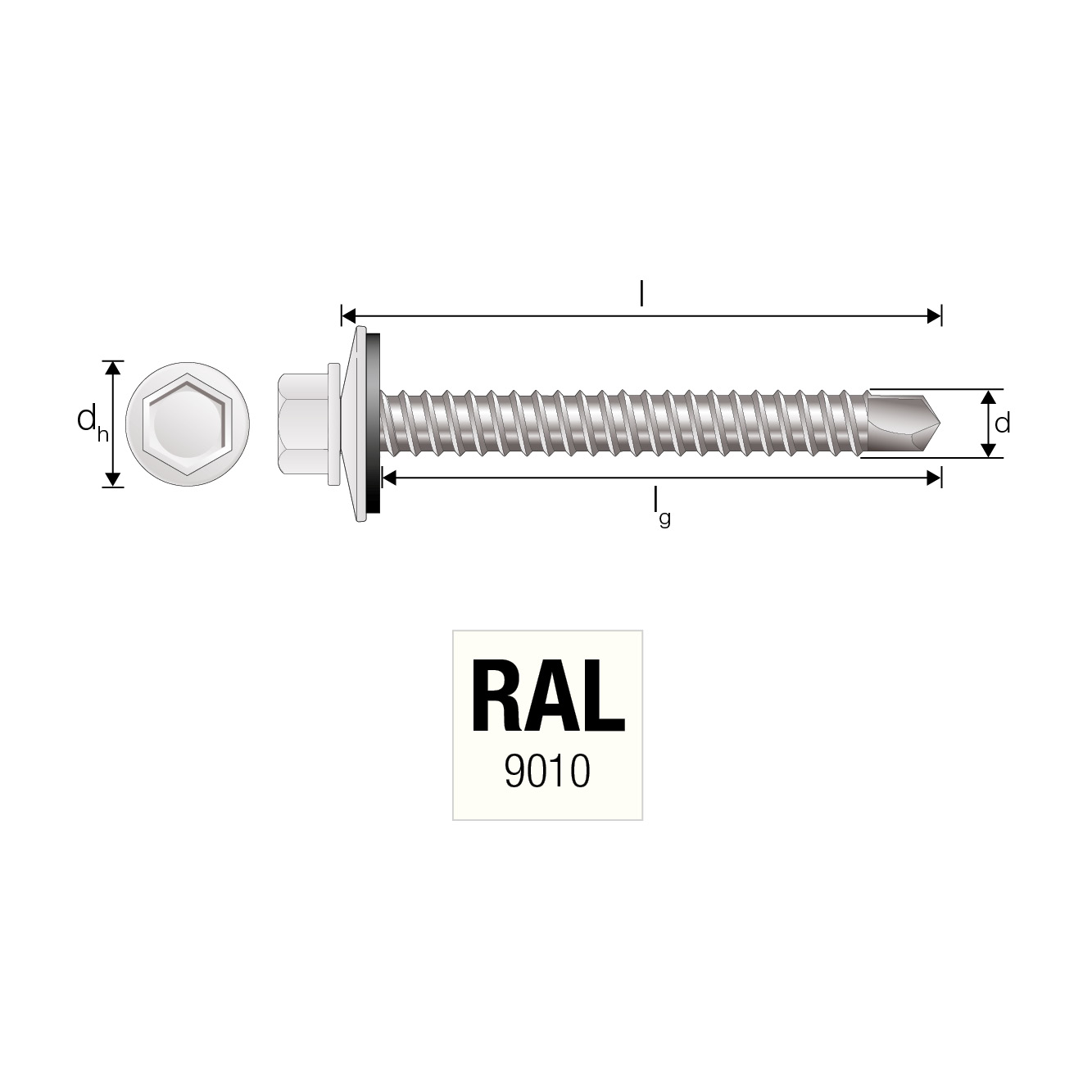

Tuotteen mitat Maalattu pää RAL 9010
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | bit | ||||
| FARMZC4.8X20 RAL9010 | 75704 | 55842163 | 4.8 | 20 | 14 | 3.4 | 17 | 1 | SW8 | 250 |
| FARMZC4.8X35 RAL9010 | 75707 | 55838232 | 35 | 14 | 3.4 | 32 | 2 | SW8 | 250 | |
