CLNC0G

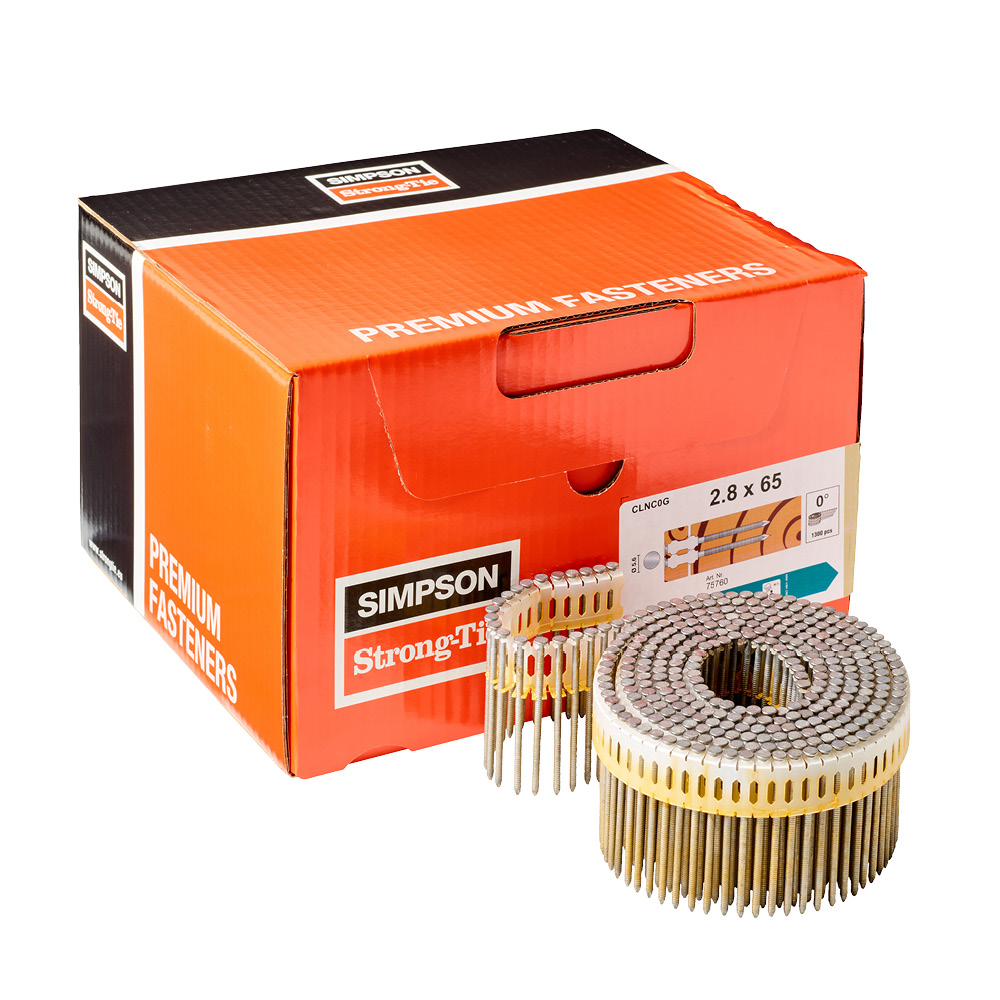

Verhousnaula 0° muovikela - pyöreä pää, rengassanka - HDG

Cladding nail is mainly used for painted facades. The length of the cladding nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.

CE-merkitty
CE-merkitty
EPD
EPD
Outdoor
Outdoor
Acier galvanisé à chaud
Acier galvanisé à chaud
Käyttöluokka 3
Käyttöluokka 3

Tuotteen yksityiskohdat

Kuvat

Ominaisuudet

Advantages

  • Pyöreä pää
  • 60 asteen timanttikärki
  • Renkaankantainen varsi
  • Muovikela 0°

Sovellus

Support

  • Verhous/julkisivupuu puuhun

Tekniset tiedot

Product dimensions

ViiteMitat
TuotenumeroMuuMitat ja ominaisarvot[mm]
DB nr.NOBB nr.LaatikkomääräPaino[kg]D[mm]L[mm]dₕ[mm]d1[mm]Aₕ[mm]hₜ[mm]lg[mm]lₚ[mm]tfix[mm]Bit[mm]
CLNC0G2.8X48757592056106558376641950.00.0022.8485.6-24.60.9≥ 322.525.6-
CLNC0G2.8X65757602056107558376531300.00.0042.8655.6-24.60.9≥ 432.542.6-

Product characteristic properties

ViiteNail characteristic parameters
Tyypillinen vääntölujuus - fₜₒᵣ,ₖ [Nm]
Taivutuslujuus - My,ₖ[Nm]Tyypillinen vetoparametri - fₐₓ,ₖ,₉₀°[N/mm²]Characteristic Head Pull-Through Parameter fhead,k[N/mm²]Tyypillinen vetolujuus - fₜₑₙₛ,ₖ[kN]Tyypillinen vääntölujuus - fₜₒᵣ,ₖ[Nm]Vääntösuhde
CLNC0G2.8X483.28.929.43.4--
CLNC0G2.8X653.28.929.43.4--

Sertifiointi

Environmental Product Declarations (EPD)
