CLNC0A4

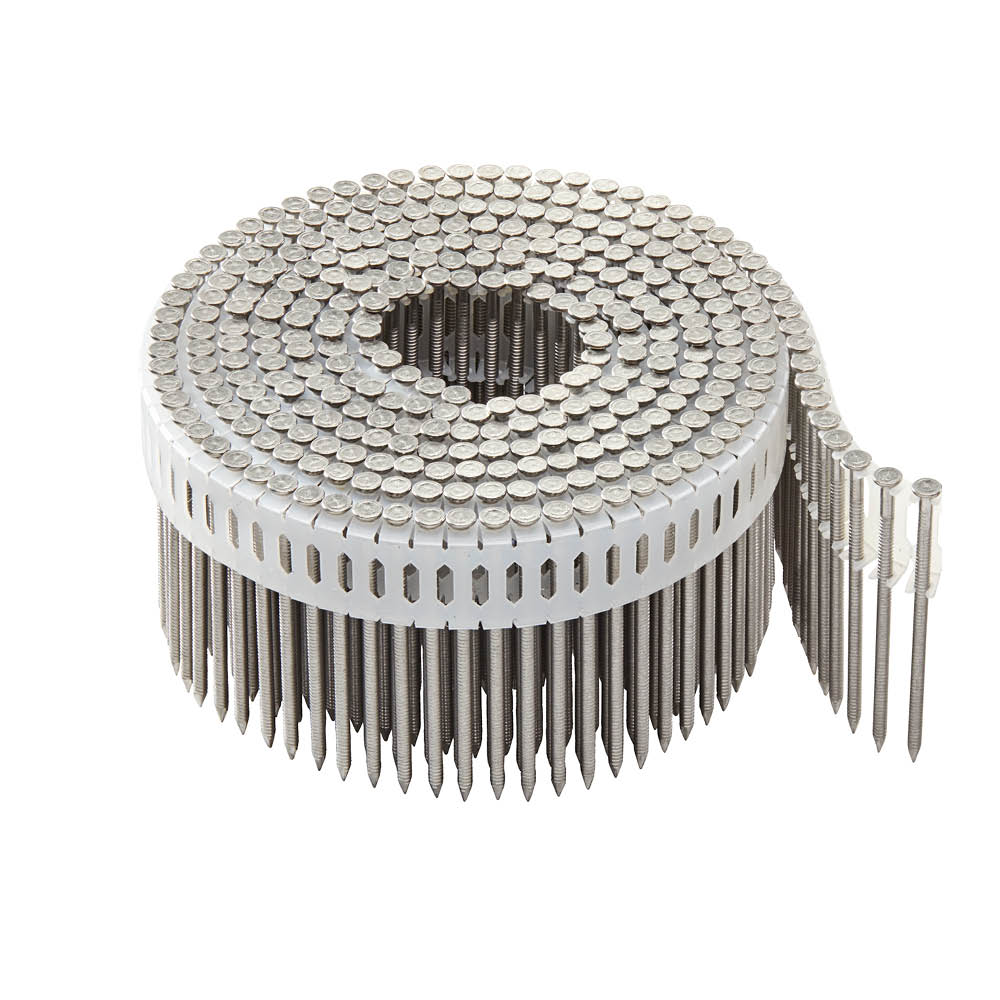

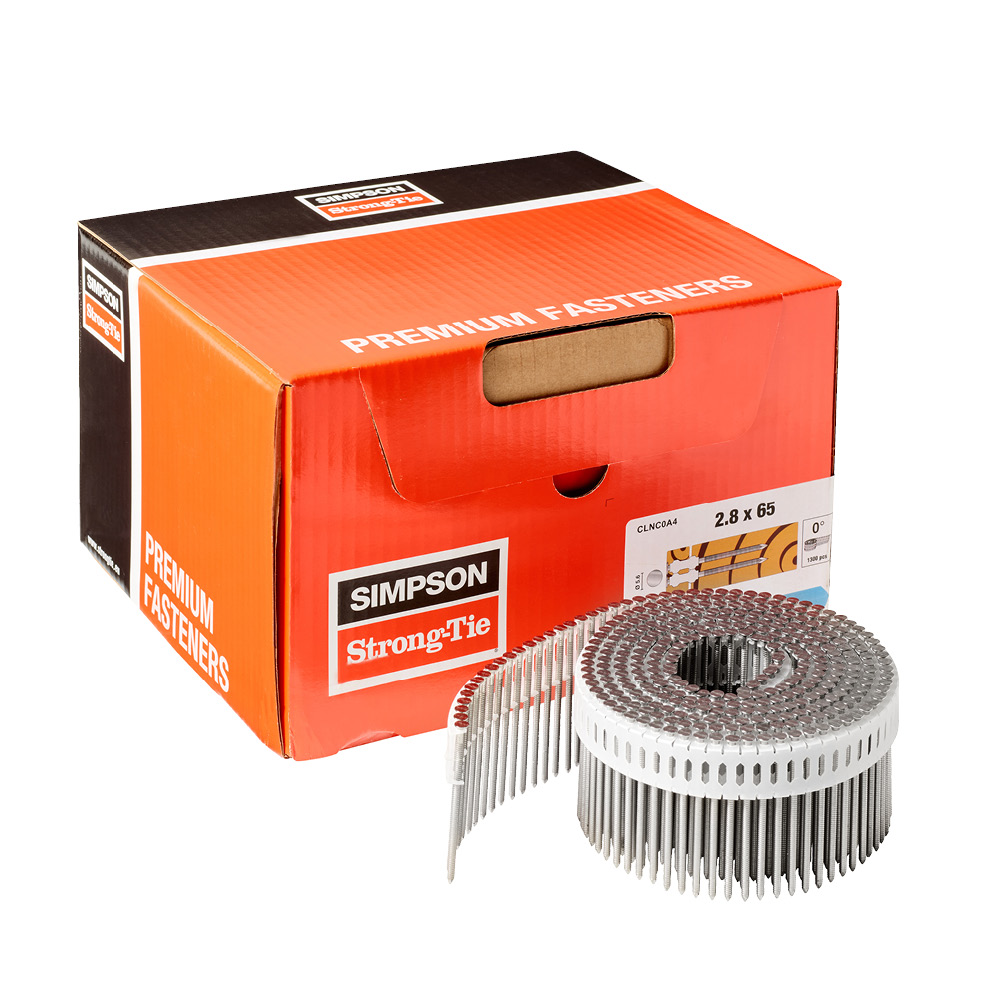

Verhousnaula 0° muovikela - pyöreä pää, rengassanka - ruostumaton teräs A4
Cladding nail is mainly used for painted facades. The length of the cladding nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.
CE-merkitty
Käyttöluokka 3
Ruostumaton teräs
Severe
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat

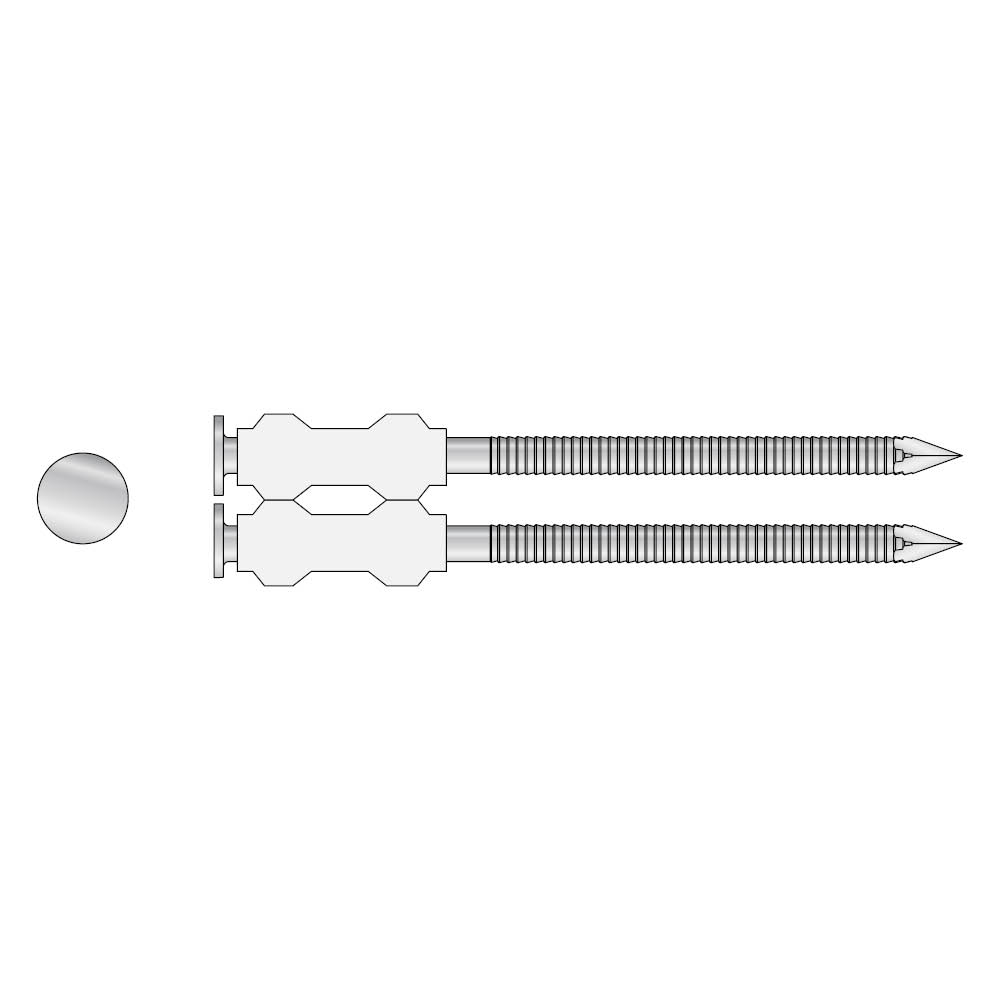

Product dimensions
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | Paino [kg] | |||||
|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | bit | ||||
| CLNC0A42.8X48 | 75757 | 55837645 | 2.8 | 48 | 5.6 | ≥ 32 | 25.6 | - | 0.003 |
| CLNC0A42.8X65 | 75758 | 55839518 | 65 | 5.6 | ≥ 43 | 42.6 | - | 0.005 | |
