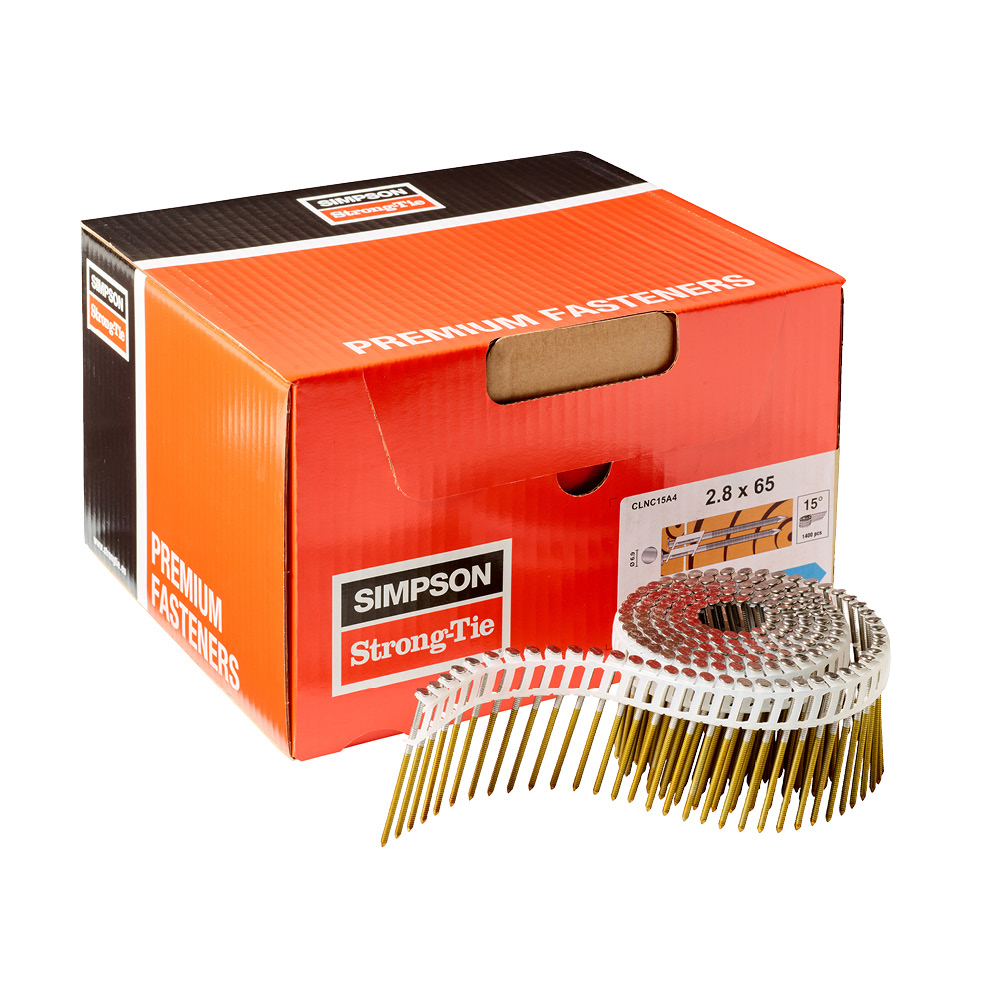

CLNC15A4

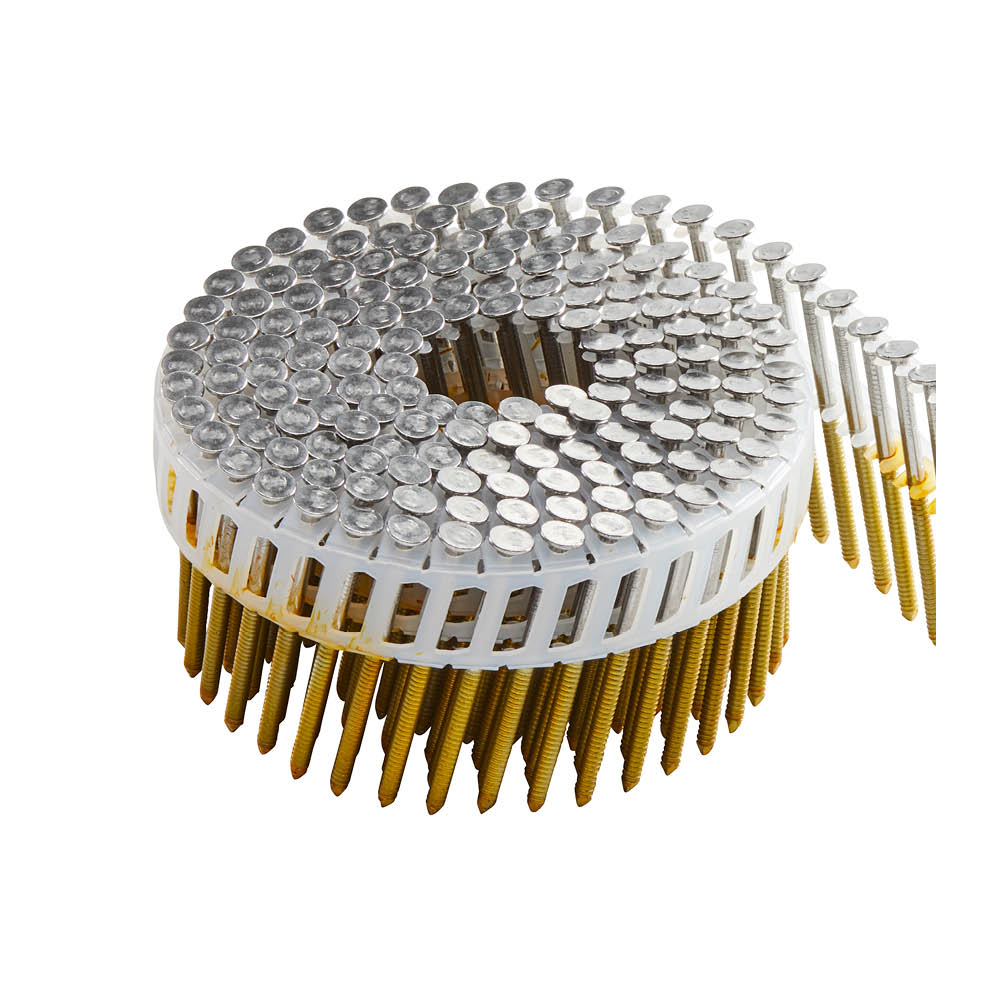

Verhousnaula 15° muovikela - pyöreä pää, rengassanka - ruostumaton A4

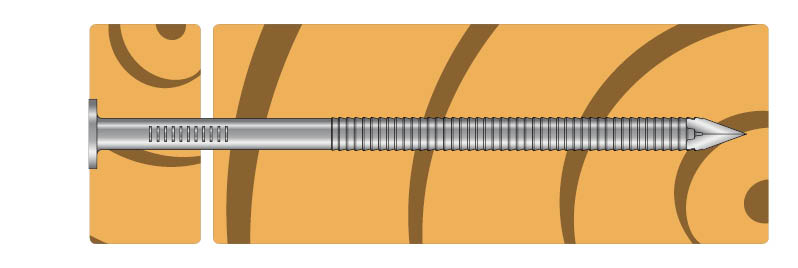

Cladding nail is mainly used for painted facades. The length of the cladding nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.

CE-merkitty

Severe
EPD

Käyttöluokka 3

Ruostumaton teräs

Fastener Designer
CLNC15A4_SSTBP_homepage_NO_no
Tekniset tiedot

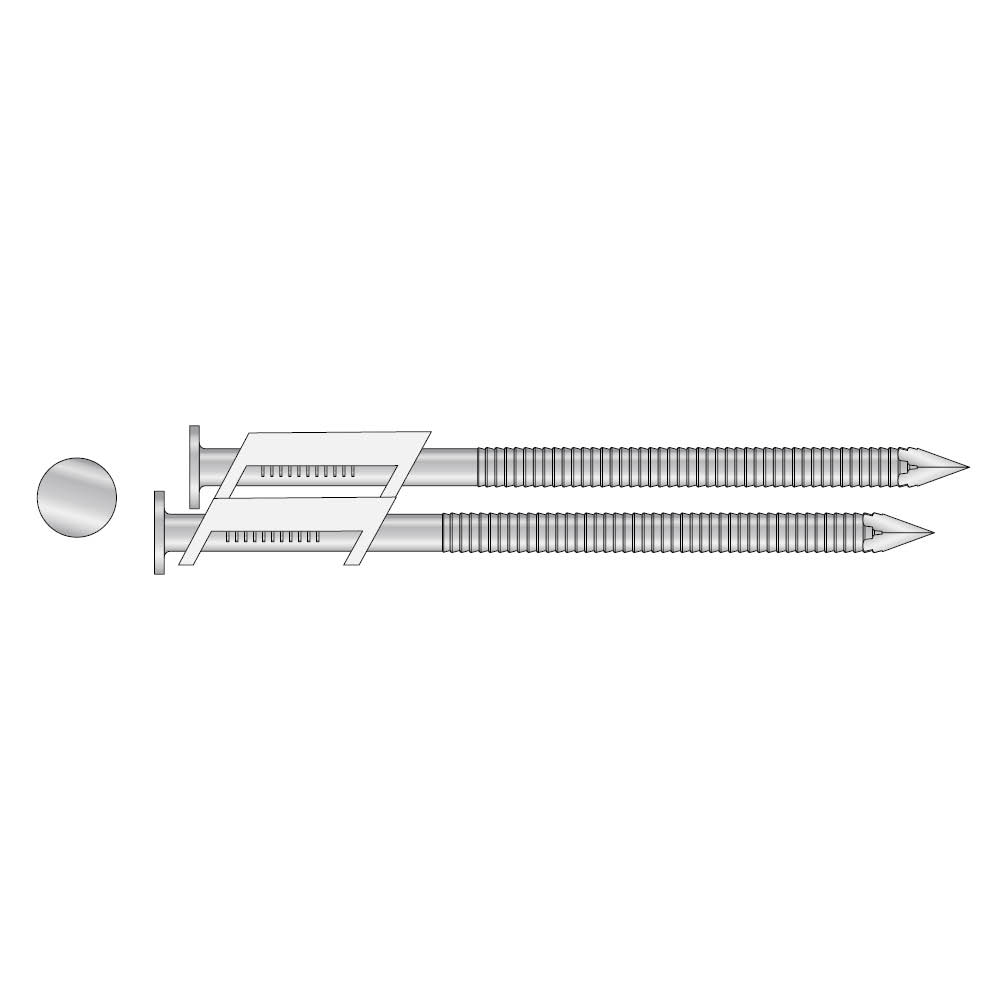

Product dimensions
| Viite | Mitat | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||||||||||
| DB nr. | NOBB nr. | Laatikkomäärä | Paino[kg] | D[mm] | L[mm] | dₕ[mm] | d1[mm] | Aₕ[mm] | hₜ[mm] | lg[mm] | lₚ[mm] | tfix[mm] | Bit[mm] | ||
| CLNC15A42.8X48 | 75743 | 2056090 | 55837626 | 2100.0 | 0.003 | 2.8 | 47 | 6.9 | - | 36.6 | 0.6 | 26 | 2.5 | 24.6 | - |
| CLNC15A42.8X65 | 75744 | 2056091 | 55842394 | 1400.0 | 0.004 | 2.8 | 63.5 | 6.9 | - | 36.6 | 0.6 | 50 | 2.5 | 41.1 | - |
| CLNC15A42.8X75 | 75745 | 2056092 | 55837634 | 1400.0 | 0.004 | 2.8 | 73.5 | 6.9 | - | 36.6 | 0.6 | 53 | 2.5 | 51.1 | - |
Product characteristic properties
| Viite | Nail characteristic parameters | |||||
|---|---|---|---|---|---|---|
| Tyypillinen vääntölujuus - fₜₒᵣ,ₖ [Nm] | ||||||
| Taivutuslujuus - My,ₖ[Nm] | Tyypillinen vetoparametri - fₐₓ,ₖ,₉₀°[N/mm²] | Characteristic Head Pull-Through Parameter fhead,k[N/mm²] | Tyypillinen vetolujuus - fₜₑₙₛ,ₖ[kN] | Tyypillinen vääntölujuus - fₜₒᵣ,ₖ[Nm] | Vääntösuhde | |
| CLNC15A42.8X48 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
| CLNC15A42.8X65 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
| CLNC15A42.8X75 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
Sertifiointi
Environmental Product Declarations (EPD)
CAD- ja BIM-kirjasto
2D
CLNC15A42.8X65
-
-
-
-
CLNC15A42.8X75
-
-
-
-
CLNC15A42.8X48
-
-
-
-
3D
CLNC15A42.8X65
-
-
-
-
-
CLNC15A42.8X75
-
-
-
-
-
