CLNG
Verhousnaula - kuumasinkitty

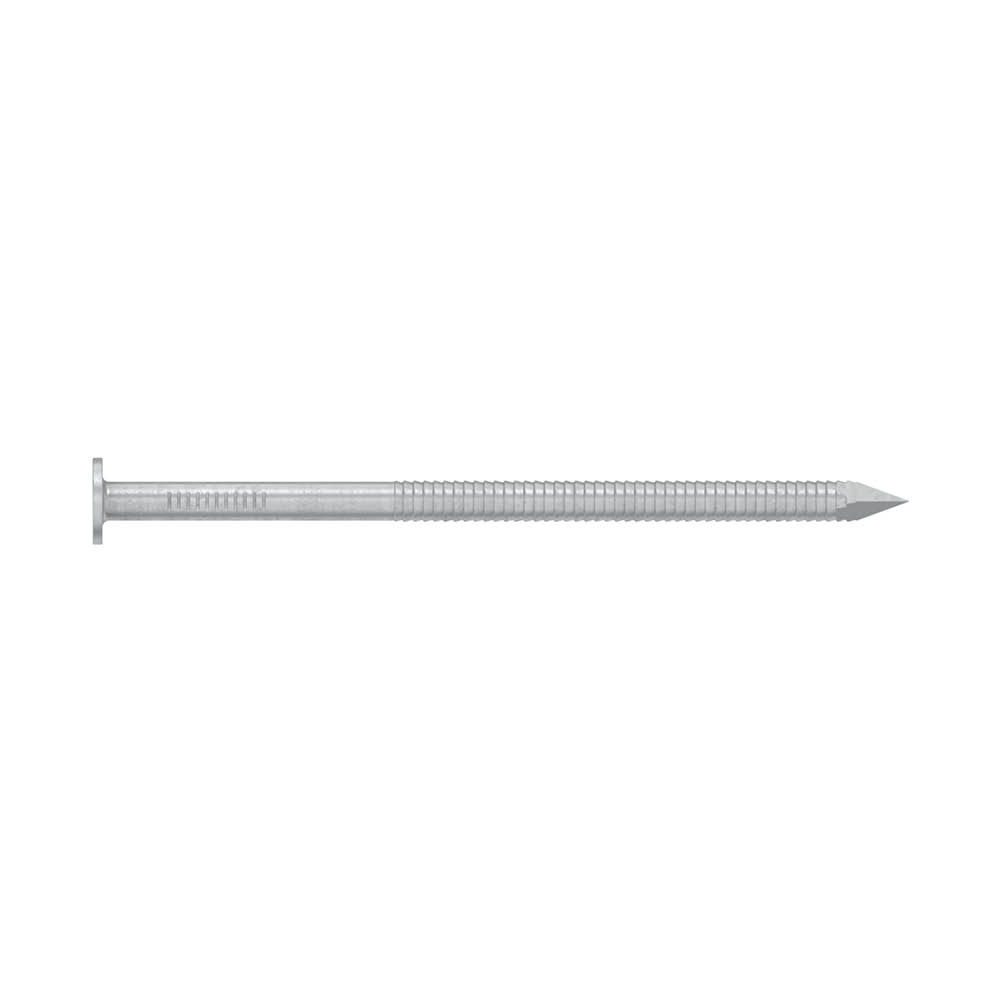

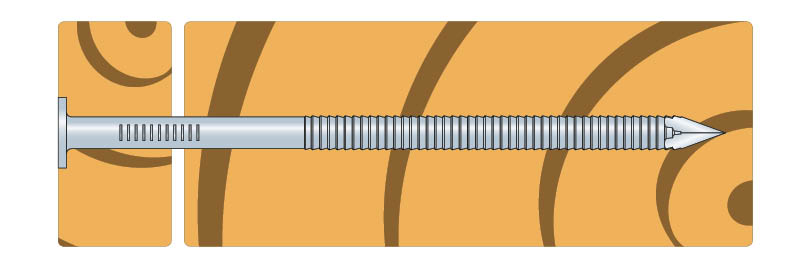

The CLNG cladding is developed for installing wood cladding. The length of the nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.

CE-merkitty

Outdoor

Acier galvanisé à chaud
EPD

Käyttöluokka 3

Fastener Designer
Tekniset tiedot
Product dimensions
| Viite | Mitat | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Other | Mitat[mm] | ||||||
| Paino[kg] | D[mm] | L[mm] | dₕ[mm] | lg[mm] | tfix[mm] | Bit[mm] | ||
| CLNG2.8x65 | 75649 | 1.8 | 2.8 | 63.5 | 6.9 | 50 | 41.1 | - |
| CLNG2.8x48 | 75648 | 0.003 | 2.8 | 47 | 6.9 | 24 | 24.6 | - |
Product characteristic properties
| Viite | Nail characteristic parameters | |||||
|---|---|---|---|---|---|---|
| Characteristic parameters | ||||||
| Characteristic Yield Moment My,k[Nm] | Characteristic Withdrawal Parameter fax,k,90°[N/mm²] | Characteristic Head Pull-Through Parameter fhead,k[N/mm²] | Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN] | Characteristic torsional strength - ftor,k[Nm] | Vääntösuhde | |
| CLNG2.8x65 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
| CLNG2.8x48 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
Sertifiointi
Environmental Product Declarations (EPD)
CAD- ja BIM-kirjasto
2D
CLNG2.8x48
-
-
-
-
CLNG2.8x65
-
-
-
-
3D
CLNG2.8x48
-
-
-
-
-
CLNG2.8x65
-
-
-
-
-
