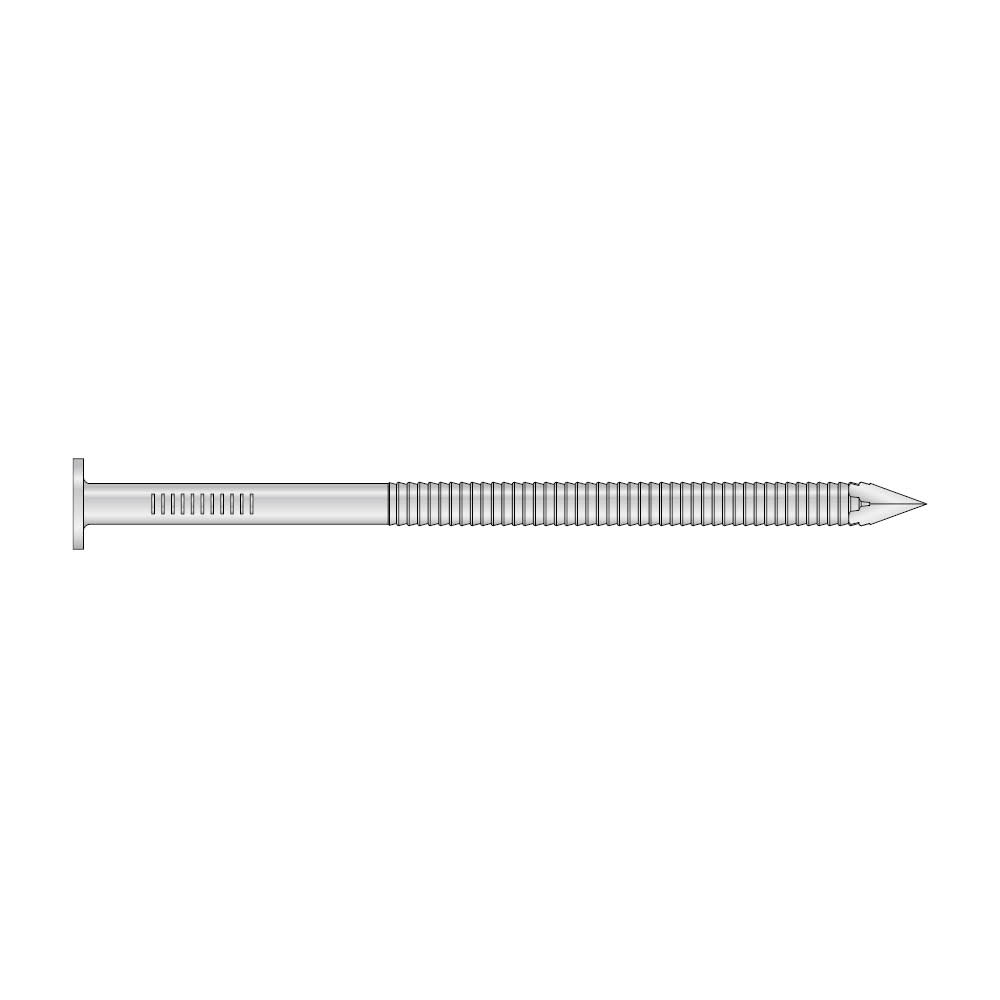

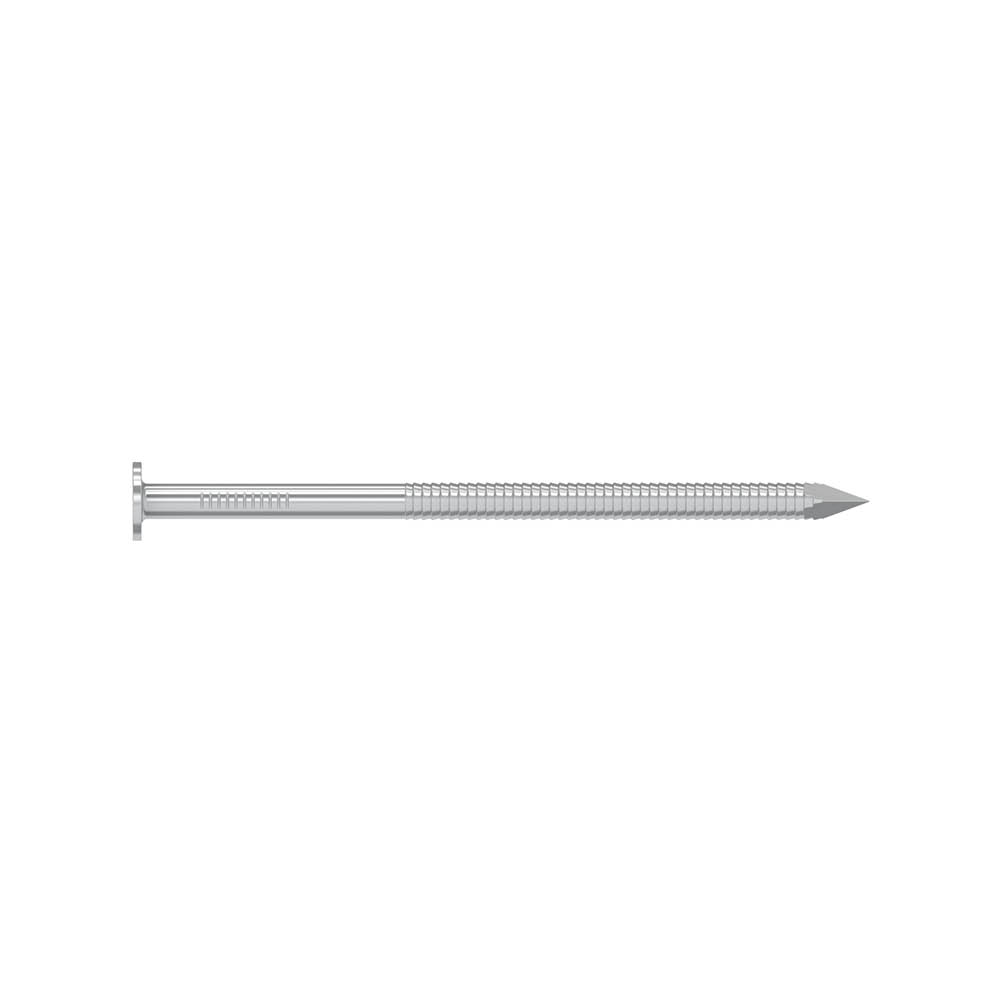

CLNA4
Verhousnaula - ruostumaton teräs A4
The cladding nail in stainless steel can be used in severe environments,
mainly used for unpainted facades or noble wood materials such as thermowood and cedar.

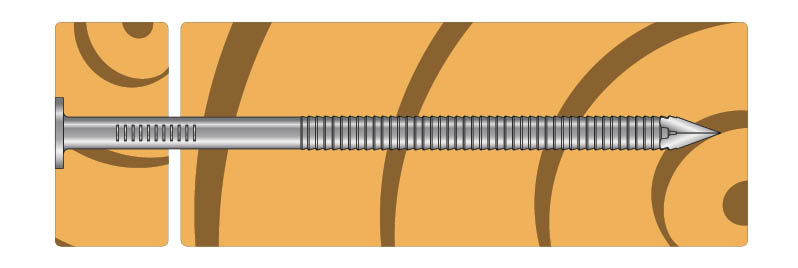

The length of the nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.

CE-merkitty

Käyttöluokka 3
EPD

Ruostumaton teräs

Severe

Fastener Designer
Tekniset tiedot
Product dimensions
| Viite | Mitat | |||||||
|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Other | Mitat[mm] | ||||||
| Paino[kg] | D[mm] | L[mm] | dₕ[mm] | lg[mm] | tfix[mm] | Bit[mm] | ||
| CLNA42.8x48 | 75650 | 0.002 | 2.8 | 47 | 6.9 | 26 | 24.6 | - |
| CLNA42.8x65 | 75651 | 0.003 | 2.8 | 63.5 | 6.2 | 50 | 41.1 | - |
| CLNA42.8X75 | 77033 | 0.004 | 2.8 | 75 | 6.9 | - | - | - |
Product characteristic properties
| Viite | Nail characteristic parameters | |||||
|---|---|---|---|---|---|---|
| Characteristic parameters | ||||||
| Characteristic Yield Moment My,k[Nm] | Characteristic Withdrawal Parameter fax,k,90°[N/mm²] | Characteristic Head Pull-Through Parameter fhead,k[N/mm²] | Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN] | Characteristic torsional strength - ftor,k[Nm] | Vääntösuhde | |
| CLNA42.8x48 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
| CLNA42.8x65 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
| CLNA42.8X75 | - | - | - | - | - | - |
Sertifiointi
Environmental Product Declarations (EPD)
CAD- ja BIM-kirjasto
2D
CLNA42.8x48
-
-
-
-
CLNA42.8X75
-
-
-
-
CLNA42.8x65
-
-
-
-
3D
CLNA42.8x48
-
-
-
-
-
CLNA42.8X75
-
-
-
-
-
