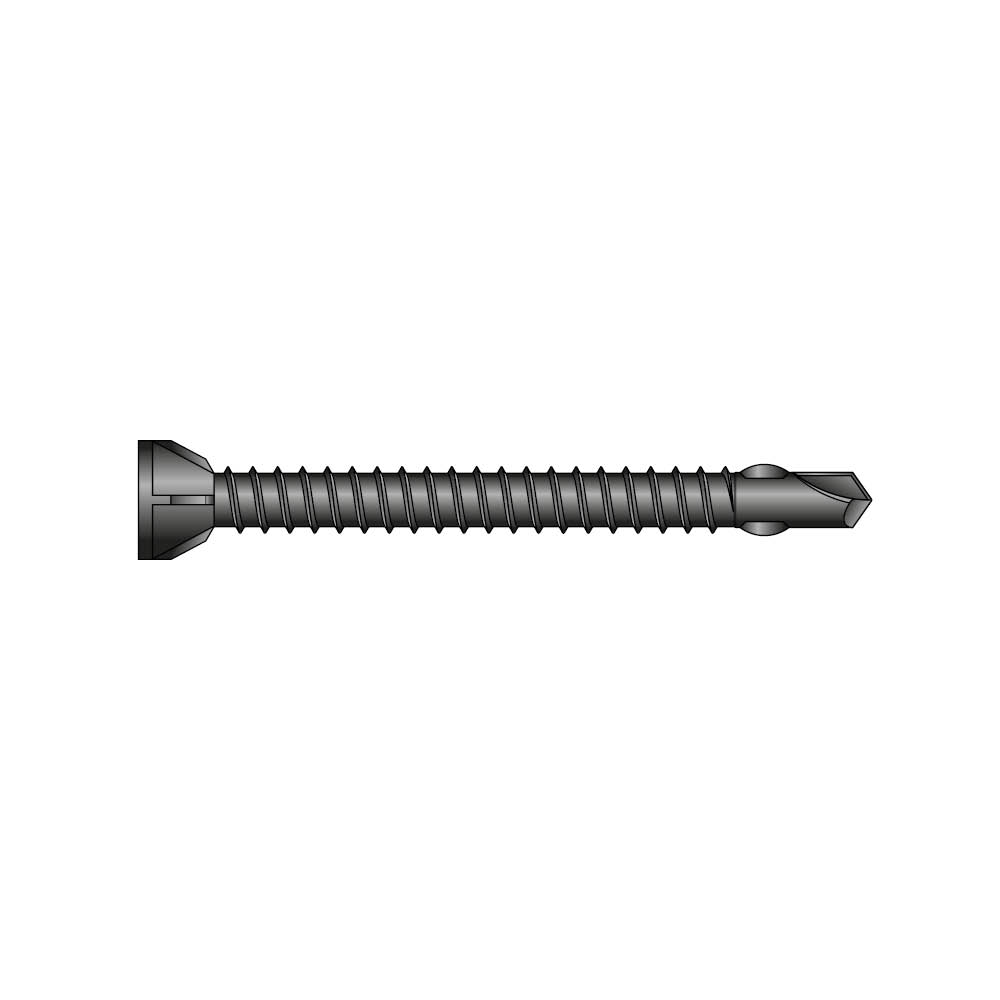

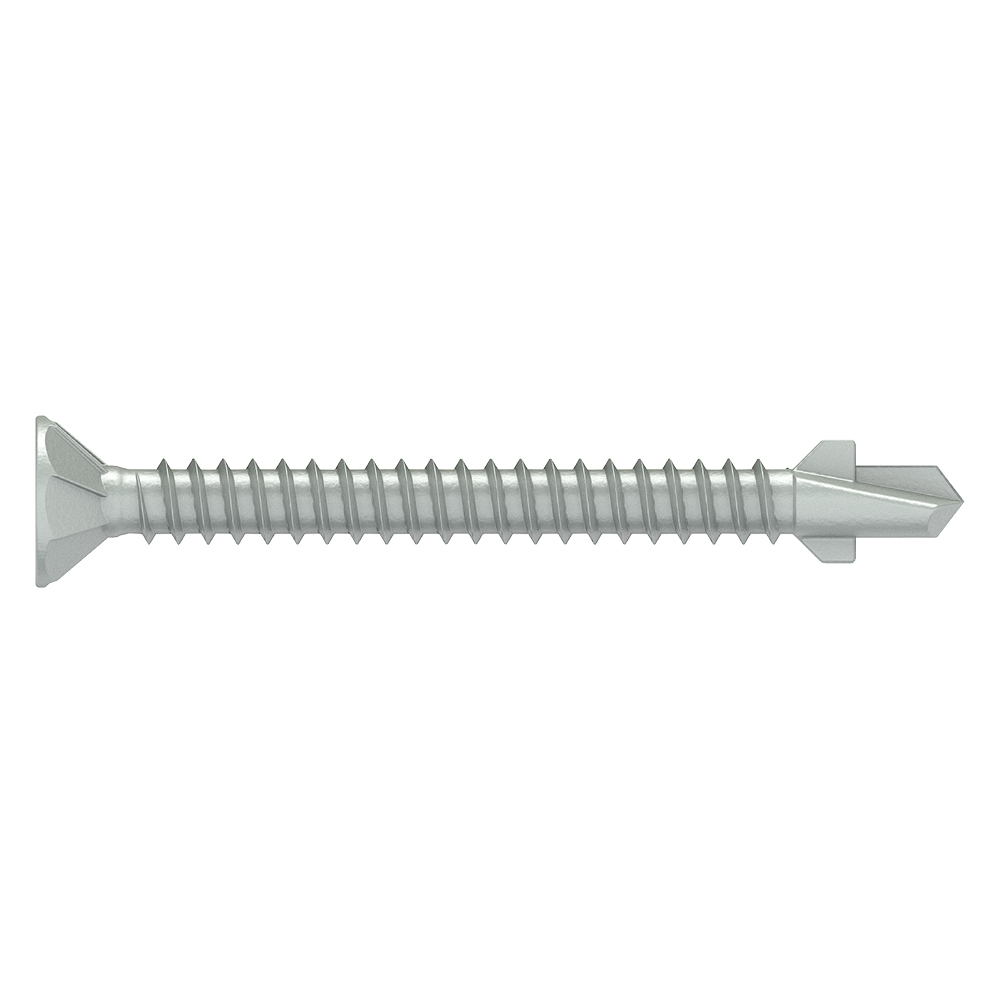

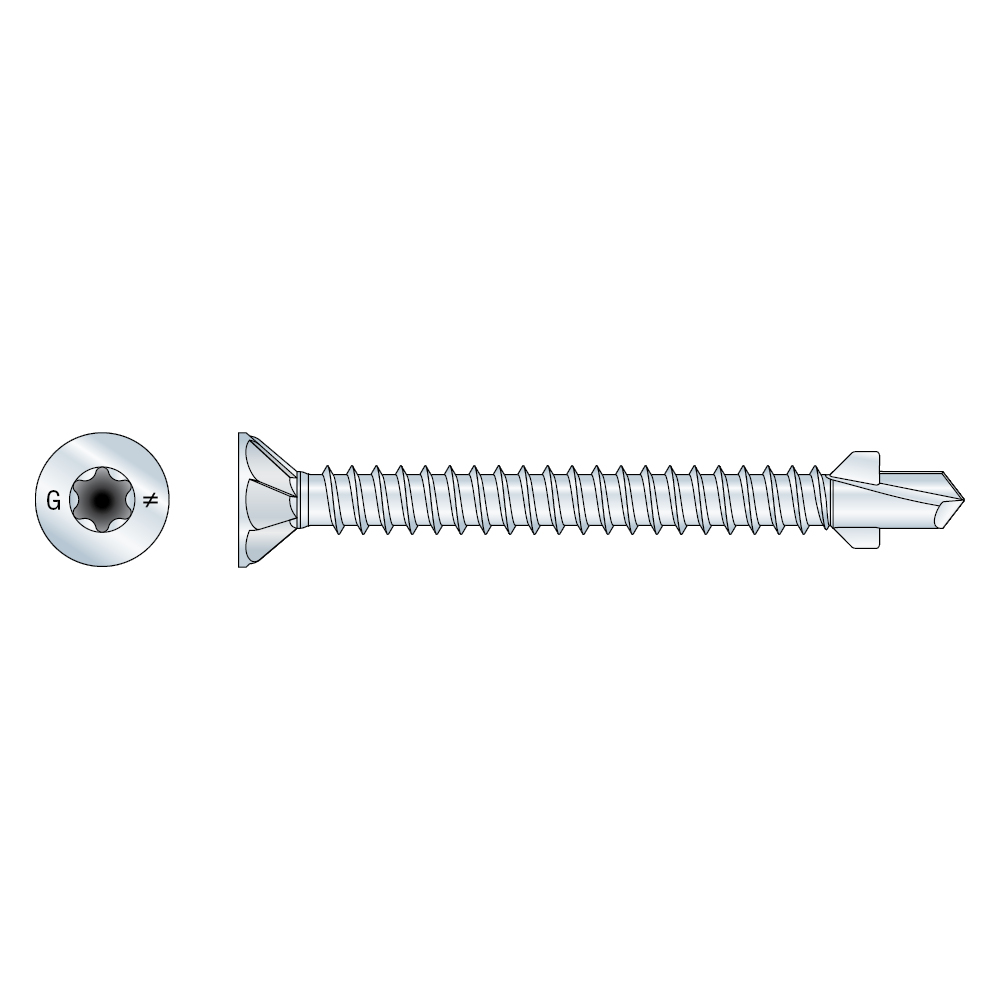

Wood to Steel Drill Wing Screw

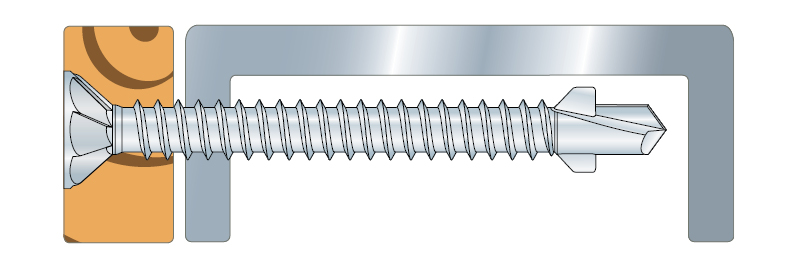

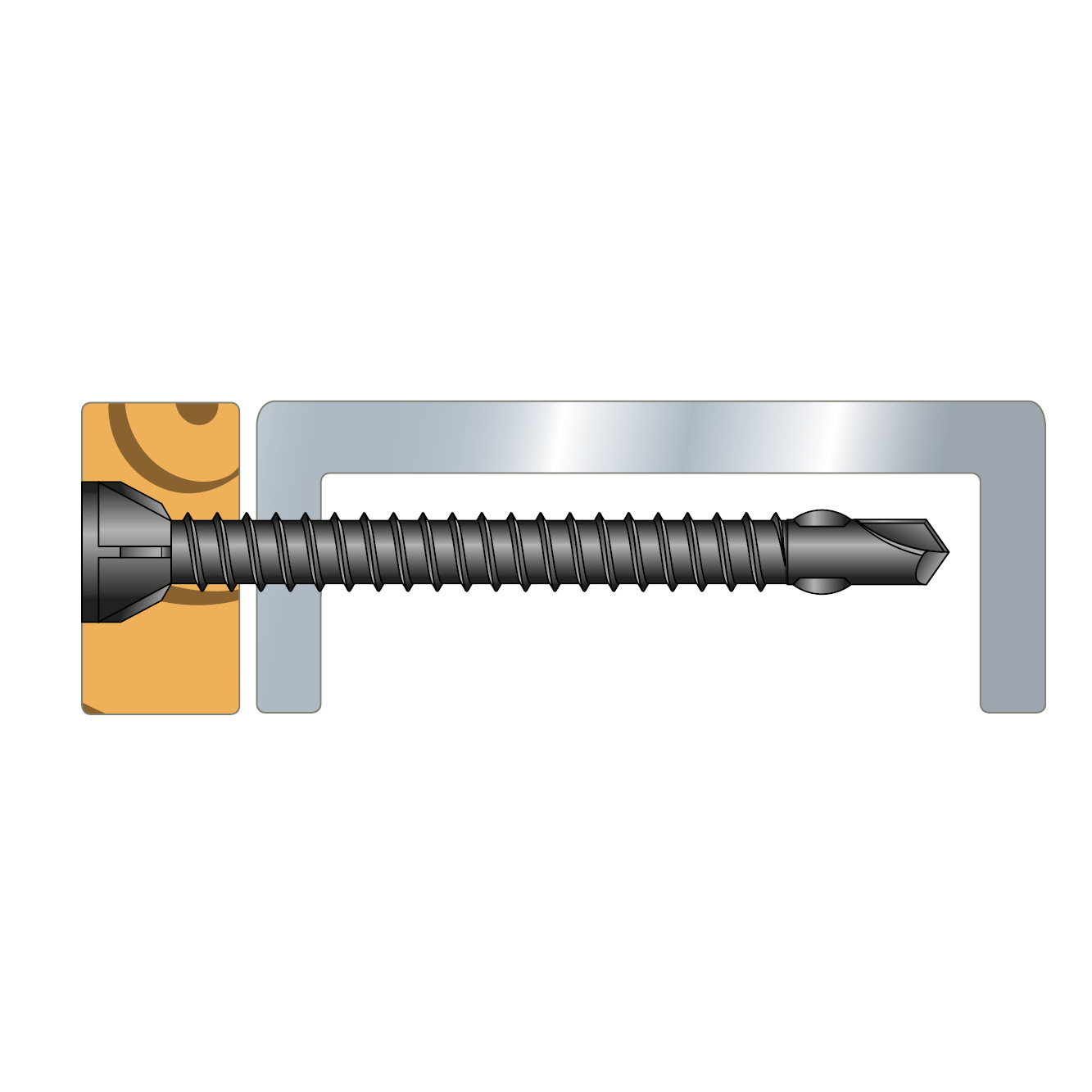

The drill wing screw, which is self-drilling and can be used outdoor, is used for fitting wood battens, wood fibreboards and fibercement boards to beams and steel joists. The wings remove material to a larger diameter than regular threads and prevent the threads engaging in the material, which means there is no need for pre-drilling before fitting.
Käyttöluokka 2
Protec® +
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot

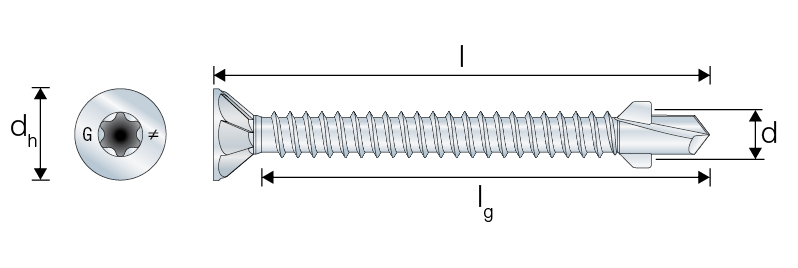

Mitat ja ominaisarvot
| Viite | Mitat | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Tuotenumero | Muu | Mitat ja ominaisarvot[mm] | |||||||
| Paino[kg] | lg[mm] | D[mm] | L[mm] | dₕ[mm] | Puun paksuus[mm] | Teräksen paksuus[mm] | Bit[mm] | ||
| BW4.2X45 | 74258 | 0.003 | Filetage total | 4.2 | 45 | 9.5 | 6 - 30 | 1 - 2 | TX25 |
| BW4.8X50 | 74259 | 0.004 | Filetage total | 4.8 | 50 | 9.5 | 10 - 38 | 2 - 4 | TX25 |
| BW4.8X85 | 74260 | 0.005 | Filetage total | 4.8 | 85 | 9.5 | 10 - 60 | 1 - 2 | TX25 |
| BW5.5X65 | 74262 | 0.006 | Filetage total | 5.5 | 65 | 12.1 | 10 - 40 | 2 - 4 | TX30 |
| BW5.5X85 | 74263 | 0.007 | Filetage total | 5.5 | 85 | 12.1 | 25 - 60 | 2 - 4 | TX30 |
| BW5.5X90 | 74270 | 0.008 | Filetage total | 5.5 | 90 | 12.1 | 25 - 55 | 4 - 12 | TX30 |
| BW5.5X115 | 74261 | 0.008 | Filetage total | 5.5 | 115 | 12.1 | 40 - 80 | 4 - 12 | TX30 |
