KTF
Yleiskäyttöinen ruuvi, ruostumaton teräs

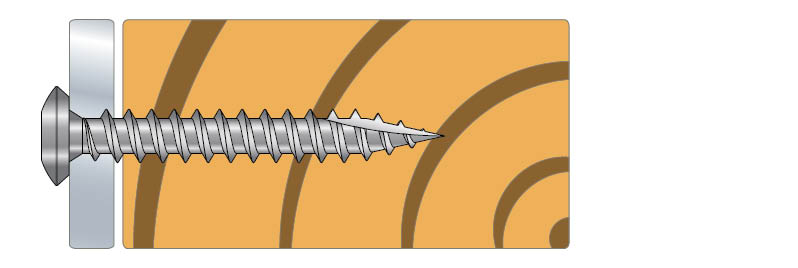

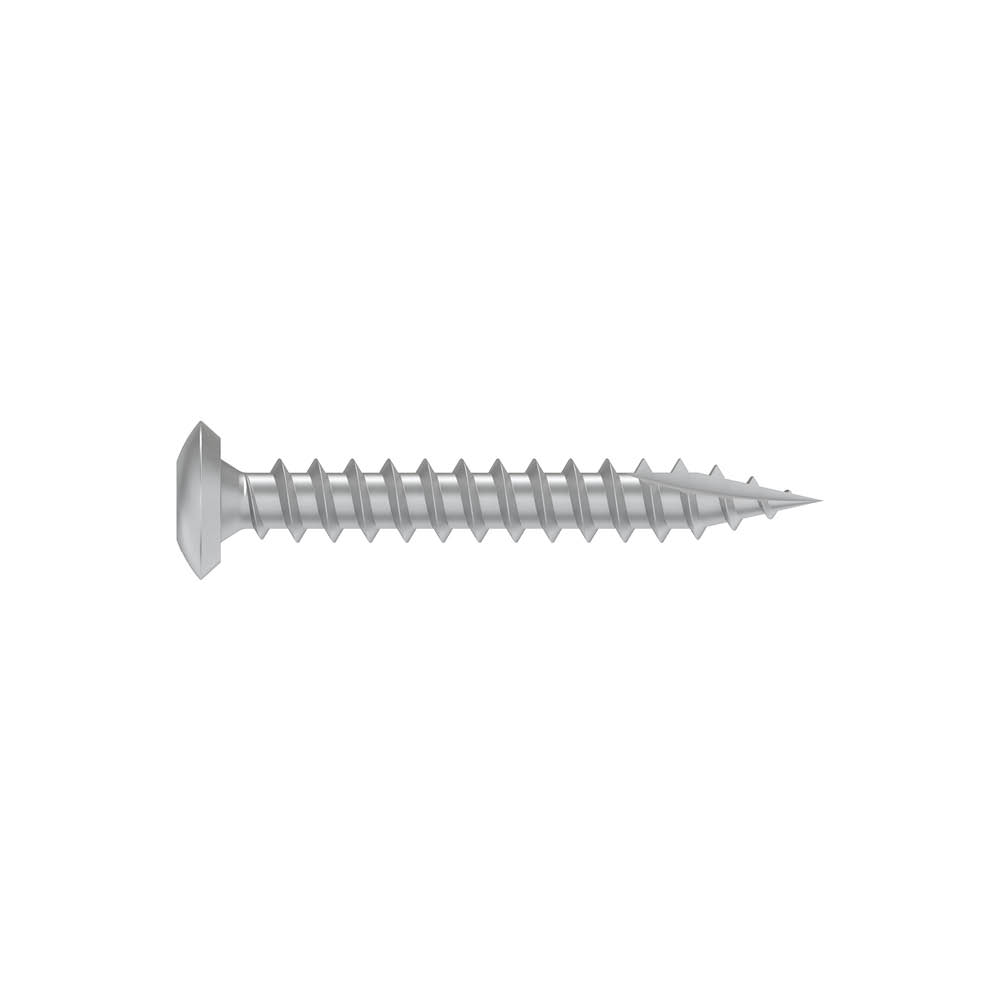

The universal screw stainless steel 410 hardened is ideally suited for fixing guttering, fittings, brackets and other outdoor items. The screw has a cutpoint which drives the screw effectively into the wood and prevents splitting.
Käyttöluokka 3
Outdoor
EPD
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Discontinued Products
Tekniset tiedot
Mitat
Product dimensions
| Tuotenro | Item code | NOBB nr. | Fastener dimensions [mm] | Paino [kg] | |||||
|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | lg | tfix | bit | ||||
| KTF5.0x25 | 75506 | 55836563 | 5 | 25 | 9.3 | 22 | - | TX25 | 0.003 |
| KTF5.0x30 | 75507 | 55841732 | 30 | 9.3 | 27 | - | TX25 | 0.003 | |
| KTF5.0x35 | 75508 | 55836525 | 35 | 9.3 | 32 | - | TX25 | 0.004 | |
| KTF5.0x45 | 75509 | 55836544 | 45 | 9.3 | 42 | - | TX25 | 0.004 | |
| KTF5.0x60 | 75510 | 55836533 | 60 | 9.3 | 57 | - | TX25 | 0.004 | |
| KTF5.0x75 | 75511 | 55836552 | 75 | 9.3 | 72 | - | TX25 | 0.007 | |
