EFIXR

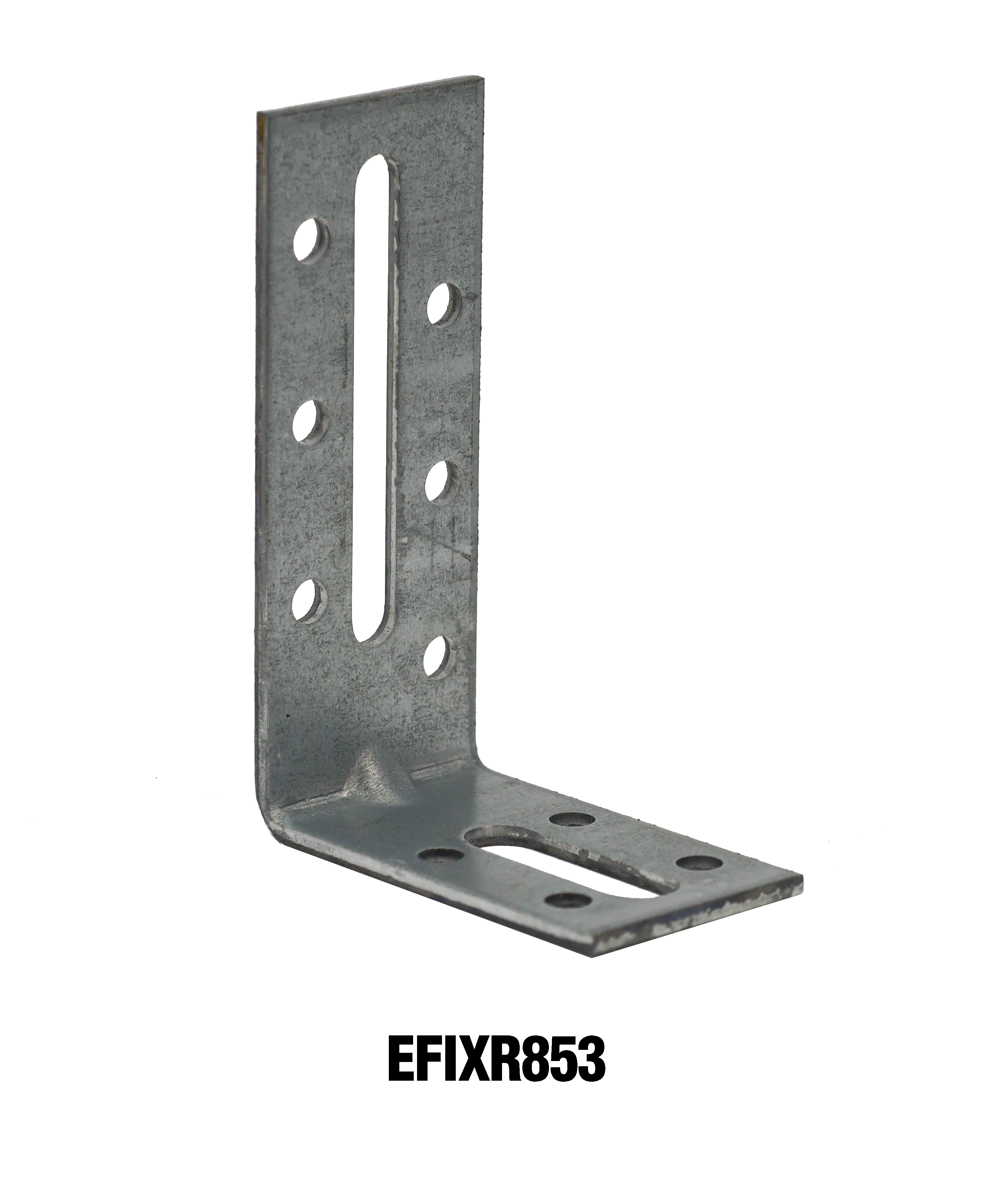

Adjustable Angle Brackets

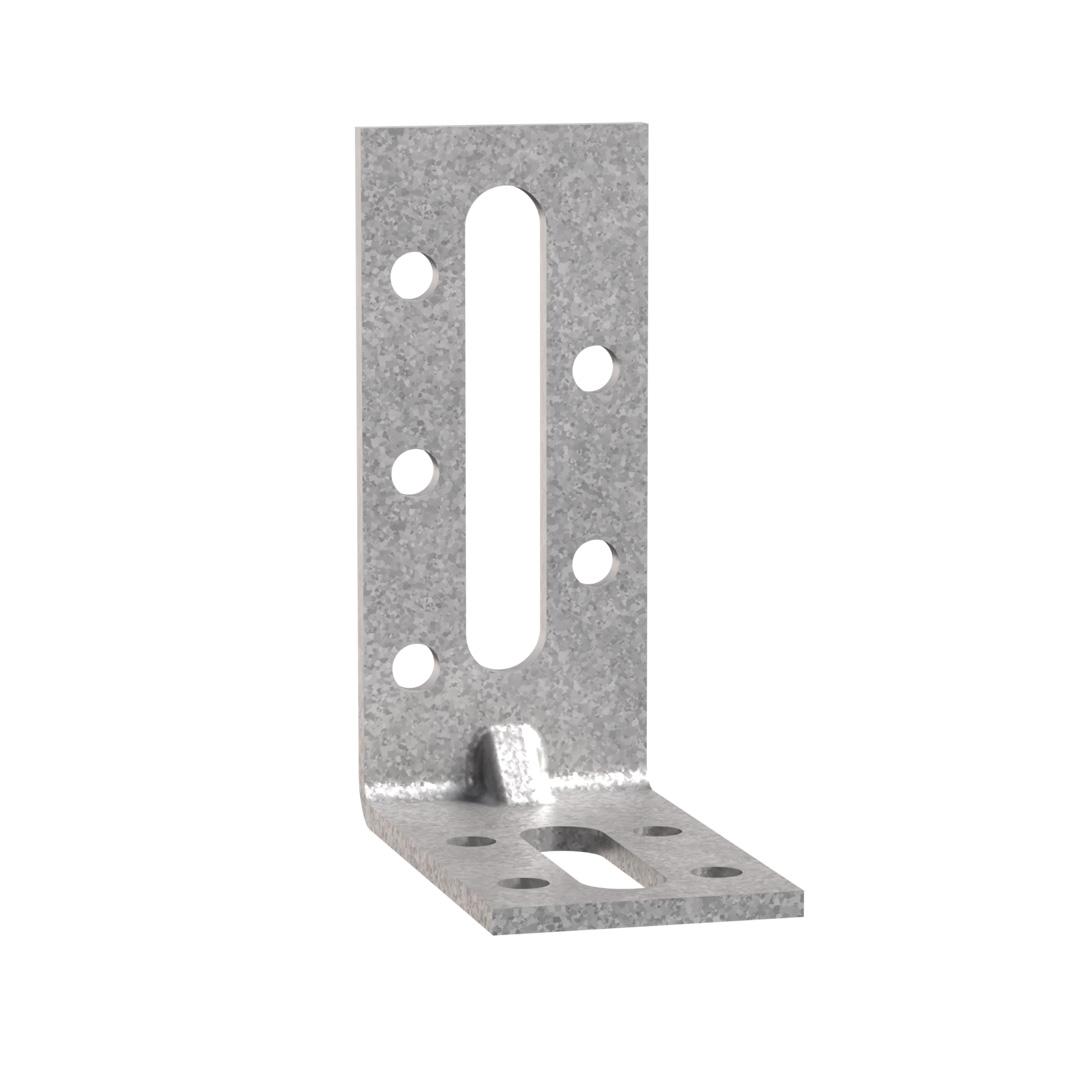

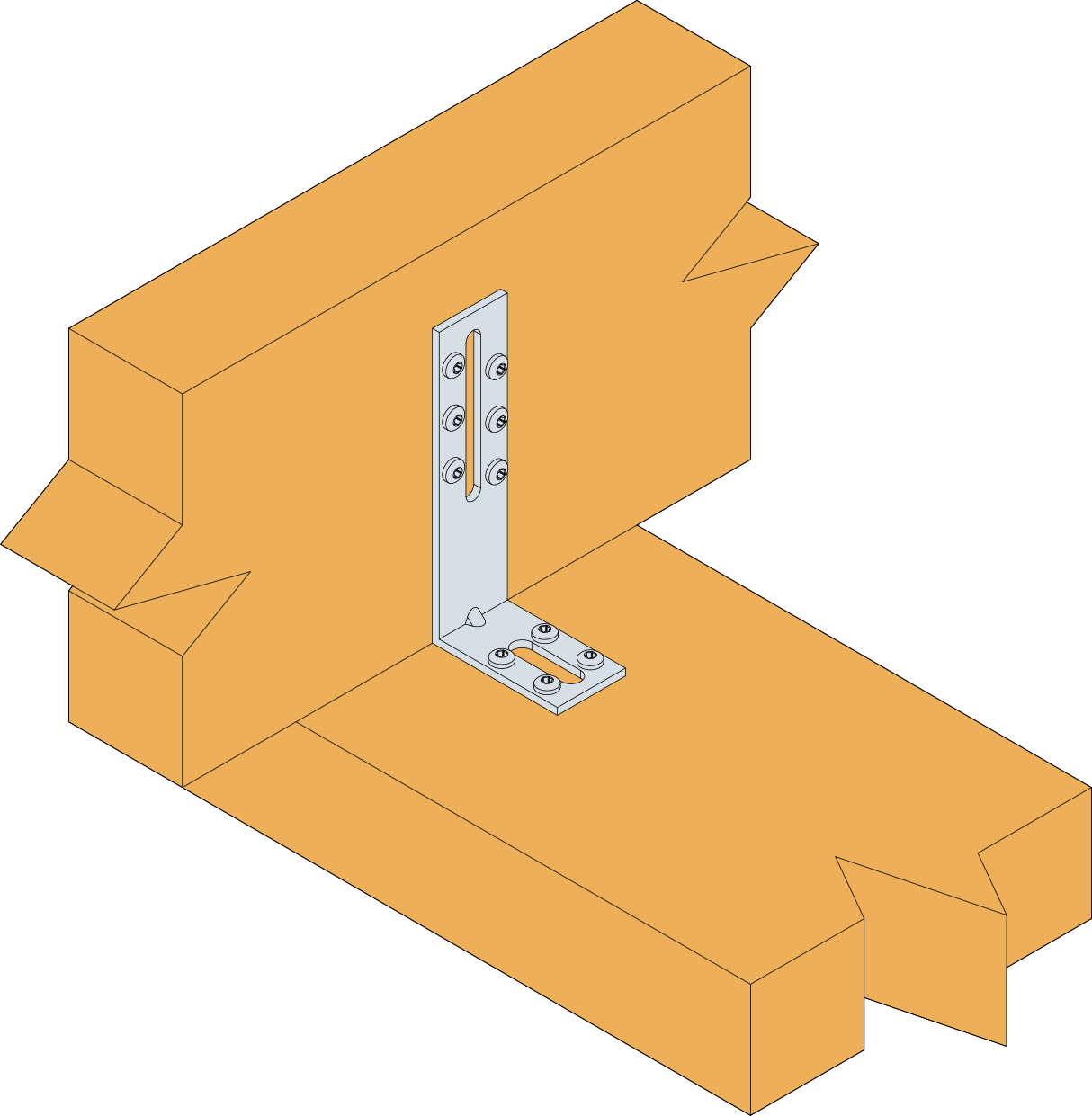

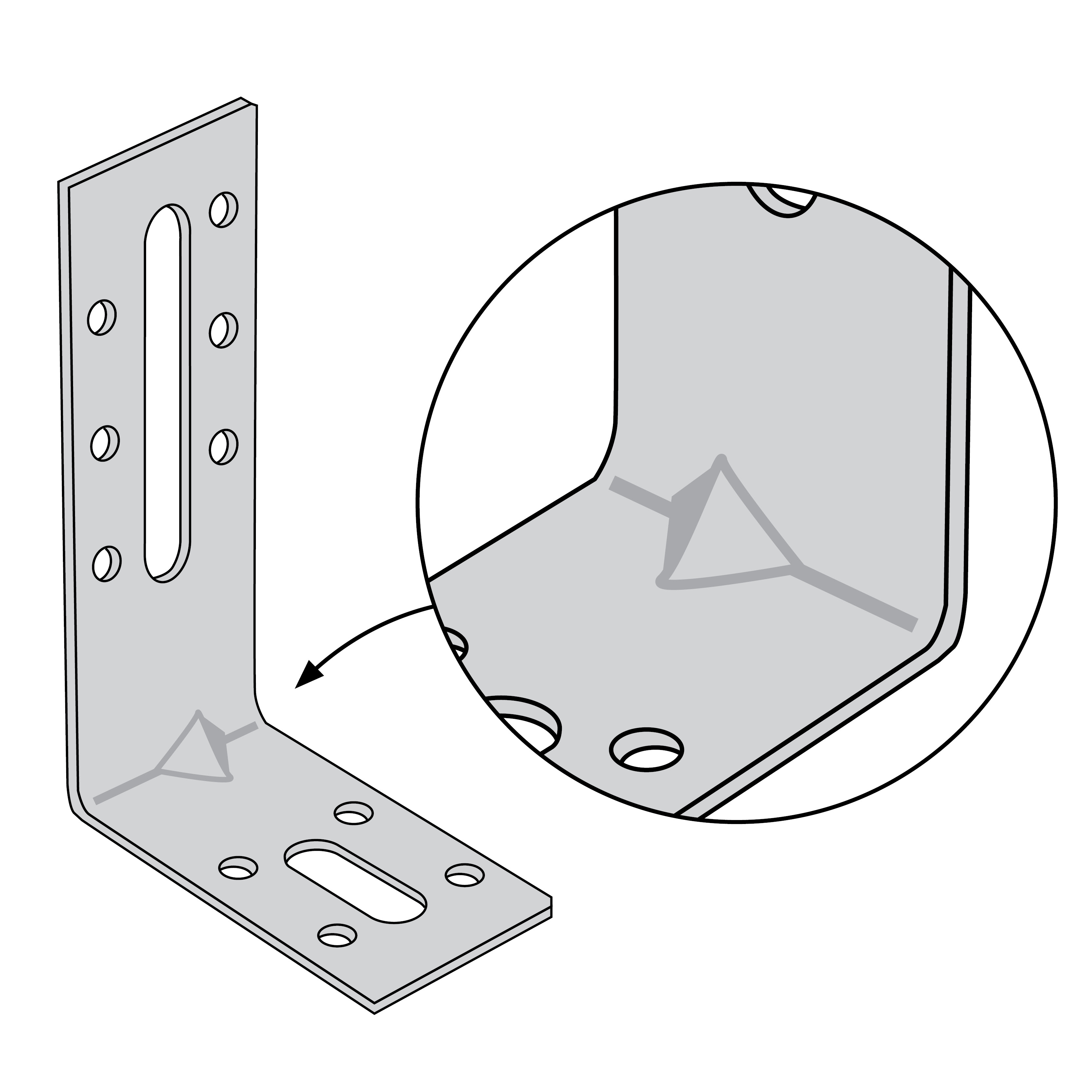

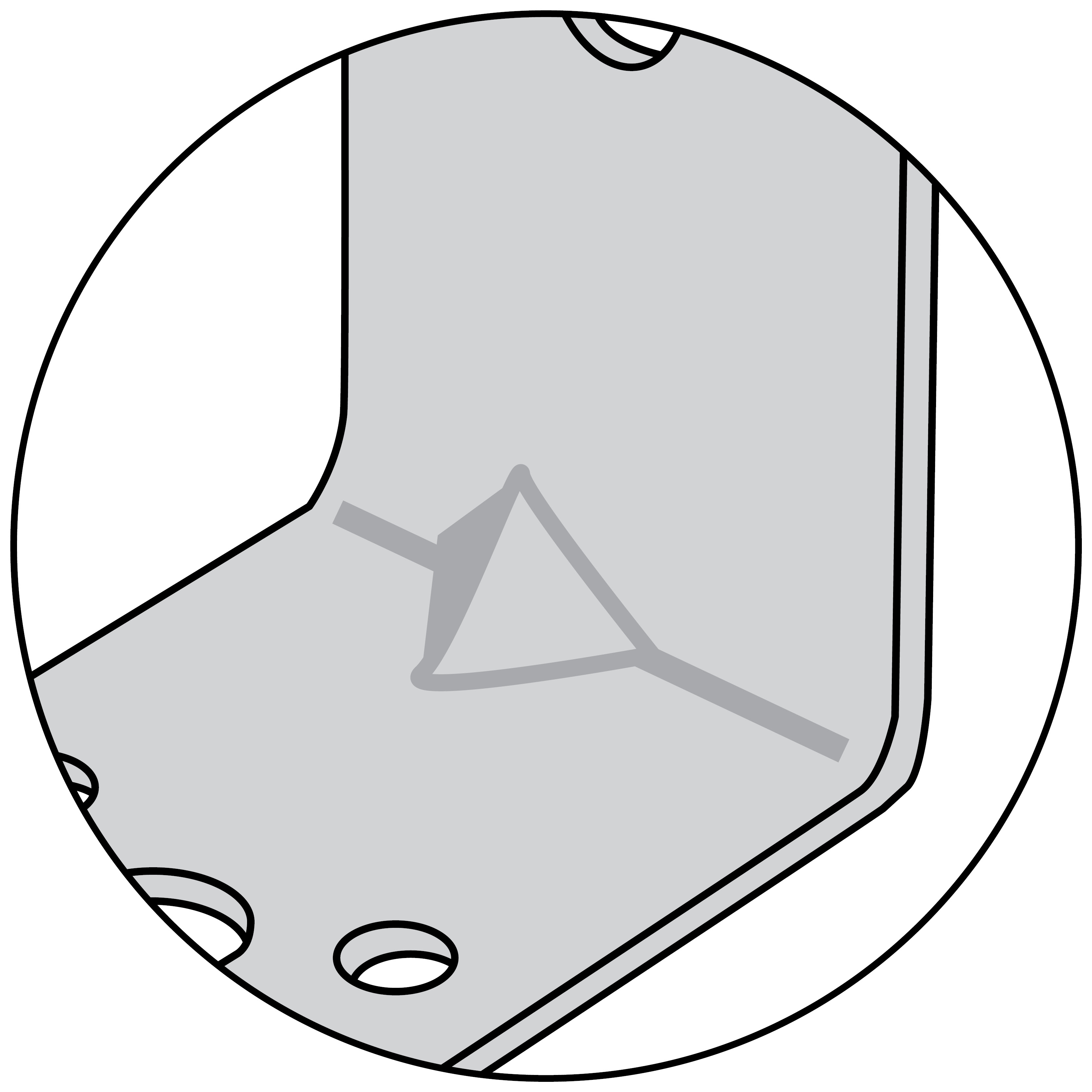

EFIXR angle brackets are intended for all assemblies for the design and installation of interior and exterior joinery. EFIXR stiffener improves rigidity particularly for large models.
Käyttöluokka 2
Indoor
Electrogalvanized steel Z275
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat
Mitat
| Tuotenro | Mitat ja ominaisarvot [mm] | Reiät, sivu A | Reiät, sivu B | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | t | Ø5 | Ø6.5x30 | Ø6.5x45 | Ø6.5x50 | Ø6.5x55 | Ø6.5x65 | Obround | Ø5 | Ø8,5x30 | Obround | |

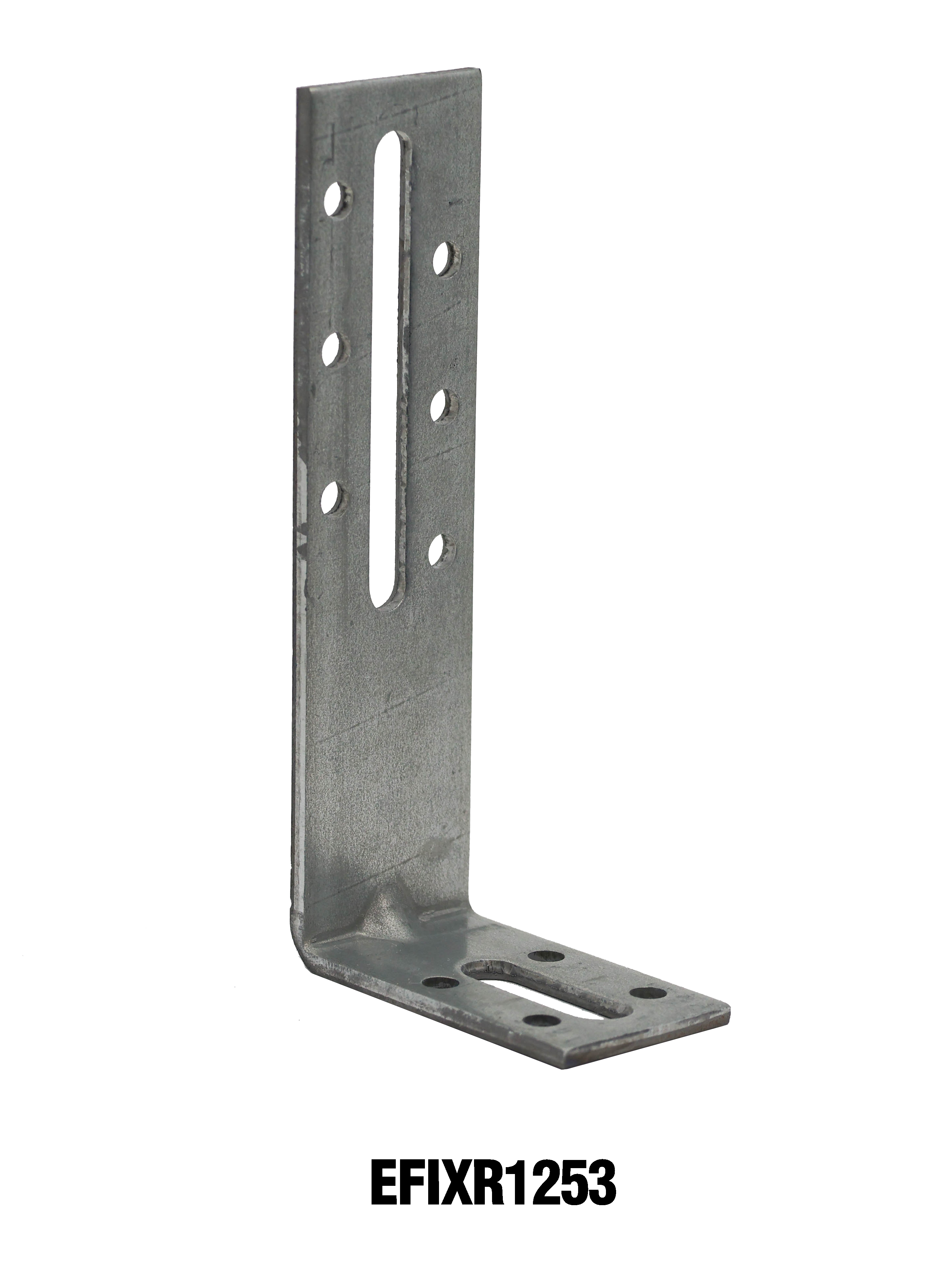

| EFIXR553 | 50 | 54 | 30 | 2 | 4 | 1 | - | - | - | - | - | 4 | 1 | - |

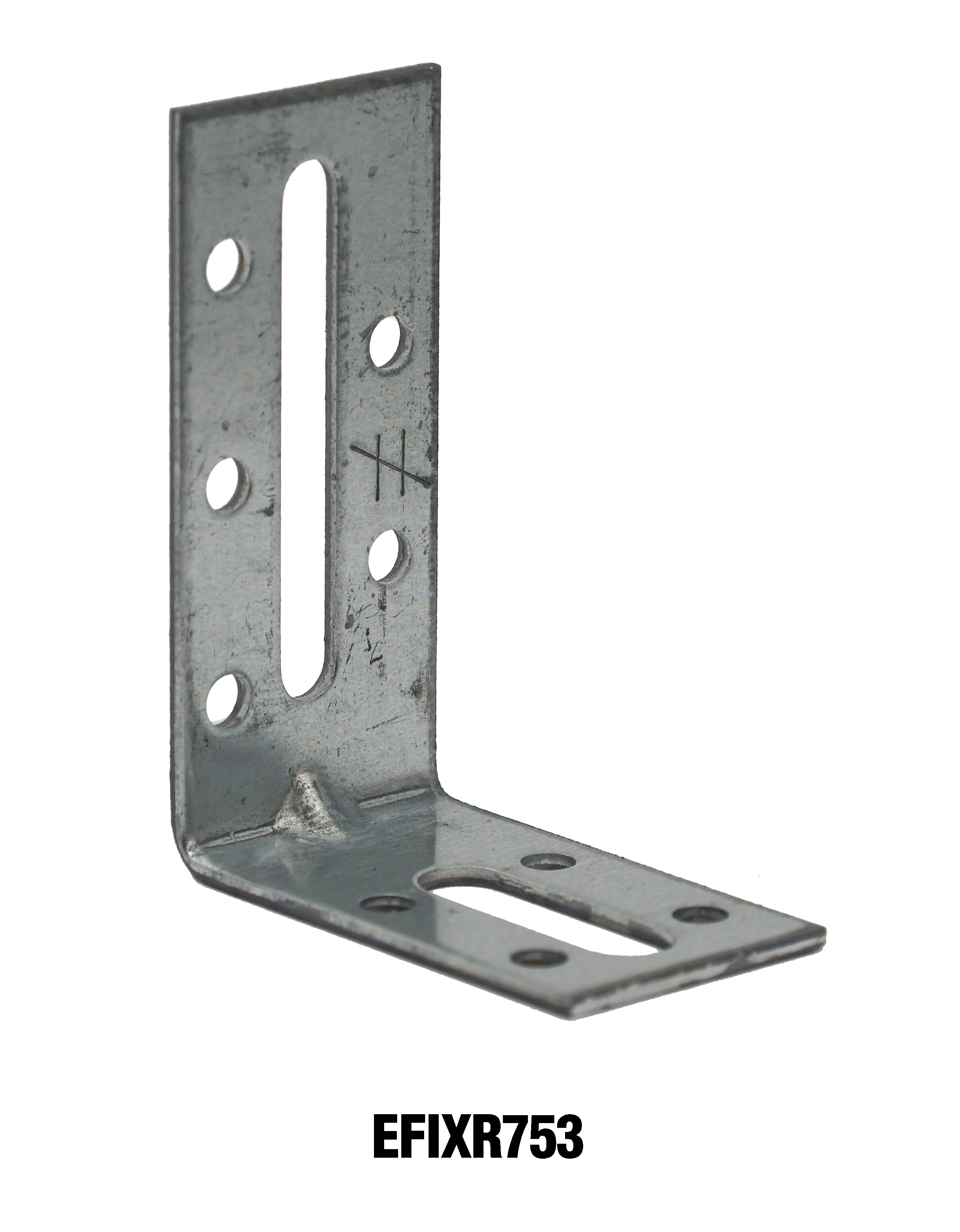

| EFIXR753 | 70 | 54 | 30 | 2 | 5 | - | - | 1 | - | - | - | 4 | 1 | - |
| EFIXR853A | 80 | 55 | 30 | 2.5 | 6 | - | - | - | 1 | - | - | 4 | 1 | - |
| EFIXR853B | 80 | 50 | 30 | 3 | 8 | - | 1 | - | - | - | - | 4 | 1 | - |

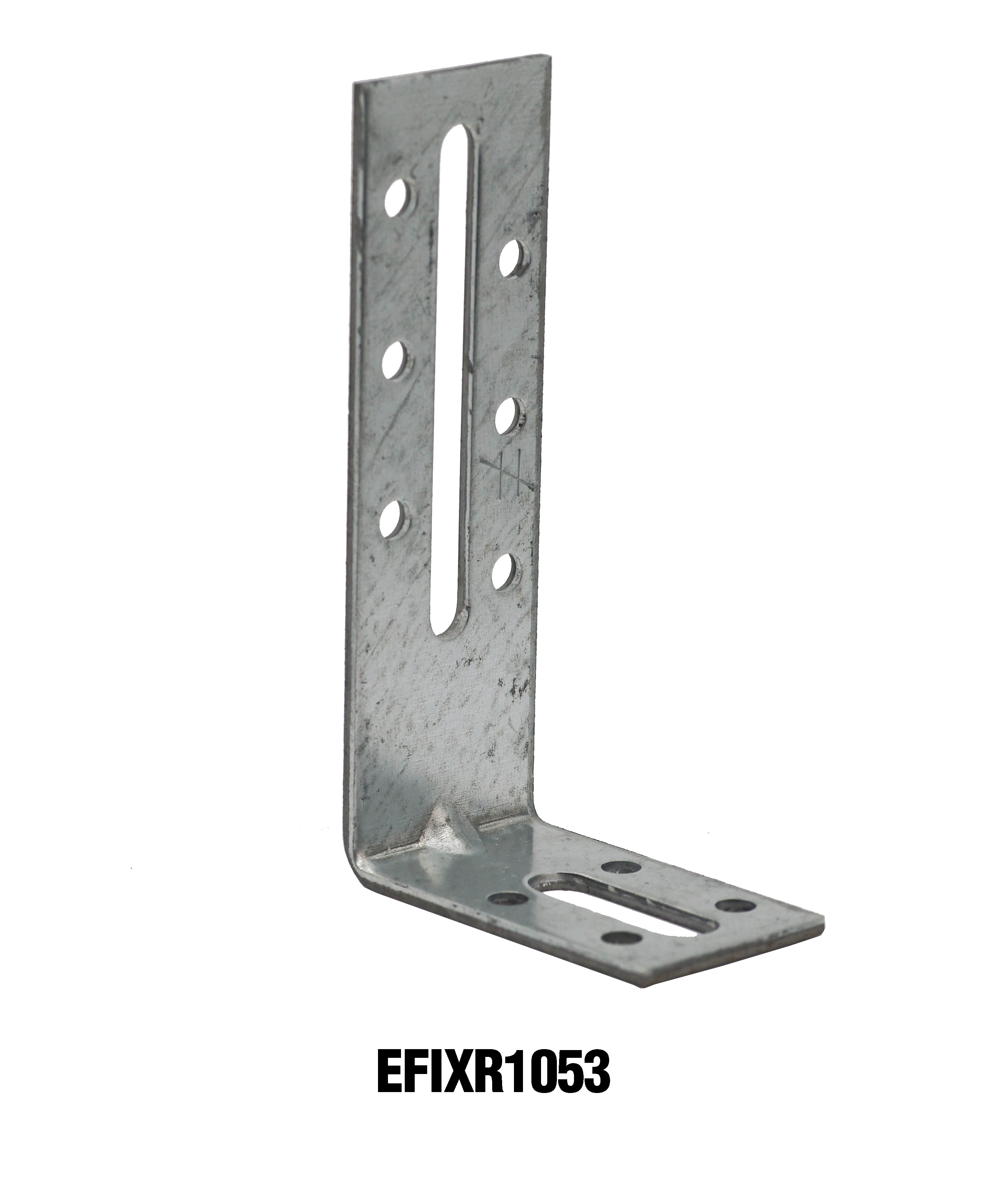

| EFIXR1053 | 100 | 54 | 30 | 2.5 | 6 | - | - | - | - | 1 | - | 4 | 1 | - |
| EFIXR1253 | 120 | 54 | 30 | 3 | 6 | - | - | - | - | 1 | - | 4 | 1 | - |
| EFIXR1453 | 140 | 54 | 30 | 3 | 6 | - | - | - | - | 1 | - | 4 | 1 | - |

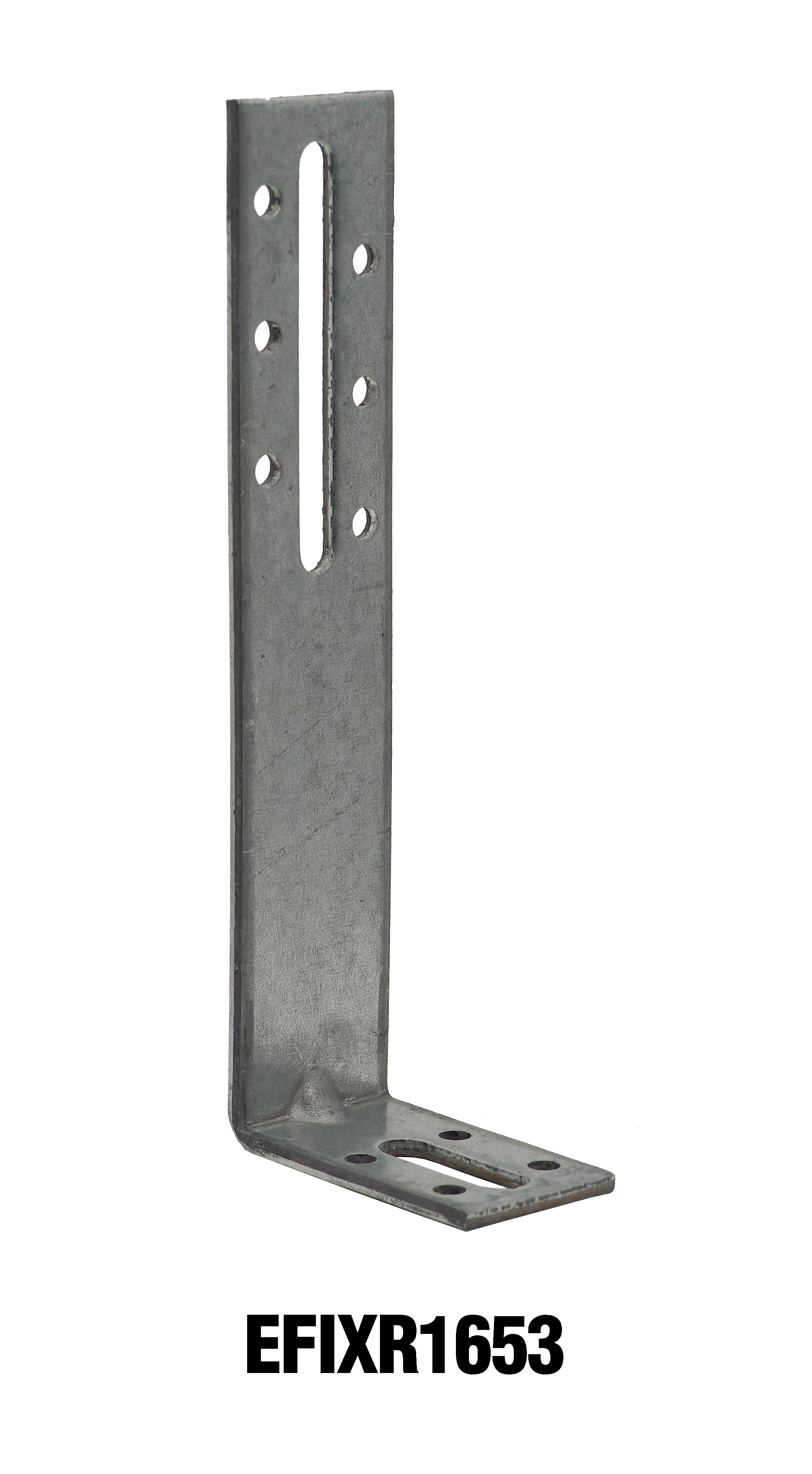

| EFIXR1653 | 160 | 54 | 30 | 3 | 6 | - | - | - | - | 1 | - | 4 | 1 | - |
| EFIXR553C50 | 50 | 54 | 30 | 2 | 4 | 1 | - | - | - | - | 1 x Ø6.5x30 | 4 | 1 | 1 x Ø8.5x30 |
| EFIXR753C50 | 70 | 54 | 30 | 2 | 5 | - | - | 1 | - | - | 1 x Ø6.5x50 | 4 | 1 | 1 x Ø8.5x30 |
| EFIXR1053C50 | 100 | 54 | 30 | 2.5 | 6 | - | - | - | - | 1 | 1 x Ø6.5x65 | 4 | 1 | 1 x Ø8.5x30 |
| EFIXR1253C50 | 120 | 54 | 30 | 3 | 6 | - | - | - | - | 1 | 1 x Ø6.5x65 | 4 | 1 | 1 x Ø8.5x30 |
