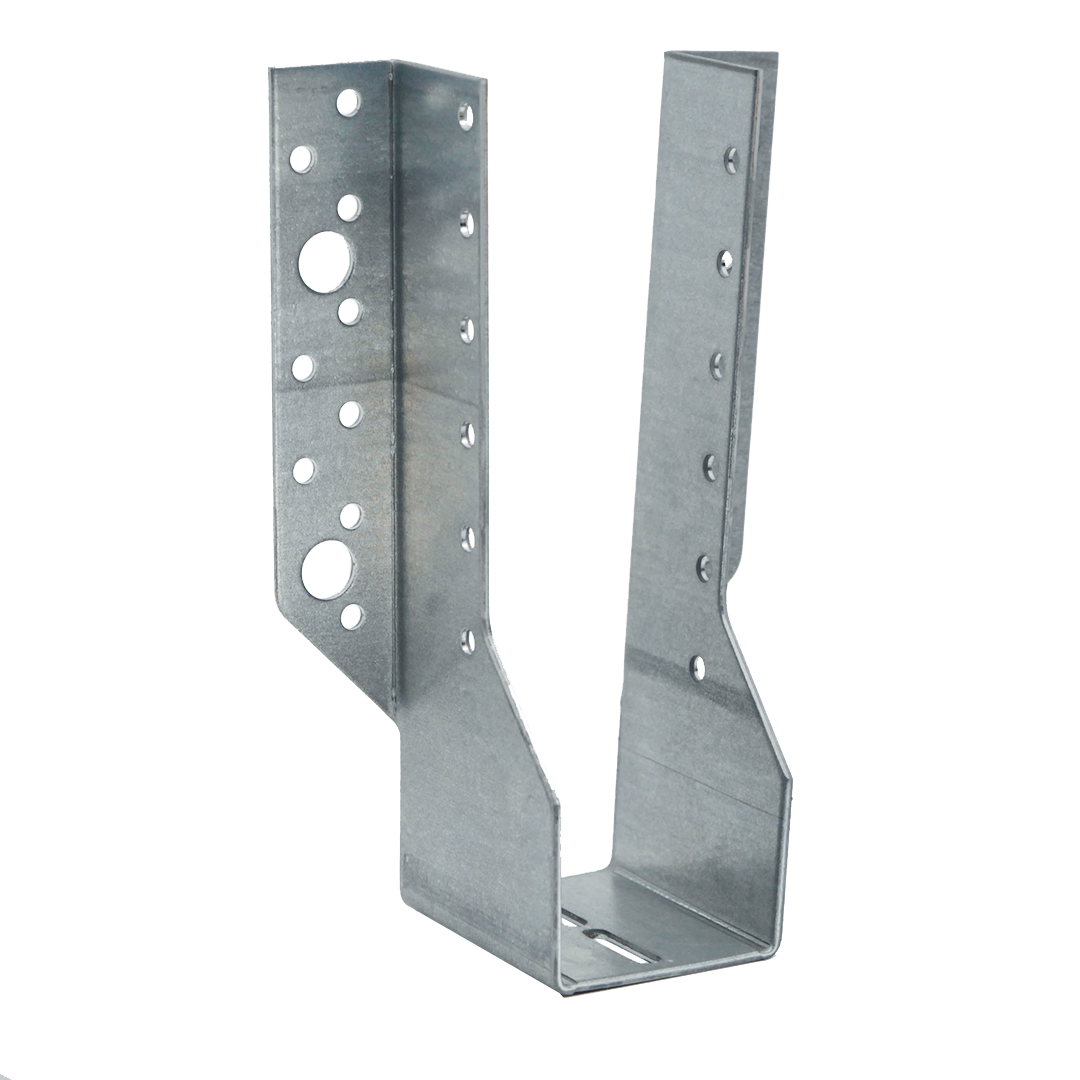

DJH-Z

Divisible Joist hanger ZPRO

DJH is a joist hanger used for timber to timber connections in outdoor structures. This joist hanger is divisible before installation to be adapted to supported joist width between 45 and 160 mm.

Tekniset tiedot

CE-merkitty

Tekninen hyväksyntä

Käyttöluokka 3

Outdoor

ZPRO

EPD

DJH-Z Sabot sécable pour l’extérieur ZPRO

Tuotteen yksityiskohdat

Kuvat

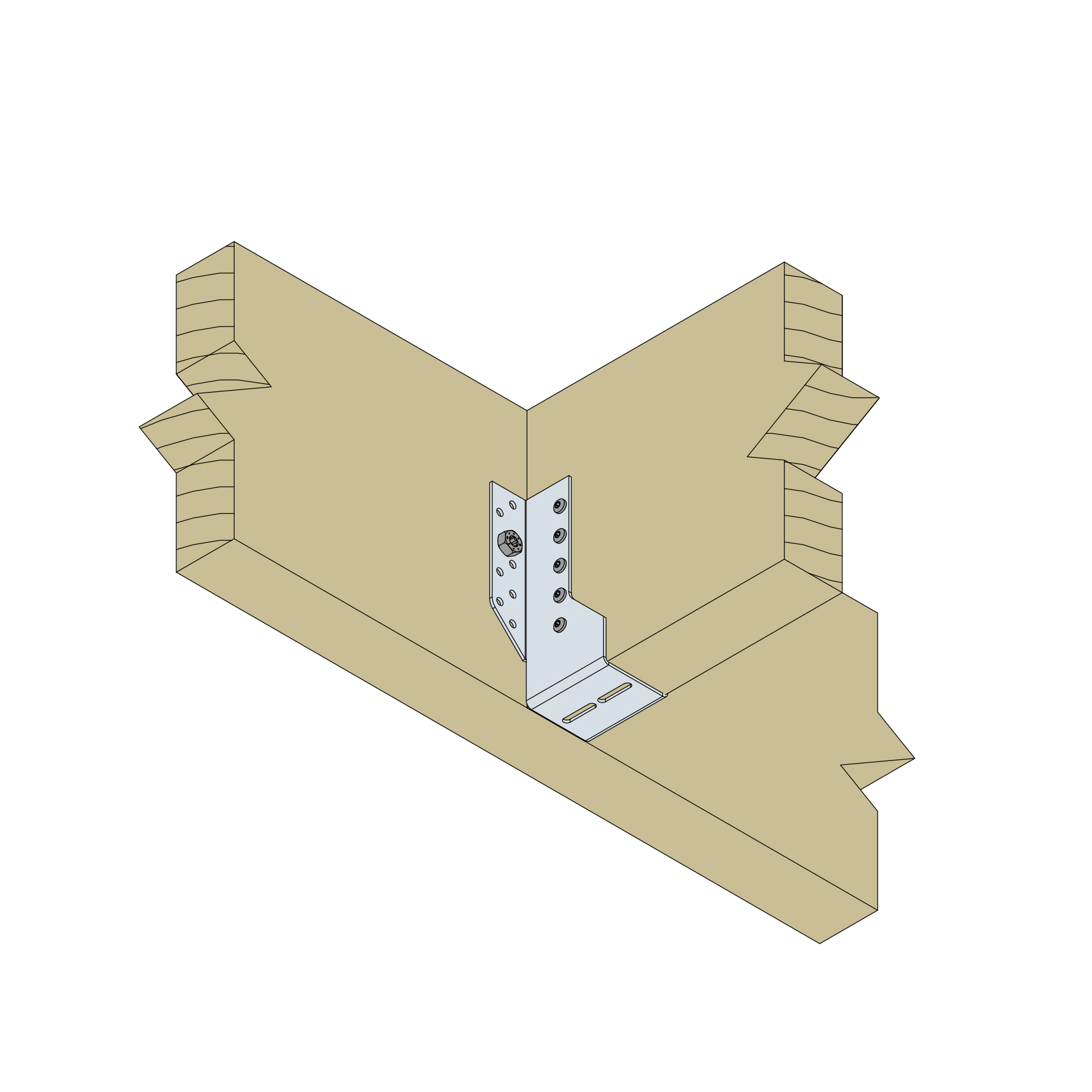

C_DJH_InstIll_Ill_Instld_non-divised_FR_FR_C0_STEP02

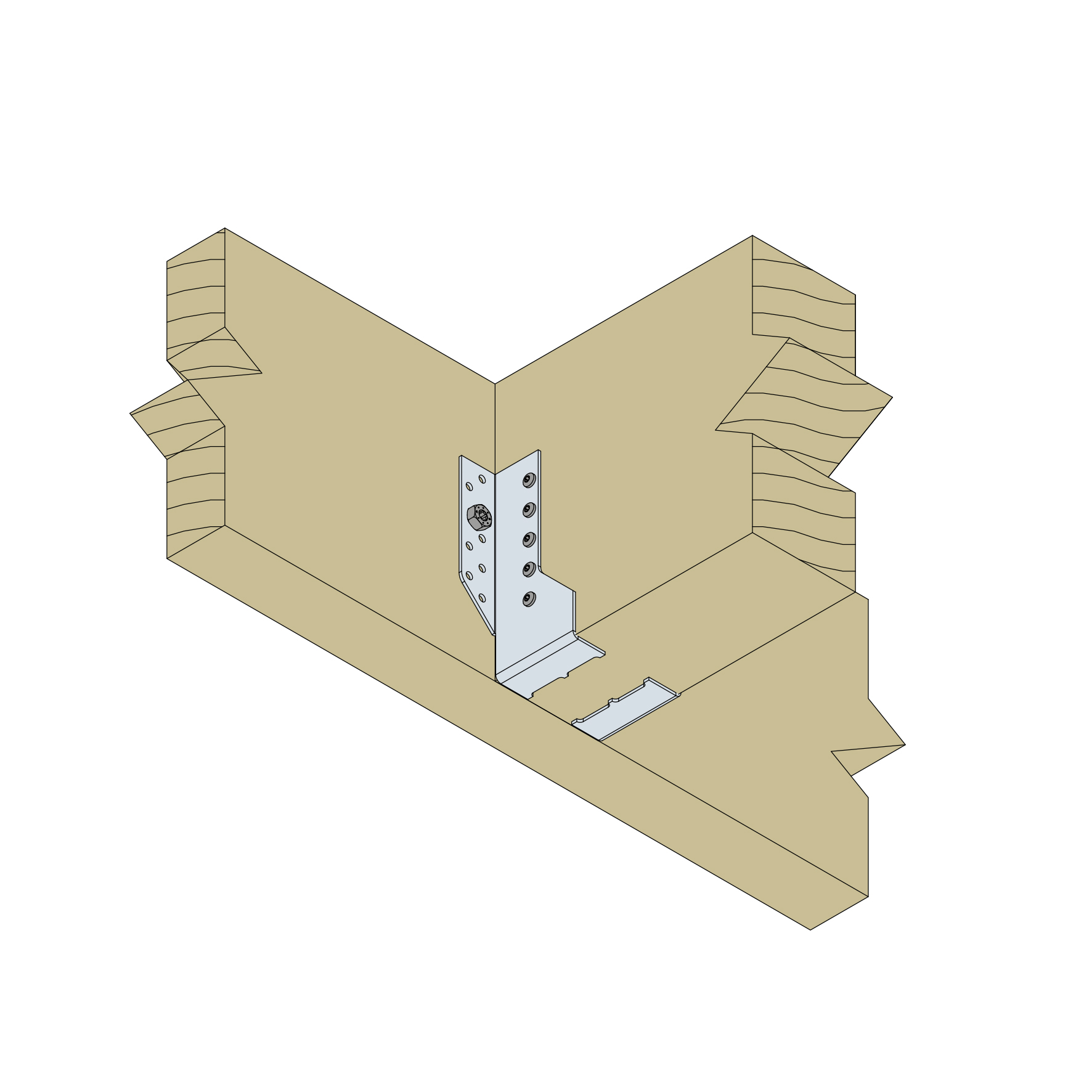

C_DJH_InstIll_Ill_Instld_divised_FR_FR_C0_STEP01

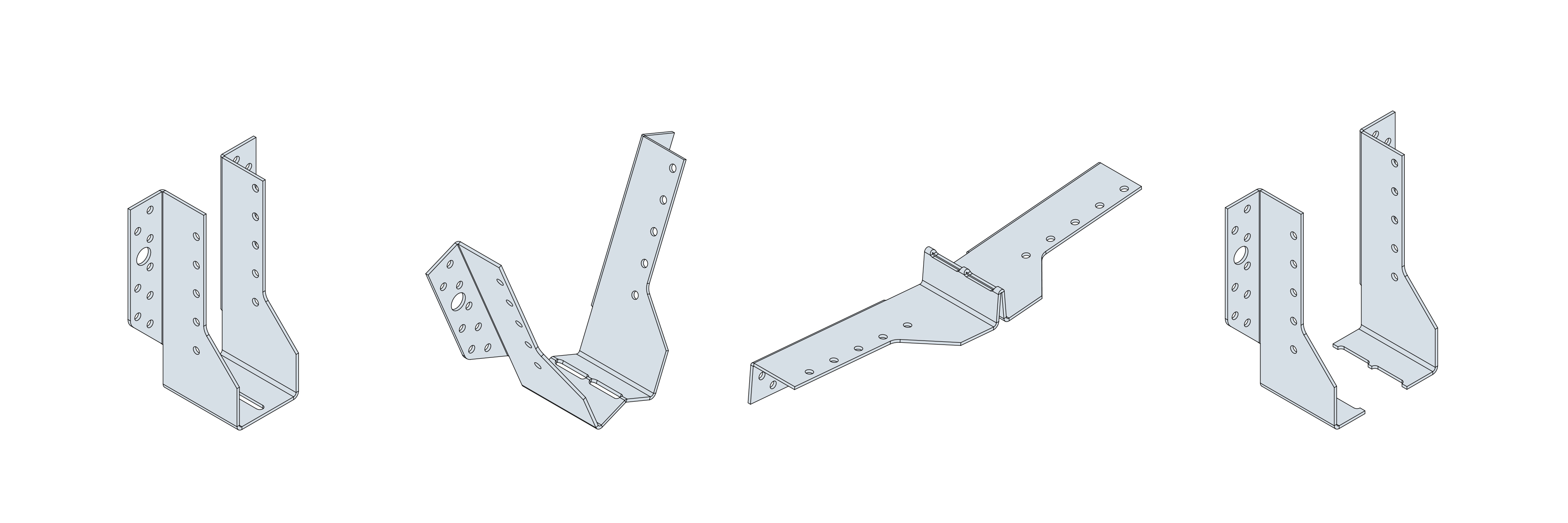

C_DJH_InstIll_Ill_Instld_divising-process_FR_FR_C0

Ominaisuudet

Material

Steel quality:
S250GD + ZPRO
Corrosion protection:
ZPRO coating - corresponding to a zinc layer of approx. 55 μm

Benefits

Divisible joist hanger to be adapted to supported joist widthes between 45 and 160 mm
Suitable for outdoor use

Sovellus

Suitable On

Supporting member:
Solid wood, engineered wood, concrete, steel
Supported member:
Solid wood, engineered wood

When to Use

DJH-Z joist hangers are suitable for outdoor use.

Terraces
Outdoor Facilities

Tekniset tiedot

Mitat

Product Dimensions

Tuotenro	Dimensions [mm]					Joist Dimensions [mm]				Holes			Paino [kg]
	A	B	C	D	Thickness	Width		Height		Header		Joist
	A	B	C	D	Thickness	Min.	Max.	Min.	Max.	Ø5	Ø11,5	Ø5
DJH92/46Z	46	92	60	28	2	45	160	95	138	8	2	6	0.21
DJH137/46Z	46	137	60	28	2	45	160	147	205	16	2	10	0.3
DJH167/46Z	46	167	60	28	2	45	160	177	250	18	4	12	0.35

Product characteristic capacities - Timber to Timber - Full nailing

Tuotenro	Ominaisarvot – Puu puuhun – Täysi naulaus
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Header	Joist	R_1,k		R_2,k		R_3,k		R_4,k
	Qty	Qty	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z
DJH92/46Z	8	6	11.9	13.5	10.3	11.7	1.8	2	10.1	11.5
DJH137/46Z	16	10	19.9	22.5	18.7	21.2	4.4	5	16.9	19.1
DJH167/46Z	18	12	23.9	27	22.3	25.4	5	5.6	20.3	23

Tuotteen ominaiskapasiteetit - Puu puuhun - Osittainen naulaus

Tuotenro	Ominaisarvot – Puu puuhun – Osittainen naulaus
	Fasteners		Product characteristic capacities - Timber C24 [kN]
	Header	Joist	R_1,k		R_2,k		R_3,k		R_4,k
	Qty	Qty	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z
DJH92/46Z	6	3	6	6.8	5.5	6.3	1.5	1.7	5.1	5.7
DJH137/46Z	10	6	11.9	13.5	11.2	12.7	2.9	3.3	10.1	11.5
DJH167/46Z	12	6	11.9	13.5	11.6	13.1	3.4	3.9	10.1	11.5

Tuotteen ominaiskapasiteetit - Puu puuhun - liitosruuvilla SSH

Tuotenro	Ominaiskapasiteetit - Puu puuhun - liitosruuvilla SSH
	Fasteners			Product characteristic capacities - Timber C24 [kN]
	Header	Joist		R_1,k		R_2,k		R_3,k		R_4,k
	Qty	Qty	Type	SSH10.0x40	SSH10.0x50	SSH10.0x40	SSH10.0x50	SSH10.0x40	SSH10.0x50	SSH10.0x40	SSH10.0x50
DJH92/46Z	2	6	CSA5.0x35Z	5.8	7.9	5.8	7.7	2.5	3.4	5	5
DJH137/46Z	2	10	CSA5.0x35Z	5.8	8	5.8	8	1.2	1.6	5	5
DJH167/46Z	4	12	CSA5.0x35Z	10.2	14.1	10.2	14.1	2	2.7	10	10

Product characteristic capacities - Timber beam to rigid support

Tuotenro	Ominaisarvot – Puu jäykkään alustaan
	Fasteners				Characteristic capacities - Timber C24 [kN]
	Header		Joist		R_1.k		R_2.k		R_3.k		R_4.k
	Qty	Type	Qty	Type	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z	CSA5.0x35Z	CSA5.0x40Z
DJH92/46Z	2	Ø10*	6	CSA-Z**	9.4	12.6	9.4	12.6	4.5	6	5	5
DJH137/46Z	2	Ø10*	10	CSA-Z**	14.2	14.2	14.2	14.2	5.7	7.7	5	5
DJH167/46Z	4	Ø10*	12	CSA-Z**	18.9	22.7	18.9	22.7	17.9	24.4	10	10

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances. The values in this table are given for an installation in the middle of a concrete slab. In other installation condition (close to the edge,...), the designer must check the anchor separately (Our free software Anchor Designer is available for download on our website).

** Refer to Characteristic Capacity table columns for type of fasteners that can be used in Flange A. Capacities vary depending on fastener type used.
