NP-Z

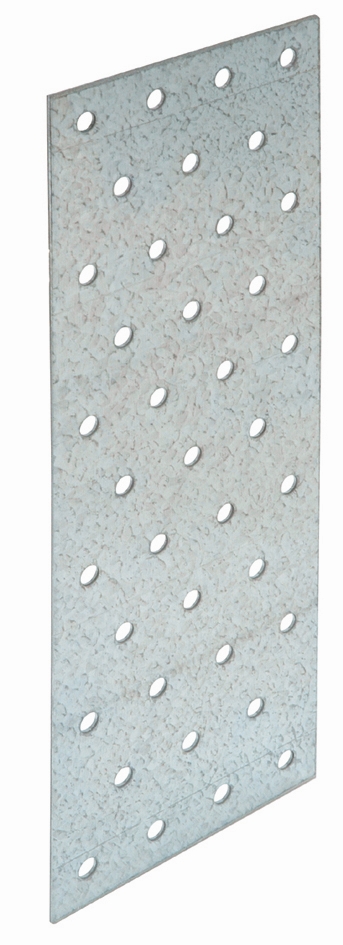

Naulauslevy ZPRO

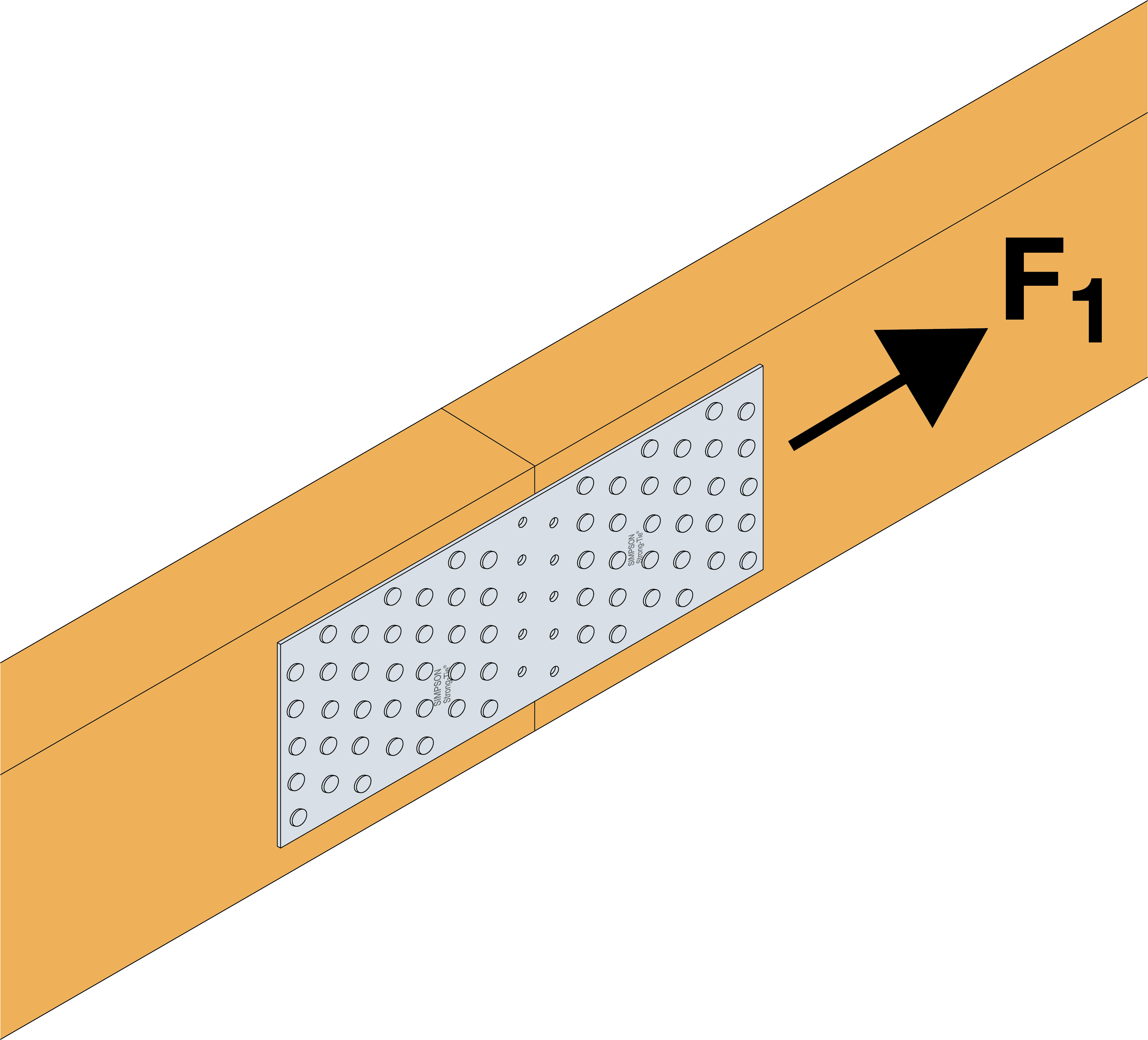

The nail plates NP can be used for different application: Beam to post connection, joint of two beam,...
ZPRO coating is a unique coating - corresponding to a zinc layer of approx. 55 μm
CE-merkitty
Uusi
Outdoor
EPD
Käyttöluokka 3
ZPRO
Tuotteen yksityiskohdat
Kuvat
Ominaisuudet
Sovellus
Tekniset tiedot
Dimensions and characteristic values
Mitat
| Viite | Mitat | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|---|
| Muu | Mitat ja ominaisarvot[mm] | Reiät, sivu A | Kestävyyden ominaisarvot[kN] | |||||
| DB nr. | Määrä laatikossa | A[mm] | B[mm] | Paksuus[mm] | Pyöreä | R₁,ₖ | ||
| Määrä | Halkaisija | |||||||
| NP20/100/200Z | 2152522 | 25 | 100 | 200 | 2 | 45.0 | Ø5 | min (n x Rlat,k ; 44.6/kmod) |
| NP20/120/300Z | 2152523 | 25 | 120 | 300 | 2 | 83.0 | Ø5 | min (n x Rlat,k ; 53.5/kmod) |
n: the number of nails
Rlat,k : Shear capacity of the fastener
CAD- ja BIM-kirjasto
2D
NP20/100/200Z
-
-
-
-
-
-
-
-
NP20/120/300Z
-
-
-
-
-
-
-
-
3D
NP20/100/200Z
-
-
-
-
-
-
-
-
-
-
NP20/120/300Z
-
-
-
-
-
-
-
-
-
-
3D Simplified
NP20/100/200Z
-
-
-
-
-
-
-
-
-
-
NP20/120/300Z
-
-
-
-
-
-
-
-
-
-
