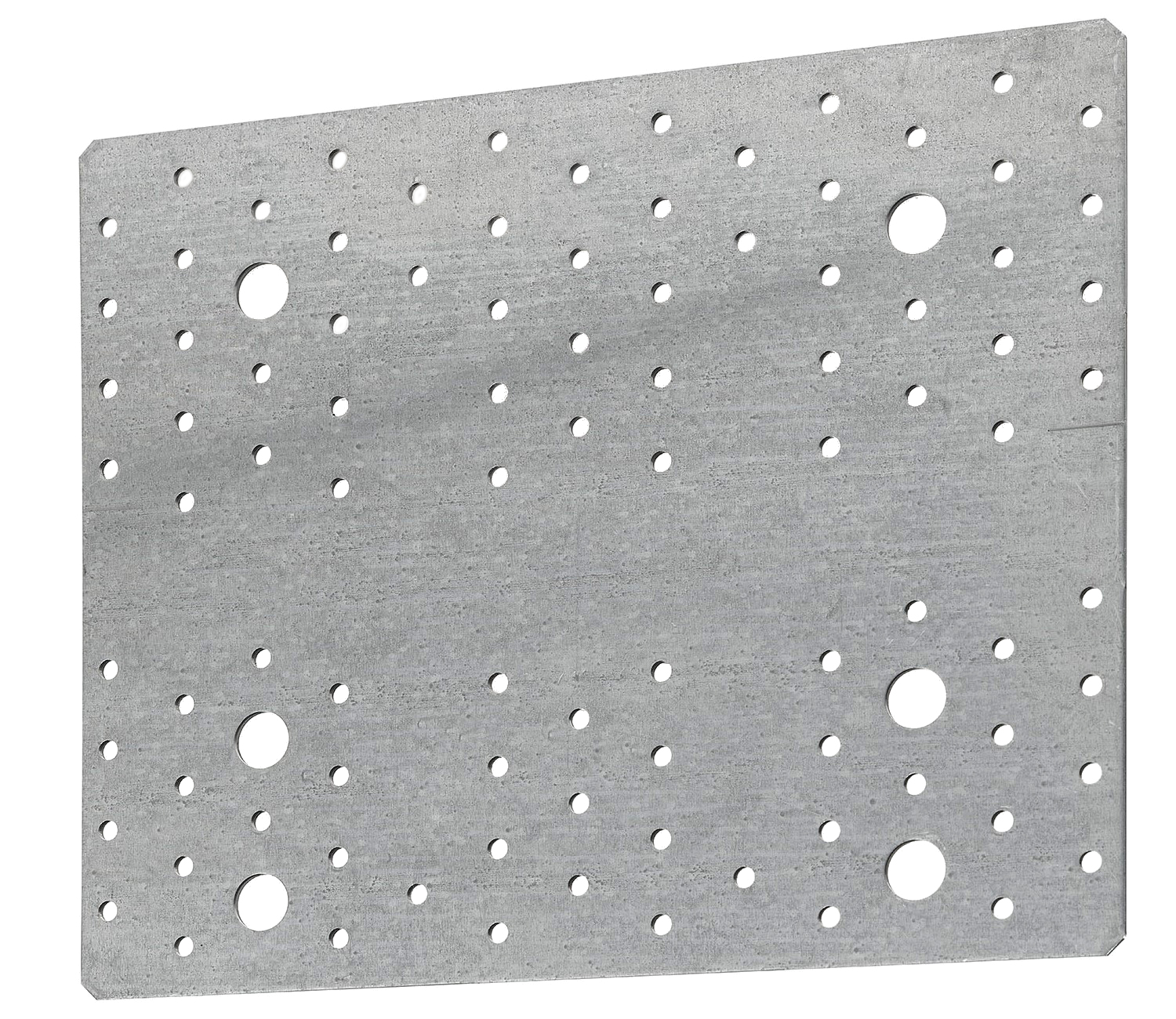

NPB255
Nail plate for CLT
The NPB255 nail plate have been designed especially for CLT building. Flexible, the installation is helped by a line that indicate where to place the plate.
CE-merkitty
Käyttöluokka 2
Indoor
EPD
Electrogalvanized steel 20 µm
Tuotteen yksityiskohdat
Kuvat
NPB255
NPB255
Ominaisuudet
Sovellus
Tekniset tiedot
Mitat ja ominaisarvot
Mitat
| Viite | Mitat | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Muu | Mitat ja ominaisarvot[mm] | Reiät[mm] | |||||||
| DB nr. | NOBB nr. | Määrä laatikossa | Paino[kg] | A[mm] | B[mm] | Paksuus[mm] | Pyöreä | ||
| Ø5 | Ø13 | ||||||||
| NPB255 | 1967265 | 54074417 | 10 | 1.2 | 214 | 255 | 3 | 93 | 6 |
| NPB255SO | - | - | 10 | 1.7 | 294 | 255 | 3 | 97 | 6 |

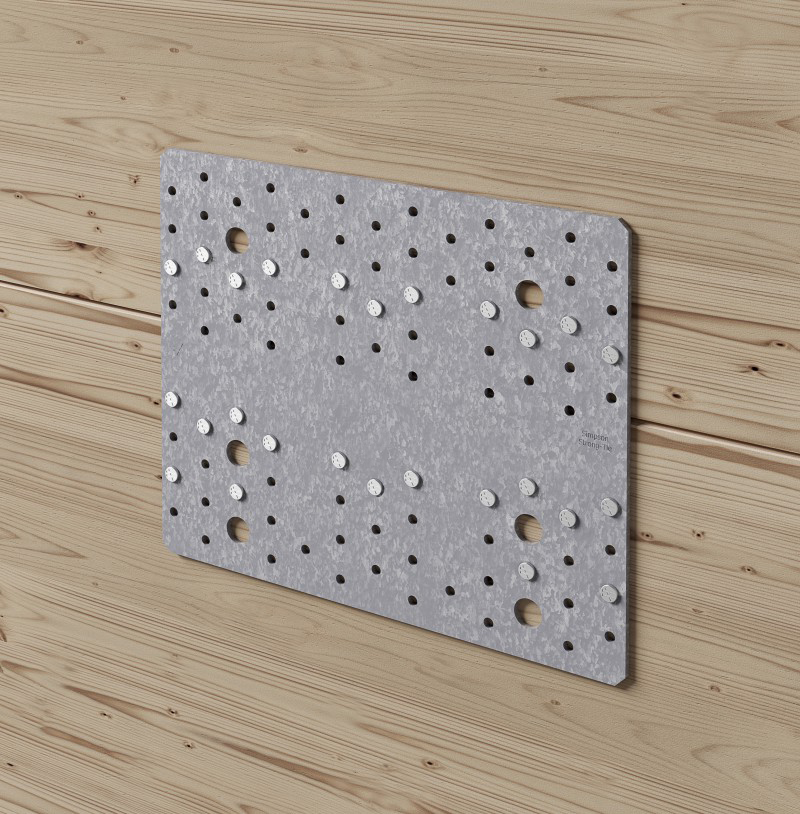

Puun liitäntä puuhun
Mitat
| Viite | Nail plates capacity | |||||
|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - Puu puuhun tai CLT CLT:hen | ||||||
| Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||

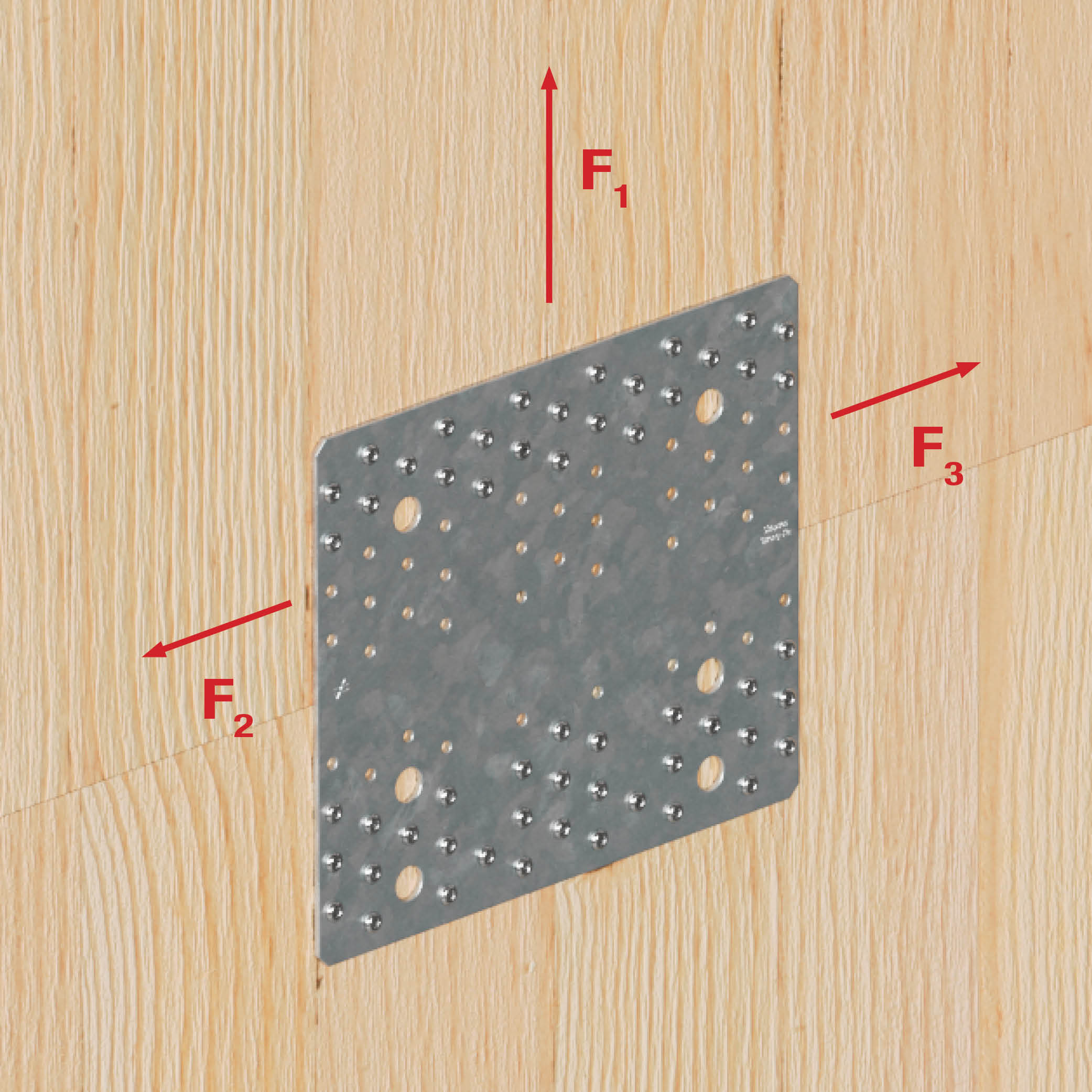

| Yläosa | Pohjaosa | R1,k | R2,k = R3,k | |||
| CNA 4,0x50 | CSA5,0x50 | CNA 4,0x50 | CSA 5,0x50 | |||
| NPB255 | 11 | 2 | 23.9 | 27.6 | 22.8 | 26.3 |
| NPB255SO | - | - | - | - | - | - |

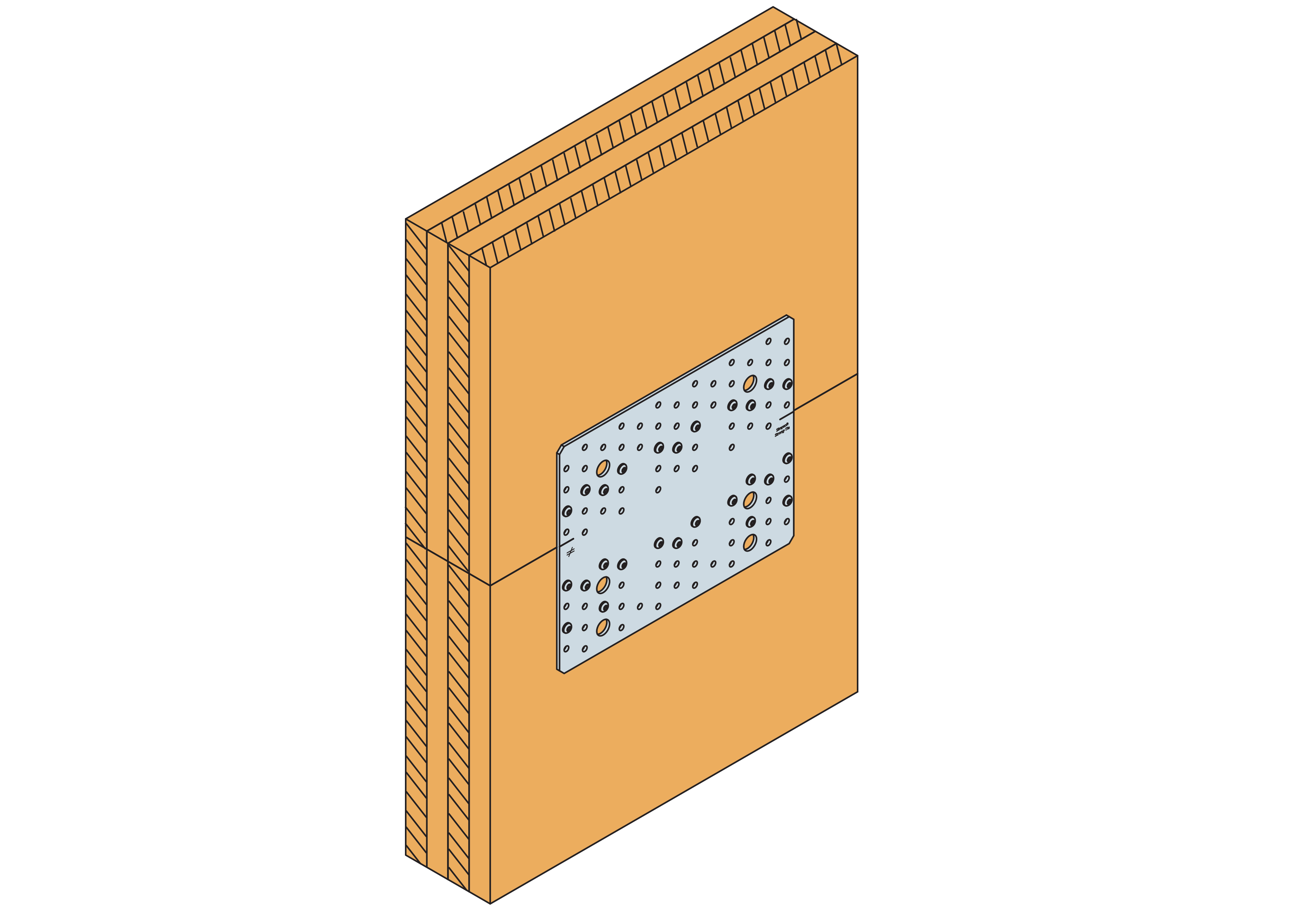

The connection for timber can also be apply for CLT connection. The distances to the border have to considered in relation to the direction of fibre.
The nail pattern NP 1 to 5 are described in the pdf document available in the installation tab.

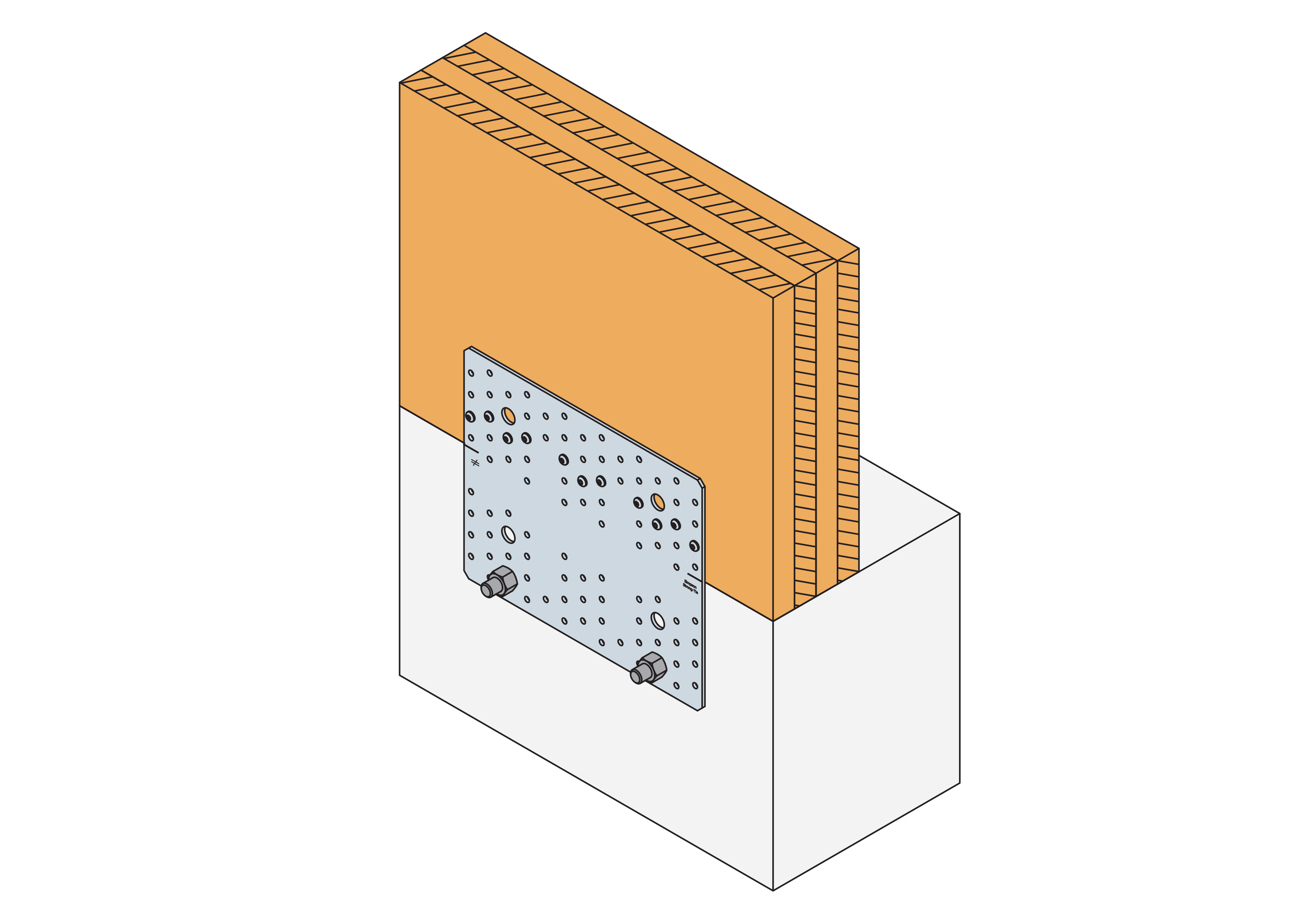

Puun liitos jäykkään tukeen
Mitat
| Viite | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - Puu tai CLT jäykkään tukeen | |||||||
| F[mm] | Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R2,k = R3,k | R1,k | ||||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | ||||
| NPB255 | - | - | - | - | - | - | - |
| NPB255SO | - | - | - | - | - | - | - |

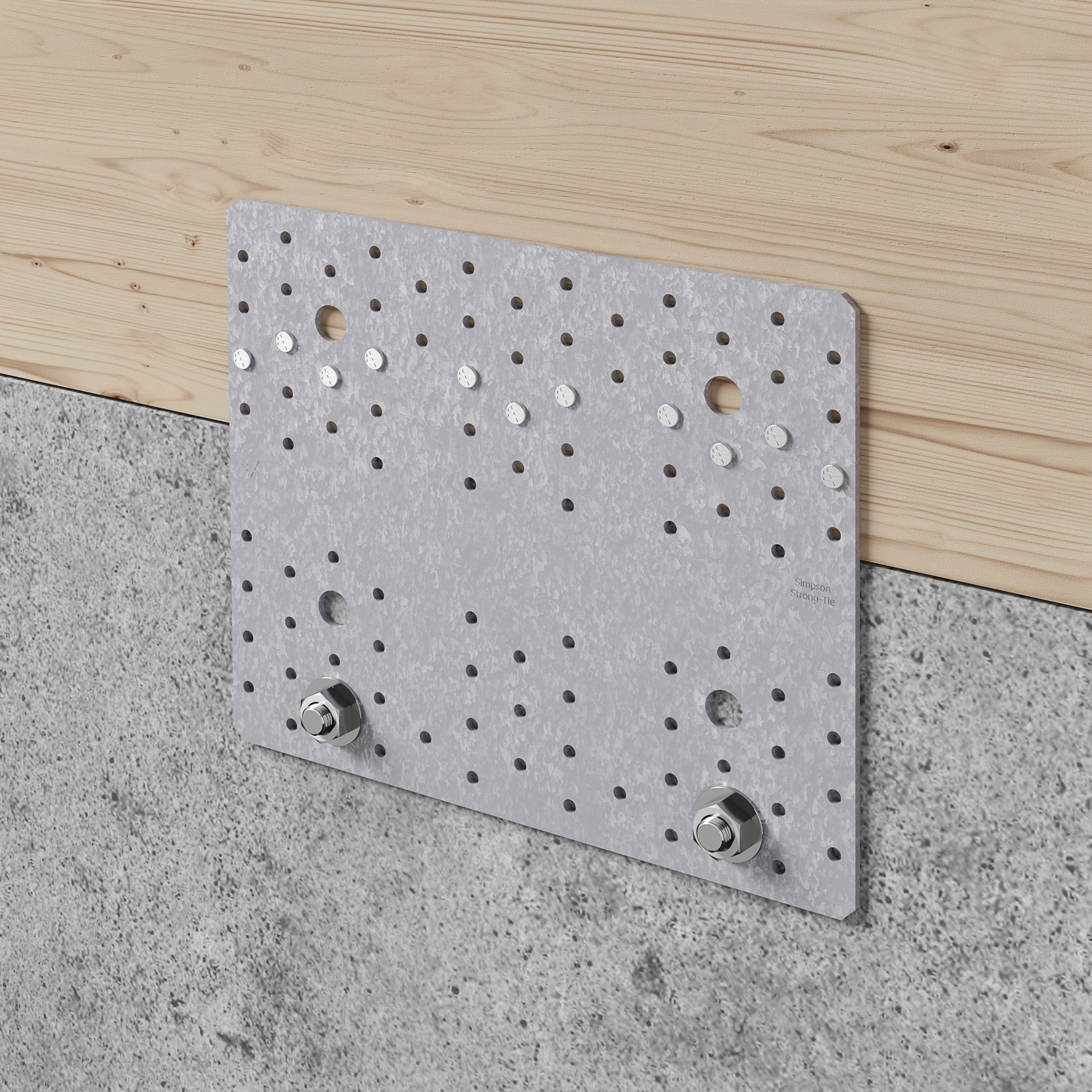

The connection for timber can also be apply for CLT connection. The distances to the border have to considered in relation to the direction of fibre. The connection to concrete has to be check for the anchors and the distances.
The ancorage of the bolts M12 has to check with the relavant distances.
The force F2 has to considered with the lever arm "f" , which is given in the table. Ist also to find in the dpf with the nailing pattern.

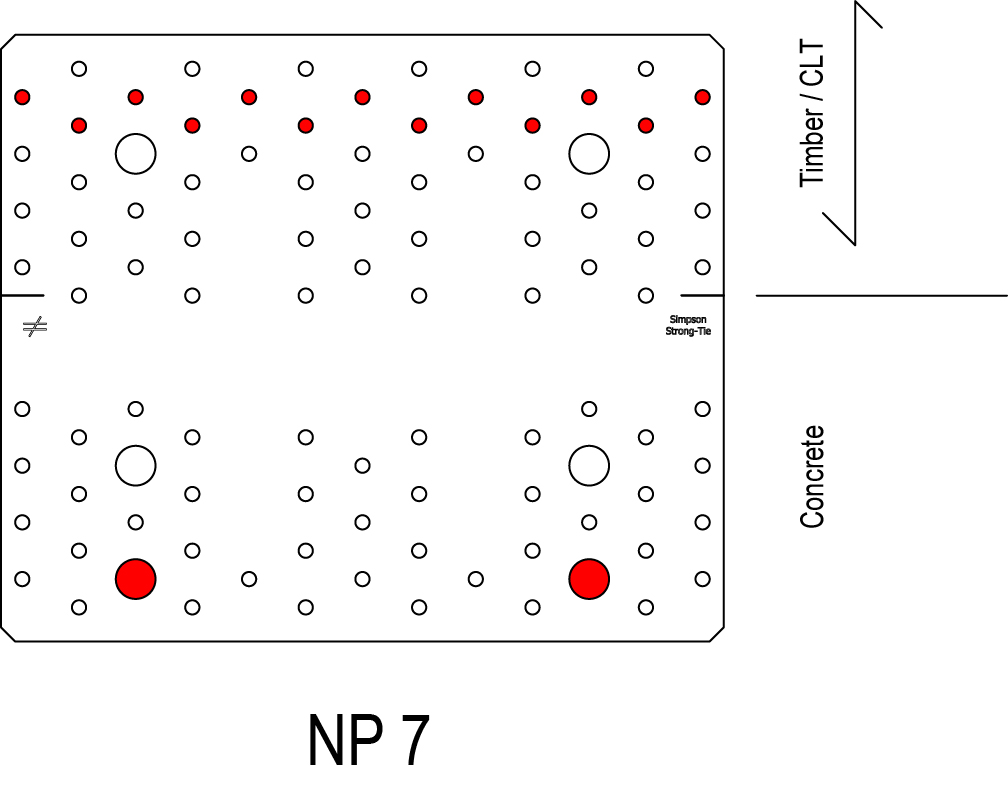

The nail pattern NP 6 to 13 are described in the pdf document given first line on the installation tab.

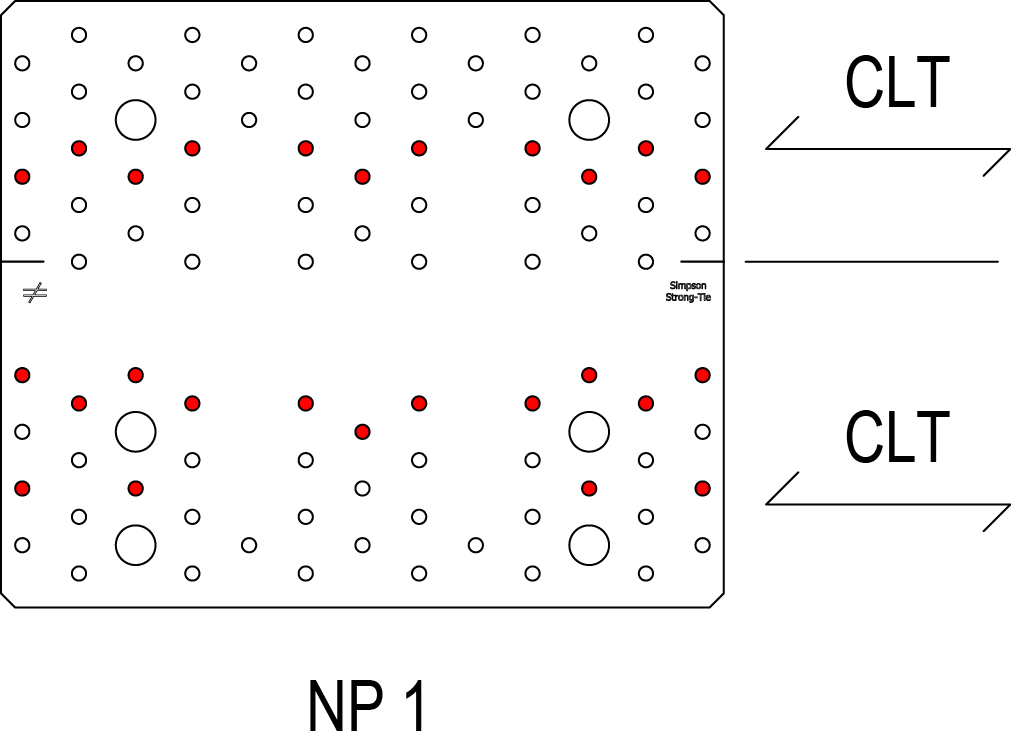

Tuotteen ominaiskapasiteetit - Puu puuhun - Naulauskuvio 1
Mitat
| Viite | Nail plates capacity | |||||
|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - Puu puuhun - naulauskuvio 1 | ||||||
| Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R1,k | R2,k = R3,k | |||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | |||
| NPB255 | 11 | 15 | 23.9 | 27.6 | 20.8 | 24 |
Timber member is prevented from rotation.
Please refer to installation tab for nail pattern details;
Tuotteen ominaiskapasiteetit - Pylväs puuhun - Naulausmalli 2
Mitat
| Viite | Nail plates capacity | |||||
|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - Pylväs puuhun - Naulauskuvio 2 | ||||||
| Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R2,k = R3,k | R1,k | |||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | |||
| NPB255 | 13 | 15 | 19.4 | 22.3 | 28.3 | 32.6 |
Please refer to installation tab for nail pattern details.
Tuotteen ominaiskapasiteetit - CLT CLT:hen - Naulauskuvio 3
Mitat
| Viite | Nail plates capacity | |||||
|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - CLT CLT:hen - Naulauskuvio 3 | ||||||
| Kestävyyden ominaisarvot[kN] | Liitoskiinnikkeet | |||||
| R2,k = R3,k | R1,k | Yläosa | Pohjaosa | |||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | |||
| NPB255 | 33.9 | 40.2 | 66.5 | 78.9 | 30 | 31 |
Rotation of timber member can occur.
Please refer to installation tab for nail pattern details.
Tuotteen ominaiskapasiteetit - CLT CLT:hen - Naulauskuvio 4
Mitat
| Viite | Nail plates capacity | |||||
|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - CLT CLT:hen - naulauskuvio 4 | ||||||
| Kestävyyden ominaisarvot[kN] | Liitoskiinnikkeet | |||||
| R2,k = R3,k | R1,k | Yläosa | Pohjaosa | |||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | |||
| NPB255 | 27.7 | 32.9 | 53.2 | 63.1 | 24 | 28 |
Rotation of timber member can occur.
Please refer to installation tab for nail pattern details.
Tuotteen ominaiskapasiteetit - CLT CLT:hen - Naulauskuvio 5
Mitat
| Viite | Nail plates capacity | |||||
|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - CLT CLT:hen - naulauskuvio 5 | ||||||
| Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R2,k = R3,k | R1,k | |||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | |||
| NPB255SO | 30 | 31 | 25 | 29.7 | 66.5 | 78.9 |
Rotation of timber member can occur.
Please refer to installation tab for nail pattern details.
Tuotteen ominaiskapasiteetit - CLT CLT:hen - Naulauskuvio 6
Mitat
| Viite | Nail plates capacity | |||||
|---|---|---|---|---|---|---|
| Tuotteiden kapasiteetit - CLT CLT:hen - Naulauskuvio 6 | ||||||
| Kestävyyden ominaisarvot[kN] | Liitoskiinnikkeet | |||||
| R2,k = R3,k | R1,k | Yläosa | Pohjaosa | |||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | |||
| NPB255 | 22.8 | 26.3 | 23.9 | 27.6 | 11 | 2 |
Timber member is prevented from rotation.
The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*120mm (spacing of anchors:160 mm).
Please refer to installation tab for fastener pattern details.
Tuotteen ominaiskapasiteetit - Pylväs jäykkään tukeen - Naulauskuvio 2
Mitat
| Viite | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Rigid Support - Nailing pattern 8 | |||||||
| F[mm] | Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R2,k = R3,k | R1,k | ||||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | ||||
| NPB255 | 70 | 30 | 2 | min (27,8 /kmod ; 28,4) | min (27,8 /kmod ; 33,7) | min (37,1 /kmod ; 66,6) | min (37,1 /kmod ; 78,9) |
Timber member is prevented from rotation.
The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*70mm (spacing of anchors:160 mm).
Please refer to installation tab for fastener pattern details.
Product characteristic capacities - CLT to Rigid support - Nailing Pattern 9
Mitat
| Viite | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Rigid Support - Nailing pattern 9 | |||||||
| F[mm] | Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R2,k = R3,k | R1,k | ||||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | ||||
| NPB255 | 100 | 19 | 2 | min (21,1 /kmod ; 24,0) | min (21,1 /kmod ; 28,4) | min (37,1 /kmod ; 42,2) | min (37,1 /kmod ; 50,0) |
Timber member is prevented from rotation.
The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*100mm (spacing of anchors:160 mm).
Please refer to installation tab for fastener pattern details.
Product characteristic capacities - CLT to Rigid support - Nailing Pattern 10
Mitat
| Viite | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Rigid Support - Nailing pattern 10 | |||||||
| F[mm] | Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R2,k = R3,k | R1,k | ||||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | ||||
| NPB255SO | 120 | 24 | 2 | 22.2 | 25.6 | 52.2 | 60.2 |
Timber member is prevented from rotation.
The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*120mm (spacing of anchors:160 mm).
Please refer to installation tab for fastener pattern details.
Product characteristic capacities - CLT to Rigid support - Nailing Pattern 11
Mitat
| Viite | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Rigid Support - Nailing pattern 11 | |||||||
| F[mm] | Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R1,k | R2,k = R3,k | ||||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | ||||
| NPB255SO | 120 | 26 | 2 | 56.6 | 65.3 | 21.5 | 24.8 |
Timber member is prevented from rotation.
The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*120mm (spacing of anchors:160 mm).
Please refer to installation tab for fastener pattern details.
Product characteristic capacities - CLT to Rigid support - Nailing Pattern 12
Mitat
| Viite | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Rigid Support - Nailing pattern 12 | |||||||
| F[mm] | Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R1,k | R2,k = R3,k | ||||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | ||||
| NPB255SO | 115 | 30 | 2 | min (37,1 /kmod ; 66,6) | min (37,1 /kmod ; 78,9) | min (27,8 /kmod ; 21,3) | min (27,8 /kmod ; 25,2) |
Timber member is prevented from rotation.
The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*115mm (spacing of anchors:160 mm).
Please refer to installation tab for fastener pattern details.
Product characteristic capacities - CLT to Rigid support - Nailing Pattern 13
Mitat
| Viite | Nail plates capacity | ||||||
|---|---|---|---|---|---|---|---|
| Product capacities - CLT to Rigid Support - Nailing pattern 13 | |||||||
| F[mm] | Liitoskiinnikkeet | Kestävyyden ominaisarvot[kN] | |||||
| Yläosa | Pohjaosa | R1,k | R2,k = R3,k | ||||
| CNA 4,0x50 | CSA 5,0x50 | CNA 4,0x50 | CSA 5,0x50 | ||||
| NPB255SO | 100 | 30 | 2 | min (37,1 /kmod ; 66,6) | min (37,1 /kmod ; 78,9) | min (23,2 /kmod ; 25,5) | min (23,1 /kmod ; 30,2) |
Timber member is prevented from rotation.
The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*100mm (spacing of anchors:160 mm).
Please refer to installation tab for fastener pattern details.
