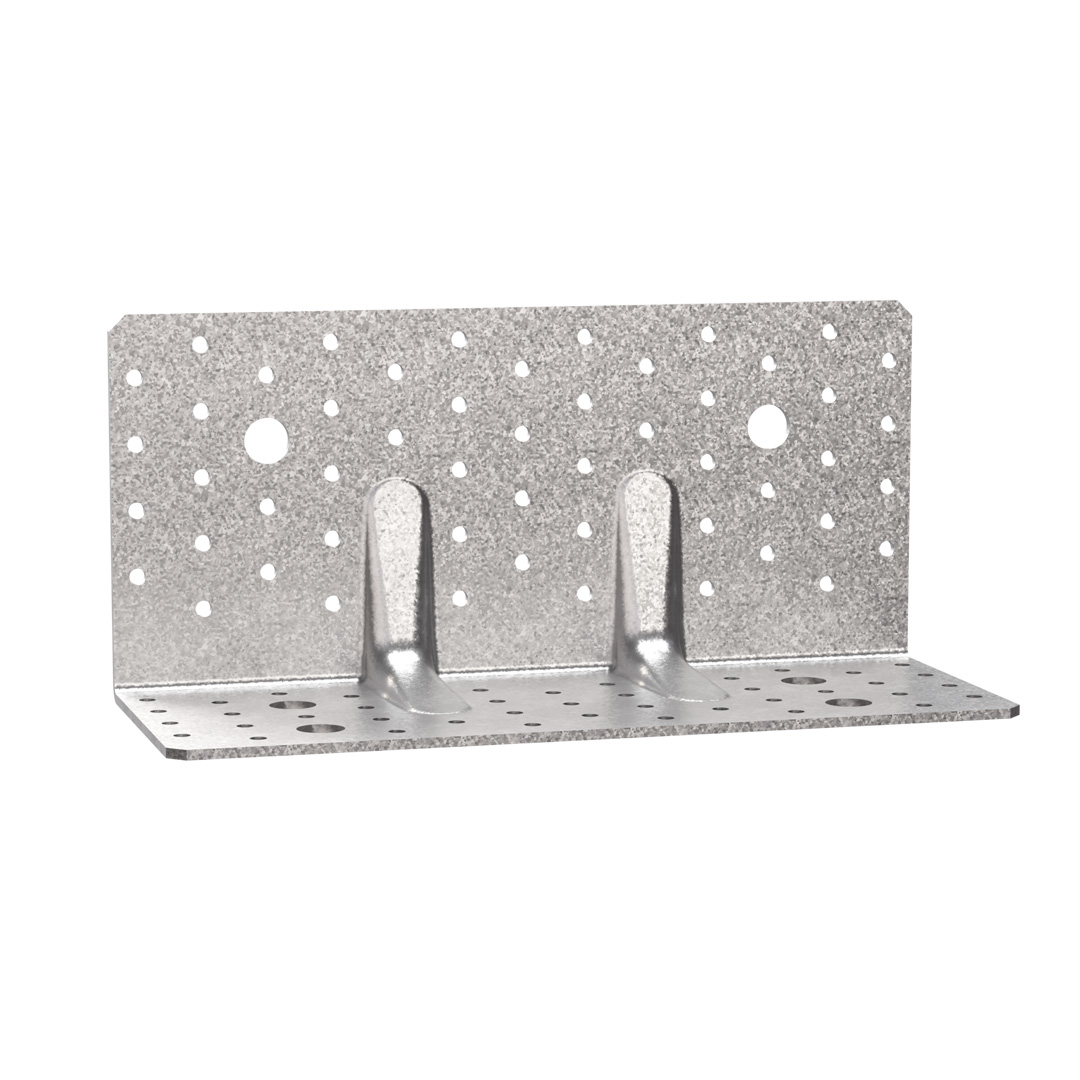

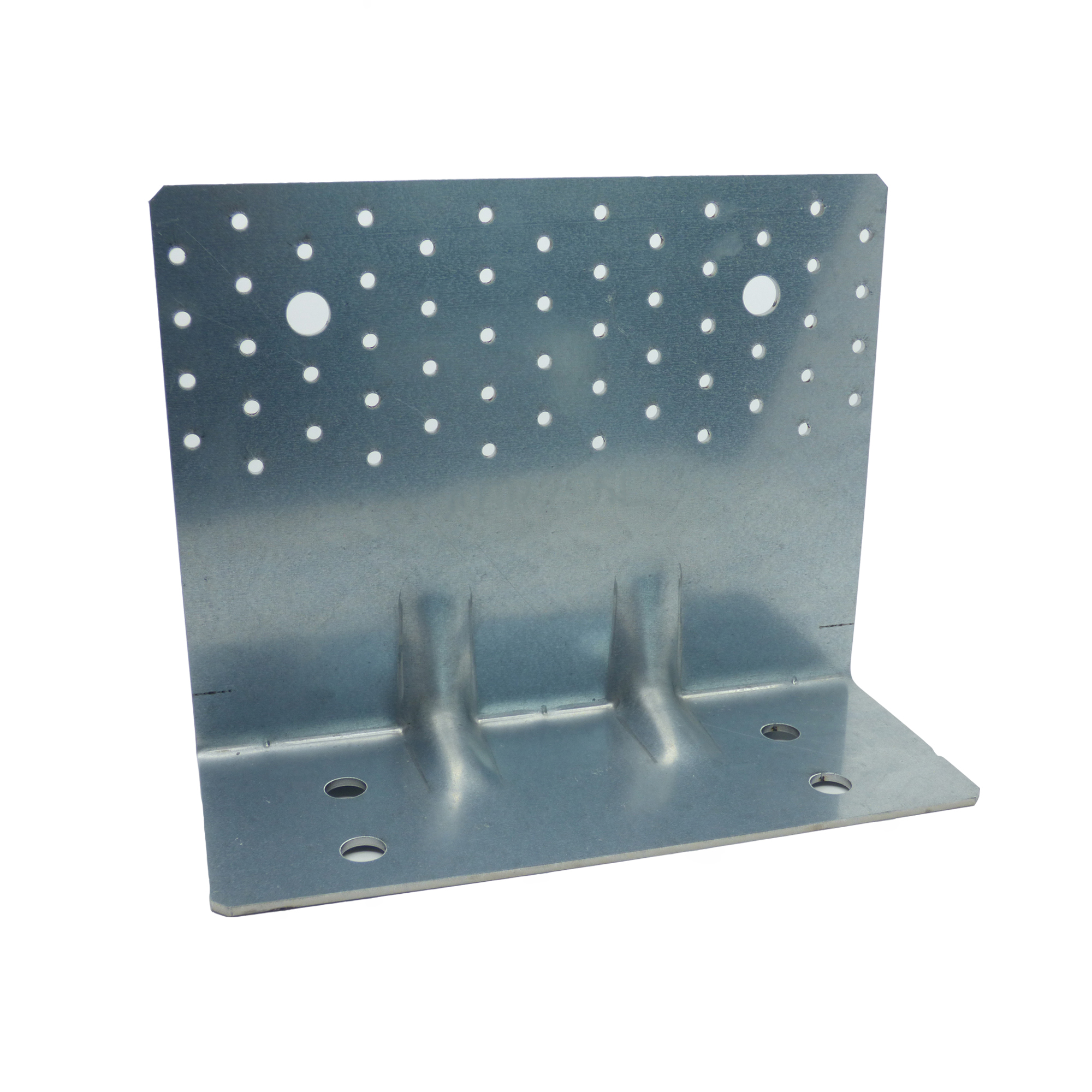

Erikoisvahvistettu kulmalevy CLT -rakenteisiin
ABR255-kiinnikettä käytetään ensisijaisesti CLT-rakenteissa, joissa voi esiintyä suuria vaakasuuntaisia voimia.





Tuotteen yksityiskohdat
Ominaisuudet
Materiaali
- Teräslaatu:
Kuumasinkitty teräs S250GD + Z275 EN 10346 mukaan - Korroosiosuoja:
275 g/m² molemmin puolin - vastaa noin 20 μm:n sinkkikerrosta
Hyödyt
- Soveltuu erityisesti CLT-rakenteisiin

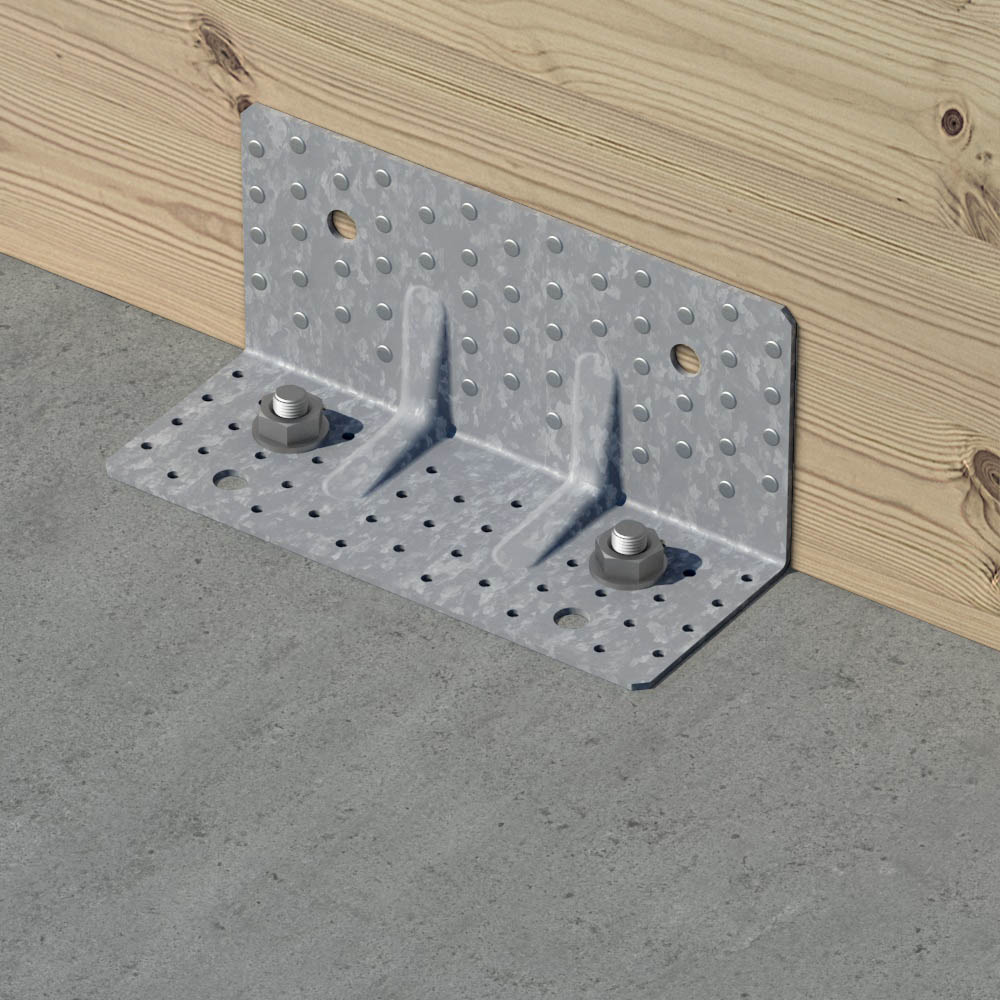

- Voidaan kiinnittää sekä puuhun että betoniin
Sovellus
Liitos

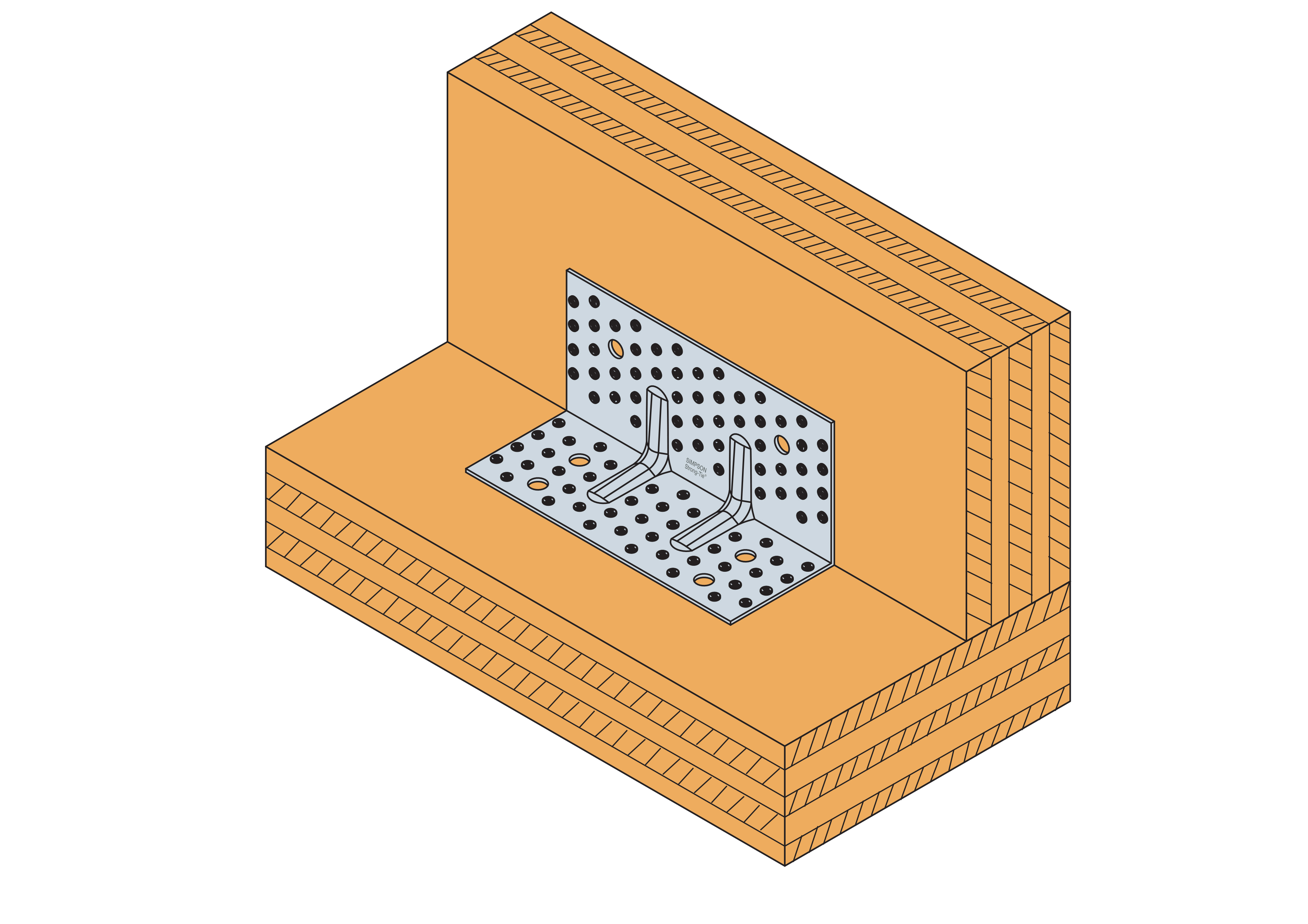

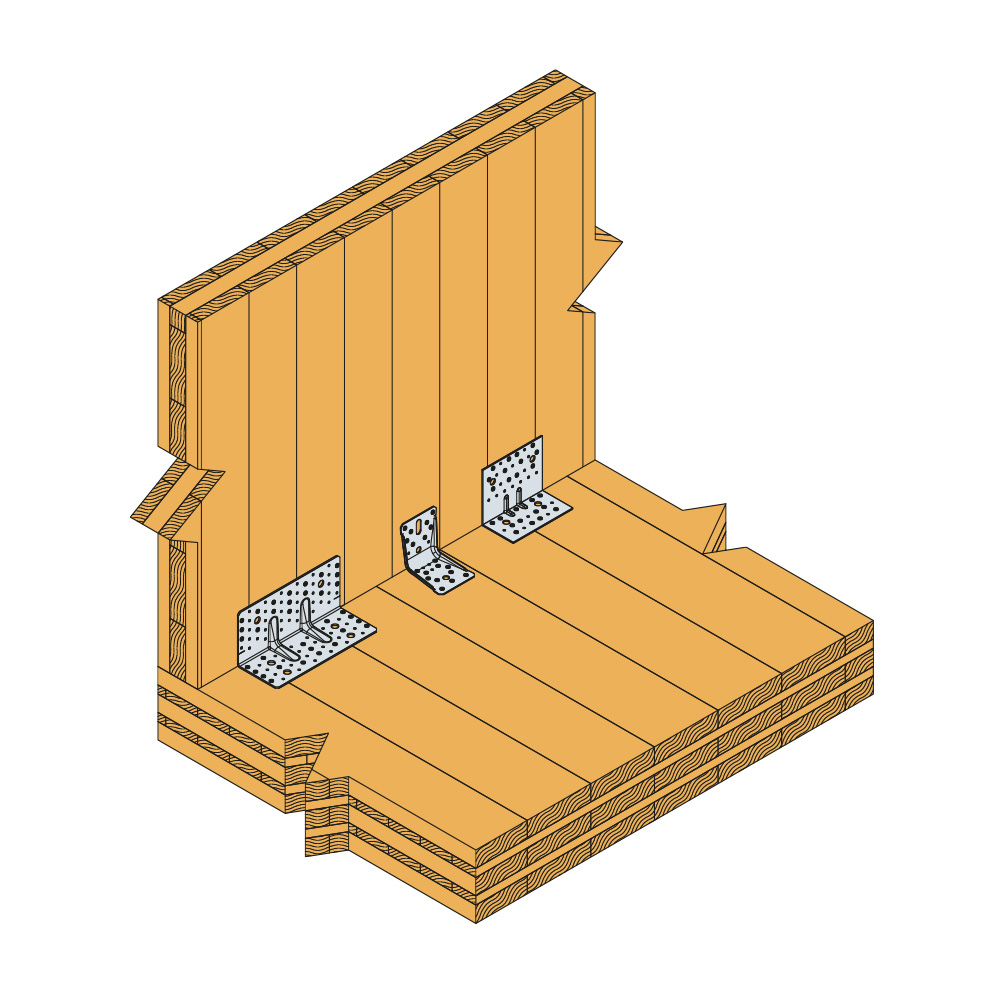

- CLT-levystä valmistetut seinä-, katto- ja lattiaelementit

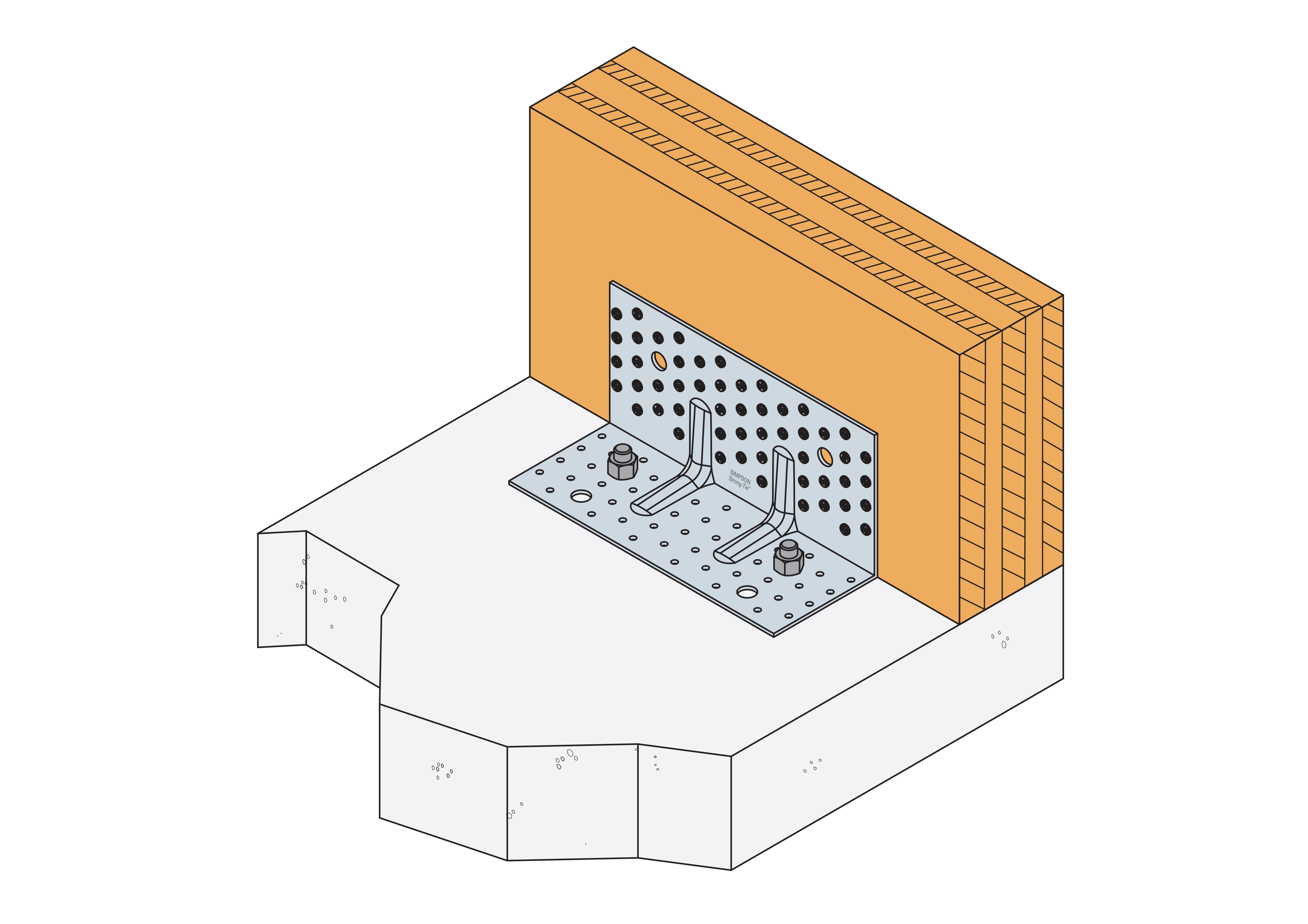

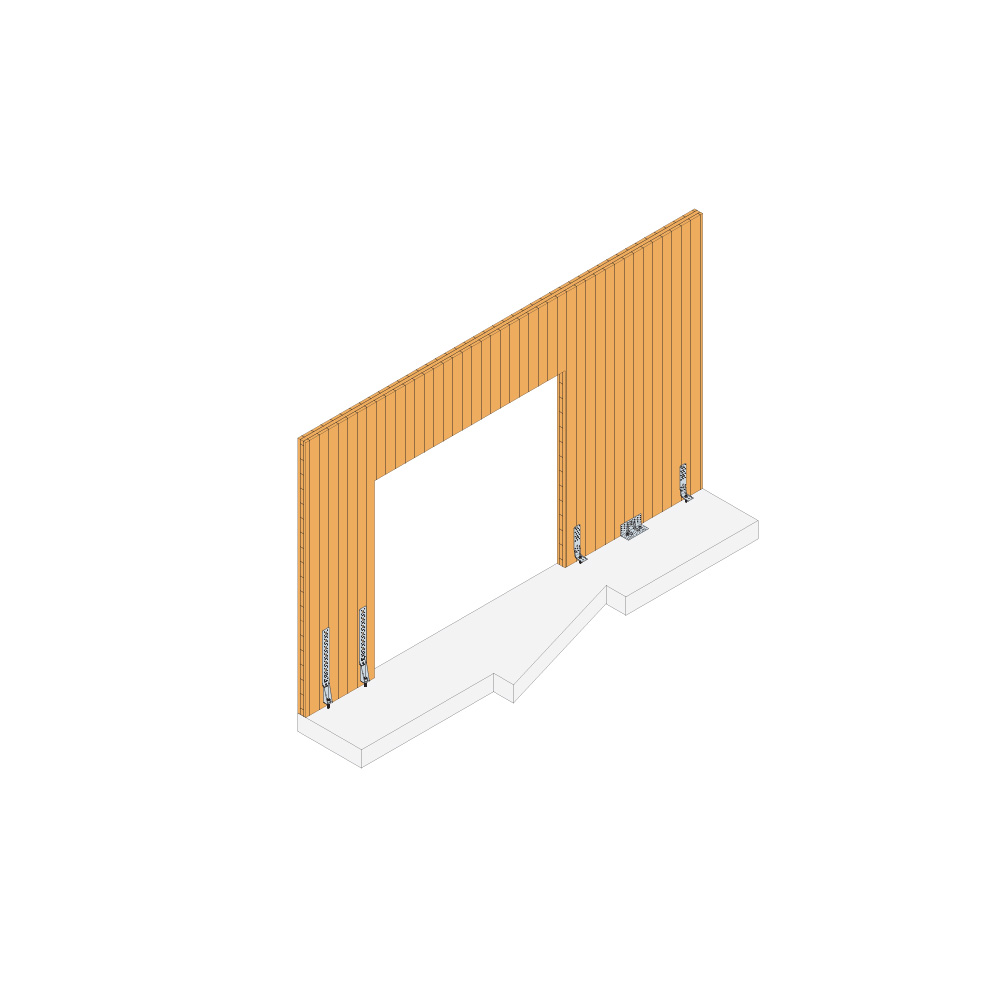

- CLT-elementit betonin päällä
Käyttötarkoitus
- CLT-elementit
Tekniset tiedot

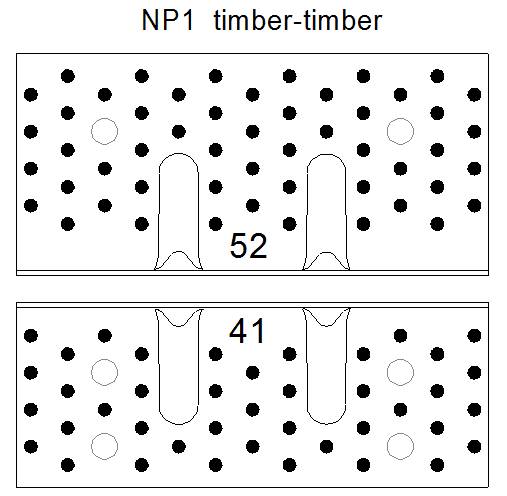

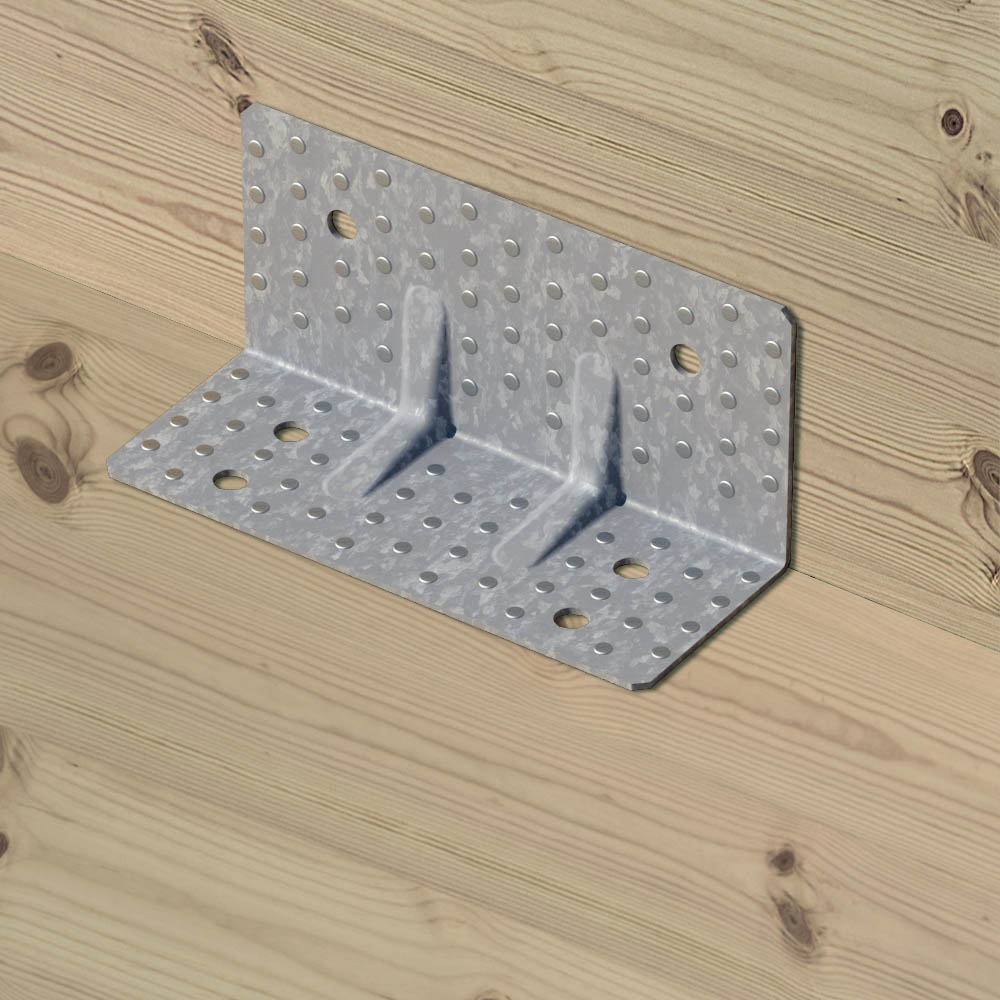

Kestävyyden ominaisarvot - Puu-puu liitos - 1 kulmalevy liitosta kohden - Täysi kiinnitys - Kiinnityskaaviot 1
Tuotenro | Kestävyyden ominaisarvot - Puu-puu liitos - Täysi kiinnitys - Kiinnityskaaviot 1 | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||
Määrä | Määrä | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||||||||||
35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||
ABR255 | 52 | 41 | 14,1 / kmod^0,4 | 16 / kmod^0,4 | 19,5/ kmod^0,4 | 22,5 / kmod^0,4 | 33.5 | 37 | 45.9 | 50.5 | 12.5 | 14.9 | 18.2 | 21.1 | min (14.3 / kmod^0,4; 13.4/kmod) | min (15.7 / kmod^0,4; 13.4/kmod) | min (18.8 / kmod^0,4; 13.4/kmod) | 13.4/kmod |
Arvot pätevät vain, jos elementtien kiertyminen on estetty.
-
Tuotenro | - | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | - [kN] | |||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||
Määrä | Määrä | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||||||||||
35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||
ABR255 | 52 | 41 | 14.7 | 16.7 | 20.3 | 23.5 | 33.5 | 37 | 45.9 | 50.5 | 12.5 | 14.9 | 18.2 | 21.1 | 14.8 | 14.8 | 14.8 | 14.8 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.

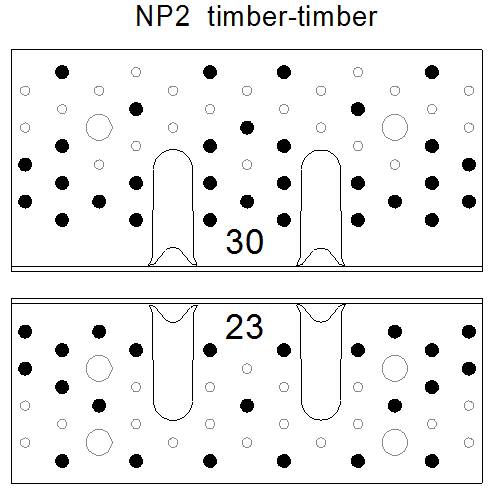

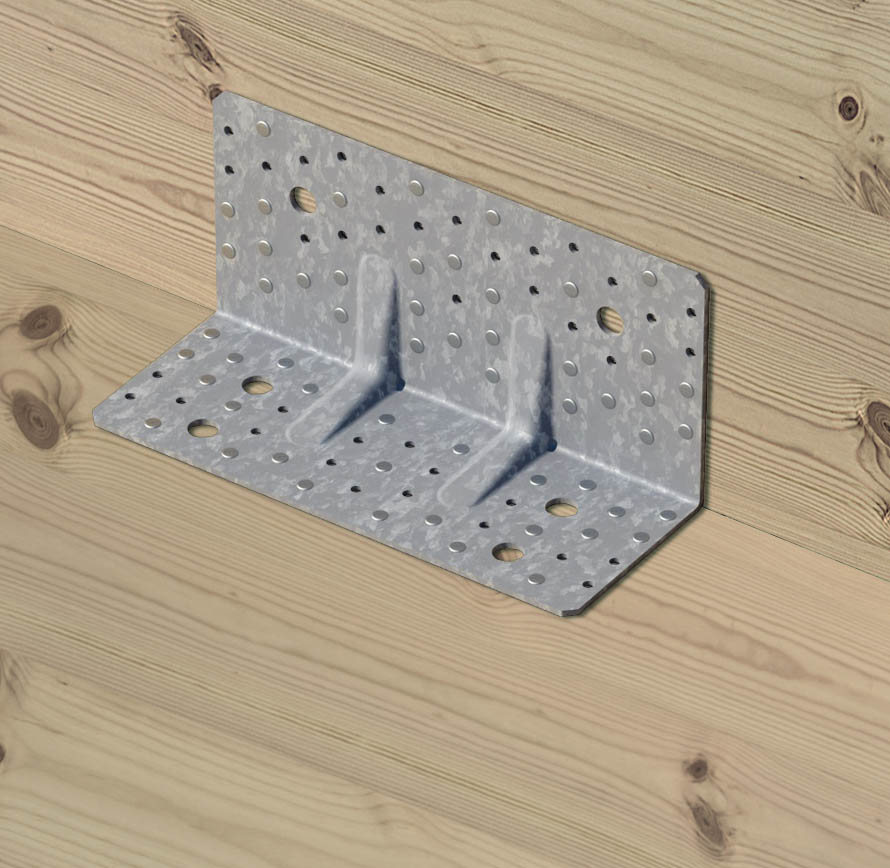

Kestävyyden ominaisarvot - Puu-puu liitos - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 2
Tuotenro | Kestävyyden ominaisarvot - Puu-puu liitos - Osittainen kiinnitys - Kiinnityskaaviot 2 | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||
Määrä | Määrä | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||||||||||
35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||
ABR255 | 30 | 23 | 12,2 / kmod^0,4 | 13,7 / kmod^0,4 | 16,5 / kmod^0,4 | 19,5 / kmod^0,4 | 27.4 | 30.5 | 38 | 42.1 | 12.2 | 13.8 | 16.9 | 19.5 | min (11.5 ; 13.9/kmod) | min (13.6 ; 13.9/kmod) | min (18 ; 13.9/kmod) | min (22 ; 13.9/kmod) |
Arvot pätevät vain, jos elementtien kiertyminen on estetty.
-
Tuotenro | - | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | - [kN] | |||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||
Määrä | Määrä | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||||||||||
35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||
ABR255 | 30 | 23 | 12.7 | 14.3 | 17.2 | 20.3 | 27.4 | 30.5 | 38 | 42.1 | 12.2 | 13.8 | 16.9 | 19.5 | 11.5 | 13.6 | 15.4 | 15.4 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
Kestävyyden ominaisarvot - Puu-puu liitos - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 4
Tuotenro | Kestävyyden ominaisarvot - Puu-puu liitos - Osittainen kiinnitys - Kiinnityskaaviot 4 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||||||
Sivu A | Sivu B | R1,k | R2,k = R3,k | R4.k | R5.k | |||||
Määrä | Määrä | CNA4,0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||
50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |||
ABR255 | 24 | 21 | 15,6/kmod^0,4 | 18,1/kmod^0,4 | 28.6 | 31.4 | 15.9 | 18.3 | 10.8/kmod^0.3 | min (12.7/kmod^0,3 ; 12.8 / kmod) |
The value in the table above can be used if the panel can't rotate.

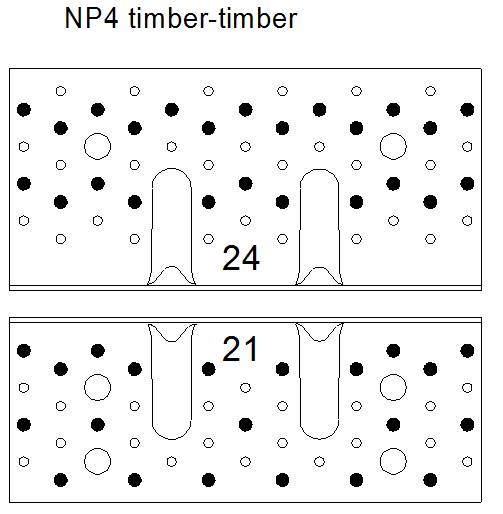

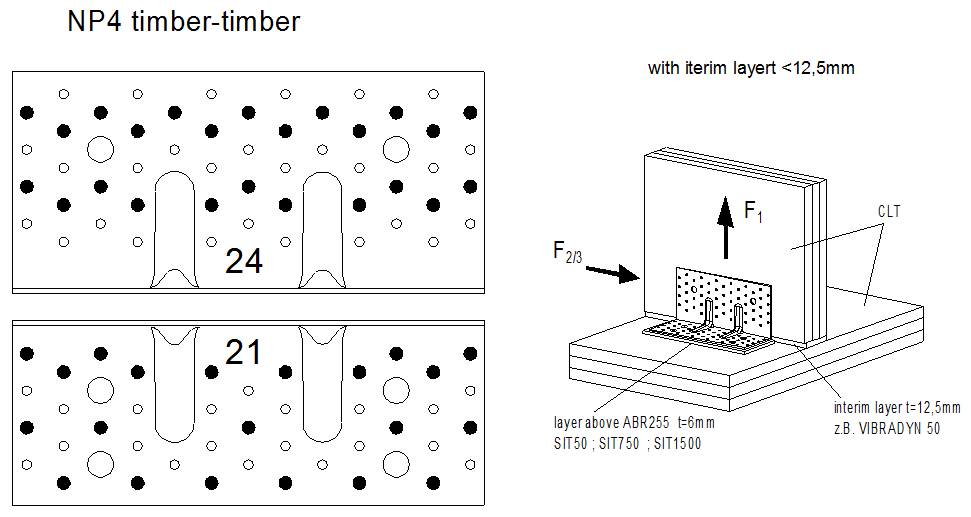

Nailing pattern 4 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.
Simplified characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 4
Tuotenro | Simplified product capacities - Timber to timber - Partial nailing - Nailing pattern 4 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Fasteners | Simplified characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||||||
Flange A | Flange B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||
Qty | Qty | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
ABR255 | 24 | 21 | 16.2 | 18.8 | 28.6 | 31.4 | 15.9 | 18.3 | 11.1 | 16.7 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
Kestävyyden ominaisarvot - Puu-puu liitos - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 5
Tuotenro | Kestävyyden ominaisarvot - Puu-puu liitos - Osittainen kiinnitys - Kiinnityskaaviot 5 | |||
---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||
Sivu A | Sivu B | R1,k | R2,k = R3,k | |
Määrä | Määrä | CSA 5,0x50 | CSA 5,0x50 | |
ABR255 | 46 | 41 | 23,6 / kmod | 51.7 |
The value in the table above can be used if the panel can't rotate.
Nailing pattern 5 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.
Kestävyyden ominaisarvot - Puu-puu liitos - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 6
Tuotenro | Kestävyyden ominaisarvot - Puu-puu liitos - Osittainen kiinnitys - Kiinnityskaaviot 6 | |||||
---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||
Sivu A | Sivu B | R1,k | R2.k | |||
Määrä | Määrä | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
ABR255 | 32 | 21 | - | - | 36.1 | 39.2 |
The value in the table above can be used if the panel can't rotate.
Nailing pattern 6 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.
Product characteristic capacities - CLT beam to CLT beam - Ø12 connector screws - 1 angle bracket
Tuotenro | Product capacities - CLT beam to CLT beam - Ø12 connector screws - 1 angle bracket | |||||
---|---|---|---|---|---|---|
Fasteners | Characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||
Flange A | Flange B | R1.k | R2.k = R3.k | |||
Qty | Type | Qty | Type | SSH12x80 | SSH12x80 | |
ABR255 | 2 | SSH | 4 | SSH | 13.4 | 16.6 |

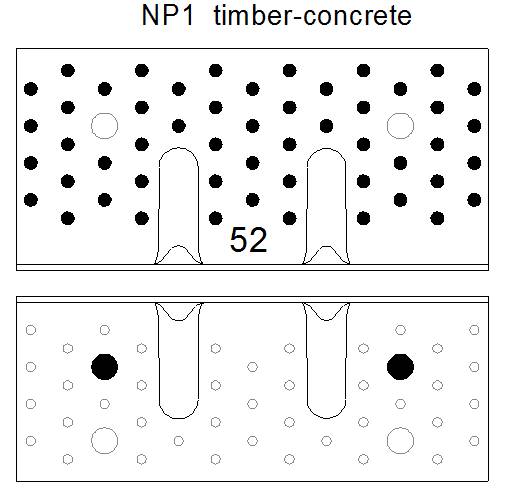

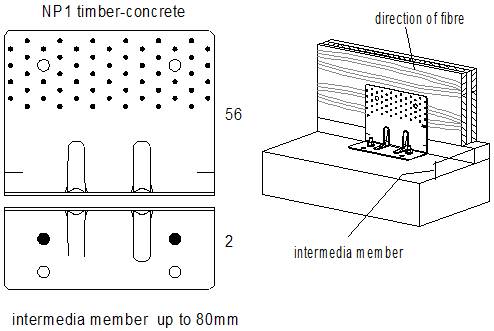

Kestävyyden ominaisarvot - Pilari betoniin - 1 kulmalevy liitosta kohden - Täysi kiinnitys - Kiinnityskaaviot 1
Tuotenro | Kestävyyden ominaisarvot - Puu-betoni liitos - Täysi kiinnitys - Kiinnityskaaviot 1 | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||||||||||||
35-50-60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35-50-60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||||
ABR255 | 52 | CNA | 2 | Ø12 | 22 / kmod | 22 / kmod | 22 / kmod | 22 / kmod | 22 / kmod | 33 | 36 | min (45,3 ; 42,9/kmod) | min (49,2 ; 42,9/kmod) | 18.3 / kmod^0,7 | 18.3/kmod^0,7 | 18.3/kmod^0,7 | 18.3/kmod^0,7 | 18.3/kmod^0,7 | min (17.1/kmod^0.25 ; 17.7/kmod) | min (19.5/kmod^0.25 ; 17.7/kmod) | min (23.5/kmod^0.25 ; 17.7/kmod) | min (27.3/kmod^0.25 ; 17.7/kmod) |
ABR255SO | 56 | CNA | 2 | Ø12 | 22,9 / kmod | 22,9/kmod | 22,9/kmod | 22,9/kmod | 22,9/kmod | 29.2 | 32.5 | 38.6 | - | 18,6 / kmod^0,66 | 18,6/kmod^0,66 | 18,6/kmod^0,66 | 18,6/kmod^0,66 | 18,6/kmod^0,66 | 5,05/kmod | 5,05/kmod | 5,05/kmod | 5,05/kmod |
Arvot pätevät vain, jos elementtien kiertyminen on estetty.
-
Tuotenro | - | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | - [kN] | |||||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||||||||||
35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||||
ABR255 | 52 | CNA | 2 | Ø12 | 24.4 | 24.4 | 24.4 | 24.4 | 25.1 | 29.2 | 45.3 | 49.2 | 19.7 | 19.7 | 19.7 | 19.7 | 17.5 | 19.6 | 19.6 | 19.6 |
ABR255SO | 56 | CNA | 2 | Ø12 | 20.8 | 20.8 | 20.8 | 20.8 | 29.2 | 32.5 | 38.6 | - | 17.1 | 17.1 | 17.1 | 17.1 | 4.6 | 4.6 | 4.6 | 4.6 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
The bolt design resistance requirement R#,d is determined from (bolt factor x connection design load F#,d) for the required load direction and fastener. Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.

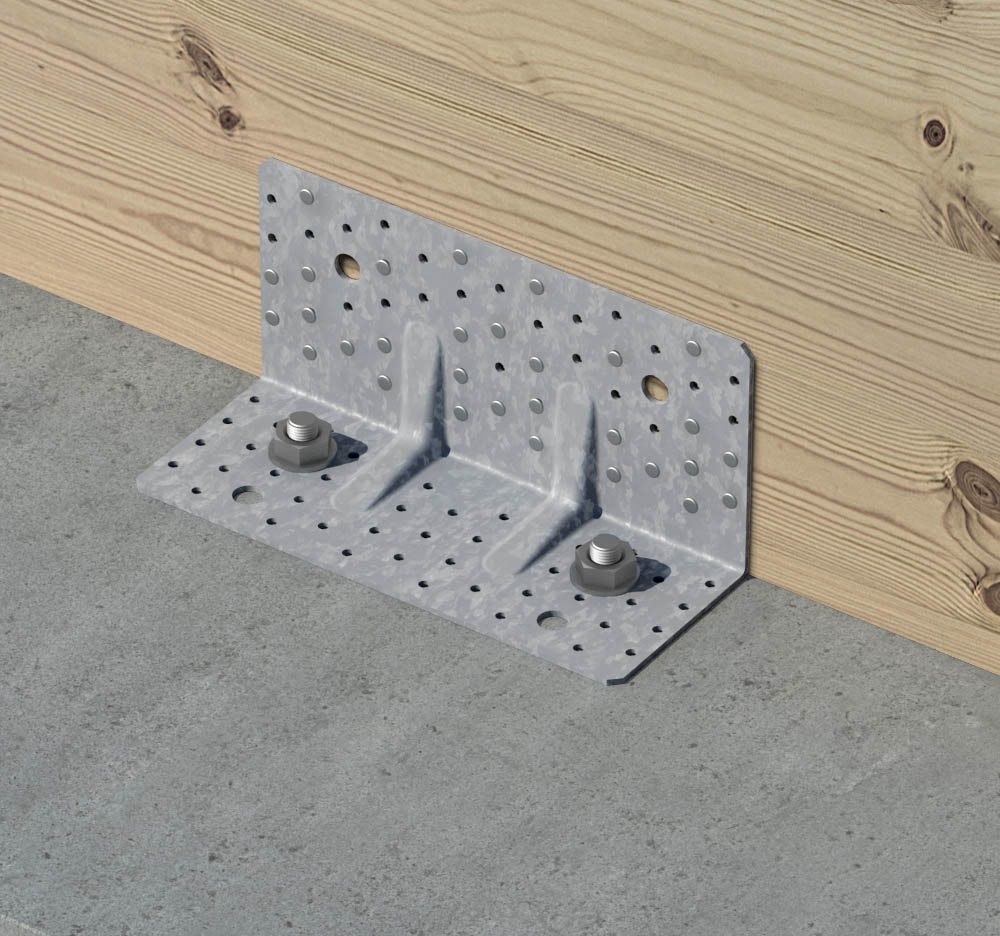

Kestävyyden ominaisarvot - Pilari betoniin - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 2
Tuotenro | Kestävyyden ominaisarvot - Puu-betoni liitos - Osittainen kiinnitys - Kiinnityskaaviot 2 | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | ||||||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | ||||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | ||||||||||||||
35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35-50-60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||||

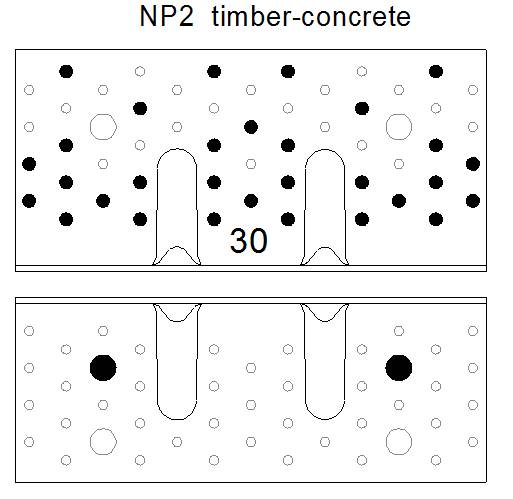

ABR255 | 30 | CNA | 2 | Ø12 | 15.94 | 18.8 | min (24,8 ; 22 / kmod) | min (30,3 ; 22 / kmod) | 21.6 | 23.7 | 29 | 32 | 18.3 / kmod^0,7 | 18.3/kmod^0,7 | 18.3/kmod^0,7 | 18.3/kmod^0,7 | 18.3/kmod^0,7 | 15.3/kmod^0.6 | 16.5/kmod^0.6 | min (19.9/kmod^0.4 ; 17.7 / kmod) | min (23.3/kmod^0.4 ; 17.7 / kmod) |

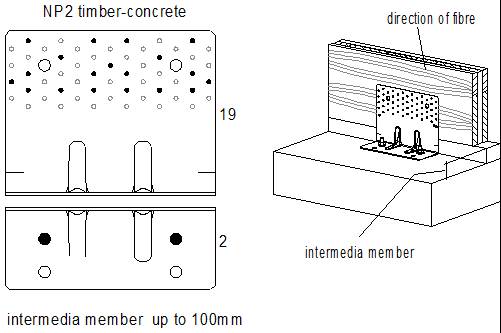

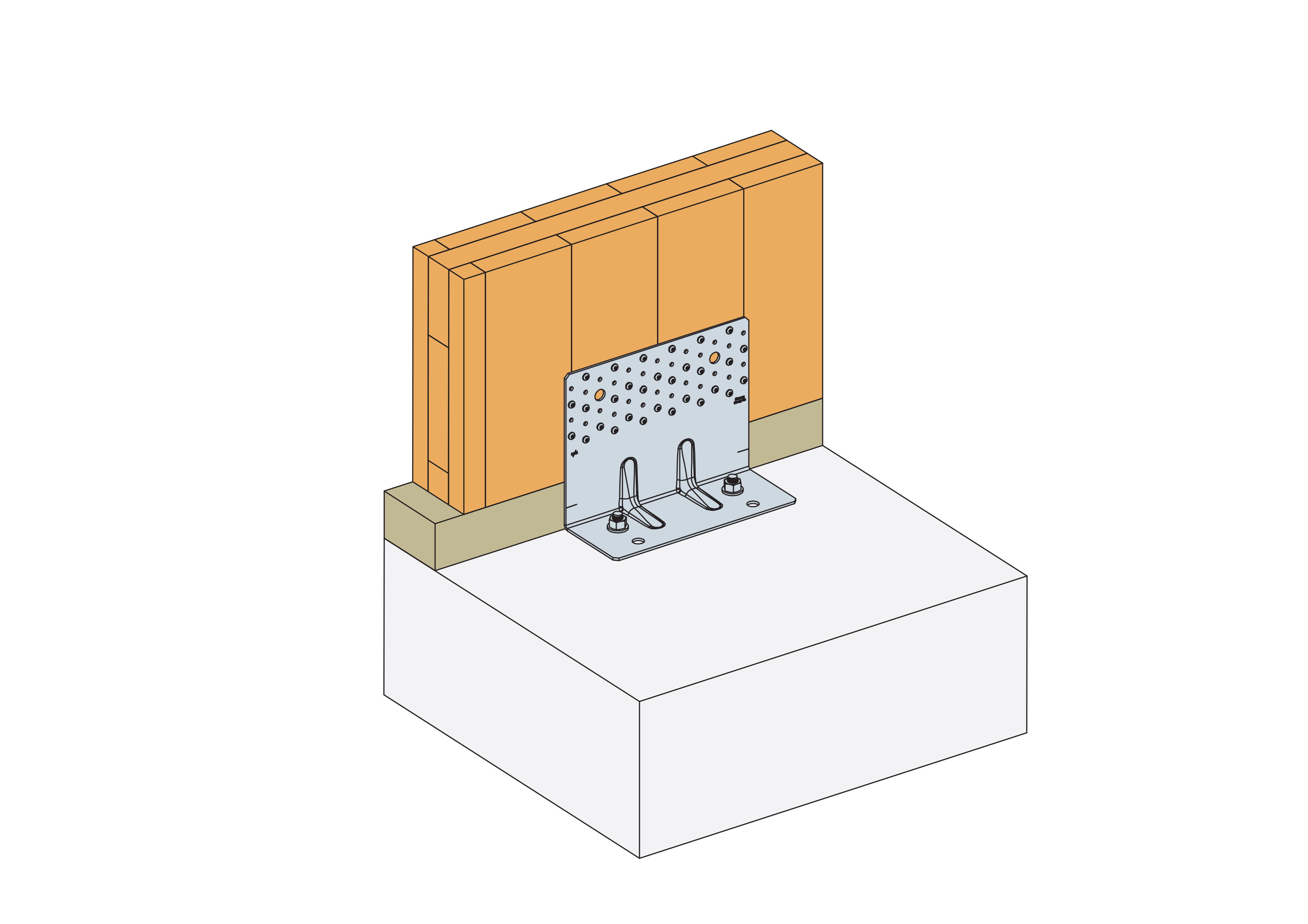

ABR255SO | 19 | CNA | 2 | Ø12 | min (24,3; 22,9/kmod) | min (27,5; 22,9/kmod) | min (34,7; 22,9/kmod) | 22,9/kmod | 13.3 | 15.7 | 20.7 | - | 18,2 / kmod^0,66 | 18,2/kmod^0,66 | 18,2/kmod^0,66 | 18,2/kmod^0,66 | 18,2/kmod^0,66 | 5,05/kmod | 5,05/kmod | 5,05/kmod | 5,05/kmod |
Arvot pätevät vain, jos elementtien kiertyminen on estetty.
-
Tuotenro | - | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | - [kN] | |||||||||||||||||||
Sivu A | Sivu B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||||||||||
35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | 35 | 40 | 50 | 60 | |||||
ABR255 | 30 | CNA | 2 | Ø12 | 15.94 | 18.8 | 24.4 | 24.4 | 21.6 | 23.7 | 29.3 | 32 | 20.3 | 20.3 | 20.3 | 20.3 | 16.2 | 17.5 | 19.6 | 19.6 |
ABR255SO | 19 | CNA | 2 | Ø12 | 20.8 | 20.8 | 20.8 | 2.08 | 13.3 | 15.7 | 20.7 | - | 17.1 | 17.1 | 17.1 | 17.1 | 4.6 | 4.6 | 4.6 | 4.6 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
The bolt design resistance requirement R#,d is determined from (bolt factor x connection design load F#,d) for the required load direction and fastener. Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.
Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 4
Tuotenro | Product capacities - Timber to Concrete - Partial Nailing - Nailing pattern 4 | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Fasteners | Characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||||||||
Flange A | Flange B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||
Qty | Type | Qty | Type | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
ABR255SO | 26 | CNA | 2 | Ø12 | 22,9/kmod | 22,9/kmod | 21.7 | - | 18,2/kmod^0,66 | 18,2/kmod^0,66 | 5,05/kmod | 5,05/kmod |
The value in the table above can be used if the panel can't rotate.
The anchor capacities must be checked separatly by multiplying the F1 load by a factor 1.1, F2 load by a factor of 1 and F5 by a factor of 2.2.
Nailing pattern 4 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.
Simplified characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 4
Tuotenro | Simplified product capacities - Timber to concrete - Partial nailing - Nailing pattern 4 | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Fasteners | Simplified characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||||||||
Flange A | Flange B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||
Qty | Type | Qty | Type | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
ABR255SO | 26 | CNA | 2 | Ø12 | 20.8 | 20.8 | 21.7 | - | 17.1 | 17.1 | 4.6 | 4.6 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
The bolt design resistance requirement R#,d is determined from (bolt factor x connection design load F#,d) for the required load direction and fastener. Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.
Kestävyyden ominaisarvot - Pilari betoniin - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 7
Tuotenro | Kestävyyden ominaisarvot - Puu-betoni liitos - Osittainen kiinnitys - Kiinnityskaaviot 7 | |||||||
---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||||
Sivu A | Sivu B | R1,k | R2.k | |||||
Määrä | Tyyppi | Määrä | Tyyppi | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
ABR255 | 30 | CNA | 2 | Ø12 | - | - | 39.8 | 42.5 |
ABR255SO | - | - | - | - | - | - | - | - |
The value in the table above can be used if the panel can't rotate.
The anchor capacities must be checked separatly by multiplying the F2 load by a factor of 1.
Nailing pattern 7 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.
Kestävyyden ominaisarvot - Pilari betoniin - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 8
Tuotenro | Kestävyyden ominaisarvot - Puu-betoni liitos - Osittainen kiinnitys - Kiinnityskaaviot 8 | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||||||||
Sivu A | Sivu B | R1,k | R2.k | R4.k | R5.k | |||||||
Määrä | Tyyppi | Määrä | Tyyppi | CNA4.0x... | CNA4.0x... | CNA4.0x... | CNA4.0x... | |||||
50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |||||

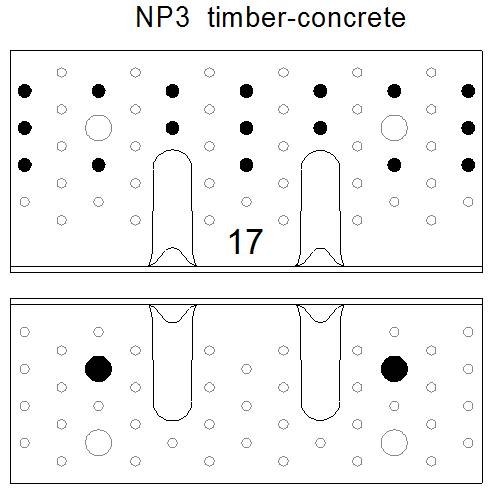

ABR255 | 17 | CNA | 2 | Ø12 | 20 | 20 | 24.9 | 26.5 | 18.3/kmod^0.7 | 18.3/kmod^0.7 | 5.9/kmod^0.6 | 6.7/kmod^0.5 |
ABR255SO | 30 | CNA | 2 | Ø12 | 22,9/kmod | 22,9/kmod | 26.1 | - | 18,2/kmod^0,66 | 18,2/kmod^0,66 | 5,05/kmod | 5,05/kmod |
The value in the table above can be used if the panel can't rotate.
The anchor capacities must be checked separatly by multiplying the F1 load by a factor 1.1, F2 load by a factor of 1 and F5 by a factor of 2.2.

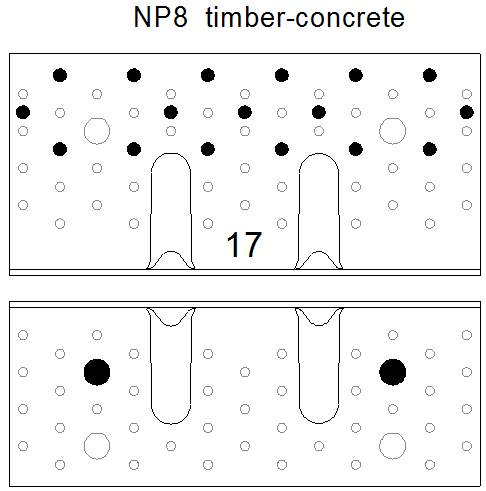

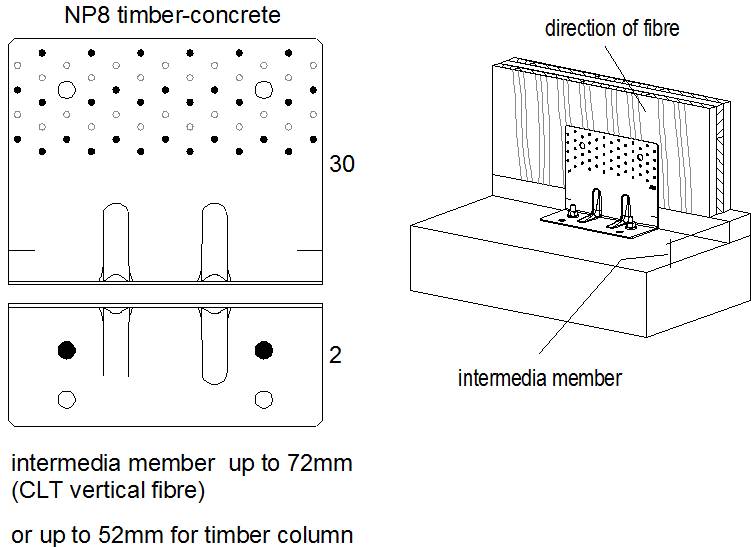

Nailing pattern 8 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.
Simplified characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 8
Tuotenro | Simplified product capacities - Timber to concrete - Partial nailing - Nailing pattern 8 | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Fasteners | Simplified characteristic capacities - Timber C24 - 1 angle bracket per connection [kN] | |||||||||||
Flange A | Flange B | R1.k | R2.k = R3.k | R4.k | R5.k | |||||||
Qty | Type | Qty | Type | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
ABR255 | 17 | CNA | 2 | Ø12 | 23.4 | 25.8 | 24.9 | 26.5 | 19.7 | 19.7 | 6.2 | 7 |
ABR255SO | 56 | CNA | 2 | Ø12 | 20.8 | 20.8 | 26.1 | - | 17.1 | 17.1 | 4.6 | 4.6 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
The bolt design resistance requirement R#,d is determined from (bolt factor x connection design load F#,d) for the required load direction and fastener. Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.
Kestävyyden ominaisarvot - Pilari betoniin - 1 kulmalevy liitosta kohden - Osittainen kiinnitys - Kiinnityskaaviot 9
Tuotenro | Kestävyyden ominaisarvot - Puu-betoni liitos - Osittainen kiinnitys - Kiinnityskaaviot 9 | |||||
---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot - 1 kulmalevy liitosta kohden [kN] | |||||
Sivu A | Sivu B | R1,k | R2.k | |||
Määrä | Tyyppi | Määrä | Tyyppi | CSA 5,0x50 | CSA 5,0x50 | |
ABR255 | 35 | CSA | 2 | Ø12 | min (79,5 ; 22 / kmod) | min (58 ; 57,6 / kmod) |
ABR255SO | - | - | - | - | - | - |
The value in the table above can be used if the panel can't rotate.
The anchor capacities must be checked separatly by multiplying the F1 load by a factor 1.1 and F2 load by a factor of 1.
Nailing pattern 9 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.
