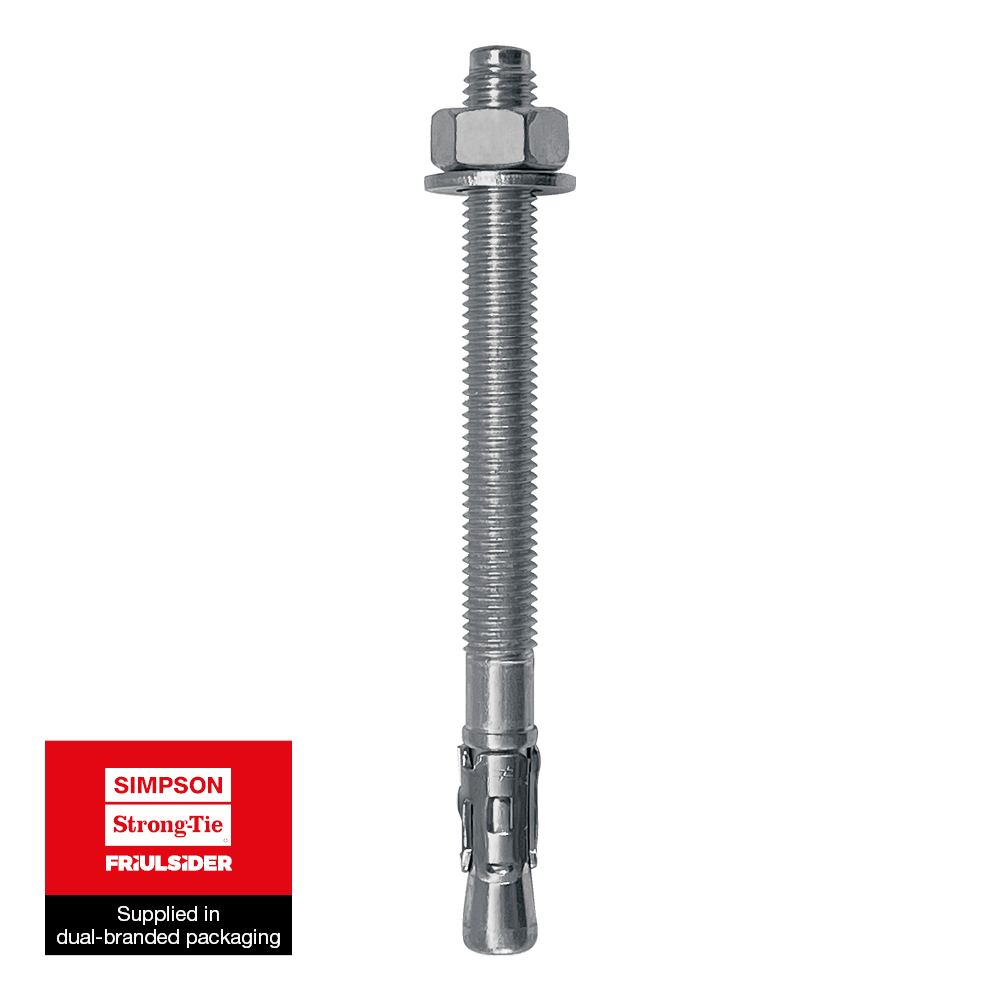

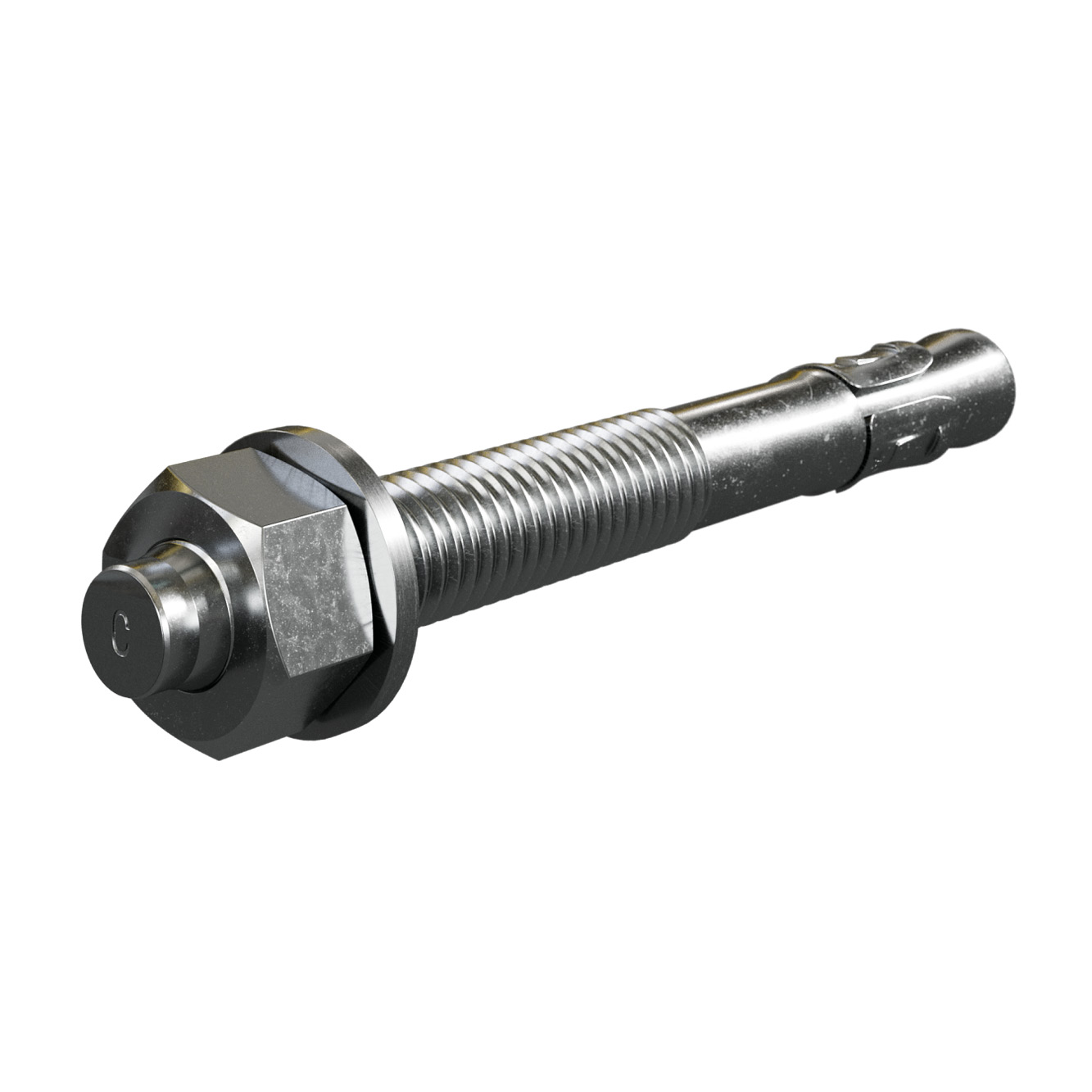

FM 753 evo

Raskaaseen käyttöön tarkoitettu kiila-ankkuri

Heavy-duty wedge anchor for the medium load range, in sizes M6 - M20 for anchoring in non-cracked concrete C20/25 - C50/60.

Tekniset tiedot

CE-merkitty

Tekninen hyväksyntä

Käyttöluokka 2

Sähkösinkitty teräs

Indoor

Fix Calc

Tuotteen yksityiskohdat

Kuvat

Ominaisuudet

Material

Kylmämuovattu hiiliteräsrunko, jossa on erityinen geometrinen kiinnike

Benefits

Laaja valikoima
Helppo asennus
Monipuolinen

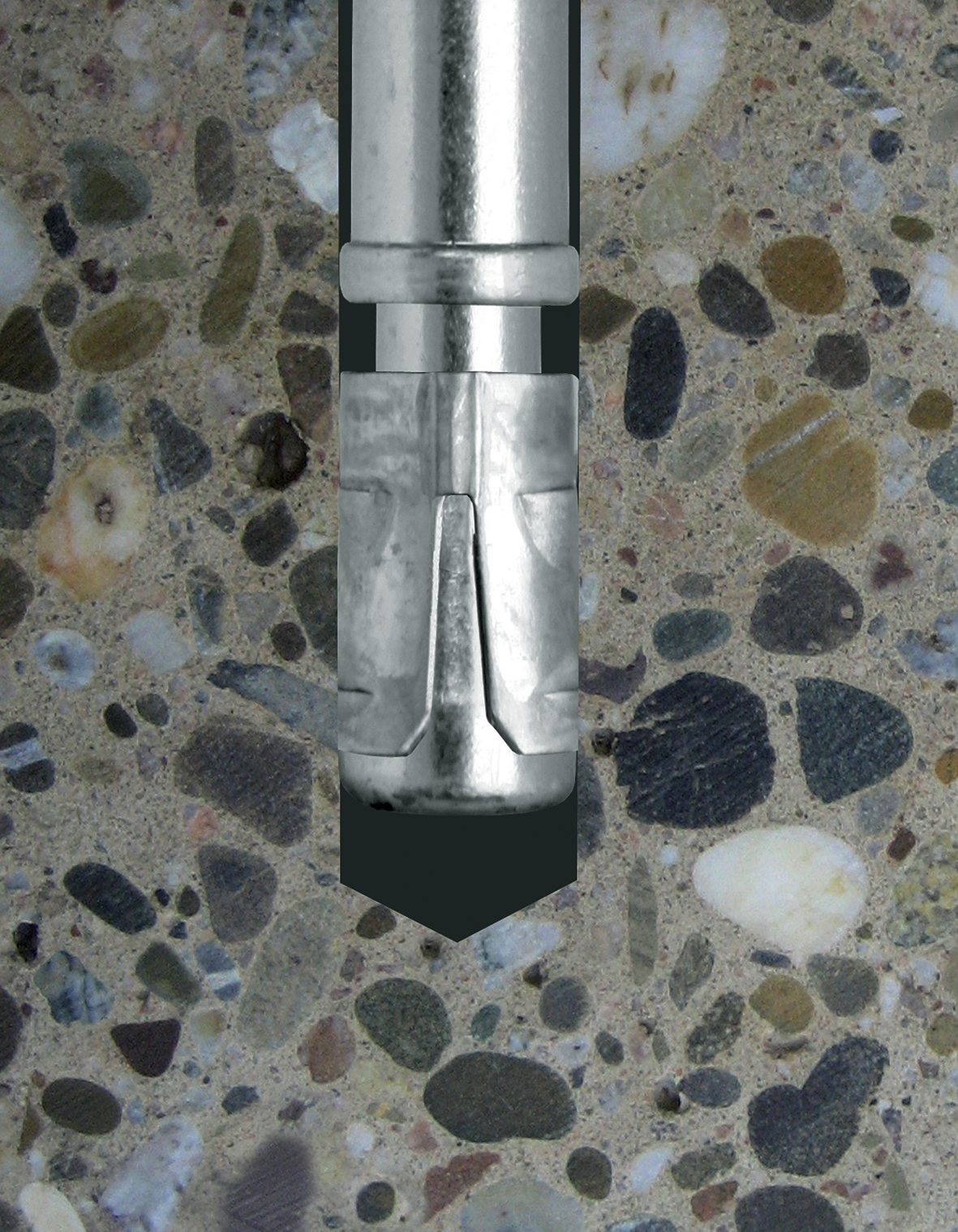

Kylmätaottu ankkurirunko
Kolmen laajennussegmentin paksuus
Kuusi hammasta ja luistamaton harjanne estävät liukumisen kiristämisen aikana

Sovellus

Applications

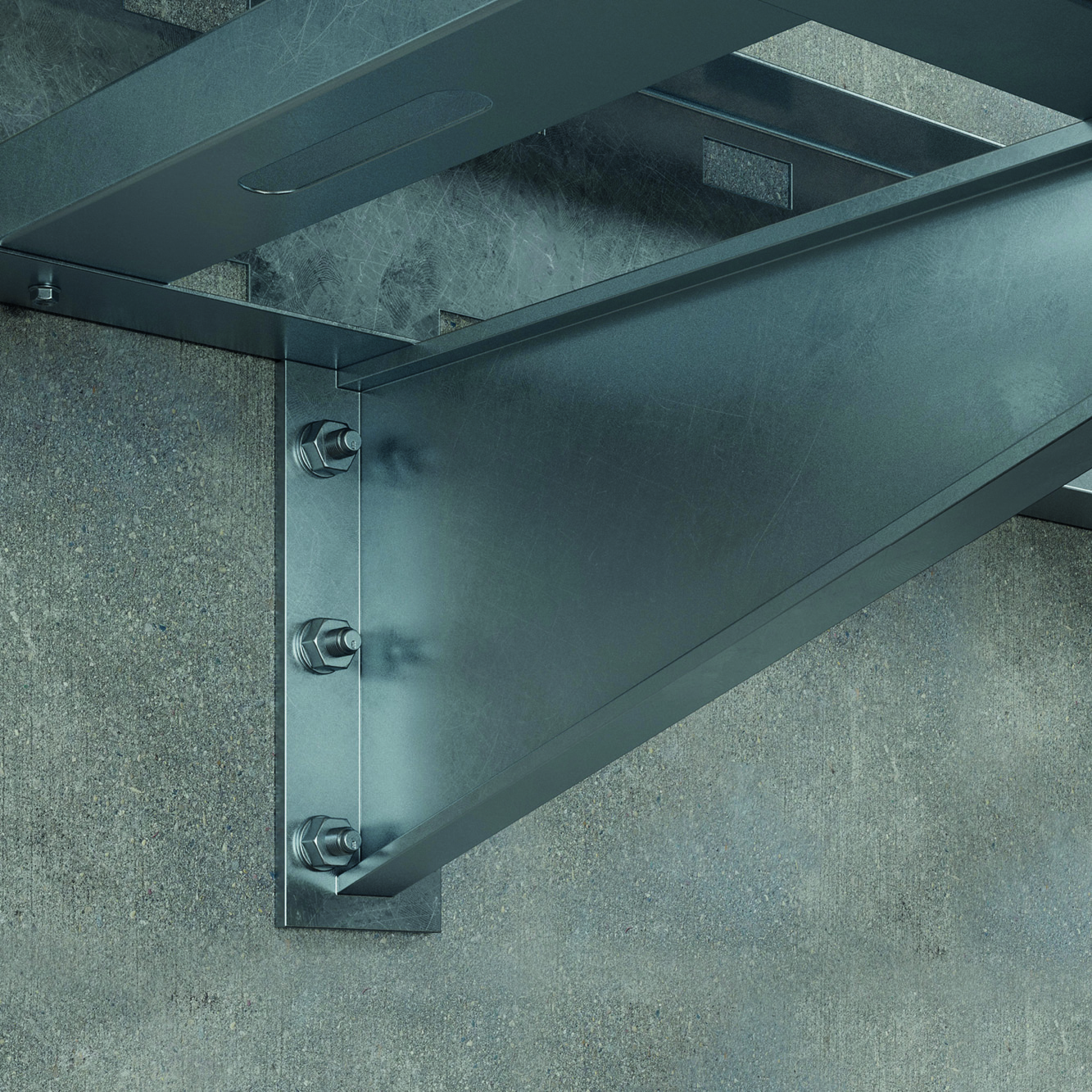

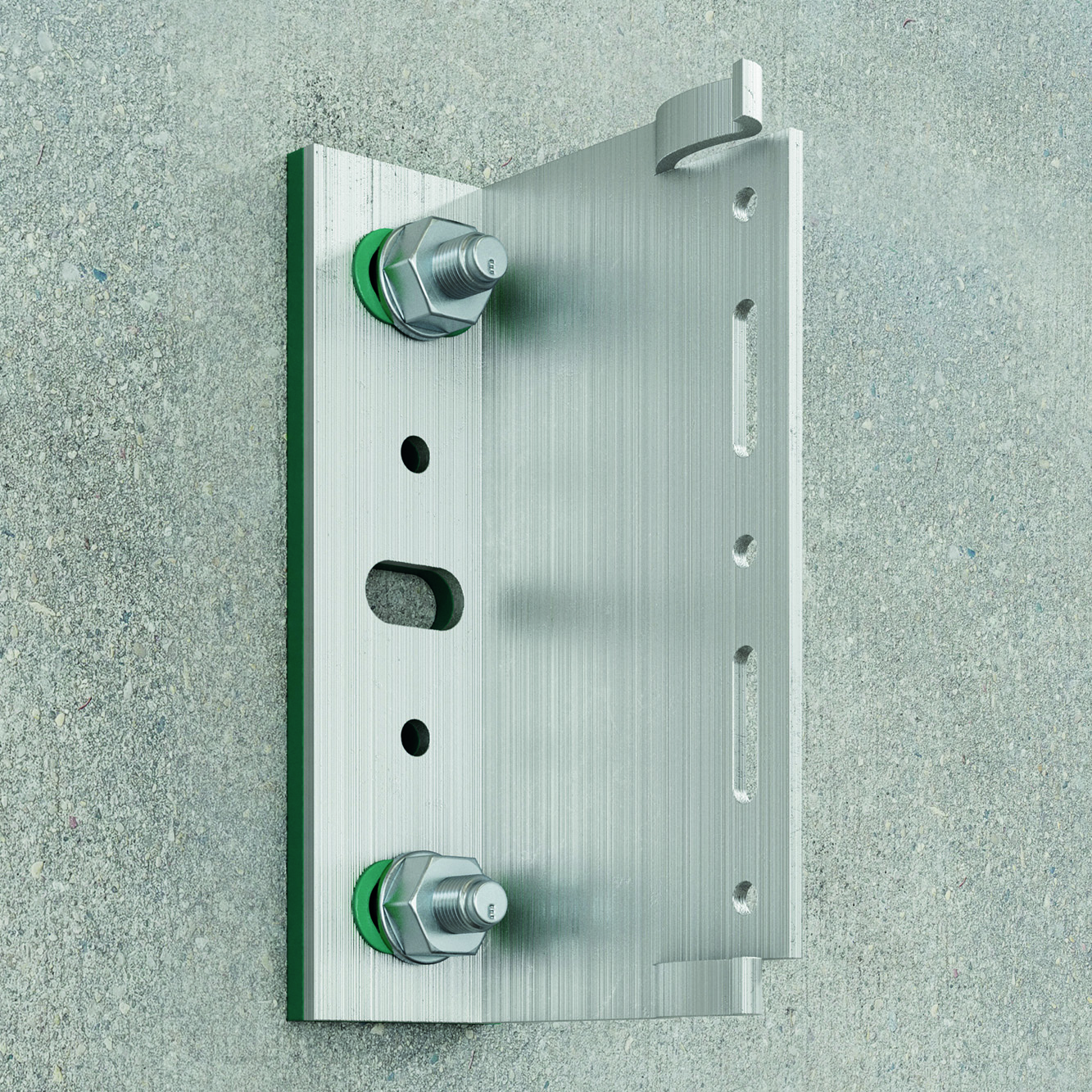

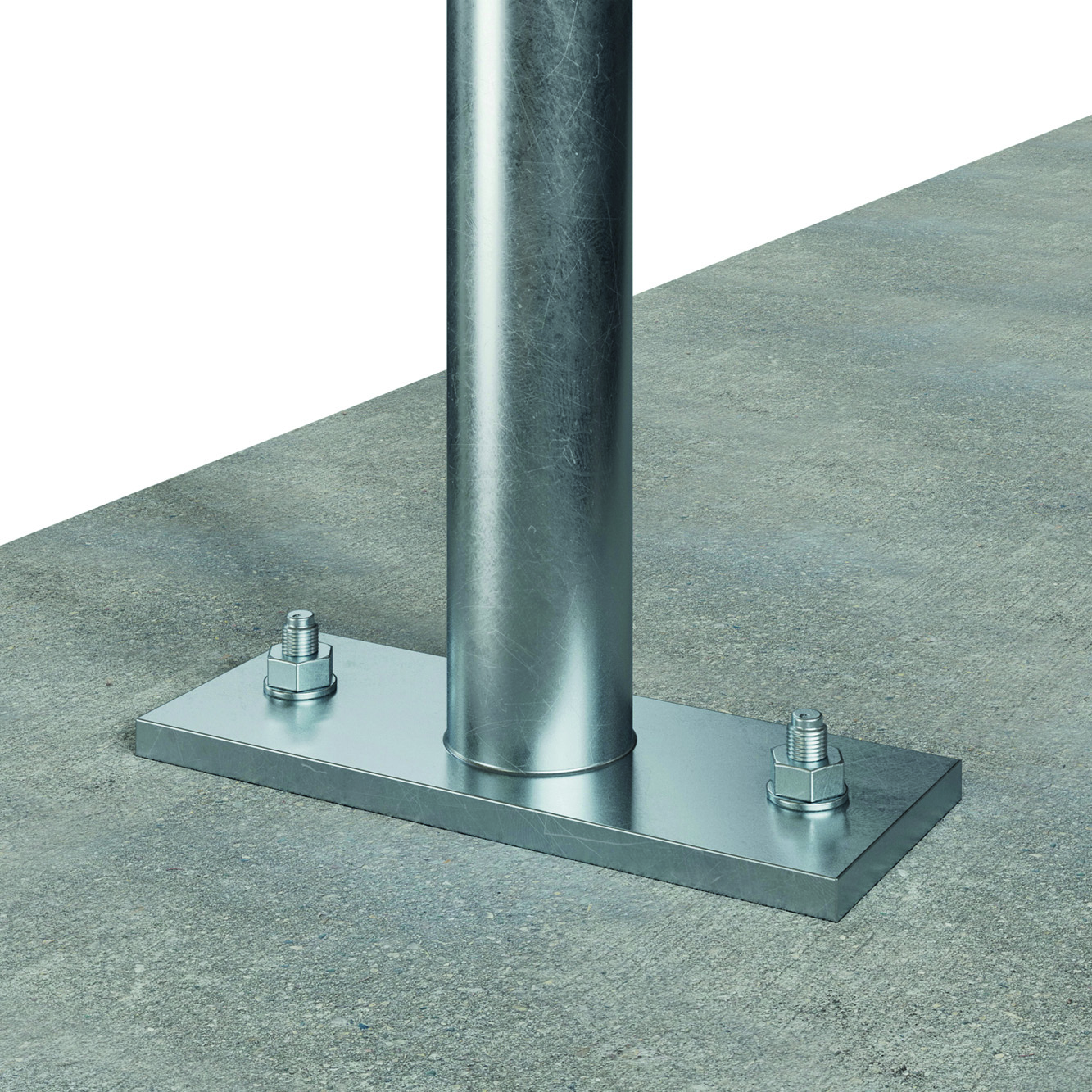

Kaiteet

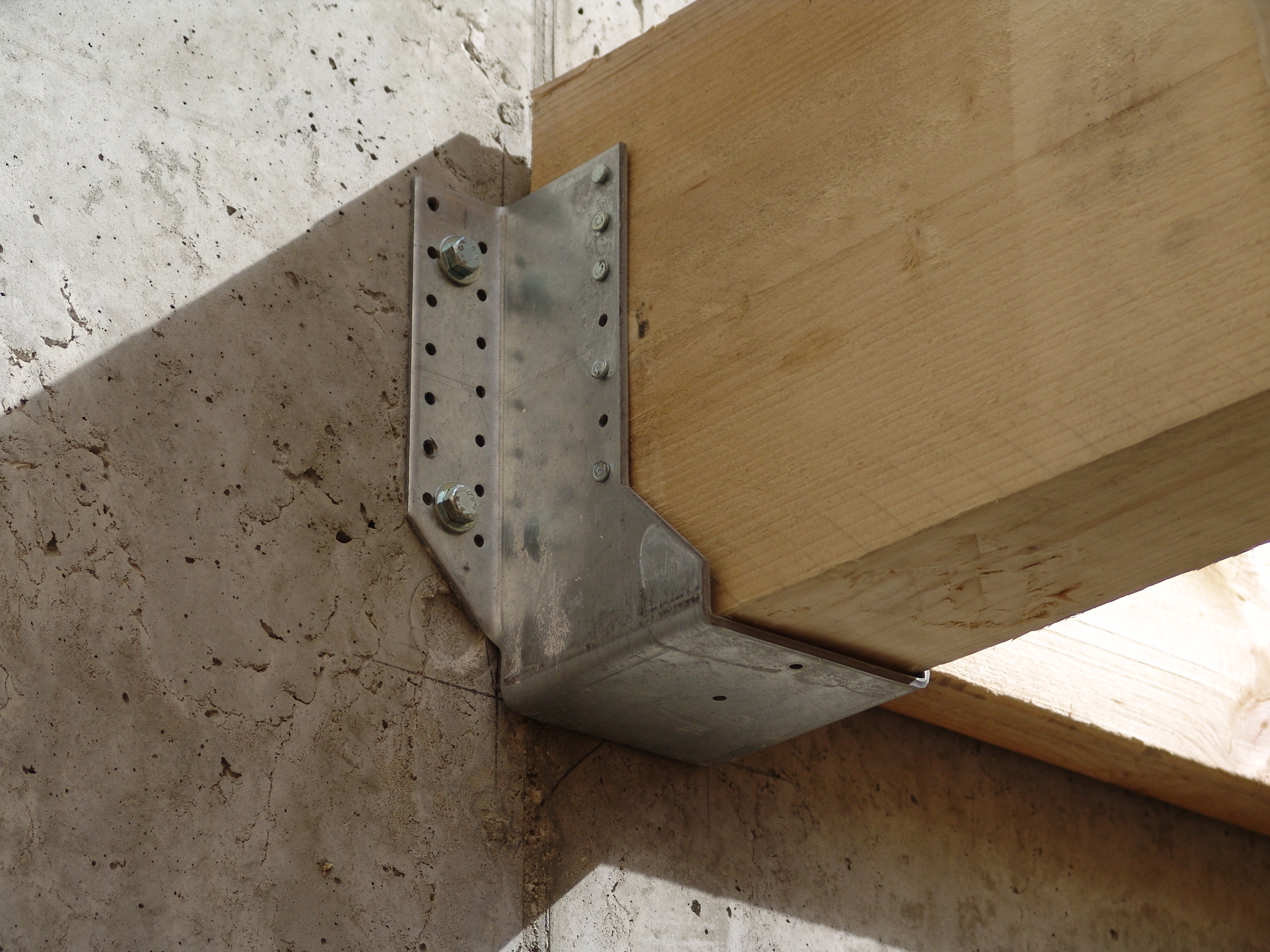

Metalli- ja puusepäntyöt
Julkisivut

Suitable for

Halkeilematon betoni
Kiinteä kivi

Tekniset tiedot

Mitat

Dimensions

Tuotenro	Tuotenumero	Tyyppi [d x L]	ID¹⁾	Thread length	Kiinnikkeen paksuus [t_fix]	Reiän halkaisija [d_o]	Pienin reiän syvyys [h₁]	Upotussyvyys [h_ef]	Reiän halkaisija kiinnityselementissä [d_f]	Min. tukipaksuus [h_min]	Vääntömomentti [T_inst]	Avain [SW]	Qty per box	Määrä per ulkolaatikko	Paino [kg]
75340B0604800	FM 753 evo	M6x48/*	A	18	3	6	45	30	7	90	8	10	150	1500	0.012
75340B0606500	FM 753 evo	M6x65	B	30	10	6	55	40	7	100	8	10	100	1000	0.015
75340B0811300	FM 753 evo	M8x113	G	60	50	8	65	45	9	100	15	13	100	400	0.042
75340B1006300	FM 753 evo	M10x63/*	A	25	5	10	55	35	12	90	30	17	50	200	0.047
75340B1008300	FM 753 evo	M10x83	C	40	10	10	70	50		100	30	17	50	200	0.056
75340B1010300	FM 753 evo	M10x103	E	50	30	10	70	50		100	30	17	50	200	0.065
75340B1012300	FM 753 evo	M10x123	G	60	50	10	70	50		100	30	17	50	200	0.076
75340B1208500	FM 753 evo	M12x85/*	A	40	5	12	75	50	14	120	50	19	50	200	0.084
75340B1210900	FM 753 evo	M12x109	C	60	10	12	90	65		130	50	19	50	200	0.1
75340B1212900	FM 753 evo	M12x129	E	70	30	12	90	65		130	50	19	25	100	0.12
75340B1214900	FM 753 evo	M12x149	G	100	50	12	90	65		130	50	19	25	100	0.13
75340B1219900	FM 753 evo	M12x199	I	110	100	12	90	65		130	50	19	25	100	0.17
75340B1611000	FM 753 evo	M16x110/*	A	50	15	16	89	59	18	140	100	24	20	80	0.19
75340B1615100	FM 753 evo	M16x151	C	80	30	16	110	80		160	100	24	20	80	0.24
75340B1617100	FM 753 evo	M16x171	D	80	50	16	110	80		160	100	24	15	60	0.27
75340B1622100	FM 753 evo	M16x221	F	100	100	16	110	80		160	100	24	15	60	0.34

^*Anchors with reduced embedment depths
^** Not covered by CE certification

¹⁾Ident. mark, product length

Suunnittelukapasiteetit – yksi ankkuri – ei reunavälejä

Tuotenro	Suunnittelukapasiteetti – Halkeilematon betoni ⁽³⁾ [kN]
	Tyyppi [d x L]	Jännitys - NRd ⁽¹⁾				Leikkaus - VRd ^(1-2) [kN]				Taivutusmomentti MRd [Nm]
	Tyyppi [d x L]	C20/25	C30/37	C40/50	C50/60	C20/25	C30/37	C40/50	C50/60	Taivutusmomentti MRd [Nm]
75340B0604800	M6x48/*	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0606500	M6x65	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0811300	M8x113	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B1006300	M10x63/*	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1008300	M10x83	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1010300	M10x103	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1012300	M10x123	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1208500	M12x85/*	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1210900	M12x109	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1212900	M12x129	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1214900	M12x149	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1219900	M12x199	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1611000	M16x110/*	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1615100	M16x151	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1617100	M16x171	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1622100	M16x221	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Suositellut kapasiteetit – yksi ankkuri – ei reunavälejä

Tuotenro	Suositeltu kapasiteetti - Halkeilematon betoni
	Tyyppi [d x L]	Jännitys - Nrec ^(1-2) [kN]				Leikkaus - Vrec ^(1-3) [kN]				Taivutusmomentti Mrec ^(1-6) [Nm]
	Tyyppi [d x L]	C20/25	C30/37	C40/50	C50/60	C20/25	C30/37	C40/50	C50/60	Taivutusmomentti Mrec ^(1-6) [Nm]
75340B0604800	M6x48/*	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0606500	M6x65	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0811300	M8x113	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B1006300	M10x63/*	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1008300	M10x83	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1010300	M10x103	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1012300	M10x123	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1208500	M12x85/*	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1210900	M12x109	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1212900	M12x129	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1214900	M12x149	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1219900	M12x199	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1611000	M16x110/*	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1615100	M16x151	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1617100	M16x171	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1622100	M16x221	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8

1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Suunnittelukapasiteetit – yksi ankkuri – ei reunavälejä – pienennetty upotussyvyys

Tuotenro	Tyyppi [d x L]	Vähennetty upotussyvyys [h_ef,r]	Ominaisväli h_ef,r⁽⁵⁾ [S_cr,red] [mm]	Ominaisreunan etäisyys h_ef,r [C_cr,red] [mm]	Min. etäisyys h_ef,r [S_min,red] [mm]	Min. reunaväli h_ef,r [C_min,red]	Suunnittelukuormat - Vetojännitys & Leikkaus - N_Rd [kN]
75340B0604800	M6x48/*	30	90	45	30	40	5.2
75340B0606500	M6x65	30	90	45	30	40	5.2
75340B0811300	M8x113	30	90	45	40	40	13.4
75340B1006300	M10x63/*	35	105	55	50	50	26.6
75340B1008300	M10x83	35	105	55	50	50	26.6
75340B1010300	M10x103	35	105	55	50	50	26.6
75340B1012300	M10x123	35	105	55	50	50	26.6
75340B1208500	M12x85/*	50	150	75	70	70	46.6
75340B1210900	M12x109	50	150	75	70	70	46.6
75340B1212900	M12x129	50	150	75	70	70	46.6
75340B1214900	M12x149	50	150	75	70	70	46.6
75340B1219900	M12x199	50	150	75	70	70	46.6
75340B1611000	M16x110/*	59	180	90	90	90	110.9
75340B1615100	M16x151	59	180	90	90	90	110.9
75340B1617100	M16x171	59	180	90	90	90	110.9
75340B1622100	M16x221	59	180	90	90	90	110.9

Shear value valid with distance from the edge c>10 x h_ef,r

Suositellut kapasiteetit – yksi ankkuri – ei reunavälejä – pienennetty upotussyvyys

Tuotenro	Tyyppi [d x L]	Vähennetty upotussyvyys [h_ef,r]	Ominaisväli h_ef,r⁽⁵⁾ [S_cr,red] [mm]	Ominaisreunan etäisyys h_ef,r [C_cr,red] [mm]	Min. etäisyys h_ef,r [S_min,red] [mm]	Min. reunaväli h_ef,r [C_min,red]	Suositellut kuormat - Veto & Leikkaus - N _rec [kN]
75340B0604800	M6x48/*	30	90	45	30	40	1.6
75340B0606500	M6x65	30	90	45	30	40	1.6
75340B0811300	M8x113	30	90	45	40	40	1.7
75340B1006300	M10x63/*	35	105	55	50	50	3.4
75340B1008300	M10x83	35	105	55	50	50	3.4
75340B1010300	M10x103	35	105	55	50	50	3.4
75340B1012300	M10x123	35	105	55	50	50	3.4
75340B1208500	M12x85/*	50	150	75	70	70	5.2
75340B1210900	M12x109	50	150	75	70	70	5.2
75340B1212900	M12x129	50	150	75	70	70	5.2
75340B1214900	M12x149	50	150	75	70	70	5.2
75340B1219900	M12x199	50	150	75	70	70	5.2
75340B1611000	M16x110/*	59	180	90	90	90	6.5
75340B1615100	M16x151	59	180	90	90	90	6.5
75340B1617100	M16x171	59	180	90	90	90	6.5
75340B1622100	M16x221	59	180	90	90	90	6.5

The recommended loads N,V and F derive from the mean ultimate loads and are inclusive of the total safety factor γ=4 (shear γ=3).

Shear value valid with distance from the edge c>10 x hef,r

Tuotteen mitat - Tee-se-itse

Table "Tuotteen mitat - Tee-se-itse" cannot be displayed : no references available.

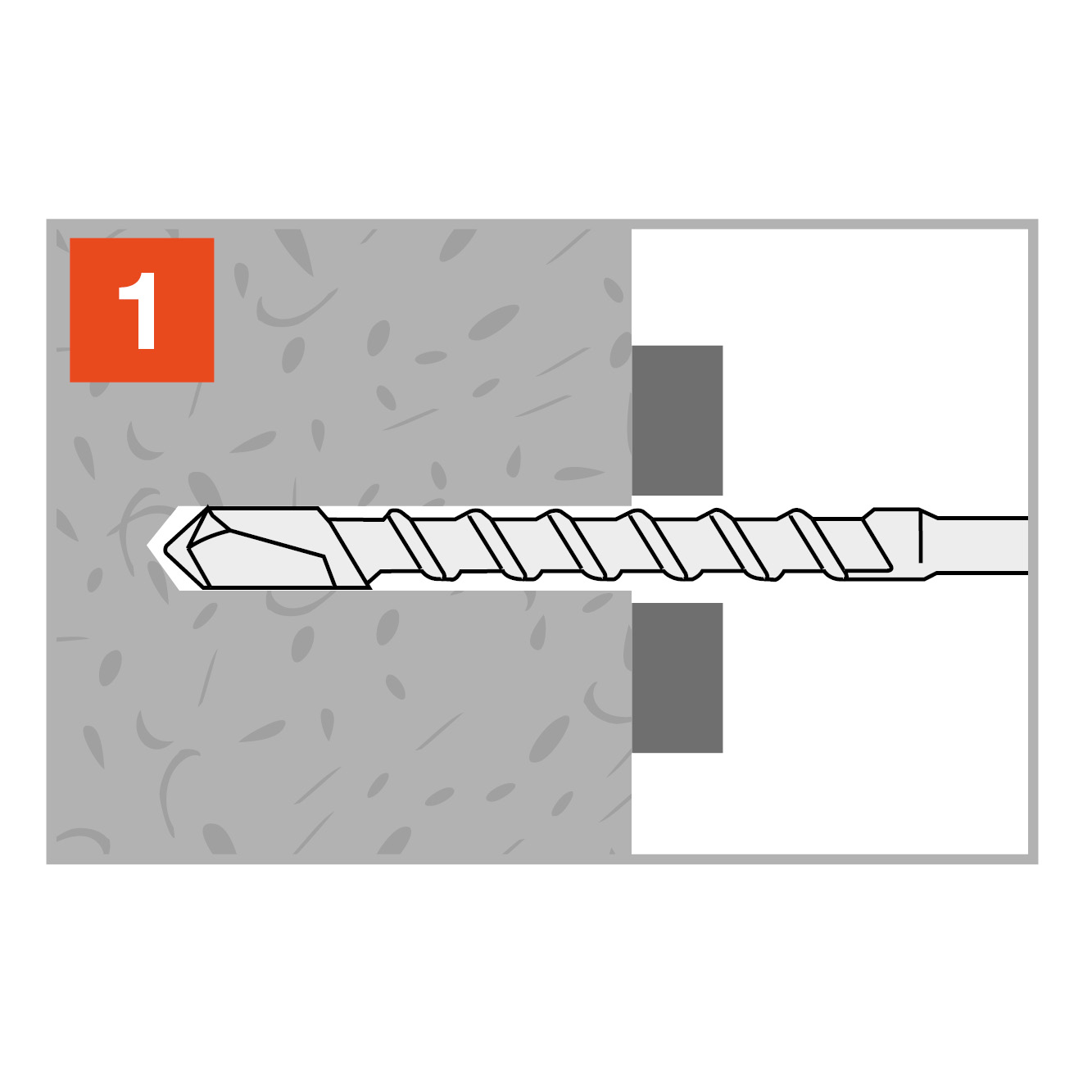

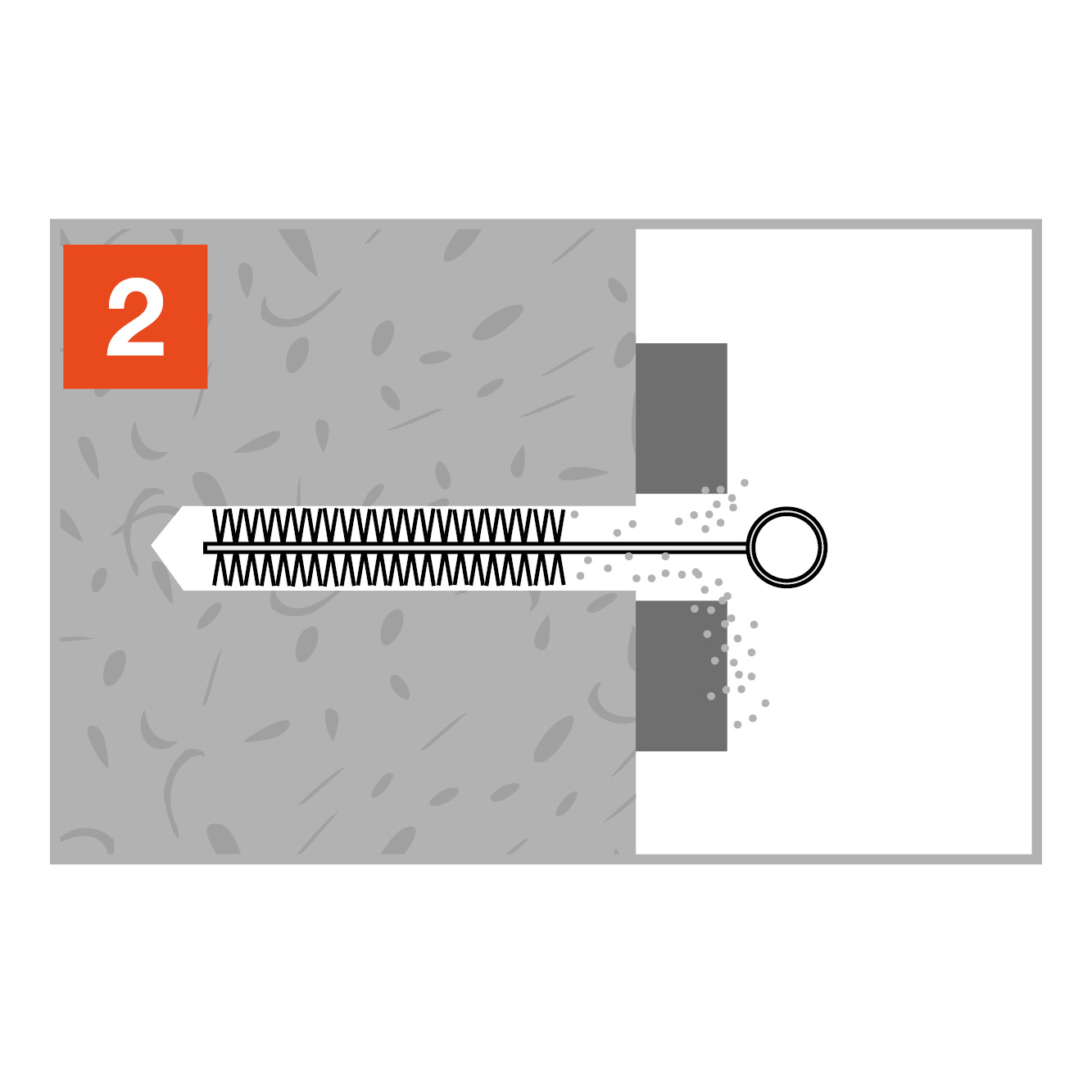

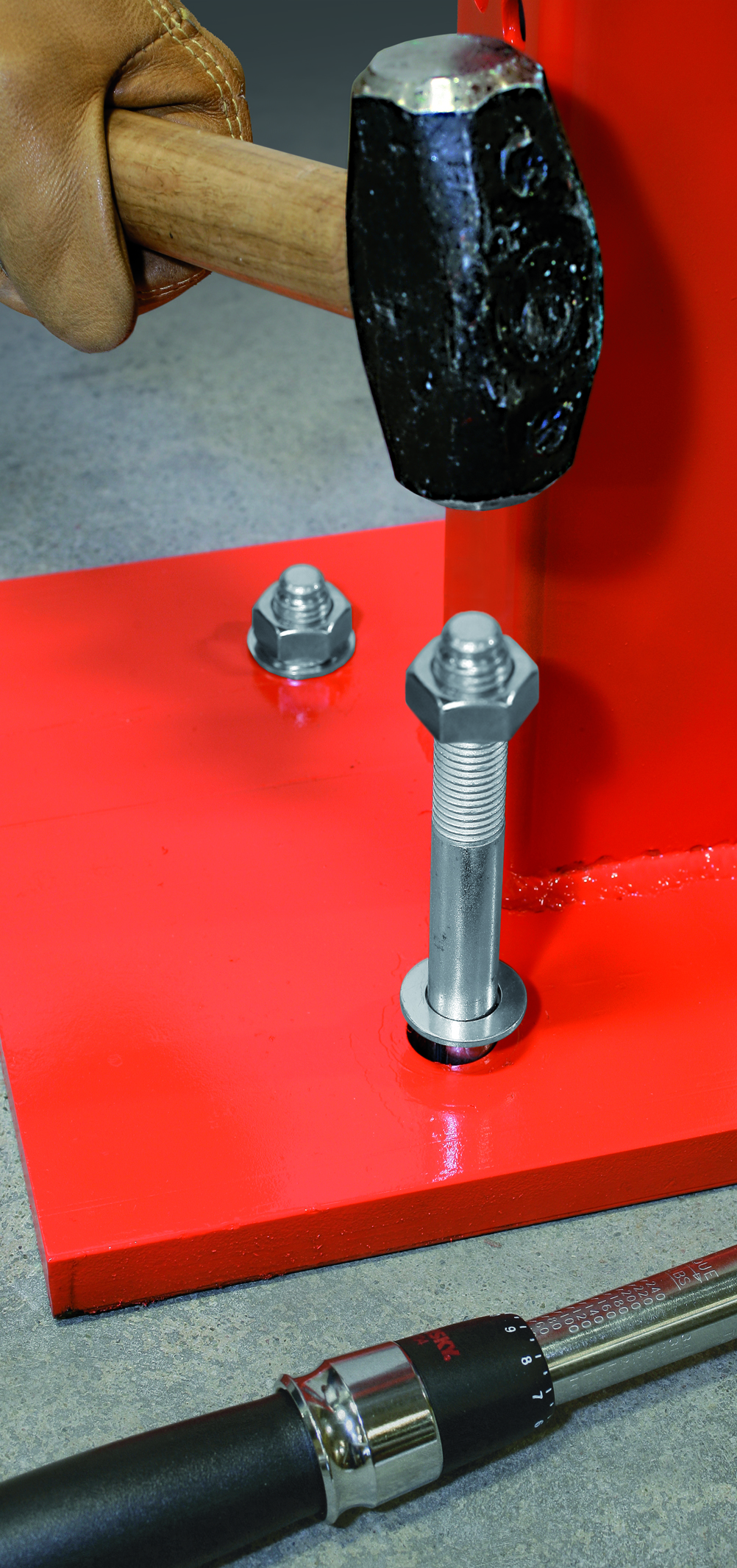

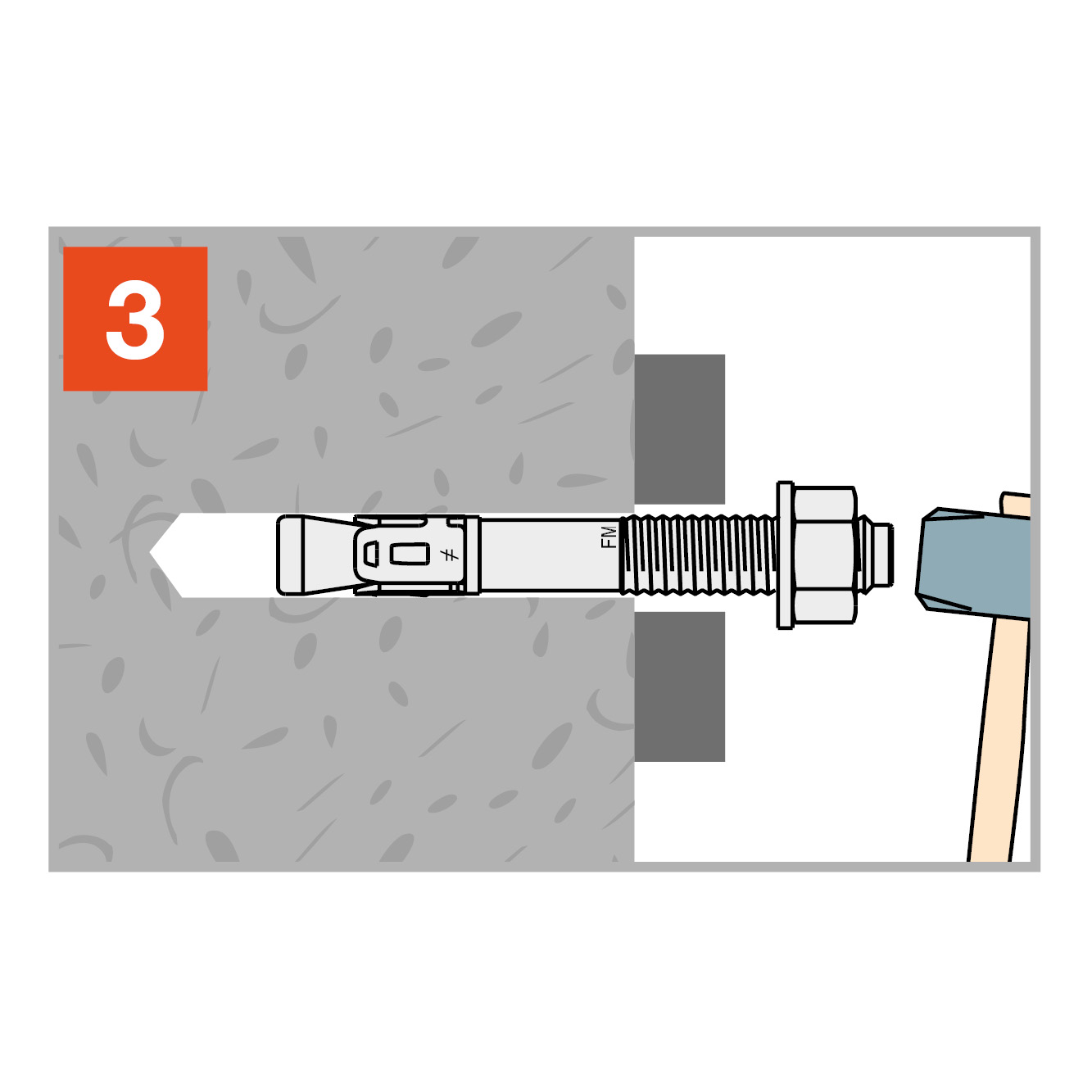

Asennus

Välimatkat, reunamatkat ja elementtien paksuus

Tuotenro	Tyyppi [d x L]	Reiän halkaisija [d_o]	Pienin reiän syvyys [h₁]	Reiän halkaisija kiinnityselementissä [d_f]	Avain [SW]	Vääntömomentti [T_inst]	Upotussyvyys [h_ef]	Min. tukipaksuus [h_min]	Ominaisväli⁽⁵⁾ [S_cr,N] [mm]	Ominainen reunaväli [c_cr,N] [mm]	Min. spacing [S_min] [mm]	Min. reunaväli [C_min] [mm]
75340B0604800	M6x48/*	6	45	7	10	8	30	90	120	60	30	40
75340B0606500	M6x65	6	55	7	10	8	40	100	120	60	30	40
75340B0811300	M8x113	8	65	9	13	15	45	100	135	68	40	40
75340B1006300	M10x63/*	10	55	12	17	30	35	90	150	75	50	50
75340B1008300	M10x83	10	70	12	17	30	50	100	150	75	50	50
75340B1010300	M10x103	10	70	12	17	30	50	100	150	75	50	50
75340B1012300	M10x123	10	70	12	17	30	50	100	150	75	50	50
75340B1208500	M12x85/*	12	75	14	19	50	50	120	195	98	70	70
75340B1210900	M12x109	12	90	14	19	50	65	130	195	98	70	70
75340B1212900	M12x129	12	90	14	19	50	65	130	195	98	70	70
75340B1214900	M12x149	12	90	14	19	50	65	130	195	98	70	70
75340B1219900	M12x199	12	90	14	19	50	65	130	195	98	70	70
75340B1611000	M16x110/*	16	89	18	24	100	59	140	240	120	90	90
75340B1615100	M16x151	16	110	18	24	100	80	160	240	120	90	90
75340B1617100	M16x171	16	110	18	24	100	80	160	240	120	90	90
75340B1622100	M16x221	16	110	18	24	100	80	160	240	120	90	90
